Пластиковый пищевой контейнер Powerjet для преформ машина литья
- Категория: Injection Molding Machine >>>
- Поставщик: Powerjet,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 34034.39 $* | 35736.37 $* |
| Aug-19-2025 | 33748.19 $* | 35435.52 $* |
| Jul-19-2025 | 28314.94 $* | 29730.75 $* |
| Jun-19-2025 | 33176.78 $* | 34835.44 $* |
| May-19-2025 | 28886.44 $* | 30330.46 $* |
| Apr-19-2025 | 32604.9 $* | 34234.6 $* |
| Mar-19-2025 | 32318.30 $* | 33934.36 $* |
| Feb-19-2025 | 32032.78 $* | 33634.52 $* |
| Jan-19-2025 | 31746.10 $* | 33333.22 $* |
Характеристики
Details Images
Powerjet PET series thin wall injection machine has the following advantages:
1, increases the top output and travel;
2, uses a special high-mixed screw for PET packaging;
3, low-temperature material cylinder design, the material cylinder temperature is more constant.
1, increases the top output and travel;
2, uses a special high-mixed screw for PET packaging;
3, low-temperature material cylinder design, the material cylinder temperature is more constant.
Project Cases
Production case
Product name: PET candy jar
Cavities: 12Cycle time: 13s
Wall thickness:1.1mm
Product weight:43g
Raw materials: PET
Products Description

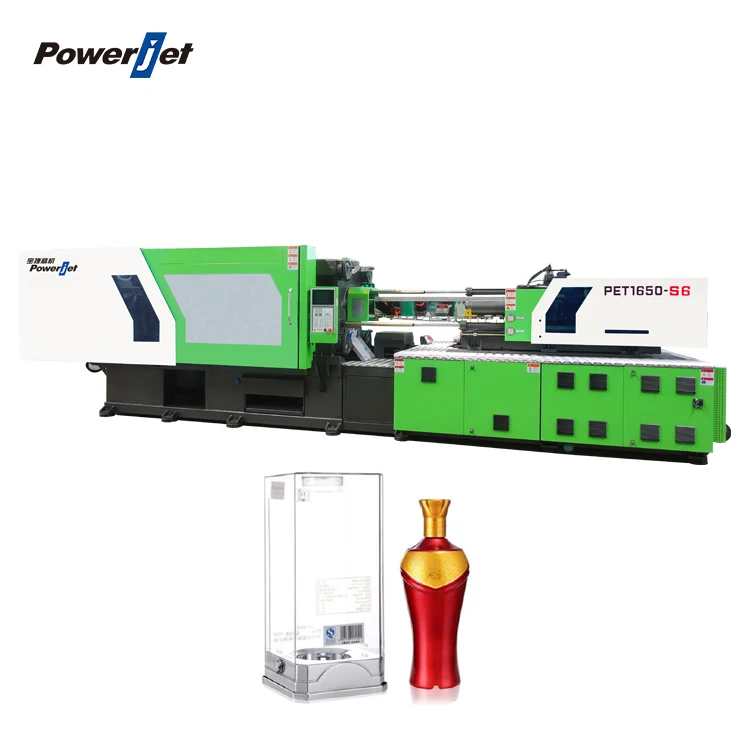

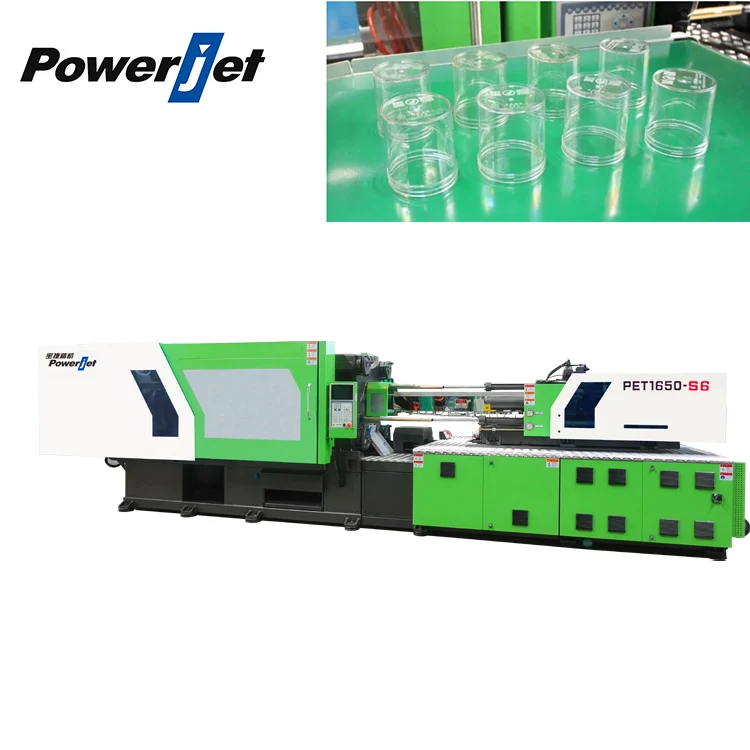

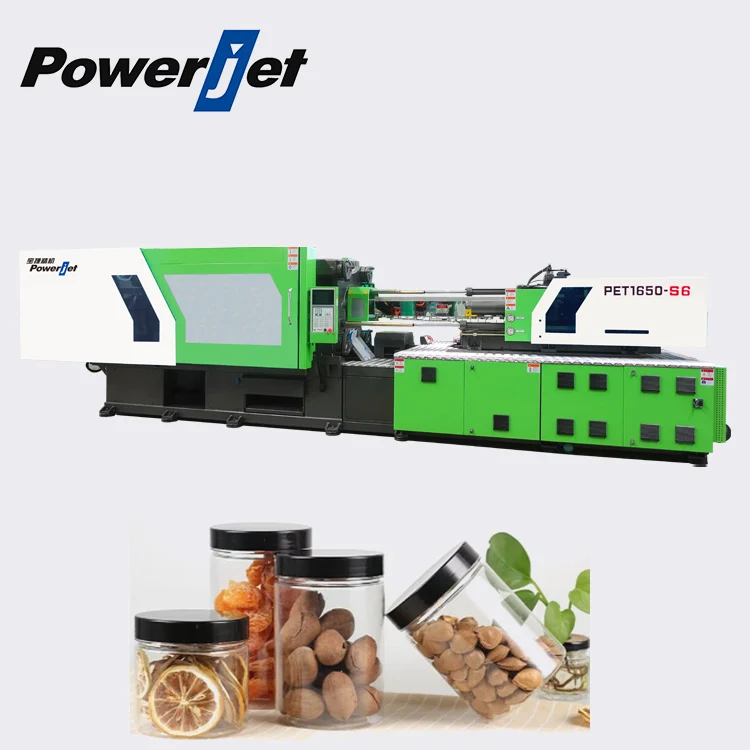

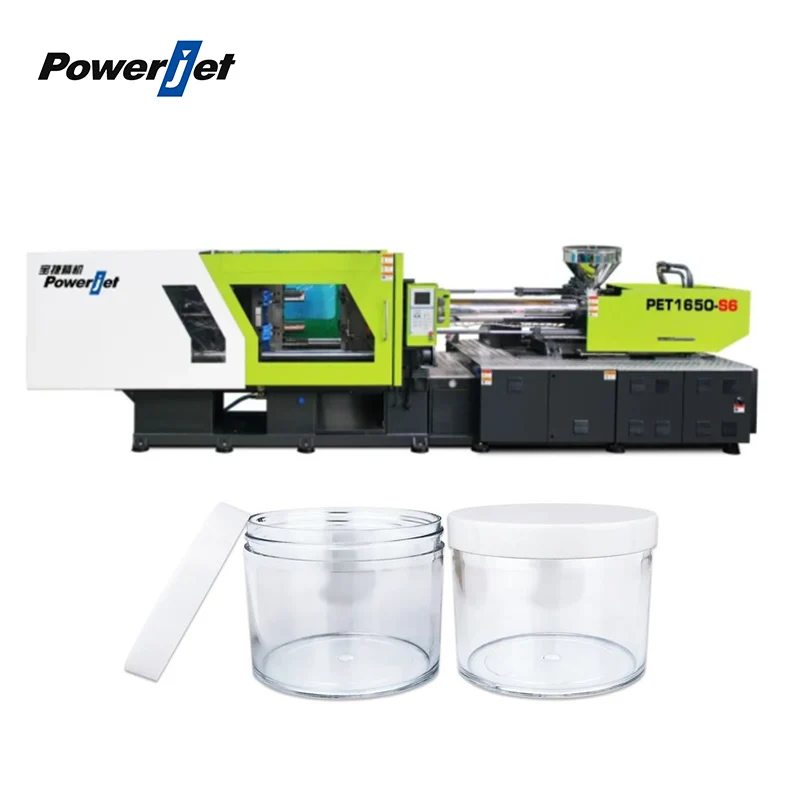

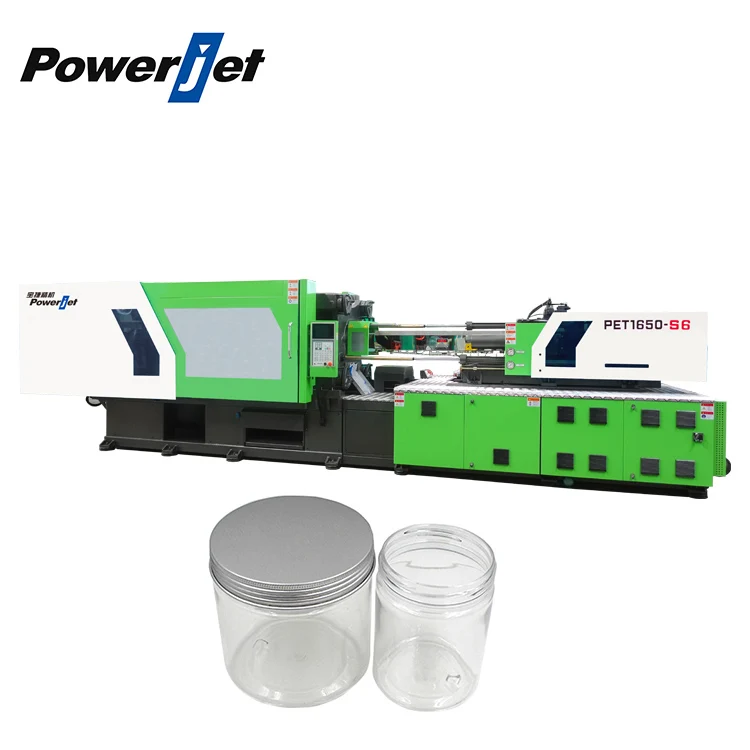

PET packaging box special injection molding machine
Fast, Efficient and stable production
DESCRIPTION | UNIT | PET1650-S6 | ||
Clamping force | KN | 4000 | ||
Opening stroke | mm | 710 | ||
Max.daylight | mm | 1440 | ||
Platen size | mm | 1050*1050 | ||
Space between bars | mm | 740*720 | ||
Max.mold height | mm | 730 | ||
Min.mold height | mm | 330 | ||
Ejector stroke | mm | 210 | ||
Ejector force | KN | 77-110 | ||
Screw diameter | mm | 68 | 75 | |
Screw L/D ratio | 24 | 23 | ||
Shot volume | cm3 | 1198 | 1458 | |
Shot weight | g | 1394 | 1696 | |
Injection rate | g/s | 575 | 700 | |
Plasticizing capacity | g/s | 81 | 118 | |
Screw stroke | mm | 330 | ||
Screw speed | rpm | 220 | ||
Hydraulic system pressure | Mpa | 17.5 | ||
Pump motor power | KW | 40+40 | ||
Heater power | KW | 23.5 | ||
Oil tank capacity | L | 900 | ||
Machine weight | Ton | 14 | ||
Machine dimension | m | 7.6*1.95*2.3 | ||
Company Profile
VR
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services.
Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases
