Лидер продаж дорожный каток высокого стандарта по низкой цене Строительная техника строительные машины для
- Категория: Road Roller >>>
- Поставщик: Shandong,Benma,Engineering,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 79202.19 $* | 83162.19 $* |
| Aug-16-2025 | 78536.97 $* | 82463.98 $* |
| Jul-16-2025 | 65890.20 $* | 69185.89 $* |
| Jun-16-2025 | 77205.85 $* | 81065.33 $* |
| May-16-2025 | 67222.74 $* | 70583.40 $* |
| Apr-16-2025 | 75874.90 $* | 79668.46 $* |
| Mar-16-2025 | 75208.77 $* | 78968.2 $* |
| Feb-16-2025 | 74543.83 $* | 78270.16 $* |
| Jan-16-2025 | 73877.77 $* | 77571.43 $* |
Характеристики
hot selling high standard low price road roller engineering machinery construction machines for concrete asphalt
Product Description

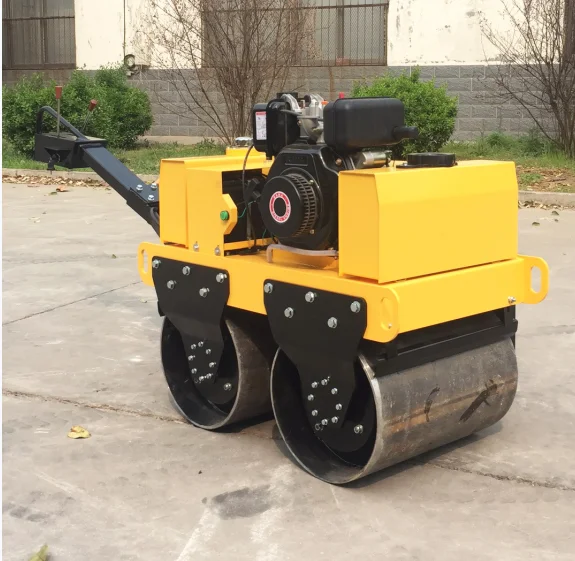

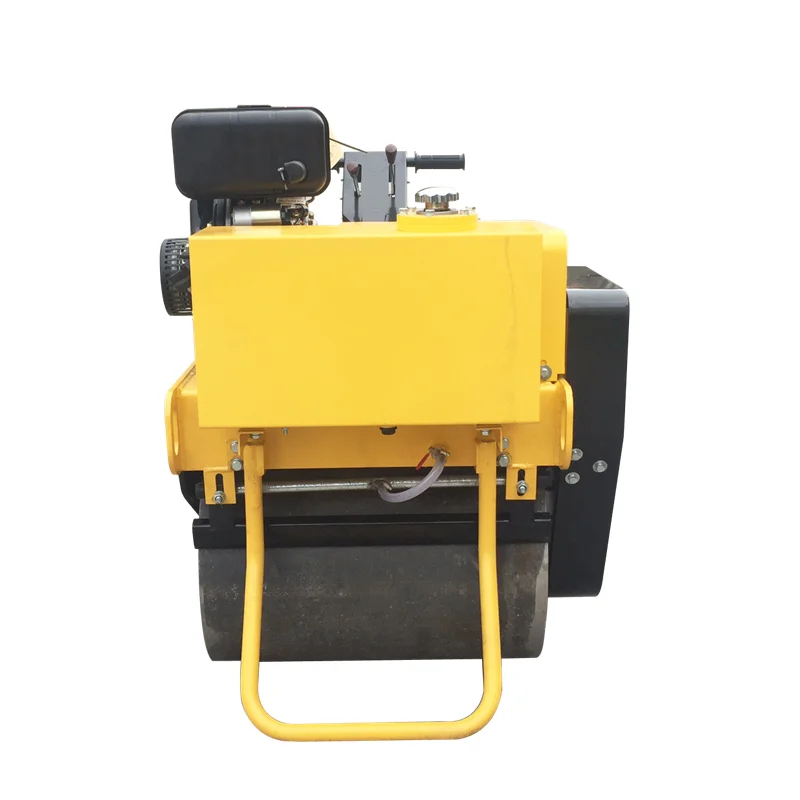

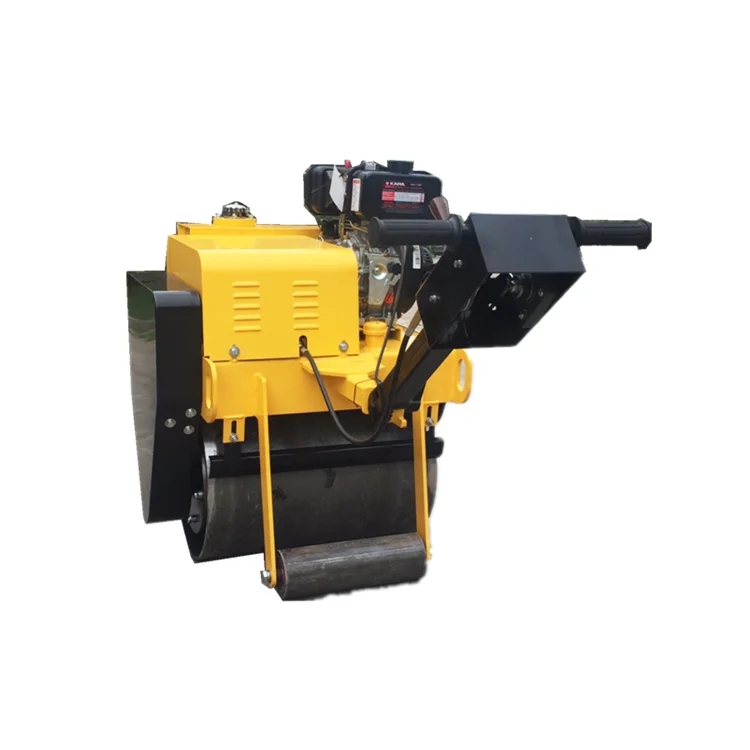

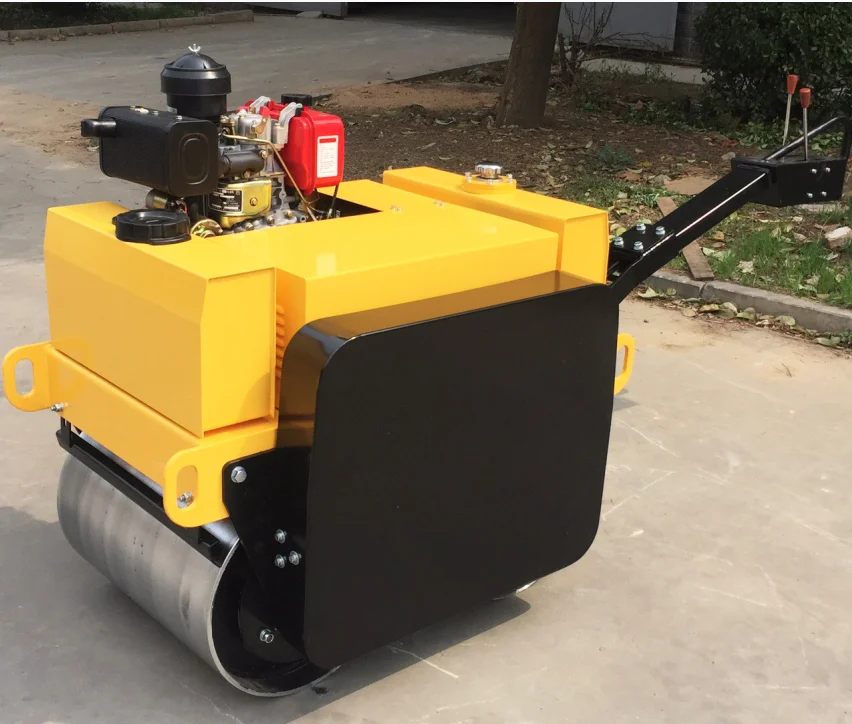

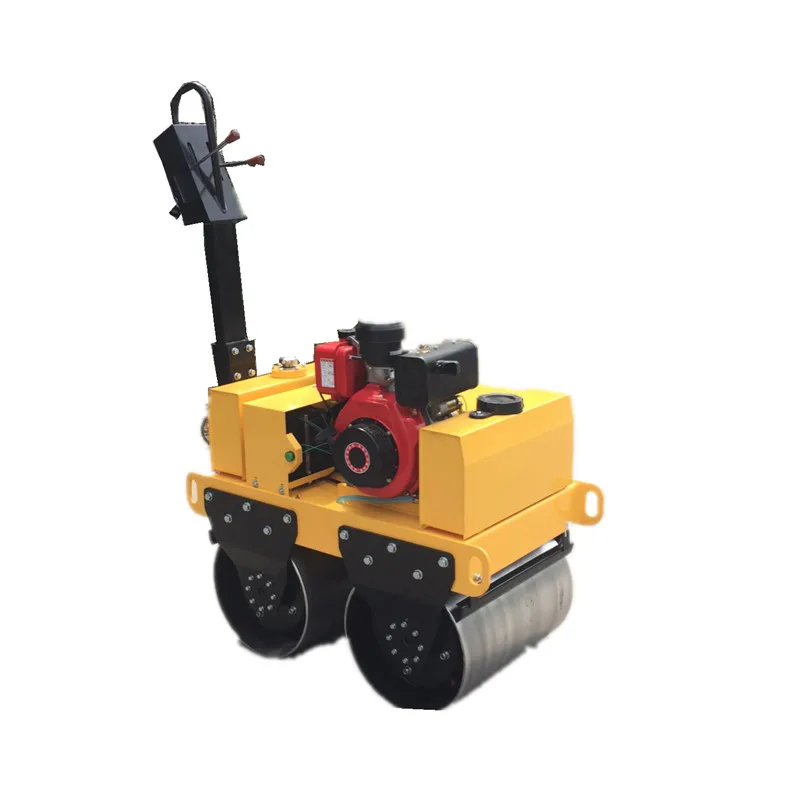

Small road vibratory roller compactor can be used for compaction of soil, asphalt roads, sidewalks, bridges and culverts, parking lots, sports fields and narrow venues. It has vertical vibration, large excitation force and high compaction efficiency. Ideal equipment for streets and squares.
Technical parameters:
| model | BM-30 | BM-30C |
| Engine brand | HONDA GX160 | CHANGFA CF170 |
| Engine model | Gasoline, single cylinder, vertical, four stroke, overhead valves | |
| Net weight(KG) | 330 | |
| Gross weight(KG) | 350 | |
| Packing size(mm) | 1050*850*1200 | |
| power(kw) | 4.1 | 3.1 |
| Ratating speed(rpm) | 3600 | |
| Fuel capacity(L) | 3.6 | 1.9 |
| Lubricating oil(L) | 0.6 | 0.75 |
| Fuel type | gasoline | diesel |
| Start up | Recoil Hand Start | |
| Vibration frequency | 70(HZ) | |
| Nominal amplitude(mm) | 0.6 | |
| Exciting force(kn) | 15 | |
| Climbing ability | 30% | |
| Speed(KM/h) | 3.8 | |
| Hydraulic tank Capacity(L) | 15 | 10 |
| Water tank capacity(L) | 22 | |
| Linear static pressure(N/CM) | 45 | |
| Type | walking single drum roller | |
| Working width(mm) | 780 | |
| Overall length(mm) | 1600 | |
| Mchine height(mm) | 1060 | |
| Steel wheel size(mm) | 426×600 | |
Small road roller compactor features:
1. The extra-large water tank reduces the trouble of refilling water back and forth, and increases the continuous working time of the equipment.
2. Vertical vibration, large excitation force and high compaction efficiency. To
3. There is an iron automatic cleaning scraper with automatic compaction on the steel wheel to prevent soil and asphalt from accumulating on the steel wheel and make the compaction smoother.
4. Hydraulic moving forward and backward, mechanical vibration has reliable performance. To
5. The adjustable and foldable operating handle brings a comfortable operating environment to the operator, and it is convenient for transportation or storage after folding.
6. The working radius is small, and it can work in a small area;
7. Equipped with imported power, superior performance, easy to start;
8. Adopt international hydraulic drive unit, stepless speed change, easy to change direction;
9. The well-known FYH precision bearings are used to ensure the working performance of the whole machine;
10. The surface is sprayed with plastic, beautiful, anti-rust and anti-corrosion.
Packaging & Shipping
Our mini road compactor vibratory rollers are usually packed by plywood box or by steel frame, and they can also be packed in nude and then into containers with well fixing.
Shipping terms are by sea or by air.
