3 в 1 АБС электрический кабель воздушный тормозной шланг сборе с

Function: Connect trucks and power supply for trailer lights display

Hose meets or exceed SAE J1402

Die-cast plugs meets SAE j560

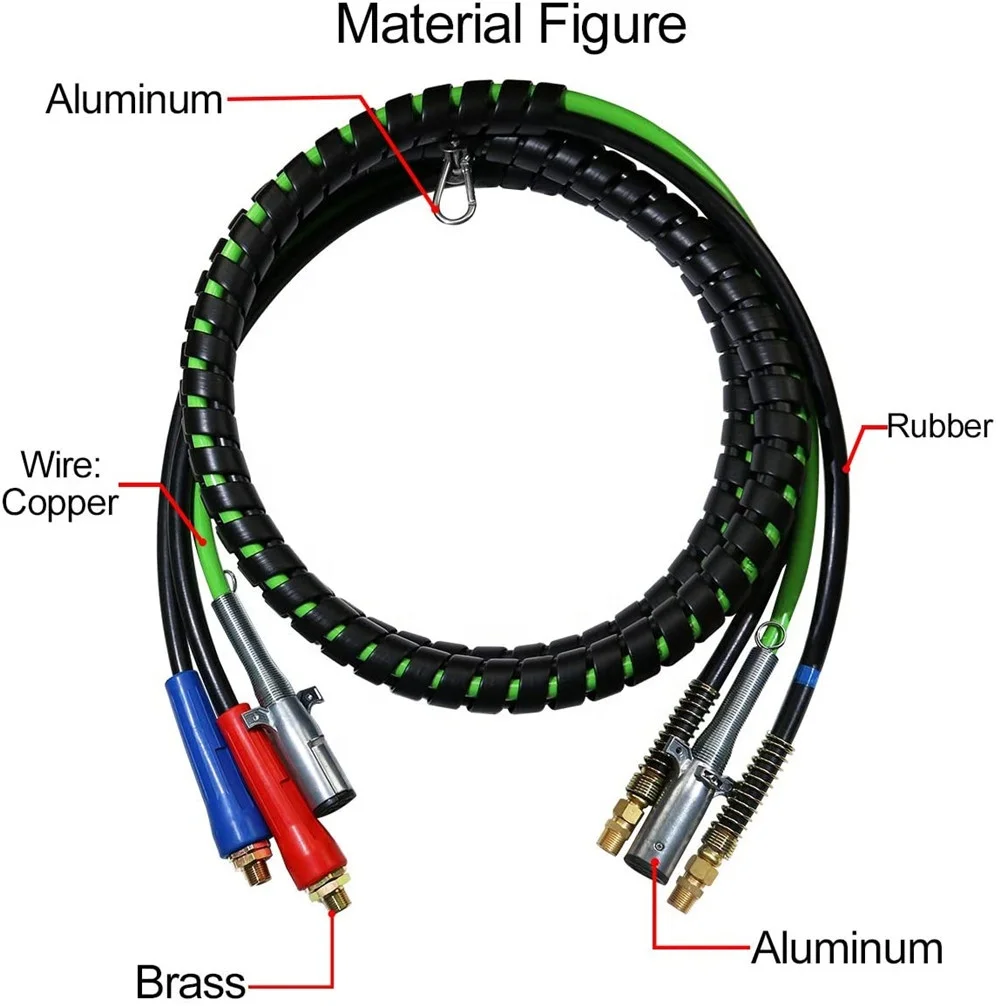

3/8" ID RUBBER air lines available with black or red/blue

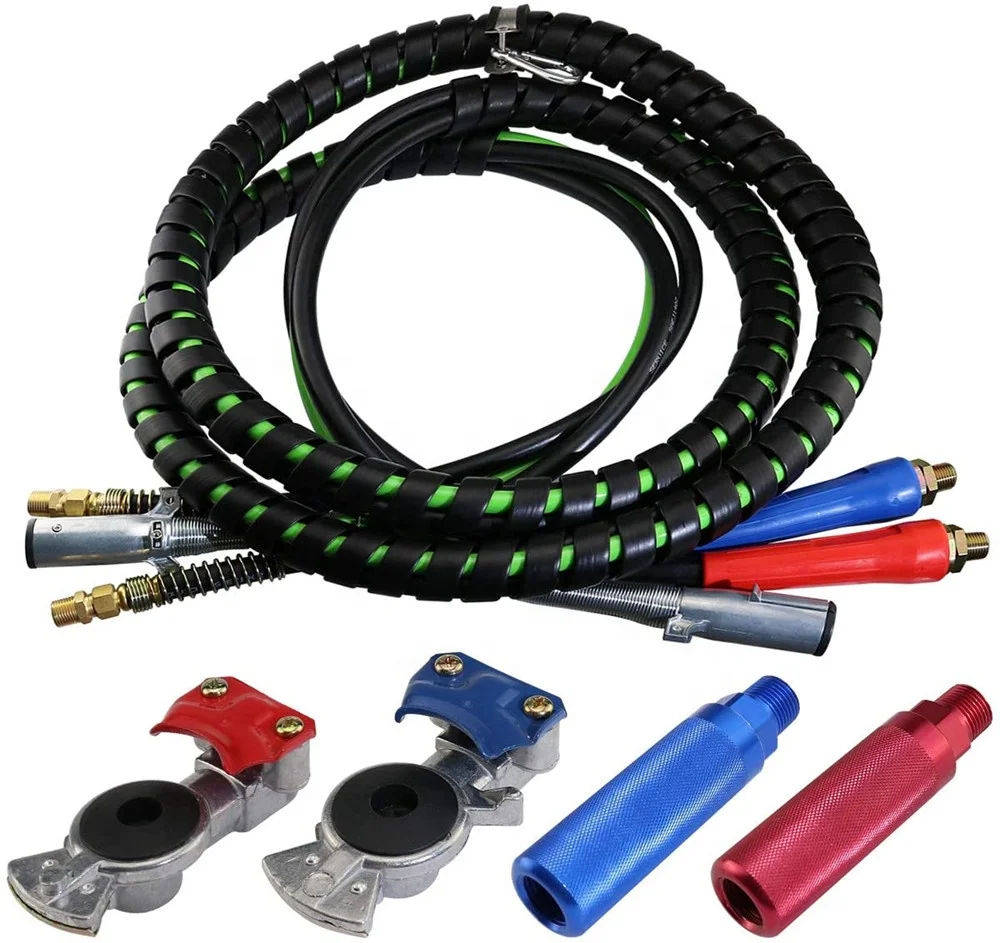

1. Two air lines and one 7 pin electric cable assembly set

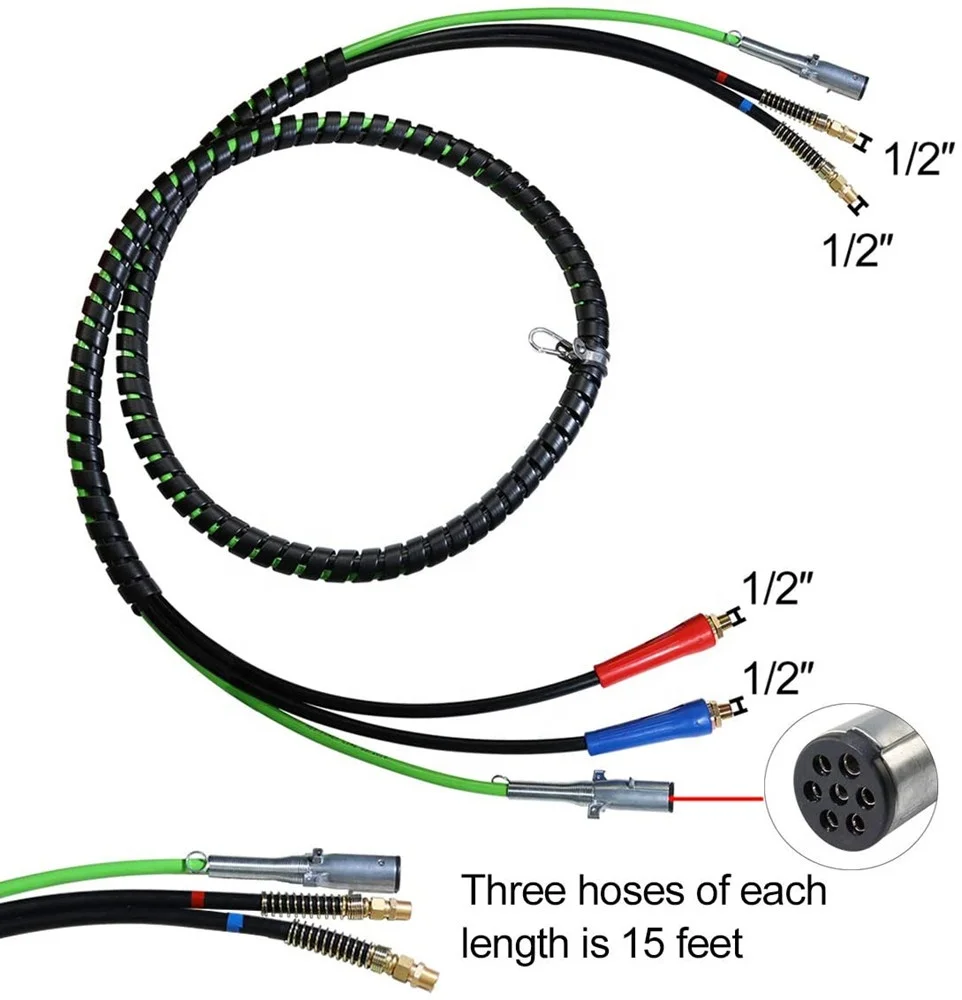

2. Working length: 8 feet, 10 feet, 12 feet, 15 feet
3. Excellent flexibility in all weather even at -40℃ to +80℃.
4. It's for ABS system of commercial vehicle, heavy duty truck, trailer.

Wiring Information Reference:
7 Pin Lighting Connections
PIN 1 - Yellow Wire (Left / Hand Direction Indicator left turn signal display)

PIN 2 - Blue Wire (Rear Fog Lamps Fog Lights display)
PIN 3 - White Wire (Earth Return spot turning lights show)
PIN 4 - Green Wire (Right / H Direction Indicator right turn signal lamp display)
PIN 5 - Brown Wire (Right / H Tail & No. Plate Lamp Right taillight and license light box display)
PIN 6 - Red Wire (Stop Lamp brake light display)
PIN 7 - Black Wire (Left / H Tail & No. Plate Lamp left taillight and license light box display)
