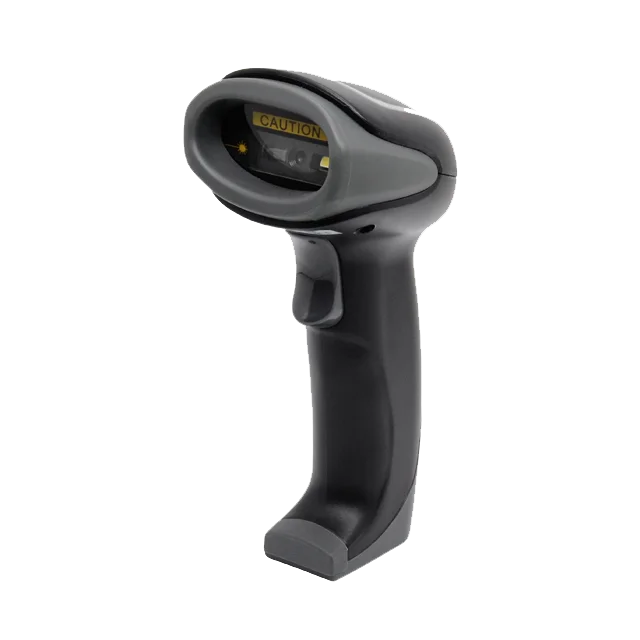

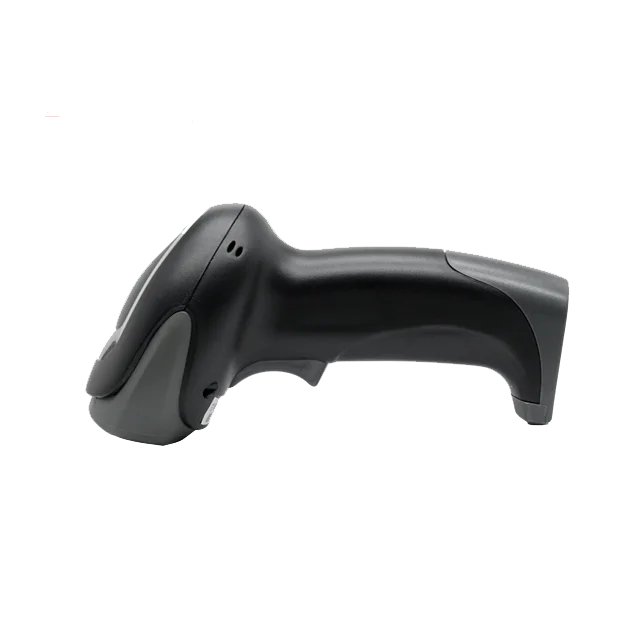

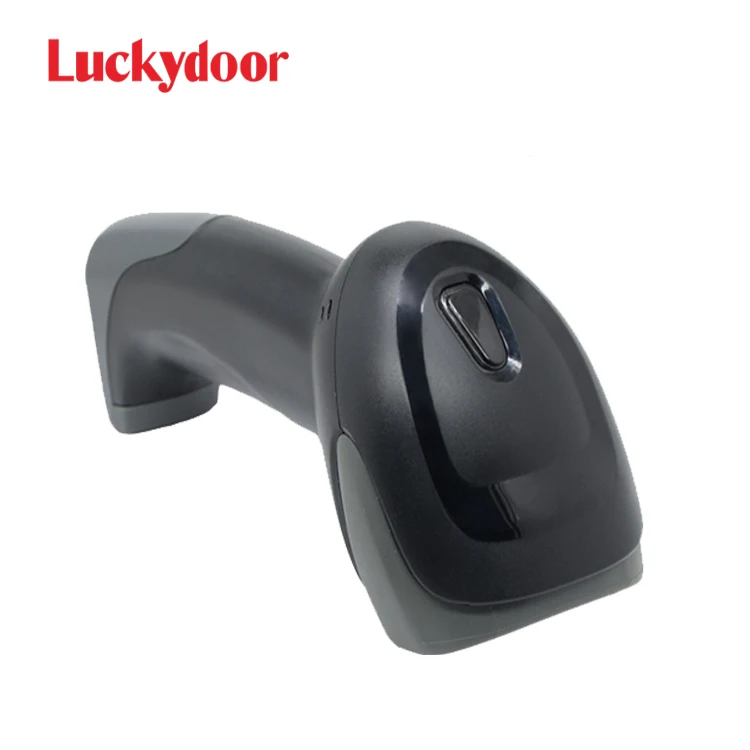

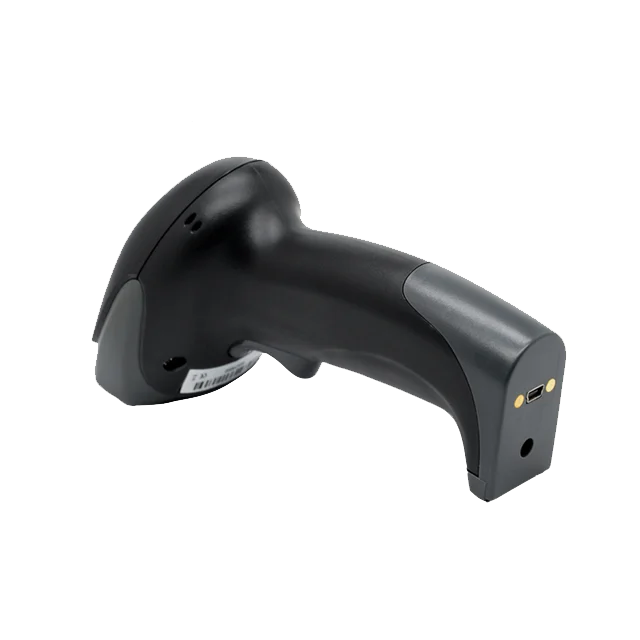

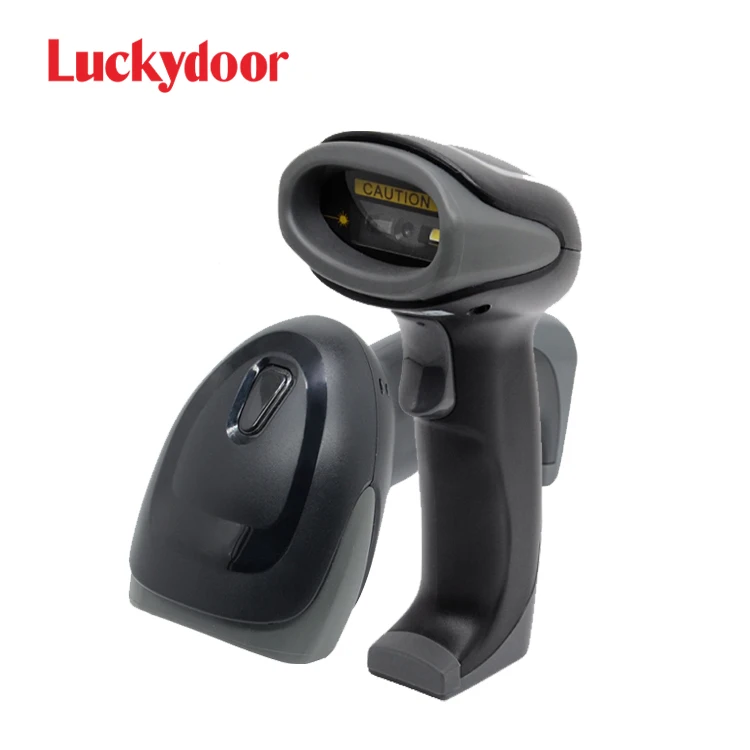

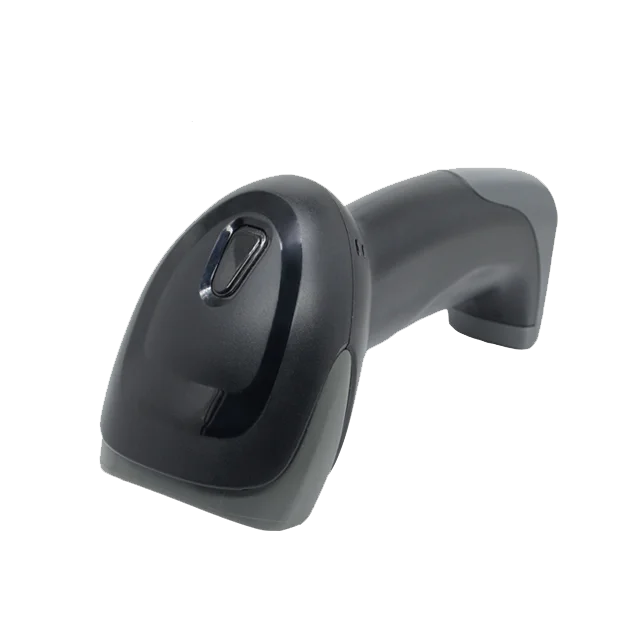

Luckydoor K-622 rugged Qr code 1D 2D quick Scan Barcode Scanner Wired Qr code Bar Code Reader

Product Brief:

1.Light sources: 617nm LED Aimer,White LED

2.Image sensor: Image CMOS

3.Scan Speed: >25inch/63cm per second

4.Working voltage & current: 5V,300mA

5.Interface: USB-HID, USB-COM, PS2, RS232



The Luckydoor K-622 1D 2D USB wired scanner with strong decoding ability and 2m long length cable to meet your work needs.No need to download apps, no need to install software drive, plug and play.Compatible with windows,MacOS and Linux.This scanner can be used in supermarkets, convenience stores, warehouse, library, bookstore, drugstore,etc.



Features:

1.There is a 2m cable for you,

2.Plug and play,no need apps and software.

3. Compatible with windows,MacOS,Linux and POS.

4.Work well with PC and POS by USB cable.

5.Two type of scanning modes,Auto-sensing Scan Mode and Key Trigger Mode.

6.Strong decoding ability,fast and accurate scanning 1D and 2D code,support screen scanning.

7.Support turn on or off the sound.

8.Comfortable and durable because of high-strength ABC materials.

9.Be used in supermarkets, convenience stores, warehouse, library, bookstore, drugstore,etc.





Product details:

Working Parameters
Light Source	617nm LED Aimer,White LED
Scan Distance	5-390mm
Scan Angle	Yaw 65°,Rotation 60°,Pitch 360°
Scan Speed	>25inch/63cm each second
Min.Resolution	SR;Code39 4.8mil,UPC60% 5mil,PDF417 5mil,Datamatrix7.5mil
Print Contrast Signal	>30%(UPC/EAN 100%)
LED Indication	white
Sound	adjustable buzzer
Communication Interface	HID USB,USB Virtual COM,RS-232 ,PS2
hysical Parameters
Dimension	176mmx100mmx72mm
Weight	354g (data line not included)
Wire Length	2.0m
Power Supply Parameters
Input Voltage	5VDC±1%
Working Current	85mA( operating)
Environment Parameters
Operating Temperature	-20°C~+50°C
Operating Humidity	5%~95% no condensation
Storage Temperature	-40°C~+70°C
Ambient Brightness	3000~8,000Lux(fluorescence),3000-8000Lux(sunlight)
Safety Standards
EMC	CE EN55022 B, FCC Part 15 Class B, SGS, IP54 Waterproof Test,
Laser Safety	IEC 60825-1 Class 1
Decode Type
1D Barcodes	UPC/EAN/JAN ,UPC/EAN with Supplementals,UCC/EAN 128,
	CODE 39,MSI,CODE 11,CODE 39 FULL ASCII,CODE 39 TriOptic
	code 128,code 128Full ASCII,Codebar ,code 93,Discrete20f5,
	IATA,RSSvariants,Codabar,Chinese2of5,Inteleaved2/5
	interleaved2of5,china post code and all international 1D code
2D Barcodes	PDF417, Data Matrix, QR Code, Aetec, Hanxin.



Packing Details:

List per Unit:
1*rs232 pos qr code scanner of K-622
1*Stand(optional)
1*2Cable
1*User Manual(English Version)
Dimensions per Unit: 10*8*19 CM /10*8*24CM
Units per Export Carton: 50 Units
Export Carton Dimensions: 53*50*42.5 CM /65*50*50CM
