Характеристики

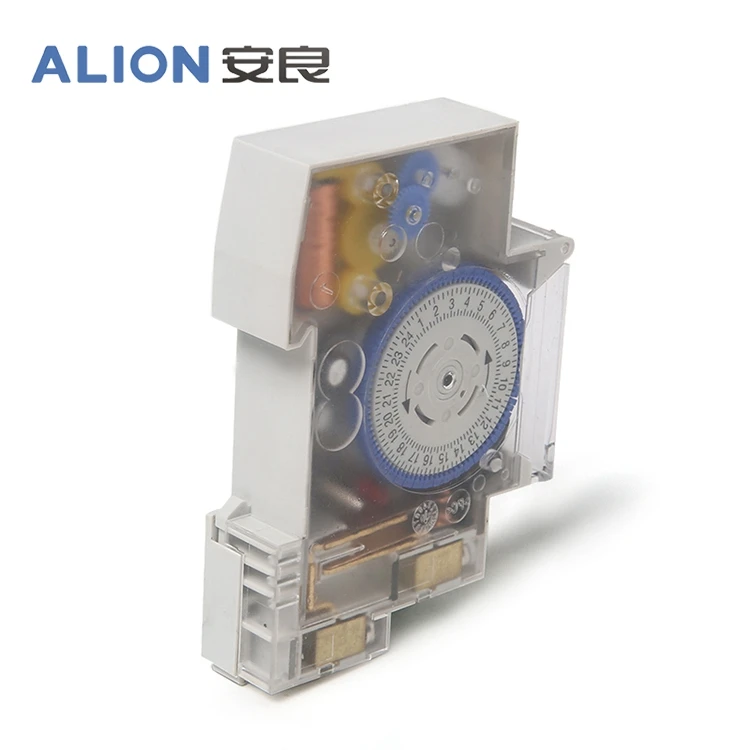

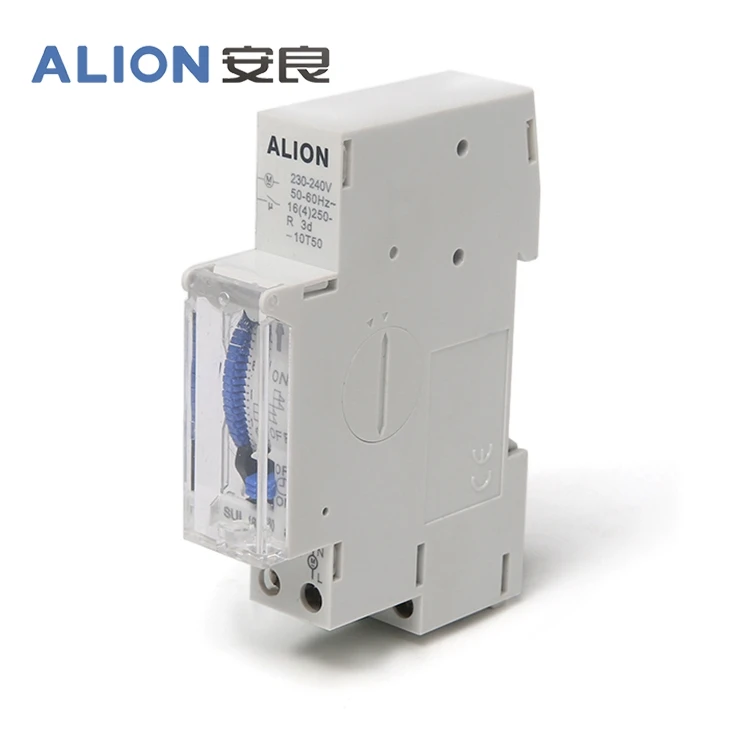

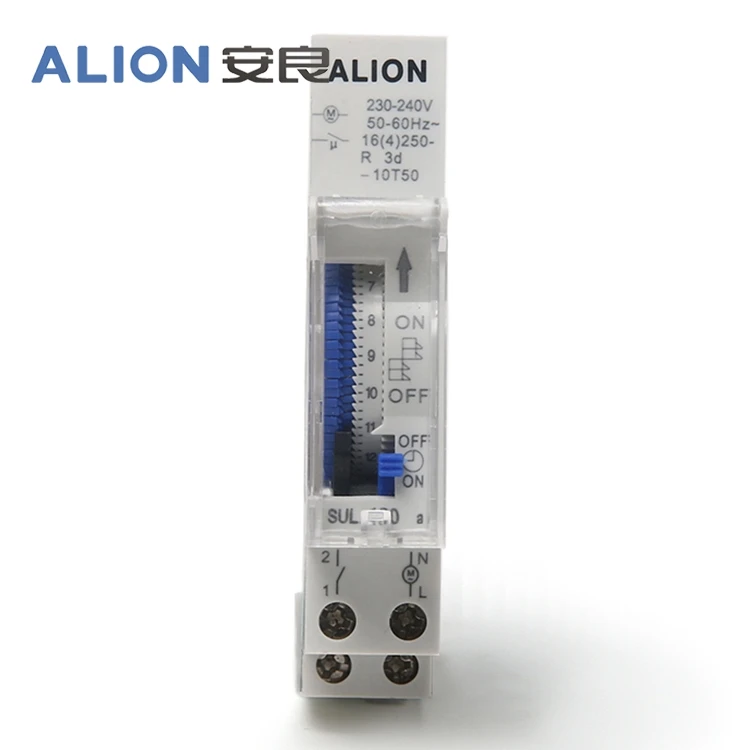

ALION SUL180a 220V-240V 50-60Hz 24 hour DIN-rail Analogue Timer Switch
Product Description
Focus On Time Control For 24 Years
The SUL180a/SYN160a analogue miniature time switches are the smaller time switch,Similar to the appearance of MCB 1P. It can easy to change the battery and switching 3 positions with continuous ON/AUTO/continuous OFF.
Common functions
- Analogue time switch
- 1 channel
- Daily program
- Quartz controlled
- Shortest switching time: 15 minutes
- 96 switching segments
- Screw terminals
- Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF
- With power reserve (NiMH replace&rechargeable battery)
Applications
- Billboard or Showcase lighting
- Air-condition
- Pumps/Motor/Geyser/Fan Control
- Boilers / Heater Control
- General Electrical Circuits
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
Technical Data
| Type | SUL180a |
| Operating voltage | 230-240VAC / 110VAC / 24VDC / 12VDC |
| Frequency | 50-60Hz |
| Number of channels | 1 |
| Width | 1 modules |
| Installation type | DIN-rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 3 days |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Incandescent/halogen lamp load | 1000W |
| Energy saving lamps | 150W |
| LED lamp < 2 W | 30W |
| LED lamp 2-8 W | 90W |
| LED lamp > 8 W | 100W |
| Shortest switching time | 15 min |
| Programmable every | 15 min |
| Number of switching segments | 96 |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
| Type of contact | NO contact |
| Switching output | Potential-free and phase-independent |
| Power consumption | 1 VA |
| Test approvals | CE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
Connection Example
Scale Drawings
Company Information
Packaging & Shipping
Our Services
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
