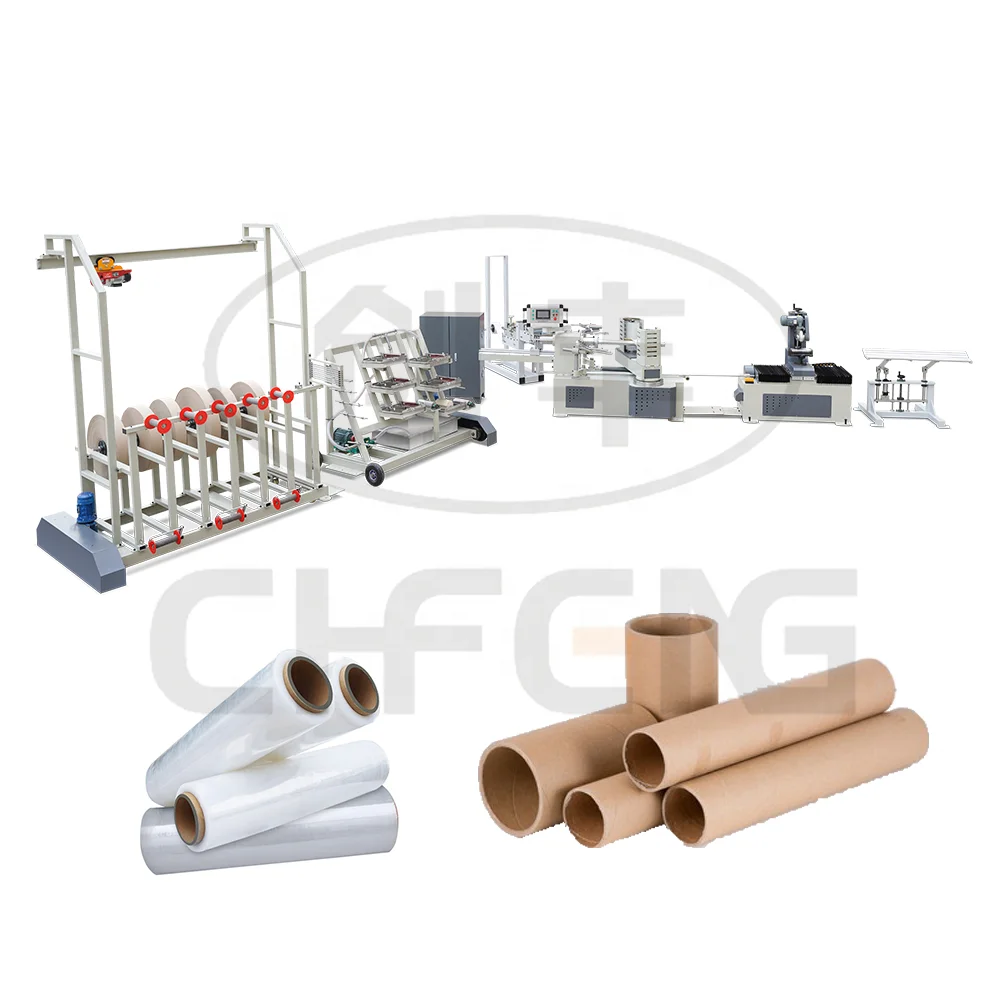

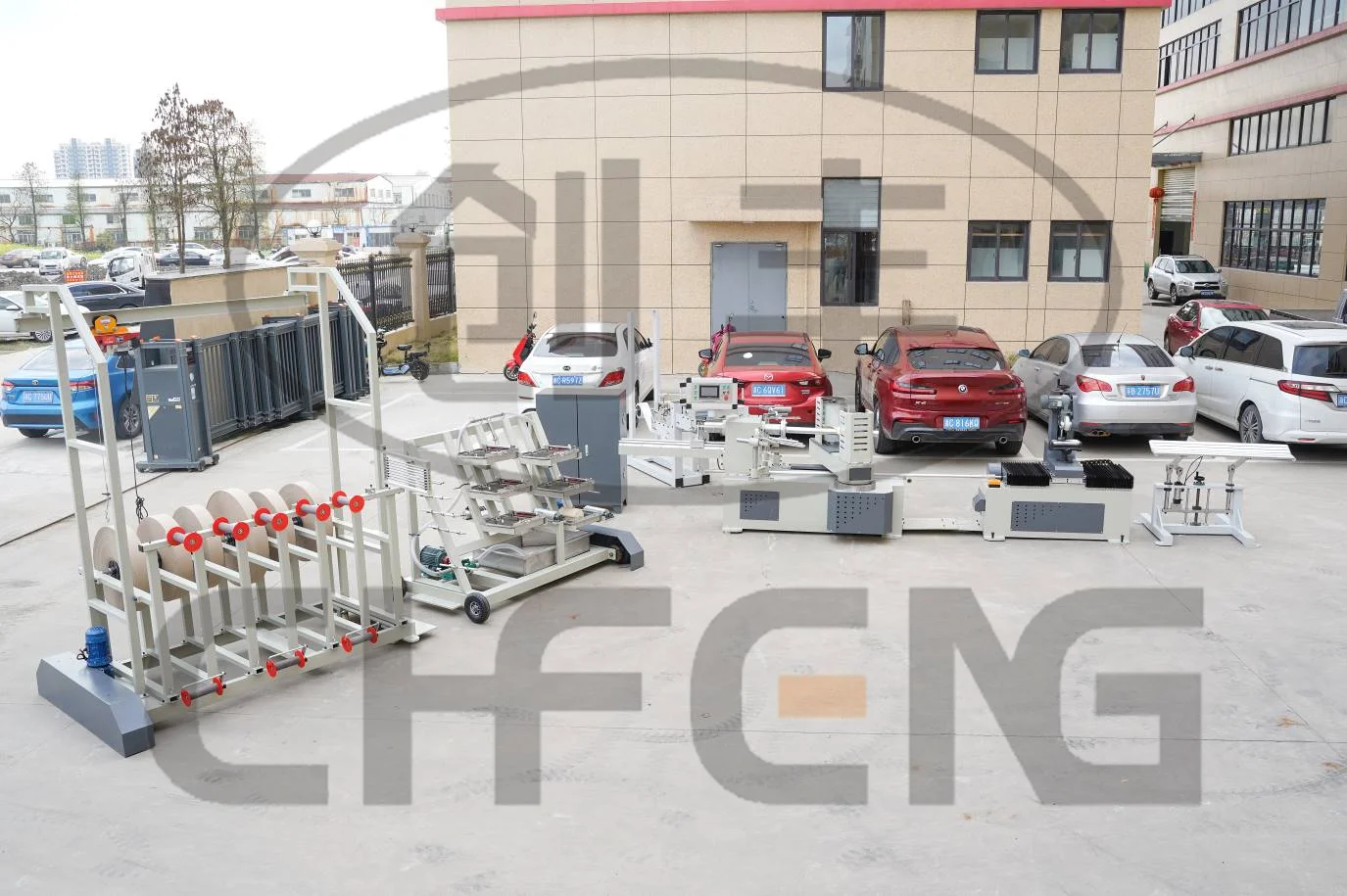

CFJG-SK-50 Spiral Coreboard Paper Tube Core Making Machine paper tube machine
Product Description

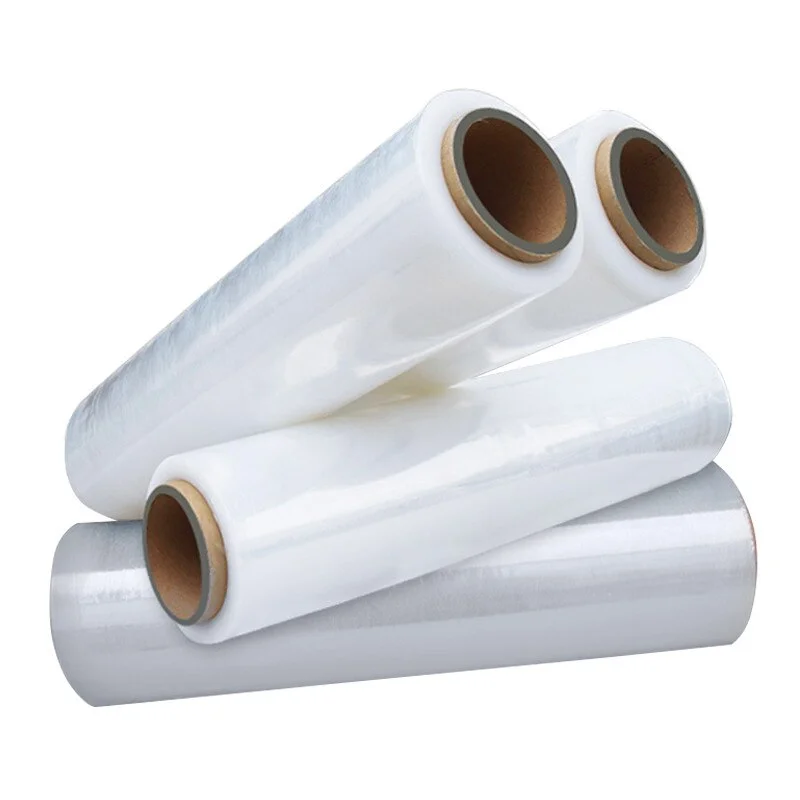

CFJG-50 Small size tube & core making machine is suitable for Toilet Paper Cores;Preservative Film Cores and other paper tubes & cores.
●PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be set up on the controlling panel (touch screen type) .
●Single circular blade inline cutting system with cutting range 500-5000 mm.
●All the brands of components like Motor; Inverter; PLC.
●Single circular blade inline cutting system with cutting range 500-5000 mm.
●All the brands of components like Motor; Inverter; PLC.
●Touch Screen can be customized as per your requirement.
Details
●Spiral winding part -- two heads single belt winding
●Online cutting part controlled by AC motor. Cutting length 800-5000mm and tolerance ± 2mm.
●Online cutting part controlled by AC motor. Cutting length 800-5000mm and tolerance ± 2mm.

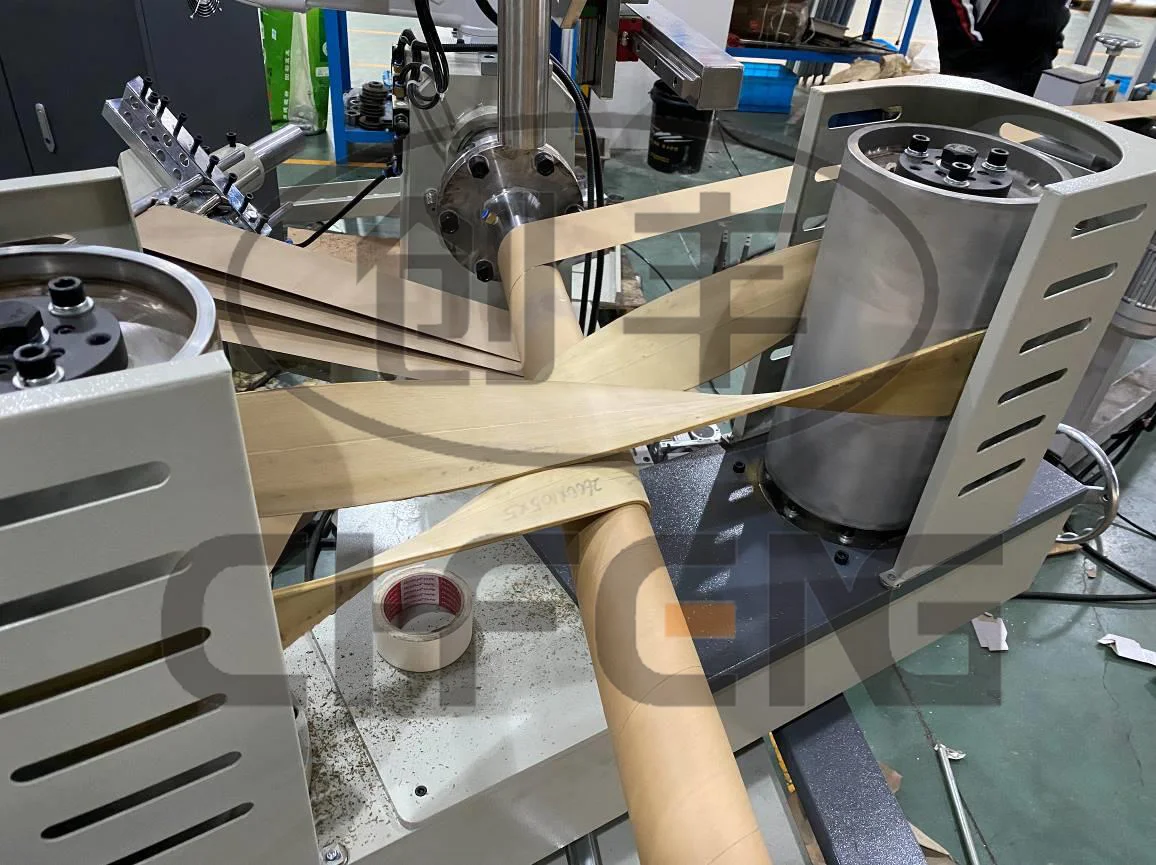

Double Heads Single Belt Spiral Winding
Details
●10 Layers Integral Paper Reel Stand (with motor lifting Type)
Details
●10 Layers Spraying Glue System
Technical Parameter
Model No. | CFJG-50 | ||
Paper Layer | 3-10 layers | ||
Inner Diameter | 20-100 mm | ||
Wall Thickness | 1-5 mm | ||
Online Cutting Length | 1000-5000 mm | ||
Winding Nose | Two heads single belt | ||
Working Speed | 1-20 meters /min | ||
Speed Regulation | By Inverter | ||
Cutting System | Single high speed steel blade | ||
Gluing Way | Double sides | ||
Length Fixing | By Infrared | ||
Power Supply | 380 V/3 phase /50 Hz | ||
Paper Reel Stand | 10 layers | ||
Glue Unit | 3-10 layers | ||
Inner Paper Stand | 1 set | ||
Tube Unloading Shelf | 1 set | ||
Mandrel Shaft | 2 pieces | ||
Belt | 2 pieces | ||
Extra Blades | 5 pieces | ||
Measurement | 2700*1600*1800 mm | ||
Weight | 1500 kgs | ||
Operator | 1-2 persons | ||

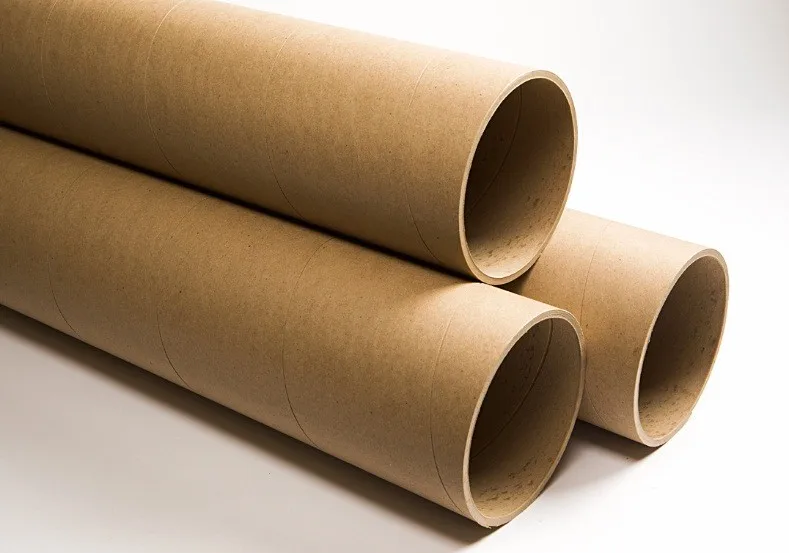

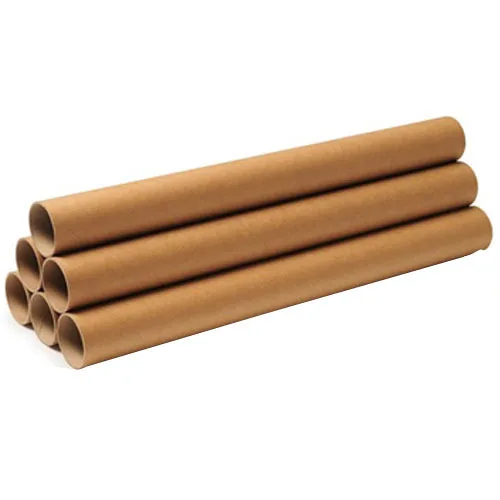

Finished Products
