ALION TB388B 220V-240V переменного тока 50-60 Гц 24 часа в сутки для настенного монтажа ежедневная программа Аналоговый реле
- Категория: Time Switches >>>
- Поставщик: Alion,Holding,Group,Zhejiang,Imp.&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.42 $* | 0.35 $* |
| Aug-17-2025 | 0.25 $* | 0.70 $* |
| Jul-17-2025 | 0.57 $* | 0.8 $* |
| Jun-17-2025 | 0.96 $* | 0.89 $* |
| May-17-2025 | 0.9 $* | 0.0 $* |
| Apr-17-2025 | 0.55 $* | 0.85 $* |
| Mar-17-2025 | 0.42 $* | 0.28 $* |
| Feb-17-2025 | 0.8 $* | 0.78 $* |
| Jan-17-2025 | 0.53 $* | 0.67 $* |
Характеристики

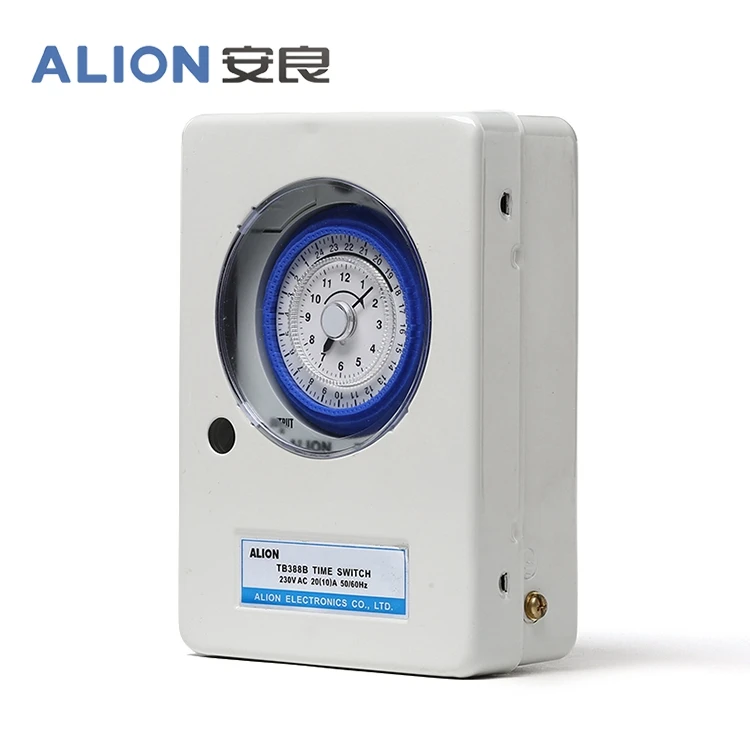

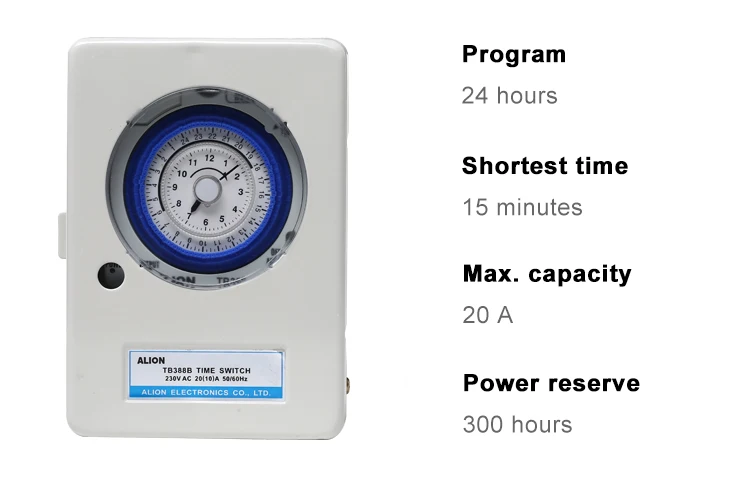

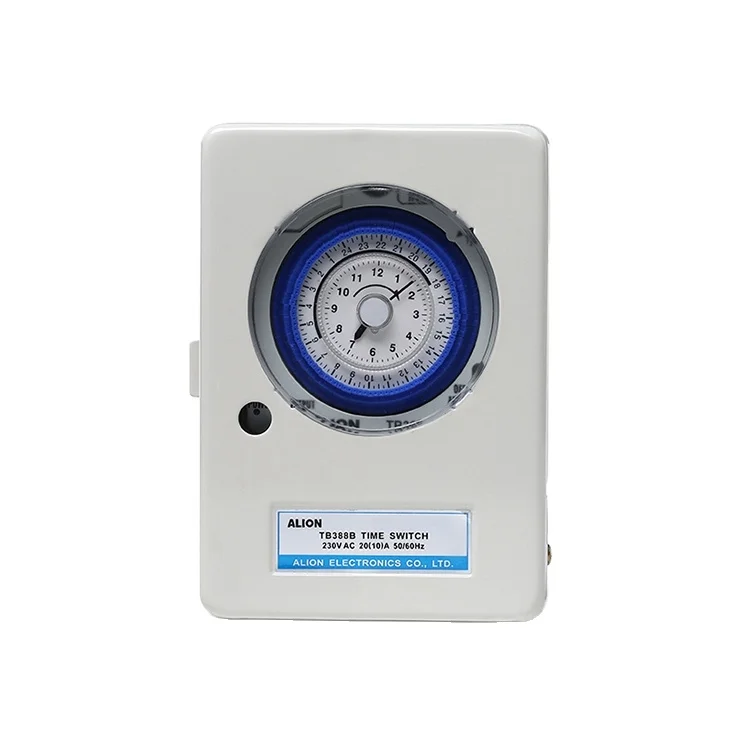

ALION TB388B 220V-240V 50-60Hz 24 hour DIN-rail Daily Program Analogue Time Switch
Product Description
Focus On Time Control For 24 Years
The TB388B/438B analog time switches are the affordable cost alternative for applications that require more than 20A and wide voltage 110-230 VAC. Unit is mounted in a metal enclosure.
Description
Common functions
- Analogue time switch
- 24-Hour or 7-day applications
- Finger-safe terminals
- 1 channel
- Switching status display
- Quartz controlled
- Shortest switching time:15 minutes
- 96 switching segments
- With power reserve (Nickel metal hydride battery replacement )
- Clock hands for time display
- Simple summer/winter time correction
TB388B

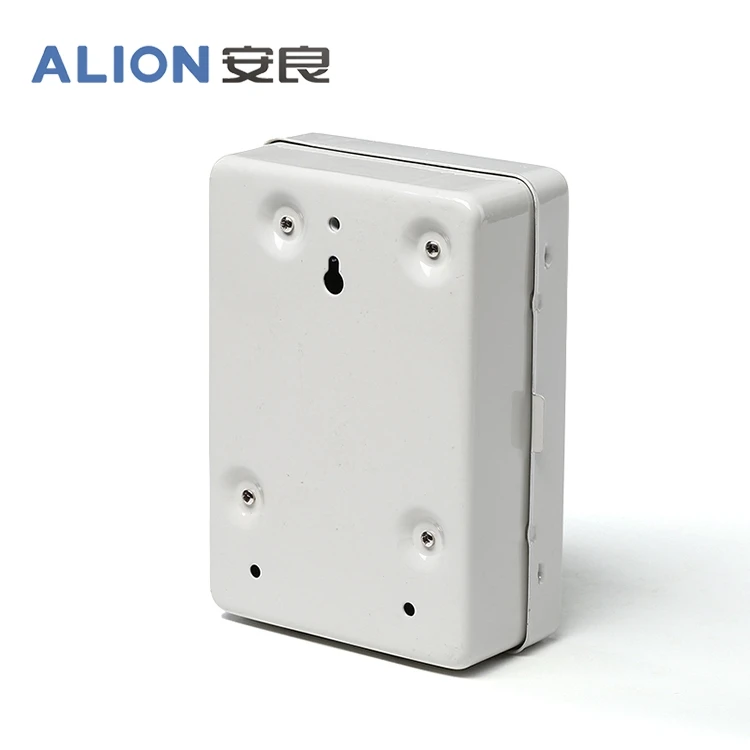

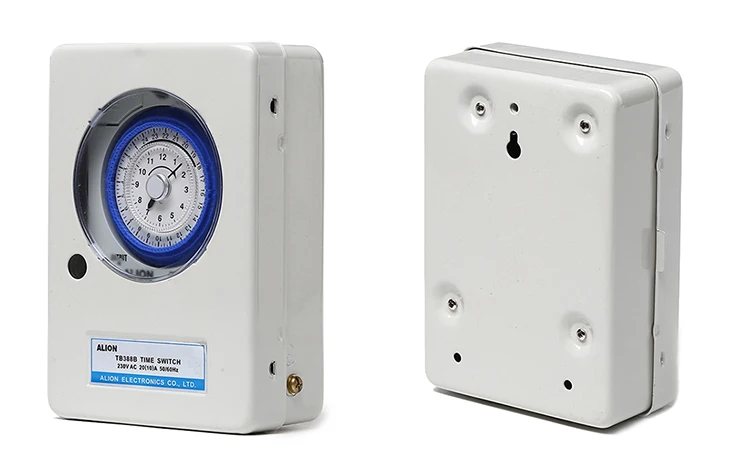

- Metal enclosure with IP40,prevent electromagnetic interference
TB438
- Metal enclosure withdouble layer protection, Rain-proof
Applications
- Billboard or Showcase lighting
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Geyser/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Pool & Spa
Technical Data
| Type | TB388B |
| Operating voltage | 110-230VAC |
| Frequency | 50-60 Hz |
| Number of channels | 1 |
| Width | 107mm |
| Installation type | Wall mounting |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 300 hours |
| Max. switching capacity at 250 V AC, cos φ = 1 | 20 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 12 A |
| Incandescent/halogen lamp load | 2300W |
| Motor load(cos∅=0.7) | AC110.750W AC220V.1500W |
| Fluorescent lamp load (conventional) parallel-corrected | 1300VA 70uF |
| Shortest switching time | 15 min |
| Programmable every | 15 min |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
| Switch type | SPDT |
| Contact type | Not potential-free |
| Number of switching segments | 96 |
| Power consumption | 3 VA |
| Test approvals | CE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 40 |
| Protection class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
Connection Example
Scale Drawings
Company Information
Packaging & Shipping
Our Services
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
