TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Роликовая машина Oyang для производства бумажных столовых
- Категория: >>>
- Поставщик: Zhejiang,Allwell,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 142800.74 $* | 149940.57 $* |
| Aug-20-2025 | 141600.13 $* | 148680.45 $* |
| Jul-20-2025 | 118800.10 $* | 124740.52 $* |
| Jun-20-2025 | 139200.16 $* | 146160.67 $* |
| May-20-2025 | 121200.56 $* | 127260.81 $* |
| Apr-20-2025 | 136800.62 $* | 143640.29 $* |
| Mar-20-2025 | 135600.76 $* | 142380.80 $* |
| Feb-20-2025 | 134400.50 $* | 141120.10 $* |
| Jan-20-2025 | 133200.31 $* | 139860.34 $* |
Характеристики
1. DCS-520 paper cutlery making machine feature
Use Paper as raw material, biodegradable, recyclable, healthy and clean. Good choice for global eco-friendly purpose. Big potential and demand in daily life use.
Product Feature: waterproof, heatproof and oilproof.
2.Technical Data
Item | Specification | |
1 | Output | 170 pieces/min |
2 | Raw Material | Environmental Paper rolls Raw paper is same as paper cup raw material without PE coating |
3 | Max Paper Layers | 3-9 layers ( first and last layer paper can be 60-80 gsm) (middle layer paper can be 100- 150gsm) |
4 | Material Thickness | 600-1000gsm |
5 | Total Power | 80KW |
6 | Power Supply | 380V,50HZ (220V 60HZ) (3 Phase, 4lines) |
7 | Air | >2m³/min |
8 | Operator required | Laminaiton part machine need 1 or 2 workers, Forming machine need 1 worker Glue sealing part need 4 workers Total workers about 6-7person
|
9 | Installation Area | 100 square meter |
10 | Weight | 6000 kg |
3.Making process:pre-coating&lamination&die cutting forming &glue sealing&drying
4.PAPER KNIFE FORK SPOON MACHINE( 3 parts machines)

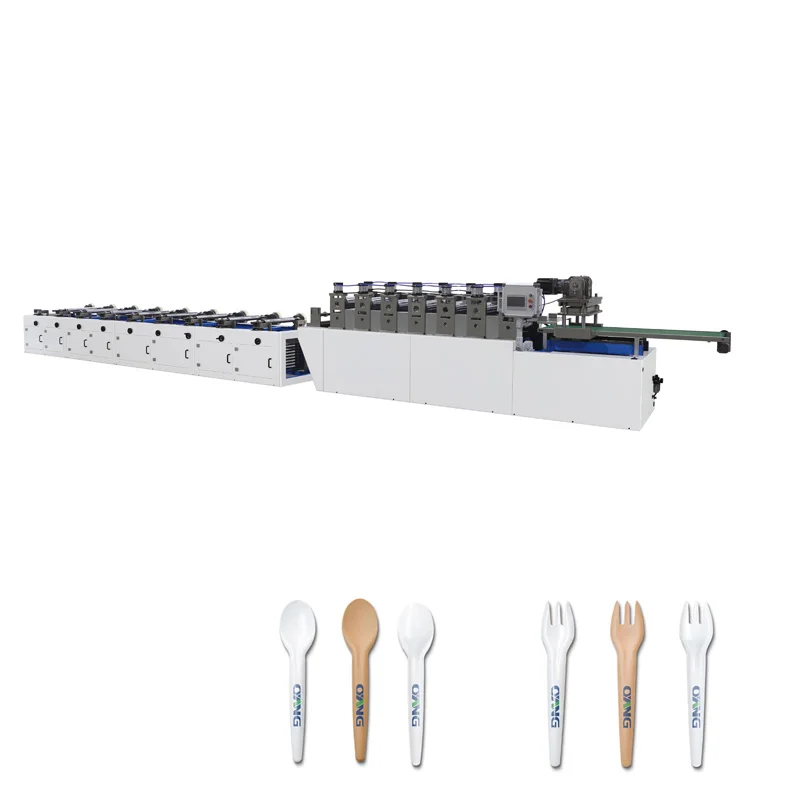

(1).Lamination &glue pre-coating & die cutting part machine: Pre-coated the raw paper (9 layers) with environmental protection glue , then hot pressing and lamination 9 layer paper to only 1 layer paper , finally die cutting with each mould. Max speed 300pcs/min ( die cutting mould can be changed ) After die cutting, the semi-finished products will be outputed by conveyor belt and collected by manually.

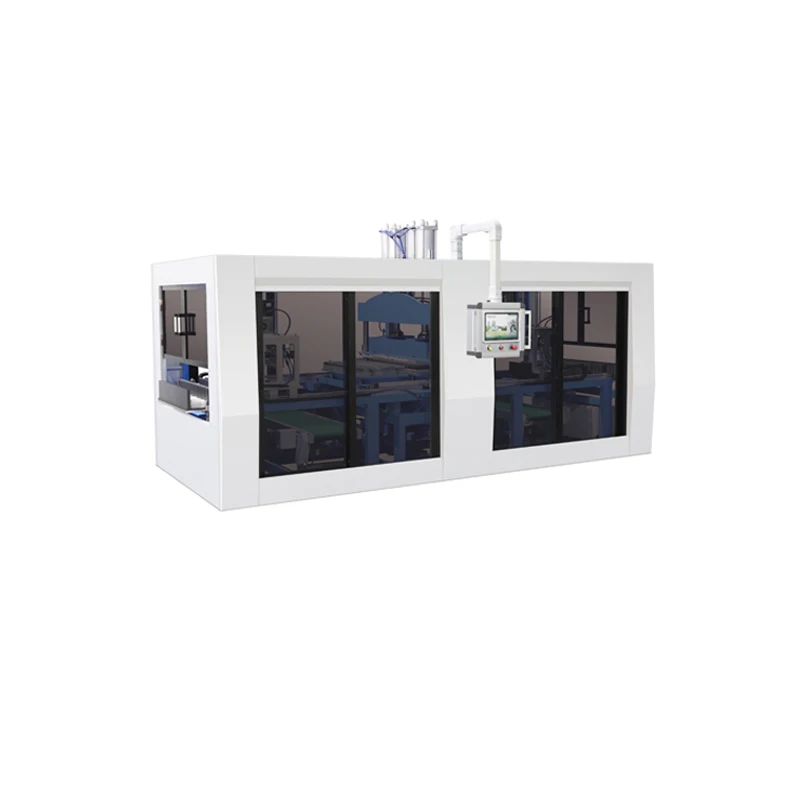

(2). Forming part machine: Manually place the knife, fork and spoon into the fixed fixture (36 holes), the manipulator will move it to forming station (one upper mold, two lower molds), and move the slide to the molding machine to complete the forming. After a cycle of 15 seconds, the forming finished products are stacked on the conveyor belt by suction cups, and then collected and output. Max forming speed 170pcs/min,

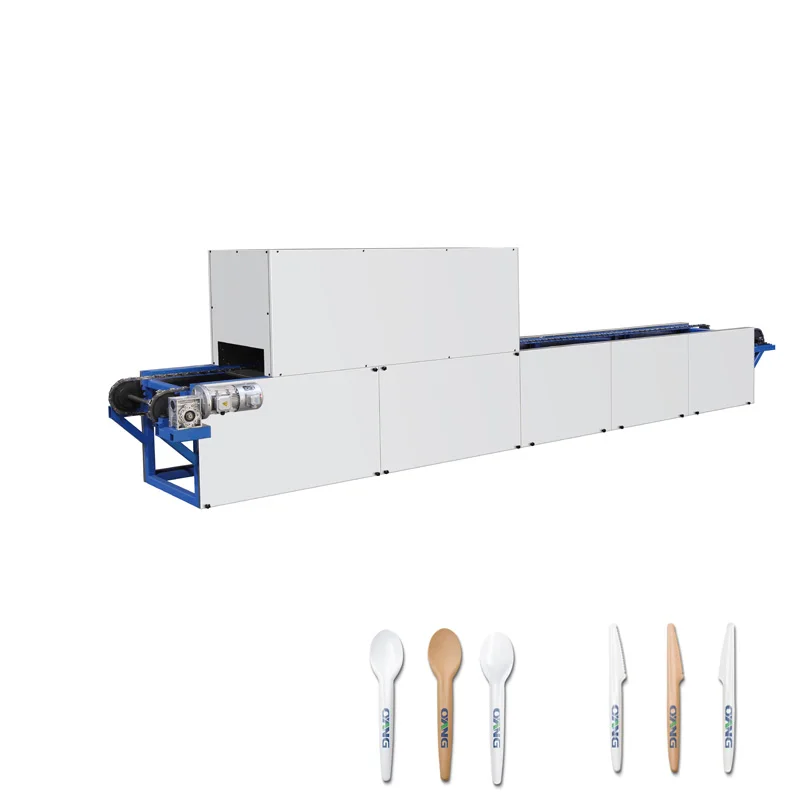

(3). Glue Sealing & drying part machine : it is manually placed formed spoon /knife/fork into the fixture to complete the waterproof glue sealing process. Using rail device, the chain drives the product glue sealing, drying, collecting and packaging after output.

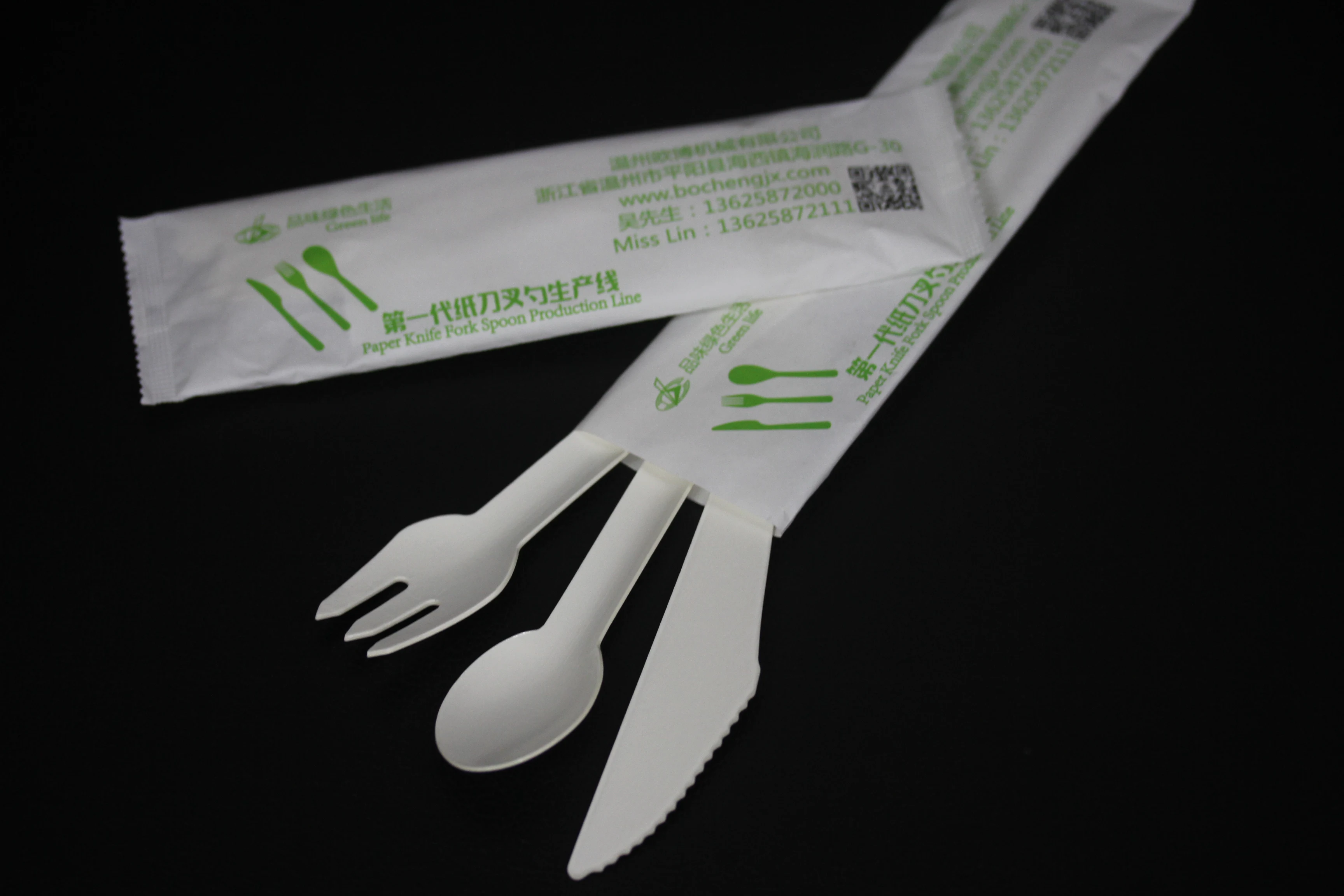

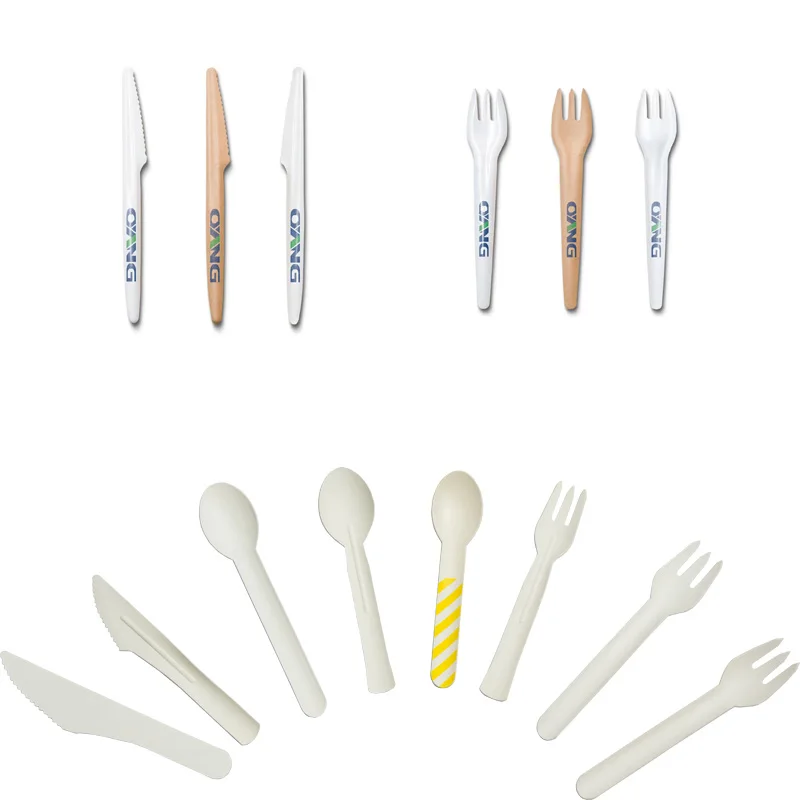

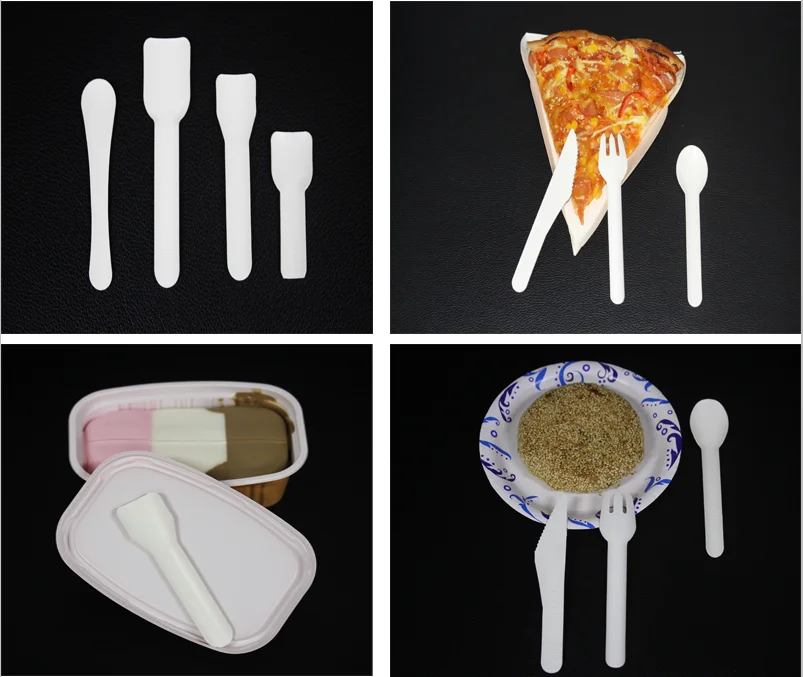

5.Main product
6.Our team
7.Our customer :
8:Our workshop
