CE ручной двойной переключатель питания DZ47 тип блокировки автоматический выключатель бытовой 220 В устройство преобразователя 63 А
- Категория: Circuit Breakers >>>
- Поставщик: Yueqing,Wisdom,Emperor,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.55 $* | 0.90 $* |
| Aug-19-2025 | 0.4 $* | 0.48 $* |
| Jul-19-2025 | 0.77 $* | 0.84 $* |
| Jun-19-2025 | 0.52 $* | 0.20 $* |
| May-19-2025 | 0.78 $* | 0.76 $* |
| Apr-19-2025 | 0.65 $* | 0.83 $* |
| Mar-19-2025 | 0.24 $* | 0.53 $* |
| Feb-19-2025 | 0.42 $* | 0.94 $* |
| Jan-19-2025 | 0.13 $* | 0.37 $* |
Характеристики
CE Manual dual power transfer switch DZ47 type interlock circuit breaker transfer switch household 220v converter device 63A 2P
| Overcurrent trip characteristic table | ||||||
| Type | Test current(A) | Rated current (In) | set time | expected outcome | Initial state | Note |
C D | 1.13In | All values | t>1h | Does not trip | Cold state | The current steadily rises to the specified value within 5s |
| 1.45In | All values | t<1h | Tripping | Hot state | ||
| In<32A | 1s<t<60s | Tripping | Cold state | |||
| 2.55In | In>32A | 1s<t<120s | Tripping | Cold state | ||
| C | 5In | All values | t>0.1s | Does not trip | Cold state | Close the auxiliary switch and turn on the power |
| 10In | All values | t<0.1s | Tripping | Cold state | Close the auxiliary switch and turn on the power | |
| D | 10In | All values | t>0.1s | Does not trip | Cold state | Close the auxiliary switch and turn on the power |
| 14In | All values | t<0.1s | Tripping | Cold state | Close the auxiliary switch and turn on the power | |
| technical parameter | ||||
| Rated working voltage (V) | Number of poles | Rated current (A) | Rated short-circuit breaking capacity | |
| Expected current of test circuit (A) | Power factor | |||
| 230 | 1+1 | 3,6,10,16,20,25,32,40 | 4000 | 0.65~0.70 |
| 230/400 | 1+1 | 4000 | 0.65~0.70 | |
| 400 | 2+2,3+3,4+4 | 4000 | 0.65~0.70 | |
| 230 | 1+1 | 50,60 | 4000 | 0.75~0.80 |
| 230/400 | 1+1 | 4000 | 0.75~0.80 | |
| 400 | 2+2,3+3,4+4 | 4000 | 0.75~0.80 | |
Product Size
| Product Series | DZ47-63 |
| Product pole number | 2P |
| Rated current | 16A/20A/25A/32A/40A/50A/63A |
| Rated voltage | 400V |
| Product features | Small size, quick operation and easy installation |
| Product certification | 3C |

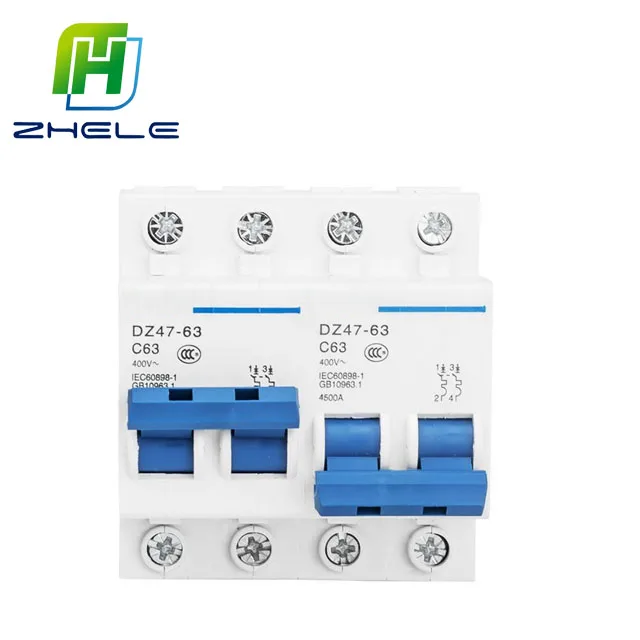

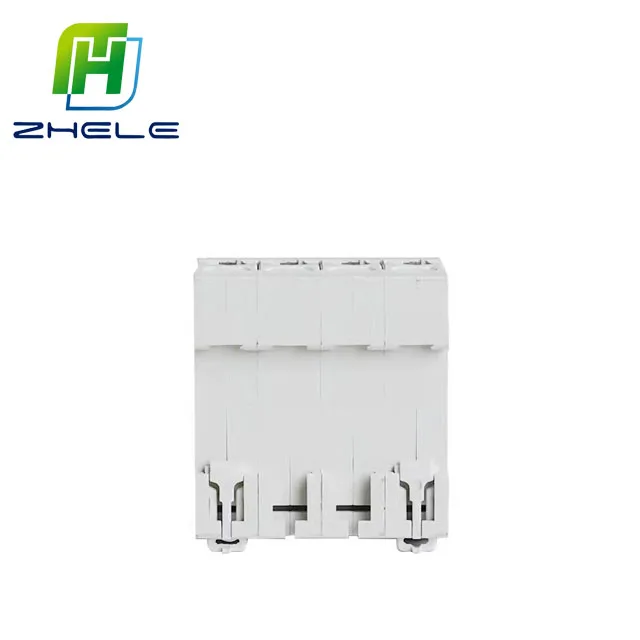

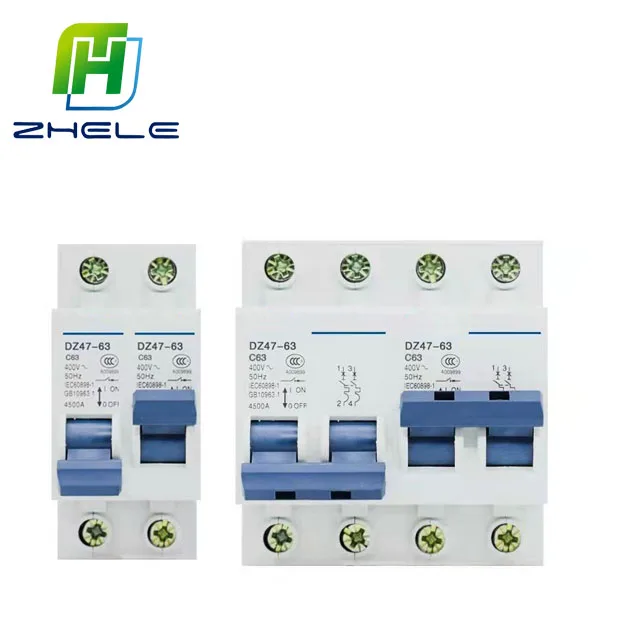

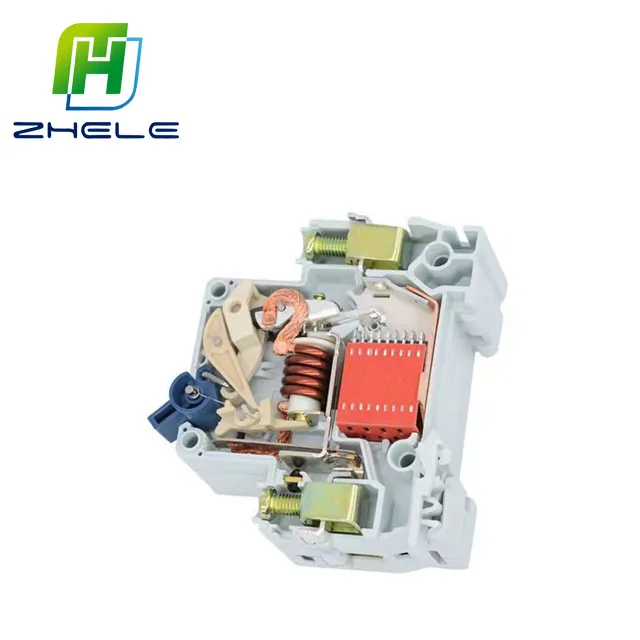

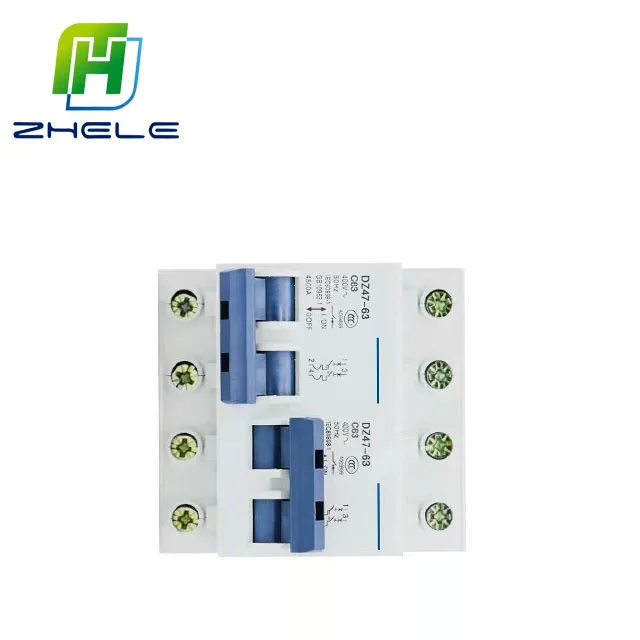

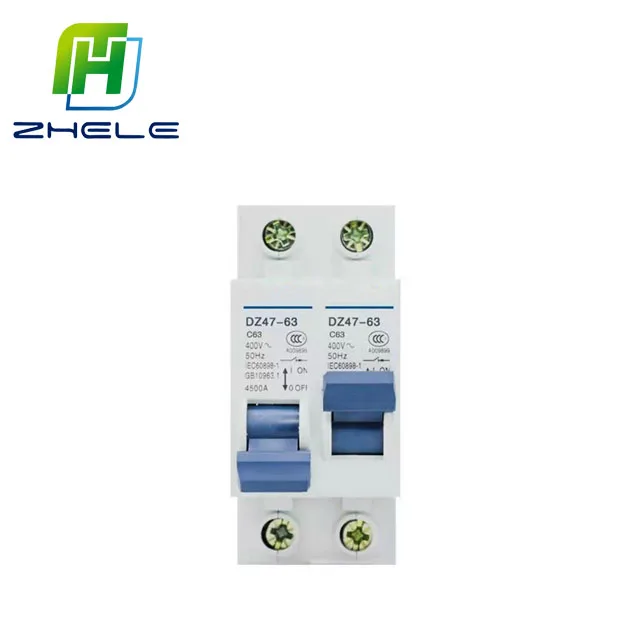

Products real shot
Interlock circuit breaker Package:
Standard export carton packing
Interlock circuit breaker Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Interlock circuit breaker Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
