Промышленный бесшумный электрический портативный вращающийся винтовой воздушный компрессор 7 5/15/37 кВт с сушилкой баком и
- Категория: Industrial Compressors & Parts >>>
- Поставщик: Jiangxi,Keniu,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1473.6 $* | 1547.83 $* |
| Aug-18-2025 | 1461.0 $* | 1534.52 $* |
| Jul-18-2025 | 1226.39 $* | 1287.91 $* |
| Jun-18-2025 | 1436.98 $* | 1508.3 $* |
| May-18-2025 | 1250.0 $* | 1313.59 $* |
| Apr-18-2025 | 1411.82 $* | 1482.74 $* |
| Mar-18-2025 | 1399.20 $* | 1469.73 $* |
| Feb-18-2025 | 1387.88 $* | 1456.38 $* |
| Jan-18-2025 | 1374.42 $* | 1443.23 $* |
Характеристики

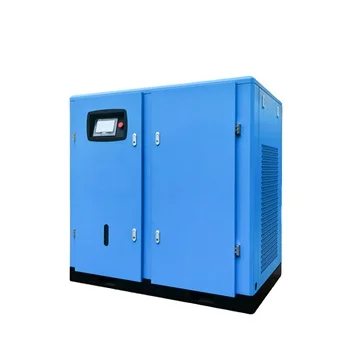

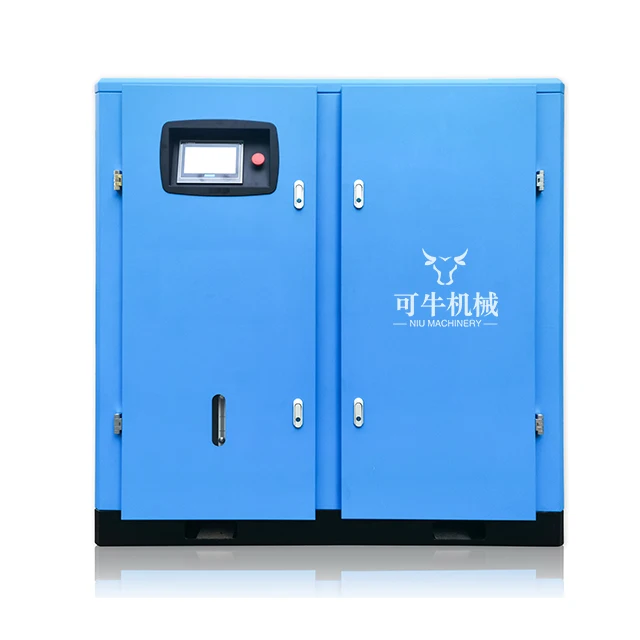

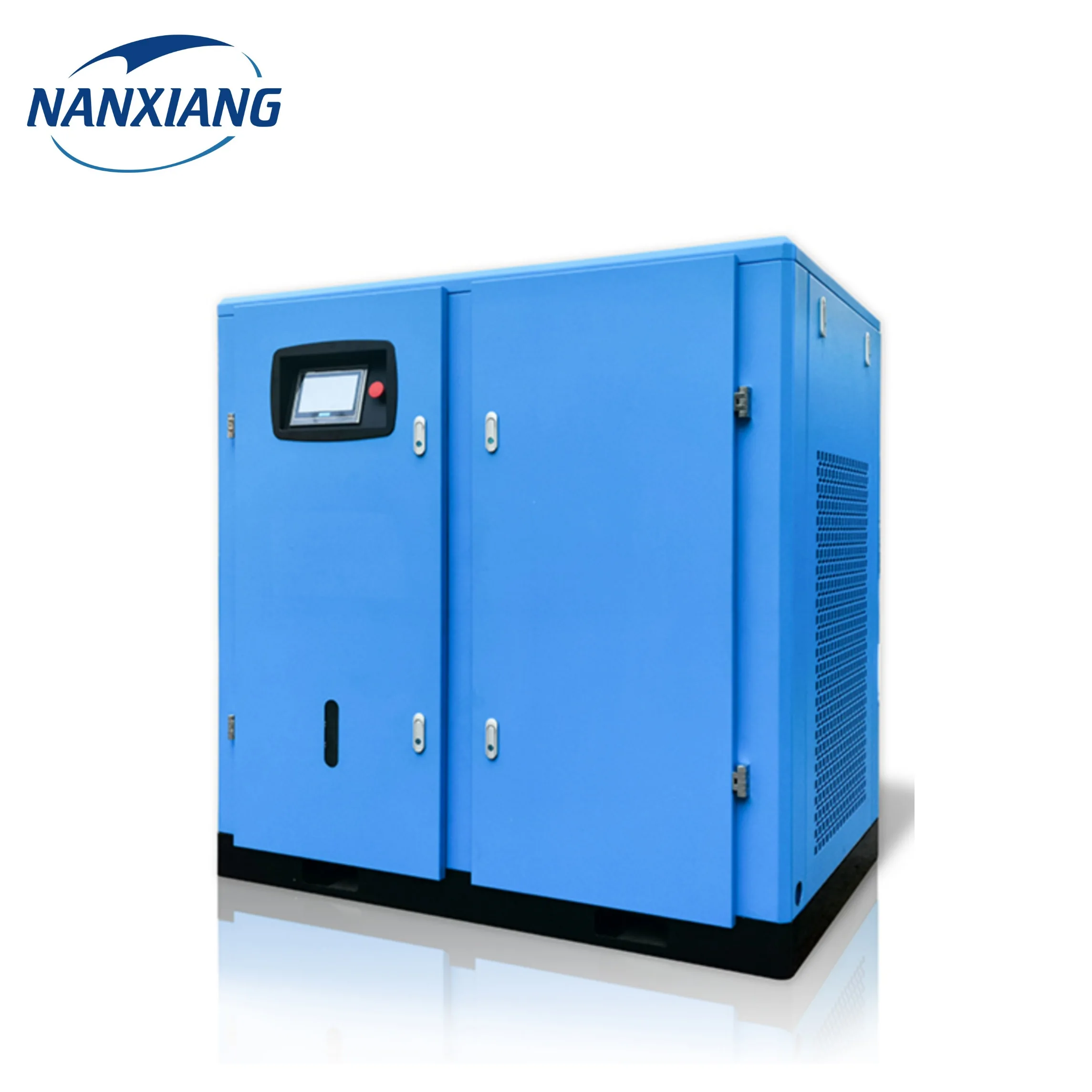

Products Description
Product Name | Screw Air compressor |
Model No. | NXGV-37HC |
Motor Power | 37kw/50hp |
Working Pressure | 7/8/10/12 bar |
Coling Method | Air Cooling |
Free Air Delivery | 6.3/6.0/5.6/5.0 m³/min |
Voltage | 380V/3PH/50HZ/Customizable |
Dimension | 1500*1000*1330 mm |
Weight | 620 kg |
Advantages:
High efficient
*Combined with direct driven arrangement for superior energy efficiency
*Water seals and cools for ideal compression
*Optimal compression processes with the water cooling
Minimum service costs
*Only air filter and water filter need maintenance
*No lubricant costs
*Fast and easy for minimal downtime
High reliability
*Simple and robust design
* Low-speed direct drive, no high speed gears
*Low operating temperatures, no special coatings
High-quality air
*Low air temperature, easy to dry and treat
*No coating on routers that can contaminate or pollute the air
*Class 0 air quality
Environmental safety
*Low noise level
*Reduce energy consumption
*Reduce energy consumption
*No oil discharge to the environment
Model | NXGV-37HC | ||||||||
Air Delivery | m3/min | 6.3 | 6.0 | 5.6 | 5.0 | ||||
cfm | 222 | 211 | 197 | 176 | |||||
Working Pressure | bar | 7 | 8 | 10 | 12 | ||||
psi | 102 | 116 | 145 | 174 | |||||
Noise | dB(A) | 72±2 | |||||||
Amdient temperature | ℃ | Environment Temp+15℃ | |||||||
Motor Power | kw/hp | 37/50 | |||||||
Starting Mode | Direct Driven | Variable frequency starting | |||||||
Voltage | 230V/1PH/50HZ/60HZ | ||||||||
380V/3PH/50HZ/60HZ | |||||||||
Customizable | |||||||||
Type of Cooling | Air Cooling | ||||||||
Lubricant | Liter | 18 | |||||||
Dimension(mm) | L | 1500 | |||||||
W | 1000 | ||||||||
H | 1330 | ||||||||
Weight | kg | 620 | |||||||
Air outlet pipe Dia | inch | Rp1,1/2 | |||||||
Certification | CE/ISO9001:2015/TUV/UL/ASME | ||||||||
Why Choose US?
Nanxiang adhere to the good faith as the policy of cooperation, the quality of our products are obvious to all of us, we look forward to working with you.
1. Adopt Hanbell twin-screw main engine and large rotor.
2. High efficiency,low noise,low vibration.
3. New 5:6 asymmetric rotor tooth profile.
4. Use SKF bearings imported from Sweden.
5. With six sets of bearing design,bearing acceptance is small and life is longer.
3. New 5:6 asymmetric rotor tooth profile.
4. Use SKF bearings imported from Sweden.
5. With six sets of bearing design,bearing acceptance is small and life is longer.
1. Using domestic small rotors,low displacement.
2. Low efficiency,high power consumption and high noise.
3. Generally use
3. Generally use
4 domestic bearings,with short life.
1. The use of high-efficiency and energy-saving motors with protection class IP55,Insulation class F.
2. Motor bearings adopt
Swedish SKF heavy-duty bearings.
3. High balance accuracy,stable high-speed operation,low noise and low vibration.
4. Motor efficiency is as high as 95.9%-96.3%.
Swedish SKF heavy-duty bearings.
3. High balance accuracy,stable high-speed operation,low noise and low vibration.
4. Motor efficiency is as high as 95.9%-96.3%.
1. Low protection level.
2. it is easy to be deaf at high temperature and has a short service life.
3. Difficulty in maintenance and disassembly
3. Difficulty in maintenance and disassembly
1. Using INOVANCE high-performance vector inverter.
2. Reliably reduces the peak current when starting,and realizes a smooth start.
3. Remote monitoring function.
4. High-performance integrated fan,motor double vector frequency.
5. Intelligent frequency conversion tou screen control.
3. Remote monitoring function.
4. High-performance integrated fan,motor double vector frequency.
5. Intelligent frequency conversion tou screen control.
1. Generally use small volume inverter.
2. Low cost and light weight.
3. Poor performance and high failure rate.
3. Poor performance and high failure rate.
1. Easy to clean dust.
2. Adopting fin type coolant with large heat exchange area.
3. 30% surplus of heat exchange,good cooling effect.
4. Worknormally at ambient temperature of 45℃.
5. Thicker material,long service.
3. 30% surplus of heat exchange,good cooling effect.
4. Worknormally at ambient temperature of 45℃.
5. Thicker material,long service.
1. Small size and poor heat insulation effect.
2. Light weight and short service life.
1. Using galvanized steel sheet,the thickness is 2.0mm-3.5mm.
2. Durable corrosion,good sound insulation effect.
3. Using electrophoretic spraying,never fade
15kw chassis weight: 182kg
22kw chassis weight: 226kg
37kw chassis weight: 266kg
3. Using electrophoretic spraying,never fade
15kw chassis weight: 182kg
22kw chassis weight: 226kg
37kw chassis weight: 266kg
1. Using ordinary steel plate,thickness 0.8mm-1.5mm.
2. Light weight and poor sound insulation.
15kw chassis weight: 85kg
22kw chassis weight: 109kg
37kw chassis weight: 132kg
15kw chassis weight: 85kg
22kw chassis weight: 109kg
37kw chassis weight: 132kg
Certifications
FAQ
1.Why customer choose us?
34 years old history,we are specialized in Rotary Screw Air Compressor.
Germany Standard and 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Nanchang,China.
Both OEM & ODM service can be accepted.
3.What’s your delivery time?
Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
4.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts.
5.How long could your air compressor be used?
Generally, more than 10 years.
6. What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.
7.How about your customer service?
24 hours on-line service available. 48hours problem solved promise.
8.How about your after-sales service?
1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service available.
34 years old history,we are specialized in Rotary Screw Air Compressor.
Germany Standard and 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Nanchang,China.
Both OEM & ODM service can be accepted.
3.What’s your delivery time?
Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
4.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts.
5.How long could your air compressor be used?
Generally, more than 10 years.
6. What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.
7.How about your customer service?
24 hours on-line service available. 48hours problem solved promise.
8.How about your after-sales service?
1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service available.
