Product Description
HT-DP510(Universal)
Control Panel for Direct-drive Unit
Products Features
► Full water-proofing design, greatly increased the products services life.
► Reliable performance, low failure rates.
► Complete and precise temperature detection, alarming, and parameters setting functions. Well meet the various electric control demands for refrigeration systems.
► Concerntrating on the software details, and care for maintenance for refrigerastion units and the refrigerated trucks.
► Full products range, custom-made products or OEM items are also available to be produced.
► Reliable performance, low failure rates.
► Complete and precise temperature detection, alarming, and parameters setting functions. Well meet the various electric control demands for refrigeration systems.
► Concerntrating on the software details, and care for maintenance for refrigerastion units and the refrigerated trucks.
► Full products range, custom-made products or OEM items are also available to be produced.
Product Parameters
Model | HT-DP510 |
Outside Dimensions | 127*37*43mm |

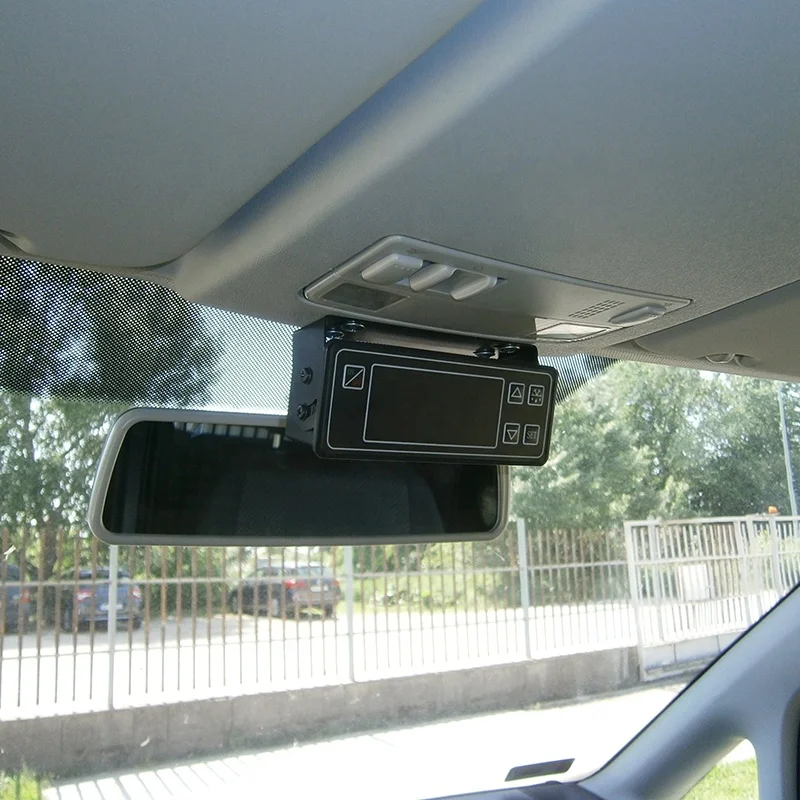

Install | With bracket, flexible install angle |
Working Voltage | DC8V up to DC40V |
Voltage Options | DC12V / DC24V, or automatically |
Static Power Consumotion | 0.3W(Control panel only) |
Resistance to Transient Voltage Impact | Max 180V 50ms(Impact frequency≤once per minute) |
Temperature Setting Accuracy | 1℃ |
Temperature Setting Range | Setting temperature range by parameters Setting is available |
Temperature Display Accuracy | 0.1℃(Varing continously and linearly) |
Temperature Display Range | -40℃~+85℃ |
Temperature Sensor Model | B=3275K; at 25℃ R25=5KΩ |
Signal Type of Pressure Switch | 2 circuit pressure detection, Earthing during normal running, switch off when there is a fault |
Output Driven Power and Type | Maximum 1A; High level |
Output Type and Functions | By relay(Condenser & evaporator fan, defrost solenoid valve, compressor) |
Temperature Detecting Functions | Air return temperature, defrost temperature, air outlet temperature |

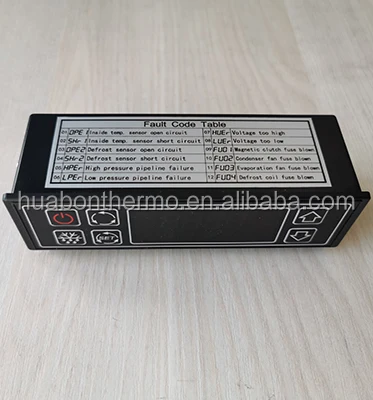

Fault Alarming Type | ①Voltage alarm; ②Hose pressure alarm; ③Sensor fault alarm; ④ Fusing alarm |
Main Parameter Setting | ①Defrost interval time; ②Defrosting time; ③Dripping time; ④Defrost termination temperature; ⑤Temperature difference for cooling; ⑥Temperature compensation; ⑦Uper limit of setting temperature; ⑧Lower limit of setting temperature; ⑨Evaporator fan operating mode; ⑩Power voltage option; ⑪Temperature difference for heating |
Controller IP Grade | IP54 |
EMC Testing Standard | Conform to ISO11452 |
Power Source Standard | Conform to ISO7637-2 |
Shell Material | Antiflaming ABS |
Overal Weight | 165g |
Technique Sketch

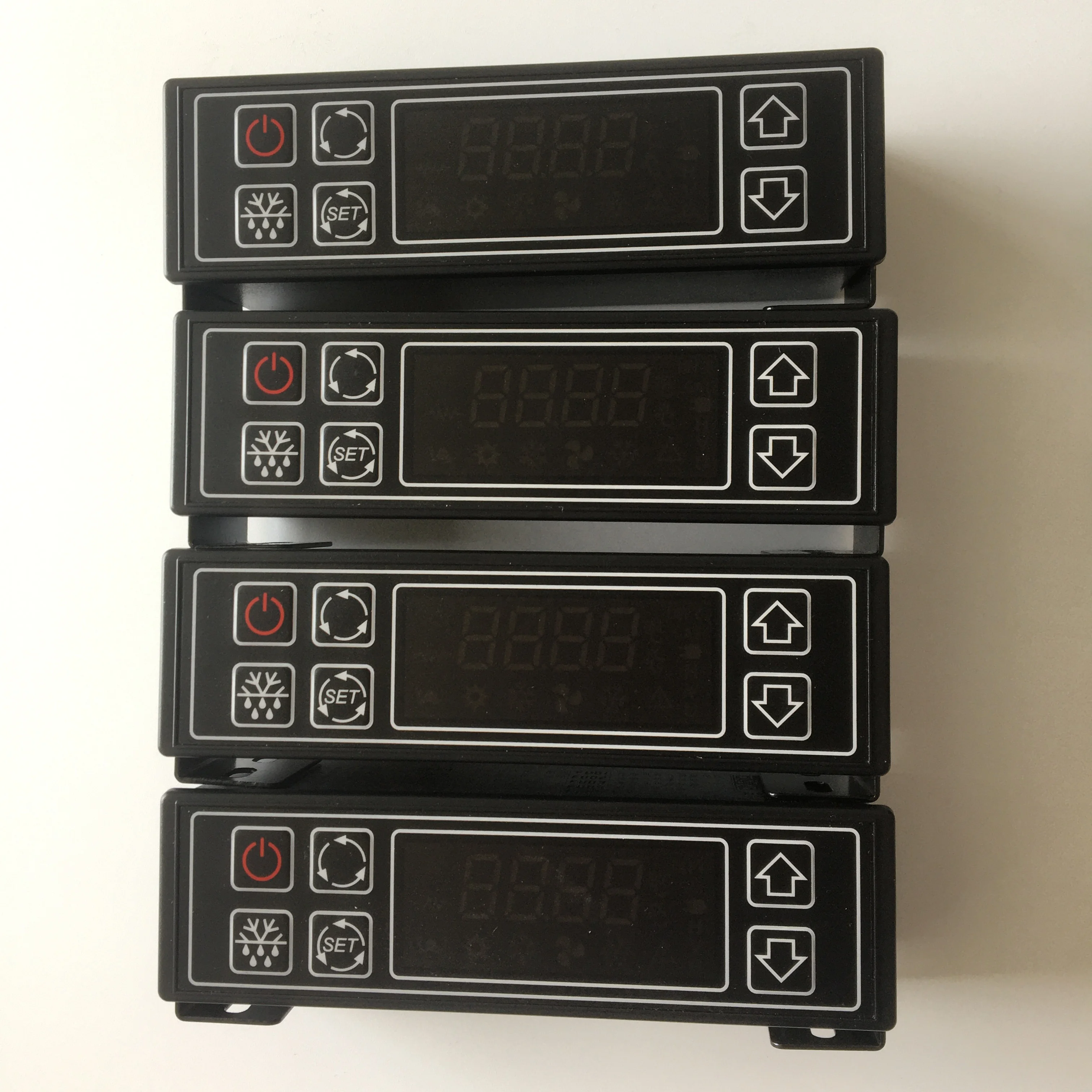

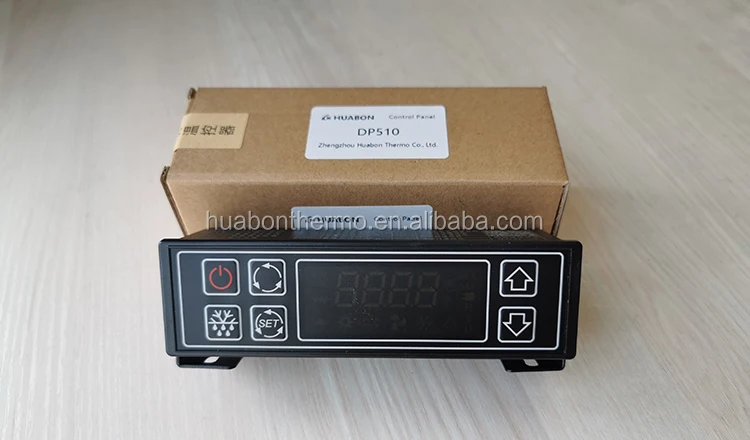

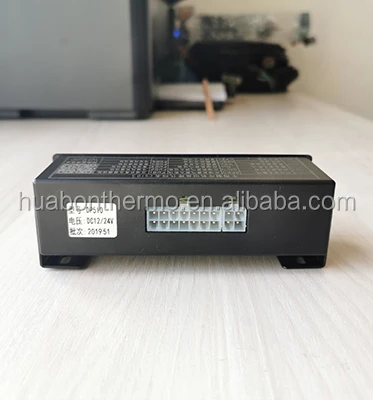

Details Images
