Промышленный мини-коммутатор с 4 портами 10 100 1000 м PoE + 1 порт Gigabit Ethernet поддержка установки
- Категория: Network Switches >>>
- Поставщик: Shenzhen,E-Linkchina,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 37.31 $* | 38.48 $* |
| Jul-17-2025 | 30.86 $* | 31.94 $* |
| Jun-17-2025 | 36.76 $* | 37.26 $* |
| May-17-2025 | 36.87 $* | 37.83 $* |
| Apr-17-2025 | 29.31 $* | 30.44 $* |
| Mar-17-2025 | 35.54 $* | 36.66 $* |
| Feb-17-2025 | 35.97 $* | 36.91 $* |
| Jan-17-2025 | 35.48 $* | 36.6 $* |
Характеристики
Products Description
Overview

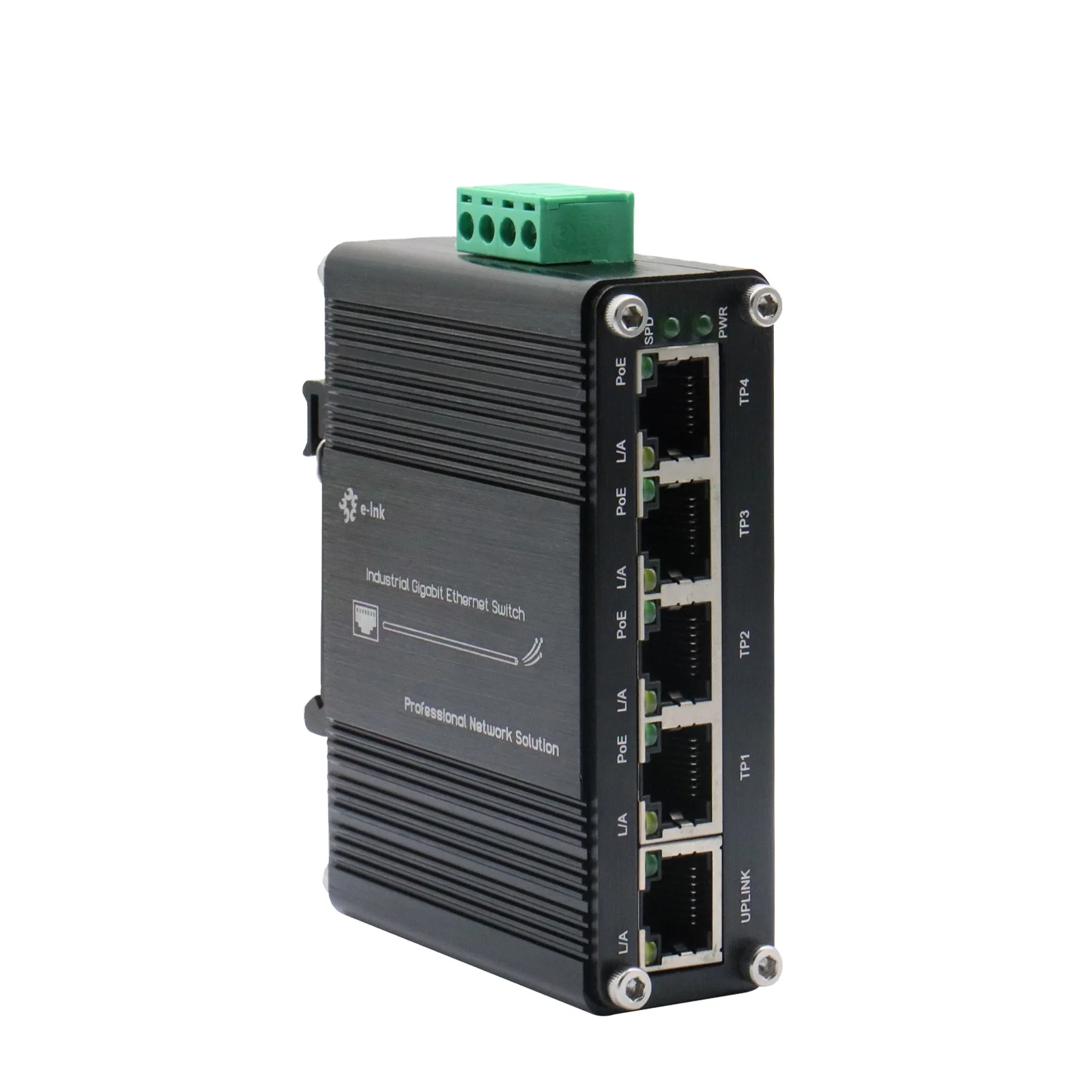

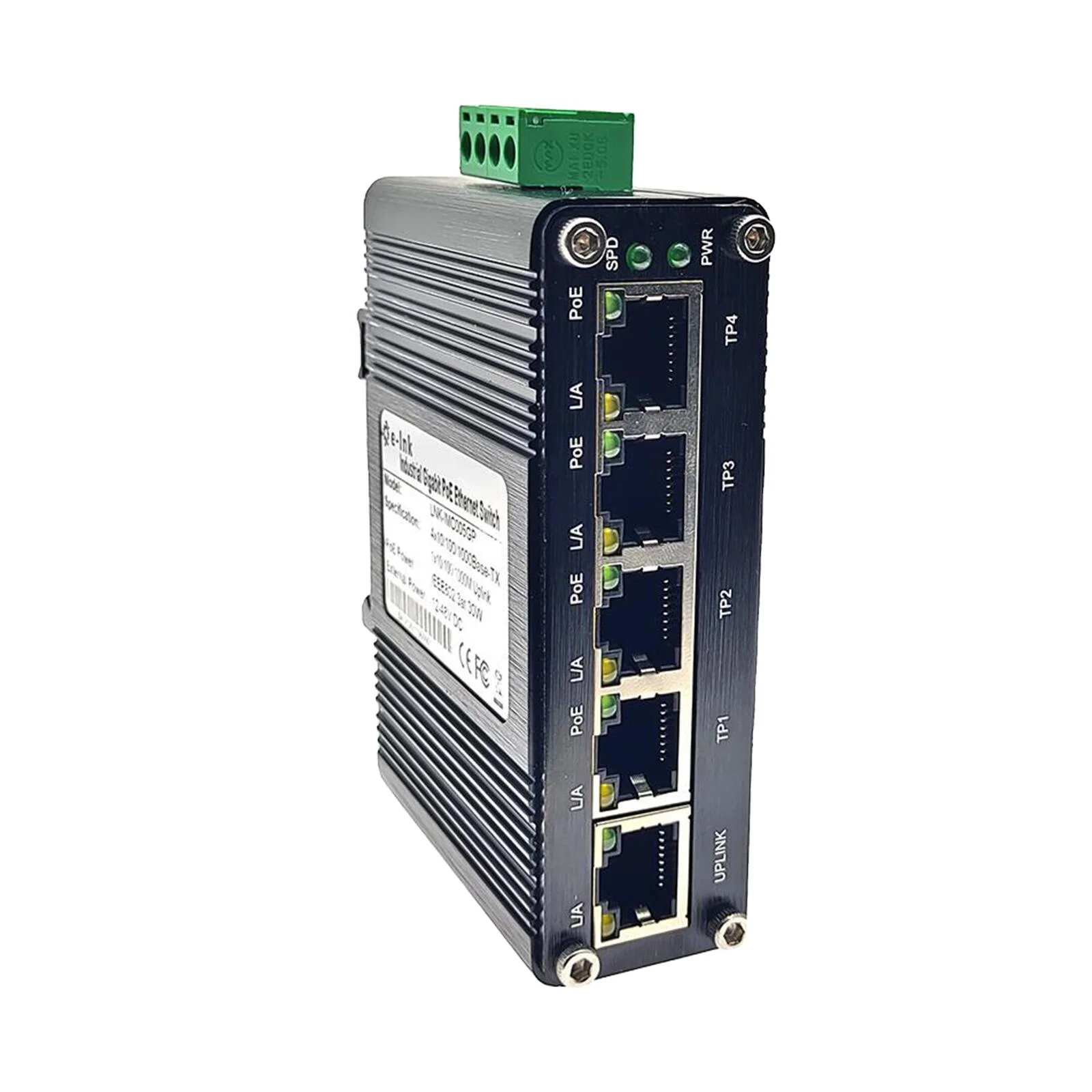

LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC
wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With
reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh
environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the
needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With
reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh
environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the
needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Supports 802.3x Flow control

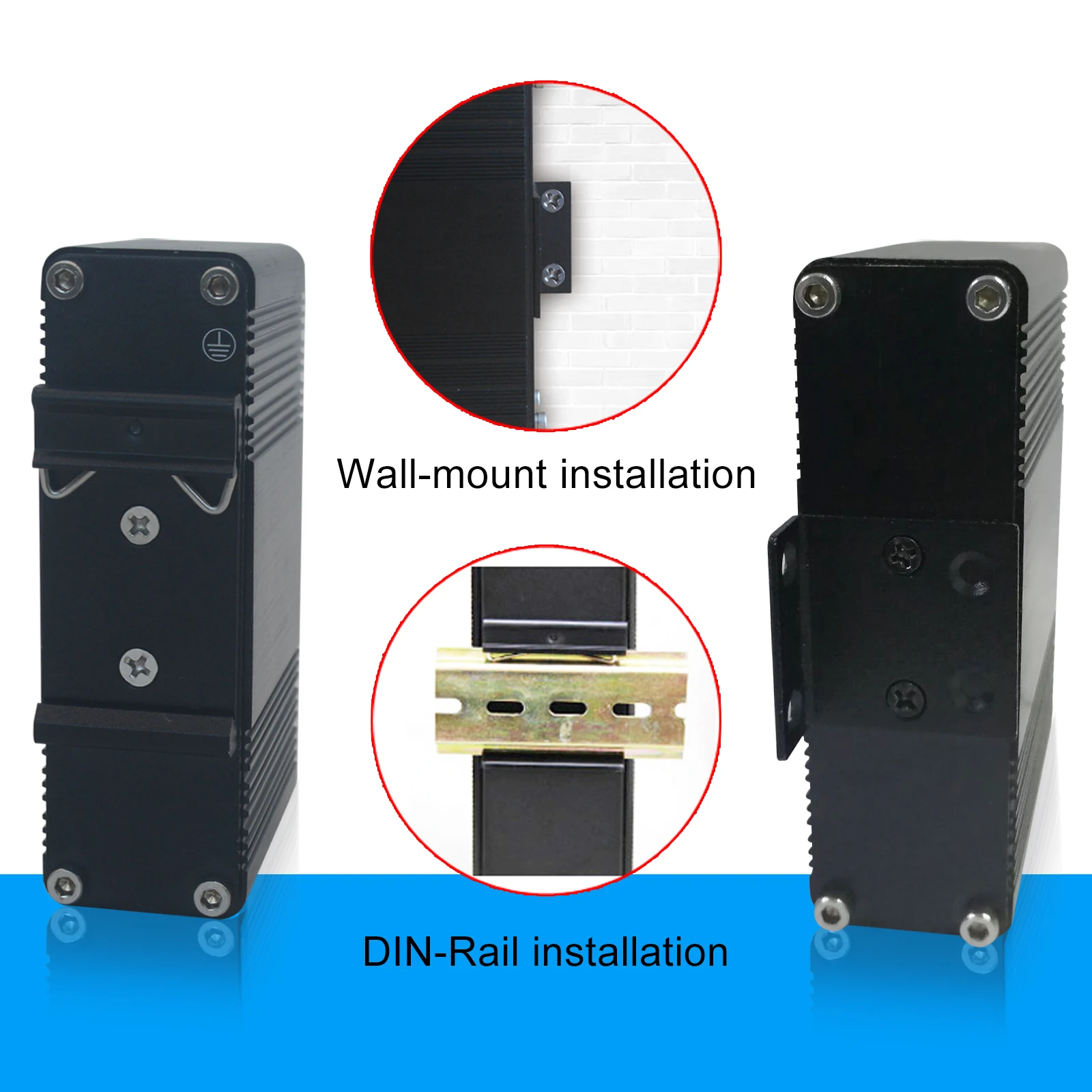

► Supports DIN-Rail and Wall-mount installation

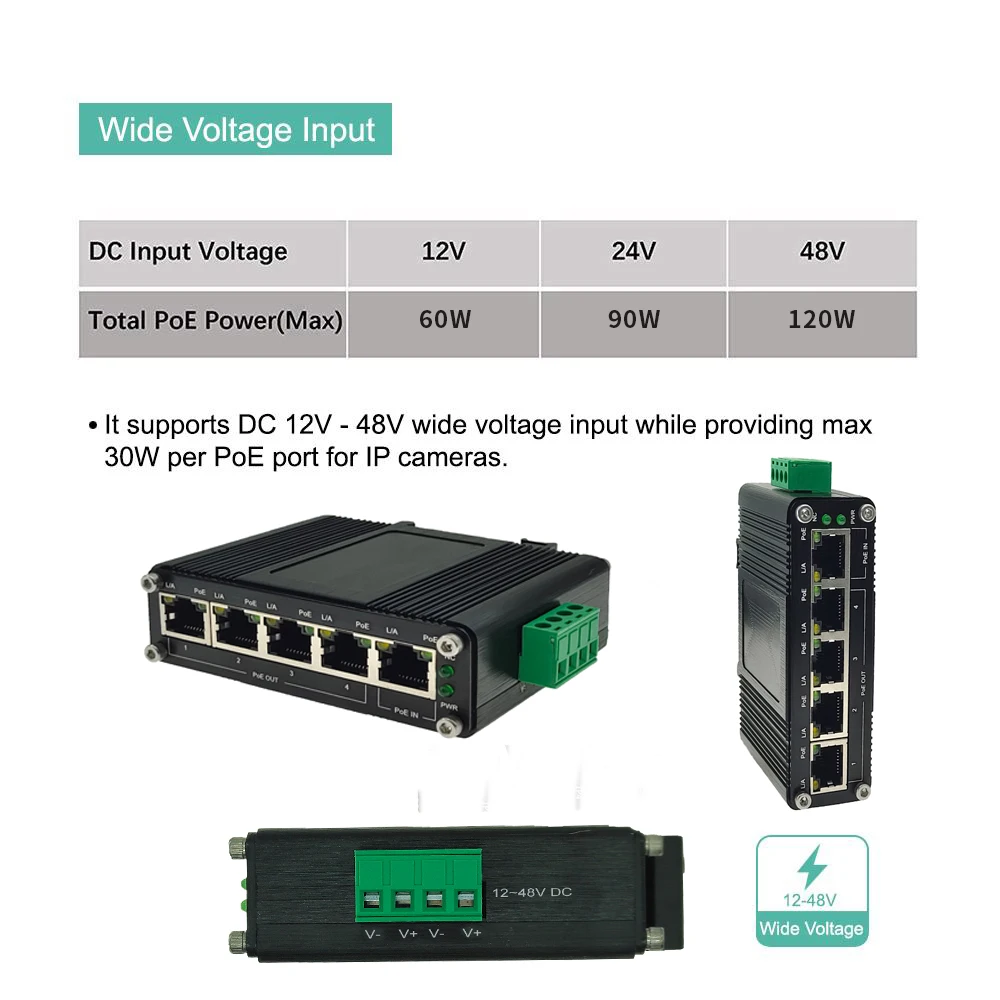

► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

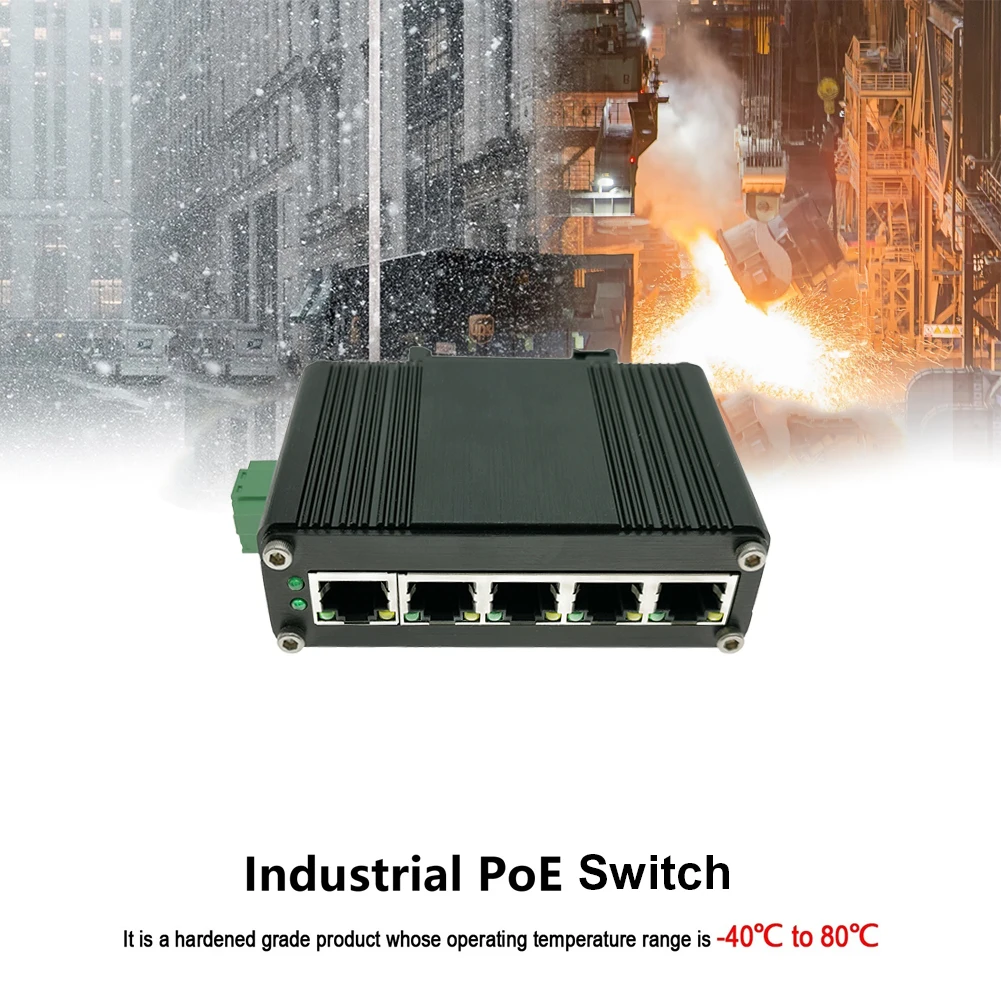

► -40°C to 80°C (-40°F to 176°F) operating temperature
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) | |
PoE (Power over Ethernet) | ||
Standard: | IEEE802.3af/at | |
Port: | RJ45 | |
Power Pin Assignment | 4/5(+), 7/8(-) | |
PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) | |
Environmental | ||
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |
Relative Humidity: | 5% to 95% non-condensing | |
MTBF | > 200,000 hrs | |
Electrical and Mechanical | ||
Input Power: | 12~48VDC(Terminal Block) | |
Power Consumption: | <125W (Non-PoE<6W) | |
Power Input Overload: | Automatic Resettable | |
Reverse Polarity: | Present | |

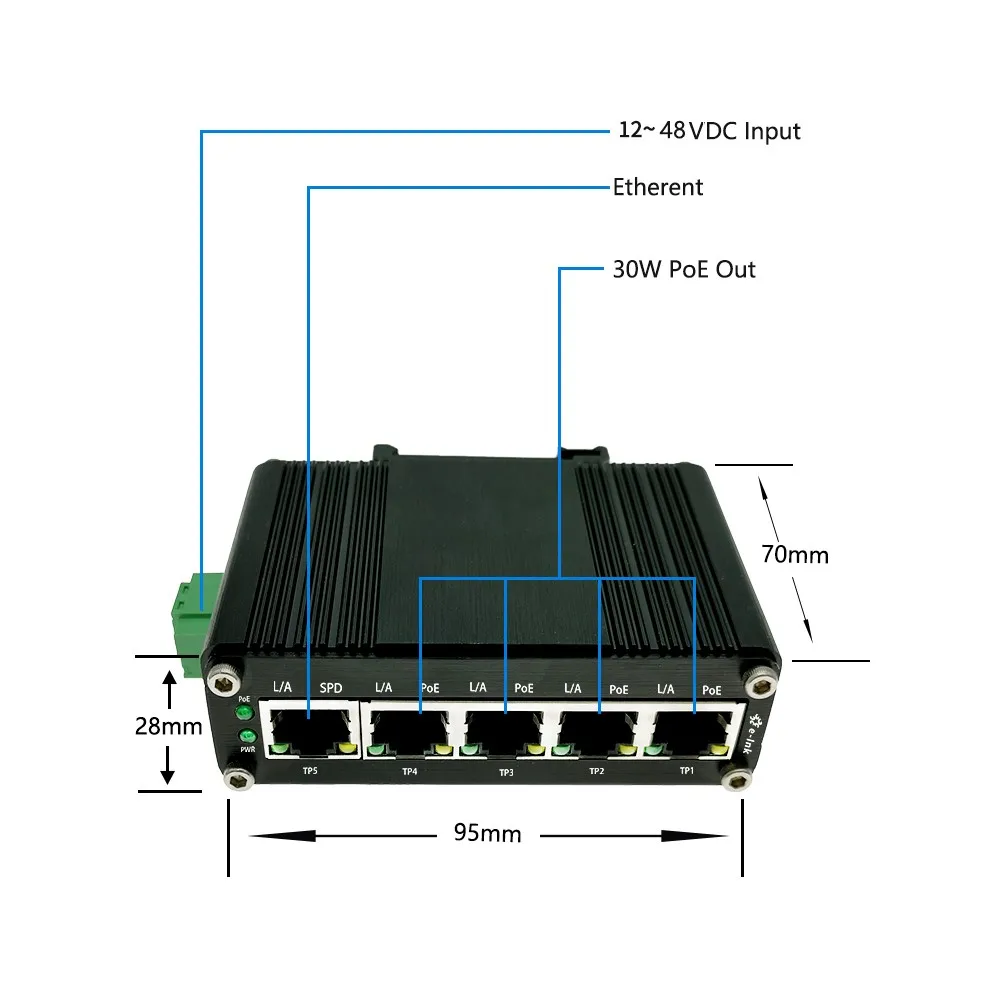

Dimensions (WxDxH): | 95 x 70x 29mm | |
Weight: | 0.25Kg | |
Casing: | Aluminum Case | |
Mounting Options: | DIN-Rail / Wall-mount | |
