Характеристики








Bulldozer Shantui SD16 Usada 160HP Dozer Philippines UNIQUE Peru Kawasaki Indonesia Algeria Cylinder Long

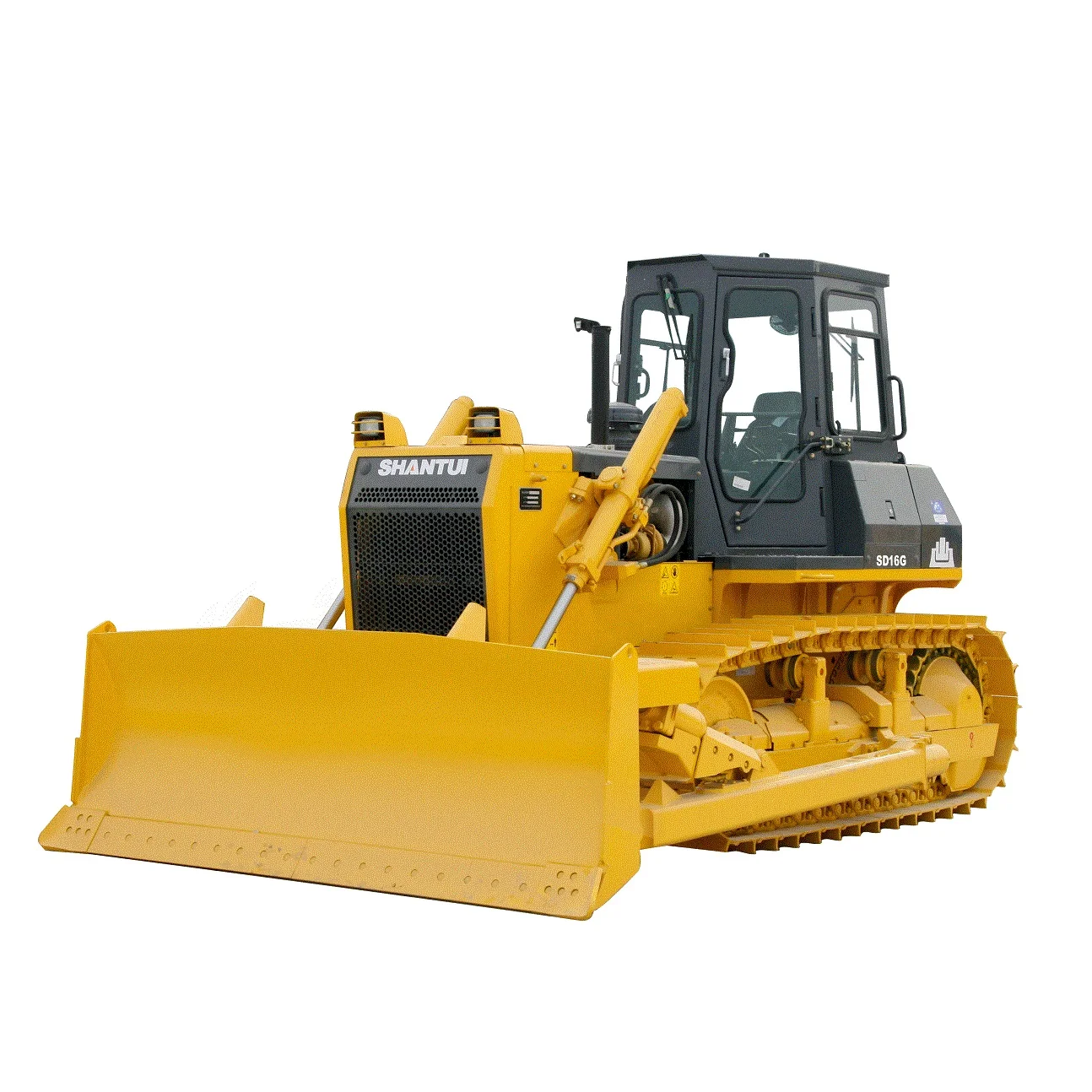

Product Description











Shantui's best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g. desert, swamp, forest, high altitude, etc.The SD16 provides high performance with strong reliability, with Shantui's trademark value.











Product Paramenters




































































































































































Engine


Model & type


Shangchai SC11CB184G2B1/Weichai WD10G178E25;
water-cooled, in-line, 4-stroke injection direct


Horsepower


Gross power: 131/175/1850 kW/HP/rpm //
Net power: 120/160/1850 kW/HP/rpm


Number of cylinders


6—126 x 130 mm (bore x stroke)


Piston displacement


9.726 L


Min. fuel consumption


214 g/kW·h


Maximum torque


765 N·m@1300 rpm


Power
transmission
system


Torque converter


3-element, 1 stage, 1 phase


Transmission


Planetary gear type, power-shift, forced lubrication


Main drive


Spiral bevel gear, single-stage speed reduction,
splash lubrication


Steering clutch


Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake


Steering brake


Lubricated, floating band structure, foot brake
with hydraulic booster


Final drive


2-stage speed reduction of spur gear, splash lubrication


Travel speed


Gear


1st


2nd


3rd


Forward


0~3.29 km/h


0~5.82 km/h


0~9.63 km/h


Reverse


0~4.28 km/h


0~7.59 km/h


0~12.53 km/h




Hydraulic
System


Maximum pressure


14 MPa


Pump type


Gear pump


Discharge


243 L/min


Bore of
working cylinder × no.


110 mm × 2


Blade


Blade Type


Straight-tilt


Angle


U- Blade


Dozing capacity


4.5 m 3


4.4 m 3


5.0 m 3


Efficiency
(Theoretical value 40 m)


225 m 3 /h


225 m 3 /h


250 m 3 /h


Blade width


3388 mm


3970 mm


3556 mm


Blade height


1149 mm


1040 mm


1120 mm


Maximum drop
below ground


540 mm


530 mm


540 mm


Lifting height of blade


1095 mm


1110 mm


1095 mm


Riipper
(Optional)


Maximum digging depth
of 3-shank ripper


572 mm


Maximum lift
above ground


592 mm


Weight of 3-shank ripper


1667 kg
