Настенная зарядная станция для электромобилей
- Категория: Auto Electronics >>>
- Поставщик: Qingdao,Xingbang,Kitchen,And,Bathroom,Appliances,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 248.94 $* | 253.98 $* |
| Jul-18-2025 | 201.40 $* | 205.41 $* |
| Jun-18-2025 | 244.4 $* | 249.95 $* |
| May-18-2025 | 242.42 $* | 247.86 $* |
| Apr-18-2025 | 193.97 $* | 197.49 $* |
| Mar-18-2025 | 238.73 $* | 243.7 $* |
| Feb-18-2025 | 236.61 $* | 241.22 $* |
| Jan-18-2025 | 234.72 $* | 239.1 $* |
Характеристики

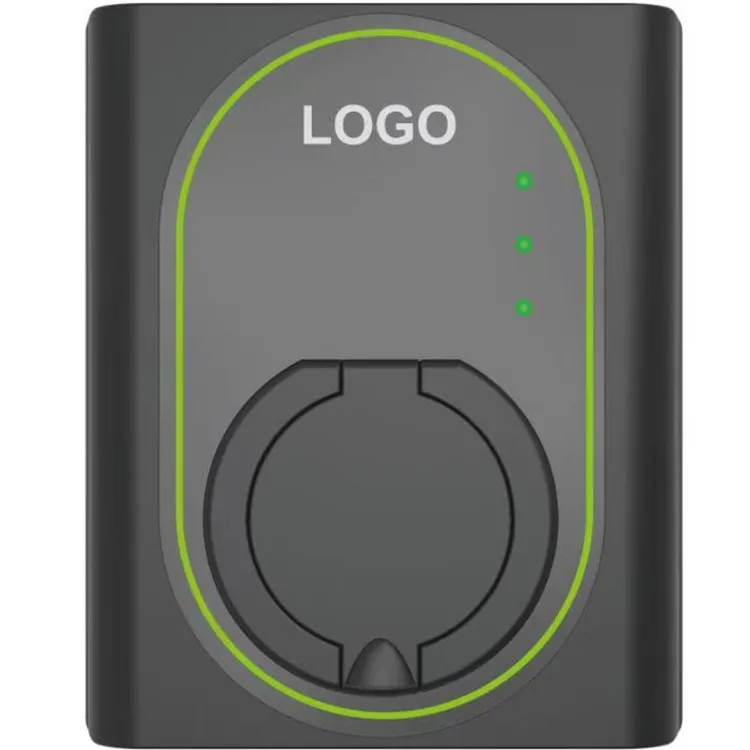

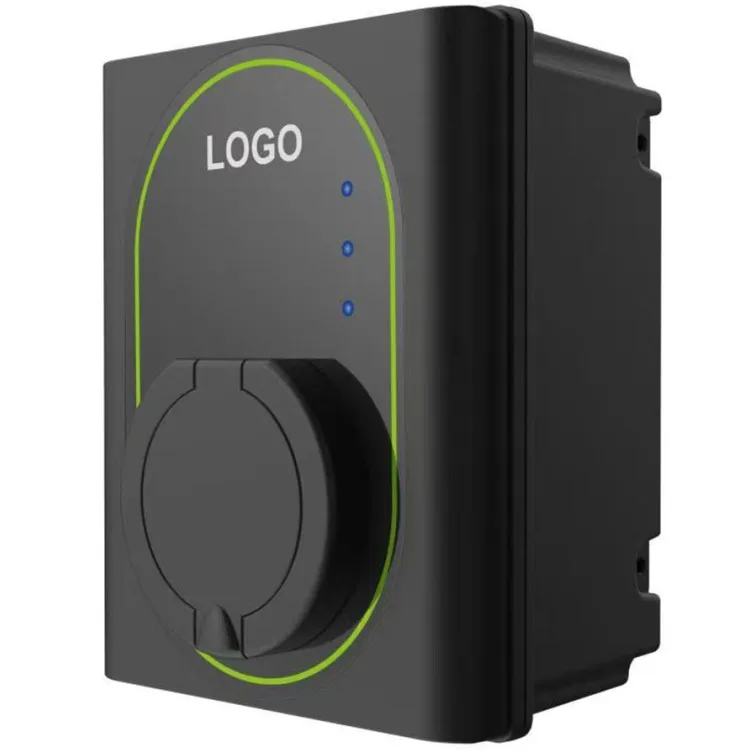

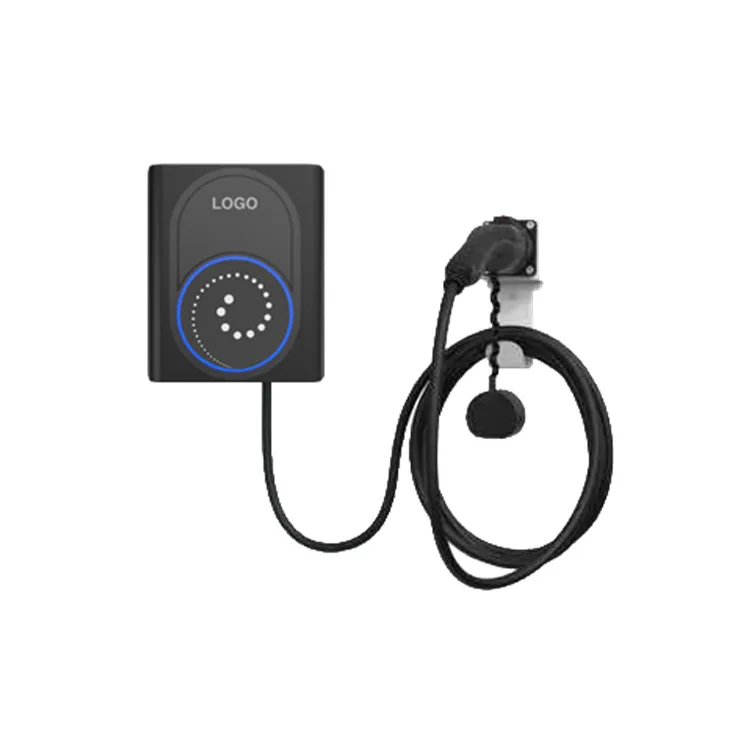

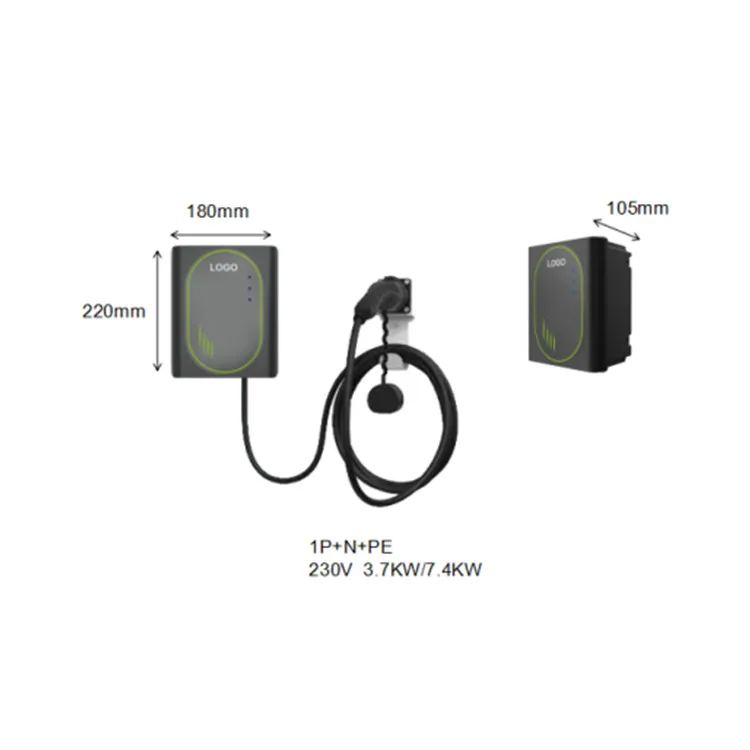

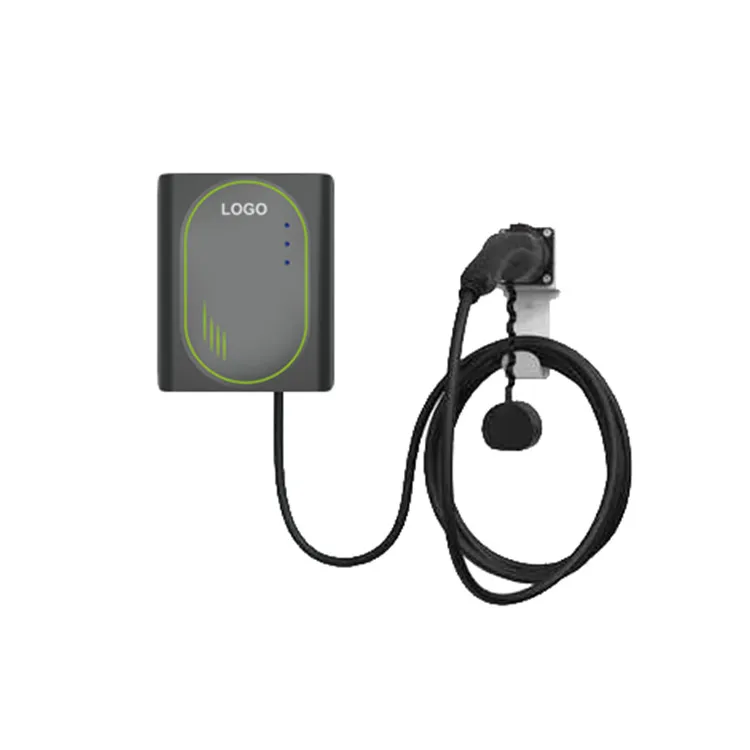

16a wall-mounted ev charging station ac ev charger wall box for electric vehicles
Model | EST1L-16 | EST1L-32 | EST3L-16 | EST3L-32 | |||
AC Power | 1P+N+PE | 3P+N+PE | |||||
Mode | Mode 3 | ||||||
Power Supply Voltage | AC 230±10% | AC 400±10% | |||||
Frequency | 50-60Hz | ||||||
Rated Current | 16A | 32A | 16A | 32A | |||
Maximum Power (KW) | 3.7 | 7.4 | 11 | 22 | |||
Cable Length | 5M+Single Plug | ||||||
Charger Connector | NO | ||||||
IP Grade | Enclosure IP Rating :IP65/ EV Socket IP Rating: IP54 | ||||||
Protection | I | ||||||
Electrical Protection | Over Current Protection | ||||||
Residual Current Protection | |||||||
Ground Protection | |||||||
Surge Protection | |||||||
Over/Under Voltage Protection | |||||||
Over Temperature | |||||||
Working Temperature | -20℃~50℃ | ||||||
Working Humidity | 3%~95% | ||||||
Working Altitude | <2000m | ||||||
Cooling Mode | Natural | ||||||
Shell Color | White /Black | ||||||
Material | ABS+PC | ||||||
Display | Three Colors LED | ||||||
Installation Mode | Wall Mount /Column Mount | ||||||
Features | Over current, Under voltage, Residual current, Surge protection, Leakage protection, Over temperature, etc. | ||||||
Certification | CE UKCA (Derk) | ||||||
Standard | IEC62196-2, IEC61851-1, IEC61851-22, SAE J1172 | ||||||
No. | Status | Blue | Green | Red |
1 | Power Off | OFF | OFF | OFF |
2 | Test | Flashing | Flashing | Flashing |
3 | Standby | ON | OFF | OFF |
4 | Waiting Chargiing | Flashing | OFF | OFF |
5 | Charging | OFF | On | OFF |
6 | Completed | OFF | Flashing | OFF |
7 | Over Temperature | OFF | OFF | ON |
8 | Leakage | OFF | OFF | Three fast flashes, one slow flash |
9 | Over Current | OFF | OFF | Two fast flashes, one slow flash |
10 | Ground Error | OFF | OFF | Seven fast flashes, one slow flash |
11 | Power Supply Over Voltage | OFF | OFF | Four fast flashes, one slow flash |
12 | Power Supply Undervoltage | OFF | OFF | Three fast flashes, two slow flashes |
13 | Adhesion | OFF | OFF | Six fast flashes, two slow flashes |
14 | Short Circuit | OFF | OFF | Five fast flashes, two slow flashes |
15 | Other Faults | OFF | OFF | One fast flashes, two slow flashes |
XingBang Group was founded in 1995 and have three companies&manufacturing factories which is composed of Qingdao Xingbang Elecronic Appliances Co., Ltd. & Qingdao Xingbang Cooker & Ovens Appliances Co., Ltd & Qingdao Xingbang Kitchen and Bathroom Appliances Co., Ltd.
Factories cover around 200,000 square meters and over 2,000 employee and professional R&D team and high-tech technical team and strict production&inspection team and excellent sales and service team.
XingBang Group who is specialized in kitchen appliances like built in ovens, hobs, cooker hoods, microwave oven, bathroom ventilation fan, water heater, hydrogen-rich water dispensers. With steady growth and development, XingBang Group cooperation customers more than 100 countires and regions, totally covering the European, American, Asian, Africa, Oceania and mid-east markets with a turnover of 1 billion RMB and 80 million USD per year.
XingBang Group who is specialized in kitchen appliances like built in ovens, hobs, cooker hoods, microwave oven, bathroom ventilation fan, water heater, hydrogen-rich water dispensers. With steady growth and development, XingBang Group cooperation customers more than 100 countires and regions, totally covering the European, American, Asian, Africa, Oceania and mid-east markets with a turnover of 1 billion RMB and 80 million USD per year.
CE
Standard: IEC62196-2, IEC61851-1, IEC61851-22, SAE J1172
