Product Description




RD3002E Digital Earth Resistance Tester specially designed and manufactured for the field measurement of ground resistance, adopts digital and micro-processing technology, 3 wire or 2 wire method to measure ground resistance, with unique calibration function for wire resistance, anti-interference ability and environmental adaptability, to ensure the long-term measurement of high precision, high stability and reliability. It has the unique function of wire resistance calibration, and it is more accurate to measure the low value ground resistance in the field, which can avoid the error caused by the change of wire resistance in the test line for a long time usage.It can avoid errors caused by incomplete insertion of test line into instrument interface or bad contact.It can avoid the error caused by the user to change or lengthen the test line. Rcontact.It can avoid the error caused by the user to change or lengthen the test line..


Product features


1. The fuselage is light, easy to carry and operate.

2. With unique calibration function for wire resistance, anti-interference ability and environmental adaptability.


3. With high precision, high stability and reliability
4. Earth voltage measurement.


1.\tMeasurement Range & Accuracy


Test Function
Range
Accuracy
Resolution
Earth Resistance
0.01Ω ~ 20Ω
±2%rdg±3dgt
(Auxiliary earth resistance 100Ω±5%,voltage to earth<10V)
0.01Ω
0.1Ω ~ 200Ω
0.1Ω
1Ω ~ 2000Ω
1Ω
Earth Voltage
0V~200V AC
±2%rdg±3dgt
1V


2.\tTechnical Parameters


Function
Description
Power Supply
DC9V, R6 AA dry battery 6PCS
Display LCD
LCD:58mmX46mm
Tester Dimension
160mm(L)×100mm(W)×66mm(H)
Weight
Host: about 800g, total weight: about 2285g (include accessories)
Measurement Method
Earth resistance: rated current change-pole method, measure current 10mA Max; Voltage to earth: average value rectification
Measurement Time
Earth resistance: 15 seconds/time;Voltage to earth : 2 times/second;
Overrange Display
Overrange overflow function: display ”OL” symbol

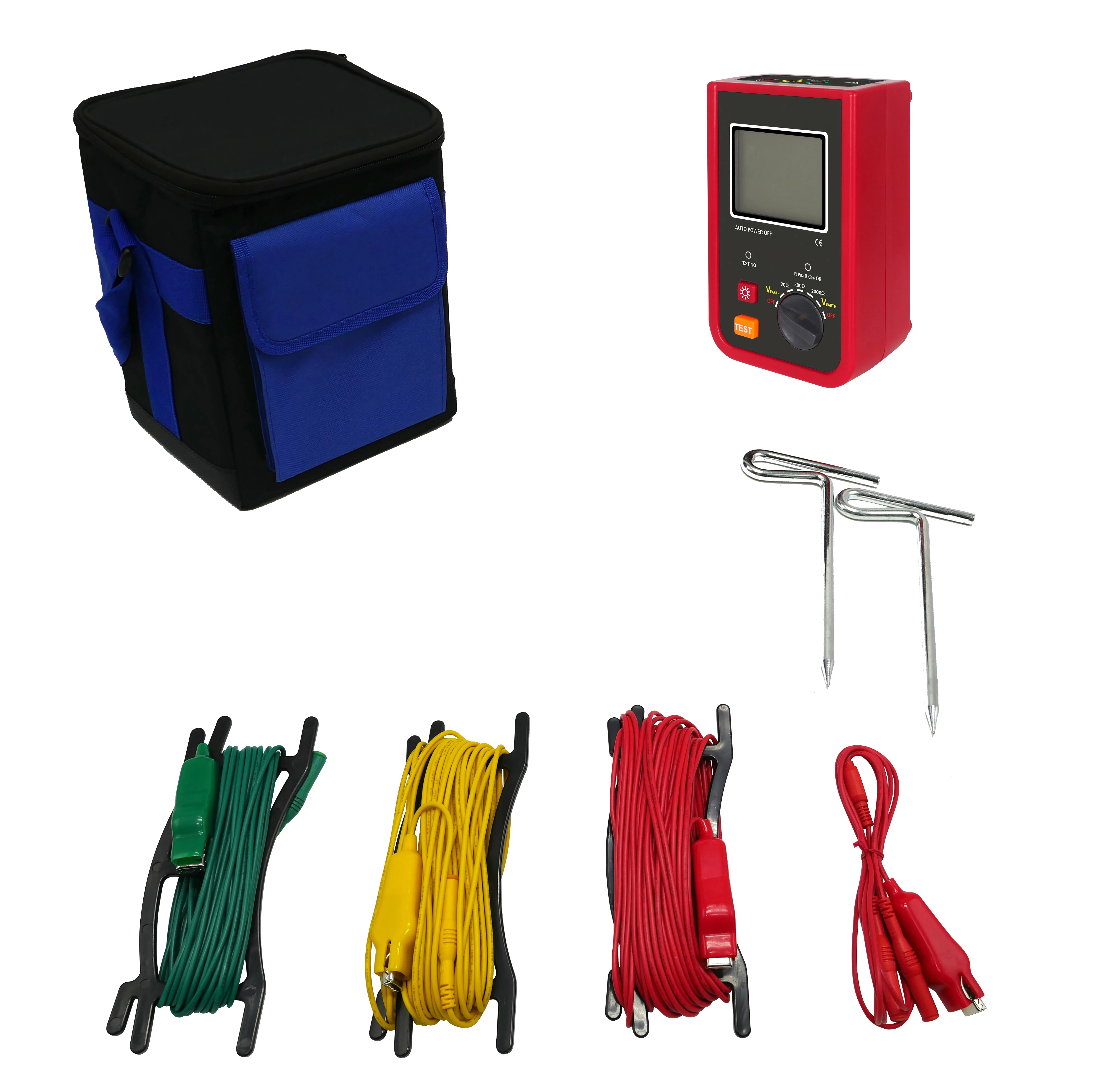

Auxiliary Ground Rod
2 PCS: Φ10mm×250mm
Test Wires
Red 15m, yellow 10m, green 5m, red 1.5m (total 4 pcs wires)
Wire Resistance Verification
Avoid errors caused by the test line not fully inserted into the instrument interface or poor contact or the user replaces the
lengthened test line, ensure grounding resistance measurement more accurate
Auto Shutdown
3 Minutes after power on, will automatic shutdown without any operation.
Battery Voltage
While battery voltage decreases to around 7.2V, will display low battery voltage symbol“ ”, and remind to replace the battery.
Overload Protection
Earth resistance: between each interfaces of E-P,E-C, AC 280V/3 seconds
Electromagnetic Property
IEC61010-4-3, wireless frequency electromagnetic field≤1V/m
Safety Sandard
IEC61010-1、IEC1010-2-31、IEC61557-1、Pollution degree 2、CAT Ⅲ 300V
Working Current
Backlight: 56mA Max; Standby: 20mA Max(Backlight close); Measurement: 200mA Max(Backlight close)
