Установка вакуумной фильтрации фарфоровая Воронка бушнера 200 мм с фильтрующей воронкой бушнерская песчаная
- Категория: Funnel >>>
- Поставщик: Zhuhai,Hi-Q,Technology,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 19.36 $* | 19.74 $* |
| Jul-18-2025 | 15.93 $* | 15.22 $* |
| Jun-18-2025 | 19.36 $* | 19.89 $* |
| May-18-2025 | 19.79 $* | 19.1 $* |
| Apr-18-2025 | 15.58 $* | 15.15 $* |
| Mar-18-2025 | 18.32 $* | 18.50 $* |
| Feb-18-2025 | 18.38 $* | 18.48 $* |
| Jan-18-2025 | 18.0 $* | 18.39 $* |
Характеристики
Product Description
Specification
Item | Value |
Warranty | 3 year |
Classification | Funnel |
Customized support | OEM, ODM, OBM |
Brand Name | Hi-Q GROUP |
Model Number | ZG-BSLD-0200 |
Product name | 200mm porcelain buchner filter funnel |
Buchner funnel Model | 200mm |
Buchner funnel Size | D200*H255mm |
MOQ | 20 pieces |
Lead time | 3-5 workdays |
Ship time | 3-7 days |
Feature | Eco-Friendly |
Capacity | 6000pcs/day |
OEM/OEM | Available |
Material | Porcelain |
Buchner Funnel Instruction Of Use | ||
Both the Buchner funnel and the filter bottle must be matched to separate the precipitate and the solution. And use a water pump or vacuum pump to reduce the pressure in the suction filter bottle to facilitate the acceleration of filtration. 1. Choose a suitable Buchner funnel. The diameter of the filter paper must match to the size of funnel, Choose the right size suction filter bottle and rubber stopper. 2. Wet the filter paper with water, and take a test to make the filter paper close to the bottom of the funnel, so as to prevent the things to be filtered from leaking. 3. Install the Buchner funnel on the suction filter bottle through the rubber stopper, and then connect the vacuum with the suction nozzle of the suction filter bottle. Pay attention to the precise connection. 4. Wet the filter paper, being careful not to be too wet or too dry, and then stick the filter paper tightly to the filter hole plate of the Buchner funnel. 5. Vacuum operation. Pass the filtrate through a glass rod and slowly pour it into the connected Buchner funnel. | ||

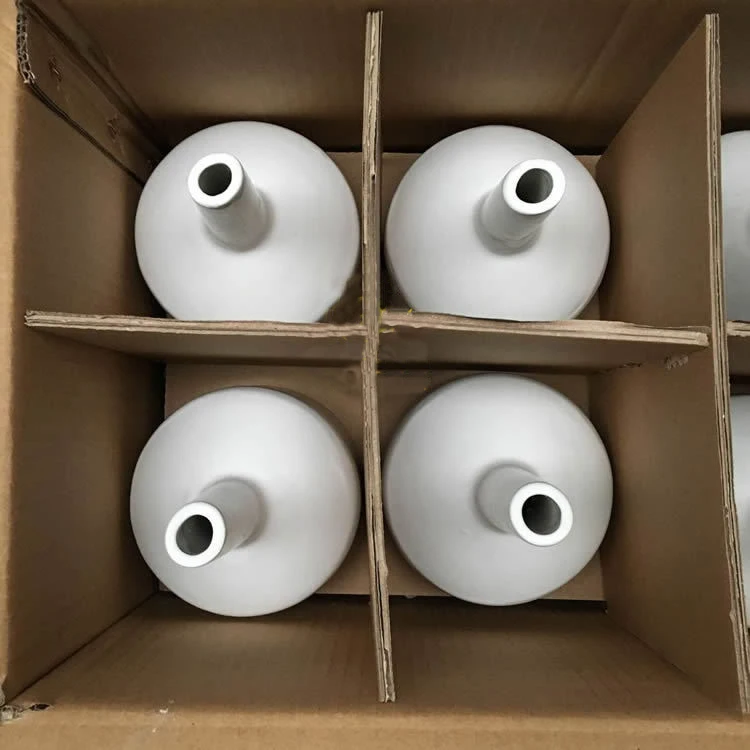

Packing & Delivery

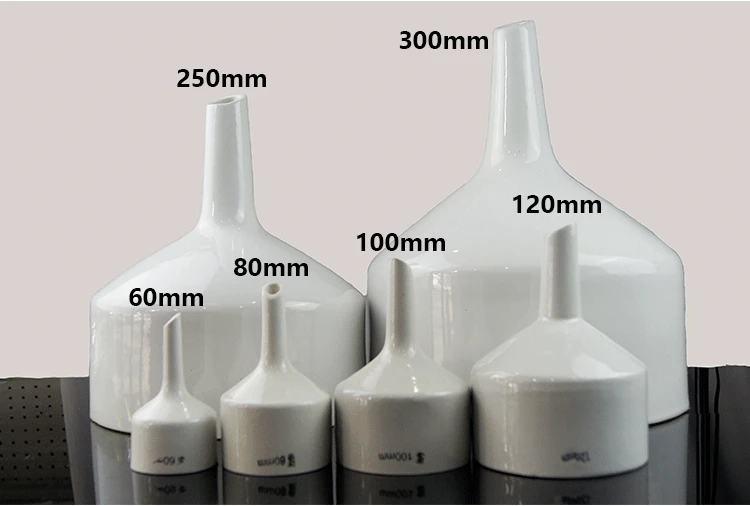

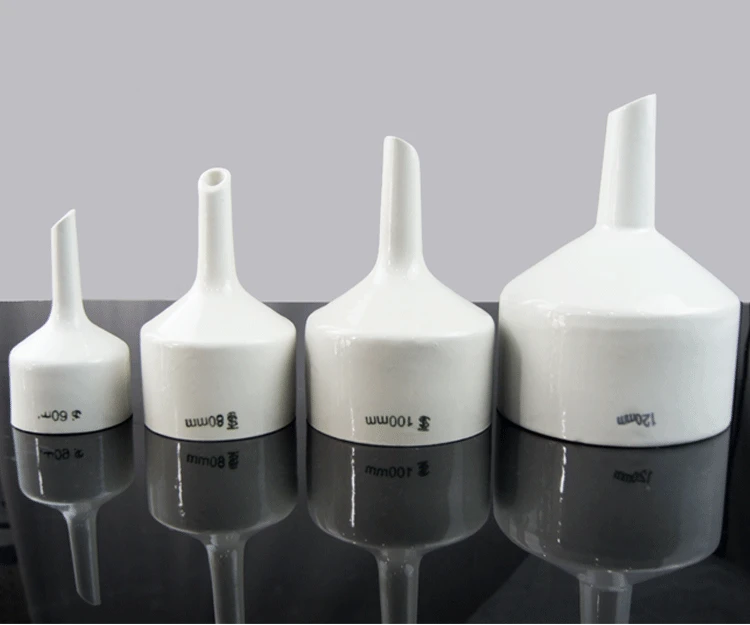

Cat.# | Outer Dim. | Inside Dim. | Height (mm) | Pipe Dia. | Qty/carton | Carton Size |
ZG-BSLD-0040 | 40mm | 34 | 60 | 12 | 100 | 70*38*28cm |
ZG-BSLD-0060 | 60mm | 55 | 93 | 14 | 70 | 66*49*33cm |
ZG-BSLD-0080 | 80mm | 74 | 131 | 18 | 48 | 70*48*36cm |
ZG-BSLD-0100 | 100mm | 91 | 160 | 22 | 30 | 68*42*40cm |
ZG-BSLD-0120 | 120mm | 111 | 175 | 25 | 16 | 66*34*48cm |
ZG-BSLD-0150 | 150mm | 145 | 219 | 34 | 6 | 65*45*31cm |
ZG-BSLD-0200 | 200mm | 194 | 255 | 40 | 4 | 53*53*35cm |
ZG-BSLD-0250 | 250mm | 240 | 290 | 48 | 2 | 64*38*43cm |
ZG-BSLD-0300 | 300mm | 280 | 364 | 60 | 1 | 37*37*50cm |
