JQ Лазерная заводская цена M модель ручной волоконно-лазерный сварочный аппарат металлический сварной
- Категория: >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7140.9 $* | 7497.78 $* |
| Aug-19-2025 | 7080.65 $* | 7434.79 $* |
| Jul-19-2025 | 5940.11 $* | 6237.71 $* |
| Jun-19-2025 | 6960.2 $* | 7308.84 $* |
| May-19-2025 | 6060.22 $* | 6363.55 $* |
| Apr-19-2025 | 6840.48 $* | 7182.8 $* |
| Mar-19-2025 | 6780.21 $* | 7119.64 $* |
| Feb-19-2025 | 6720.47 $* | 7056.57 $* |
| Jan-19-2025 | 6660.80 $* | 6993.20 $* |
Характеристики
Product Description
Model M handheld welding machine
Model M handheld welding machine is optimized in product design and configuration in model J and model A,This products are more stable and scientific, also cost-effective
New appearance, New Design
*The electric control part adopts the air lift rod and the hinge opening and closing device, also the screws are fastened during transportation, which is durable, safe and reliable.
*Optical fiber armored cable inventory adopts recessed design, which makes more use of space; optical fiber exit level design,inventory and turning radius are greater than the safety standard, also improve the life of the optical fiber.
Optical fiber armored cable inventory adopts recessed design, which makes more use of space; optical fiber exit level design,inventory and turning radius are greater than the safety standard, also improve the life of the optical fiber.
*Three safety devices are adopted: main switch, control switch, and emergency stop switch. The button switch is equipped with an anti-touch protective cover to increase the safety factor.
*The foot of Fuma wheel is convenient, beautiful and stable; the heat dissipation design of high opening rate reduces the working temperature and prolongs the life of electronic components.
Parameter
Model | JQ-1000HWM | ||
Model name | Handle laser welding machine | ||
Laser Power | 1000W/1500W | ||
Laser wavelength | 1070nm | ||
Fiber core diameter | 20μm | ||
Fiber length | 10m | ||
Laser working mode | Continuous / Modulation | ||
Galvanometer width | 0.5-6mm | ||
Galvo scan speed | ≤8000mm/s | ||
Welding speed | 0-120mm/s | ||
Refrigeration unit | Intelligent dual temperature chiller | ||
temperature range | 15-35℃ | ||
Humidity range of working environment | ＜ 70% non-condensing | ||
Welding material thickness | ≤2mm | ||
Welding gap requirements | ≤0.5mm | ||
Voltage requirement | 220V±10% | ||
Total power | ≤5KW | ||
Machine size | 1350mm*600mm*1300mm | ||
Product structure

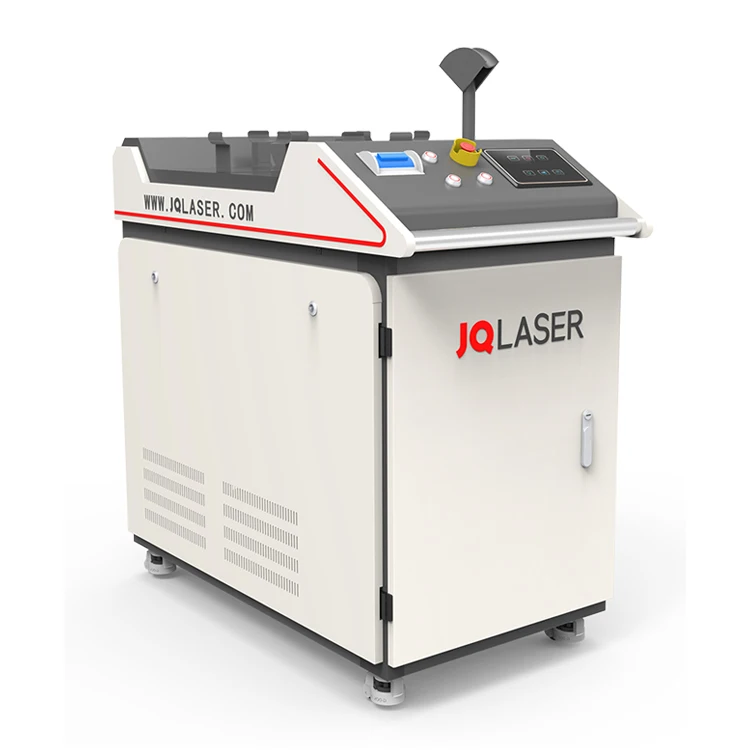

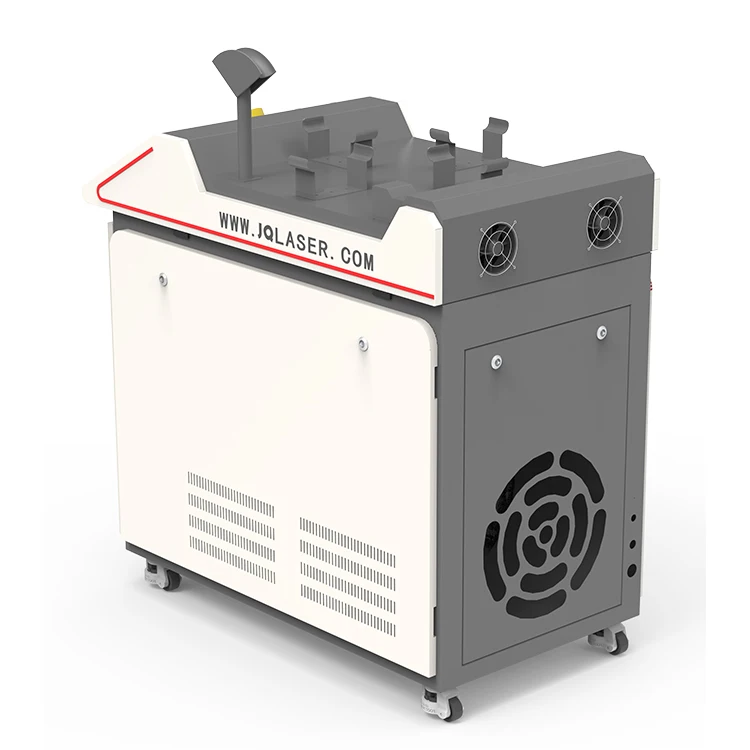

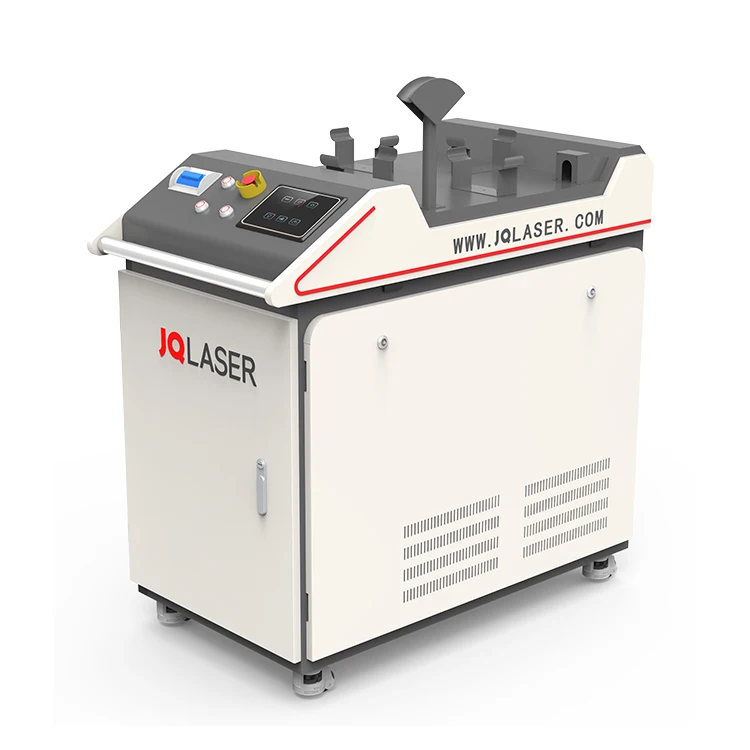

Machine appearance
*Integrated cabinet, integrated design
*Small footprint and easy to use
*Strong comprehensive performance and wide application fields
*Small footprint and easy to use
*Strong comprehensive performance and wide application fields
Laser source
*1000W/1500W BWT laser source
20μm Fiber core diameter, higher electro-optical conversion efficiency
High beam quality and strong system stability
20μm Fiber core diameter, higher electro-optical conversion efficiency
High beam quality and strong system stability
Swing welding head
*Galvanometer width adjustable, bead width 0.5-6mm
*Dedicated welding tip for welding at any position and angle
*Infrared positioning, more accurate welding position
*Dedicated welding tip for welding at any position and angle
*Infrared positioning, more accurate welding position
Control System
*LCD touch screen, good interactive control system
*Preset multiple process modes to *meet different process requirements
Preset multiple security alarms, more secure and reliable
*Preset multiple process modes to *meet different process requirements
Preset multiple security alarms, more secure and reliable
Dual temperature chiller
*Intelligent temperature control and compressor refrigeration
*LCD display, temperature always displayed
*20μm fiber core warp, higher electro-optical conversion efficiency
*LCD display, temperature always displayed
*20μm fiber core warp, higher electro-optical conversion efficiency
Wire feeding device (optional)
*Automatic wire feeding device
*Software control, adjustable wire feed speed
*Fill welds and increase welding strength
*Software control, adjustable wire feed speed
*Fill welds and increase welding strength
Sample
JQ-1000-HWM handheld laser welding machine adopts a handheld swing welding head, which is flexible and simple to operate. It does not require professional welder technology. It is suitable for small batch and large batch production and processing. It is widely used in sheet metal processing, kitchen cabinets, cabinets, staircase handrails, elevator escalators, display shelves, Doors and windows, advertising models, stainless steel products and many other industries.
*WE SUPPORT FREE SAMPLES SERVICE！！YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Industry Application
JQ-1000-HWM handheld laser welding machine are used It is widely used in sheet metal processing, cabinets and kitchen utensils, cabinets, stair handrails, elevator escalators, display shelves, doors and windows, advertising models, stainless steel products and many other industries.
Certificate
*We have passed CE certification, ISO9001 quality management system certification, Alibaba Jinpincheng Enterprise Certification and design patents and other international certifications.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Company Profile
*11 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
Jinan JinQiang Laser CNC Equipment Co.,LTD
Jinan JinQiang Laser CNC Equipment Co.,LTD was established in 2006. It is a high-tech industry focusing on the research and development, production and sales of laser application and sheet metal automation complete equipment. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding. Jinqiang Laser currently has more than 300 employees, and technology research and development and after-sales service account for more than 50%; we have a professional and fast-responding customer service team, providing 24-hour online and offline technical services in 12 languages. With reliable product quality, reasonable prices and perfect after-sales service system, JQ laser is now exported to more than 150 countries and regions around the world.
Exhibition display
Jinqiang Laser has traveled all over the world, participated in more than 300 exhibitions and served more than 20,000 customers。
*About the installation and inspection of the fiber laser welding machine before leaving the factory, we strictly control the quality of the fiber laser welding machine, and make every detail perfect. Let our customers rest assured to use our machines safely!
After-sales service & customer visit:
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
