Высокое качество Лидер продаж пластиковая инжекционная цена машина для формования ушных бирок животных с
- Категория: Injection Molding Machine >>>
- Поставщик: Dongguan,Yingling,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7021.81 $* | 7372.16 $* |
| Aug-19-2025 | 6962.98 $* | 7310.9 $* |
| Jul-19-2025 | 5841.98 $* | 6133.76 $* |
| Jun-19-2025 | 6844.92 $* | 7186.17 $* |
| May-19-2025 | 5959.35 $* | 6257.50 $* |
| Apr-19-2025 | 6726.49 $* | 7062.2 $* |
| Mar-19-2025 | 6667.19 $* | 7000.17 $* |
| Feb-19-2025 | 6608.53 $* | 6938.83 $* |
| Jan-19-2025 | 6549.50 $* | 6876.57 $* |
Характеристики
Related Products
Product Description
1.in-line screw type injection apparatus.
2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift,clean and convenient material head,fixed moldeasier.
6.can be installed with a single mode skateboards,skateboard or alternating dual mode
Specification of plug Injection Moulding Machine:
| MODEL | UNIT | JY-350ST | |
| INJECTION UNIT | Screw Diameter | mm | ø28 |
| Theoretical Injection Volume | cm³ | 76.9 | |
| Injection Weight(PS) | g(oz) | 72.6(2.56) | |
| Max.Injection Pressure | Mpa(kgf/cm²) | 196(2000) | |
| Injection Rate | cm³/s | 60.3 | |
| Injection Speed | mm/s | 98 | |
| Injection Stroke | mm | 125 | |
| Screw Speed Rotation | r.p.m | 0-190 | |
| NO.of Temperaturecontrol | 3 | ||
| CLAMPINGUNIT | Clamping Force | KN(tf) | 343(35) |
| Clamping Stroke | mm | 180 | |
| Min.Mold Thickness | mm | 80/180 | |
| Max.Opening | mm | 260/360 | |
| (L*W)Max.MouldSize | mm | 350*300 | |
| (L*W)Platen Size | mm | 490*325 | |
| Ejector Distance | mm | 25 | |
| Ejector Force | KN(tf) | 12.7(1.3) | |
| OTHERS | Oli Tank Capacity | L | 100 |
| Electric Power | KW(HP) | 4(5.5) | |
| Heater Power | KW | 2.8 | |
| Machine Dimensions | L*W*H | 1.48*1.07*2.15M | |
| Machine Weight | tf | 1.3 |
Machine Application
Machine Application:
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,patch cord cable,etc.

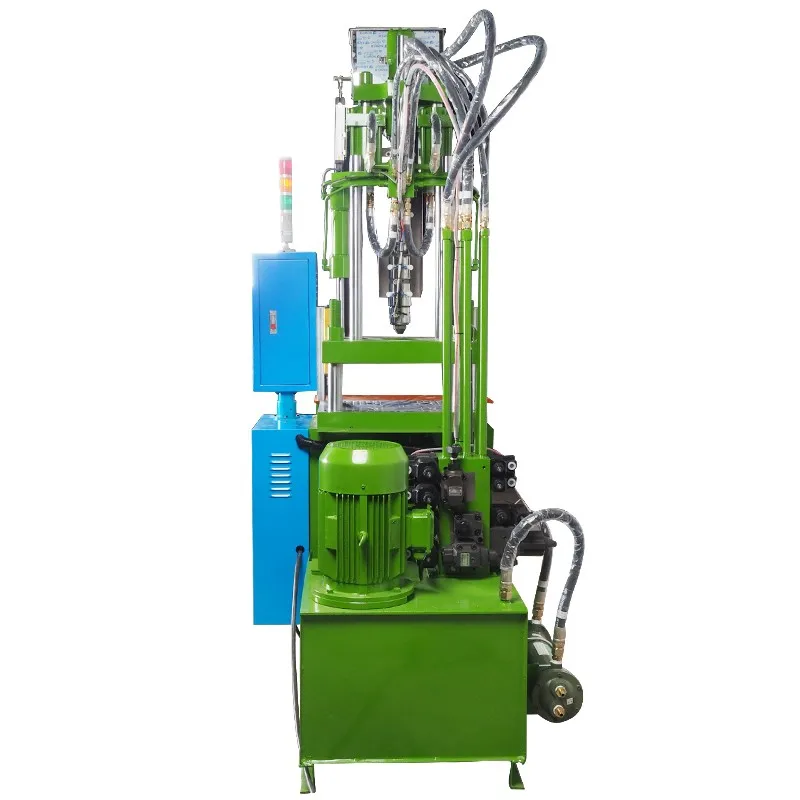

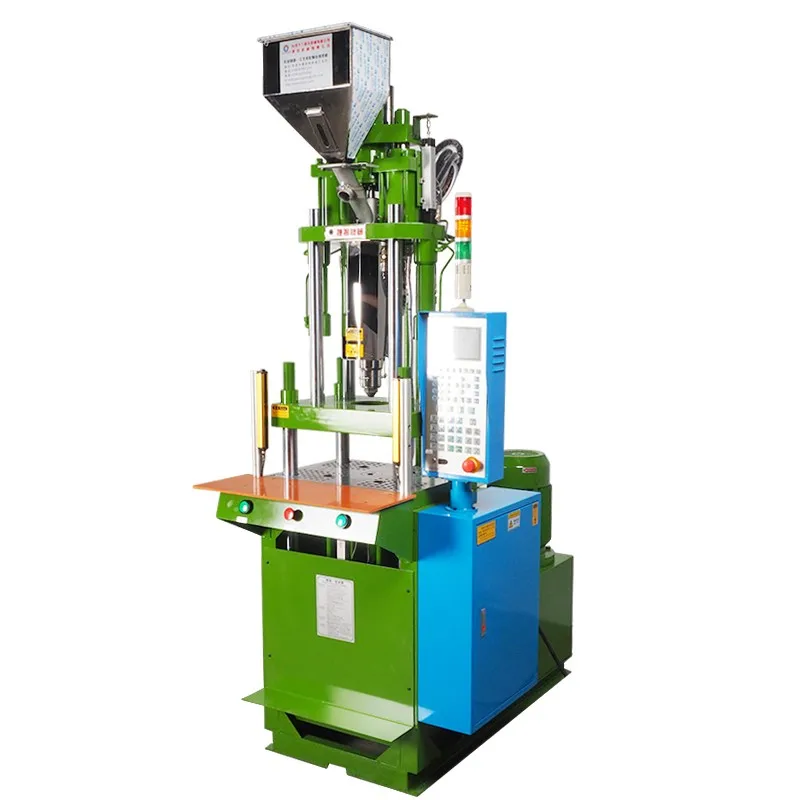

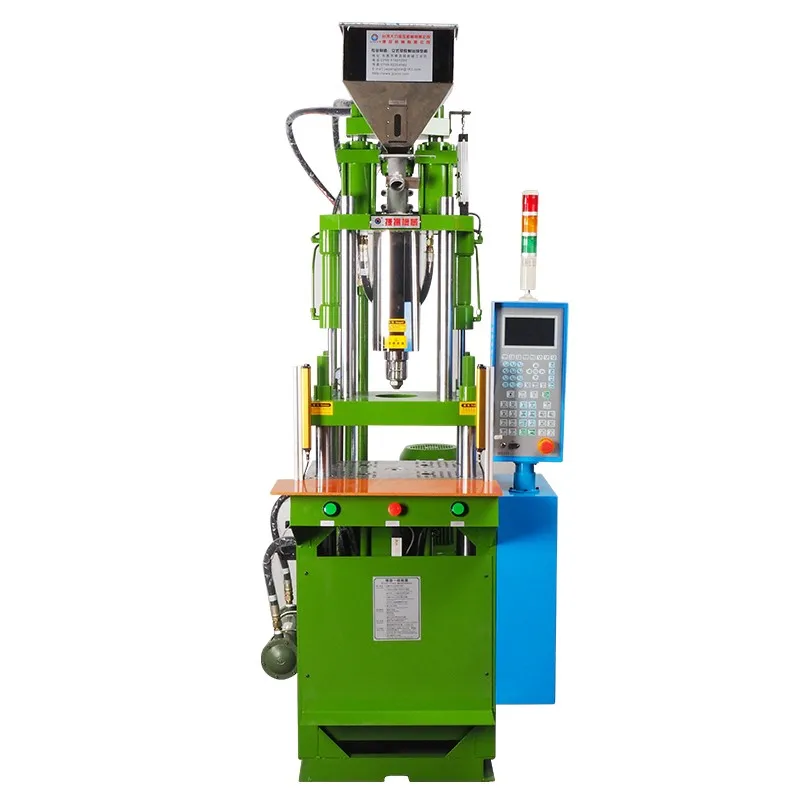

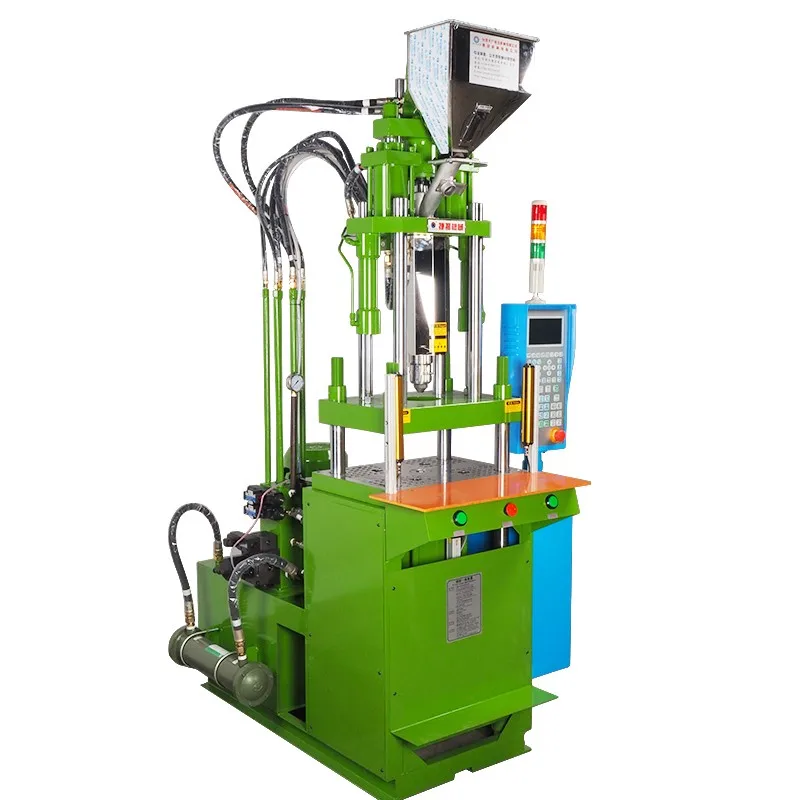

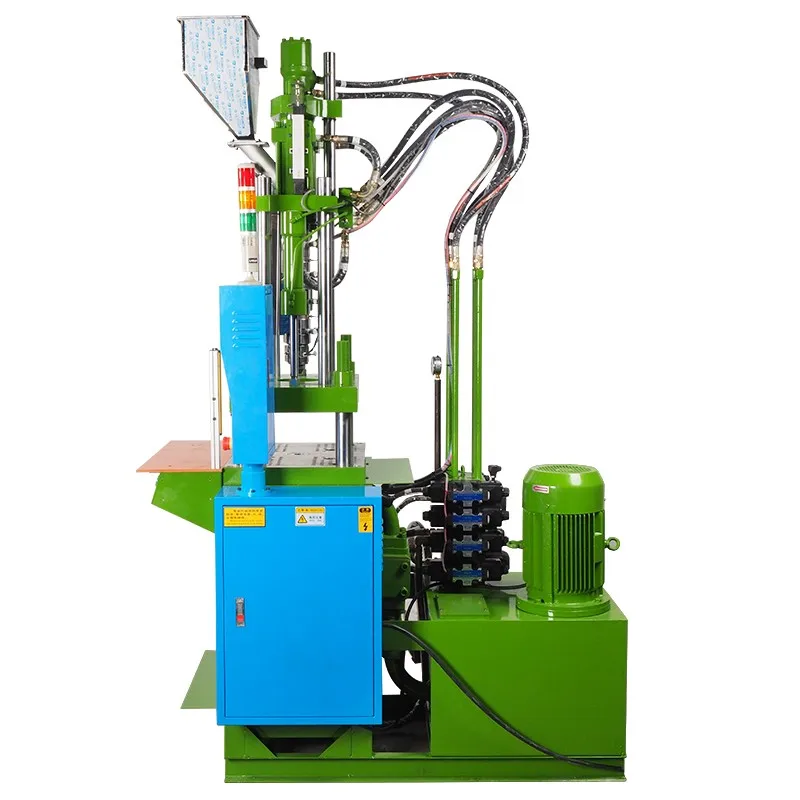

Detailed Images
Company Information
Packaging
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
| Packaging | |
| Dimensions | 1.60*1.17*2.25m |
| Weight | 1300kg |
FAQ
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Where is your factory? How can visit you? |
| A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
| Q5: Why choose Jieyang Machinery Co., Ltd.? |
| A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
Welcome to visit our factory to view more details
