Алюминиевый автоматический гидравлический фильтрующий Пресс высокого давления мини-фильтрующий пресс для
- Категория: Filter Press Equipment >>>
- Поставщик: Shandong,Aolai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1726.18 $* | 1812.58 $* |
| Aug-15-2025 | 1711.46 $* | 1797.5 $* |
| Jul-15-2025 | 1436.37 $* | 1508.70 $* |
| Jun-15-2025 | 1682.97 $* | 1766.37 $* |
| May-15-2025 | 1465.45 $* | 1538.7 $* |
| Apr-15-2025 | 1653.44 $* | 1736.17 $* |
| Mar-15-2025 | 1639.13 $* | 1721.73 $* |
| Feb-15-2025 | 1624.20 $* | 1705.70 $* |
| Jan-15-2025 | 1610.60 $* | 1691.65 $* |
Характеристики

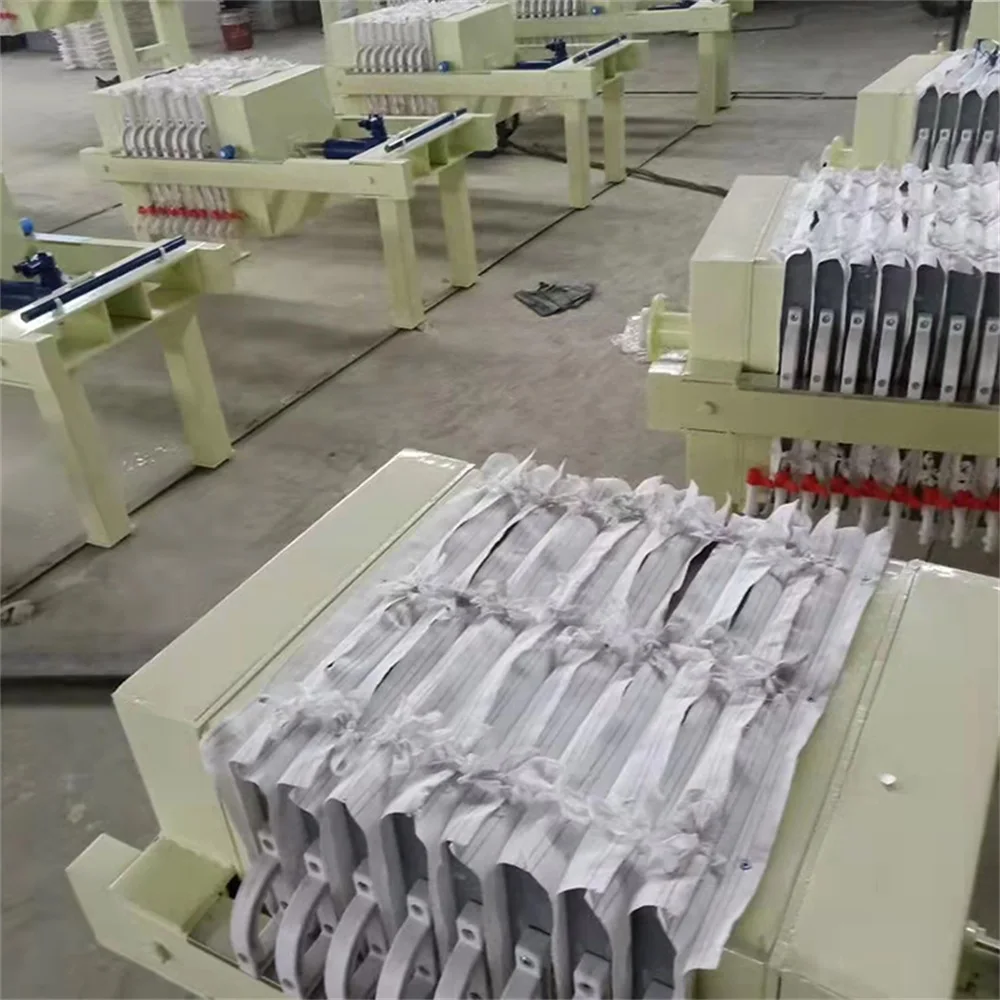

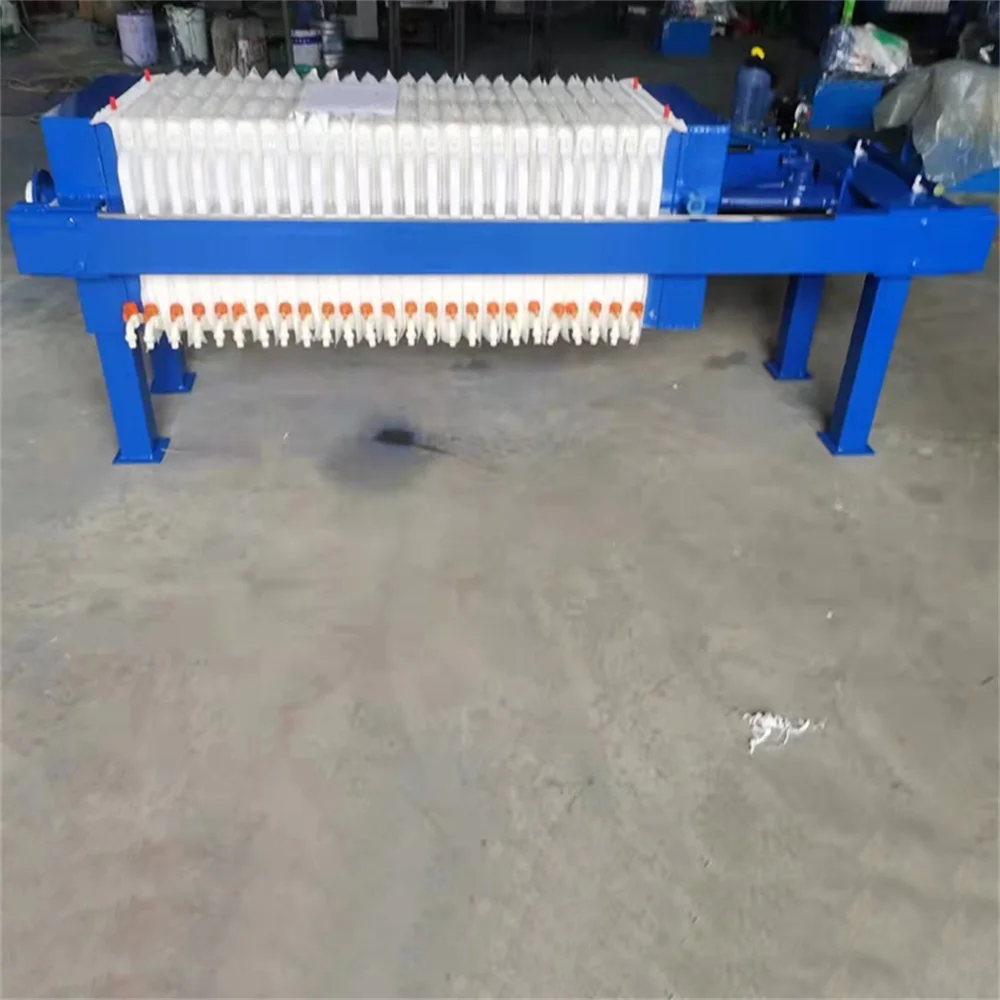

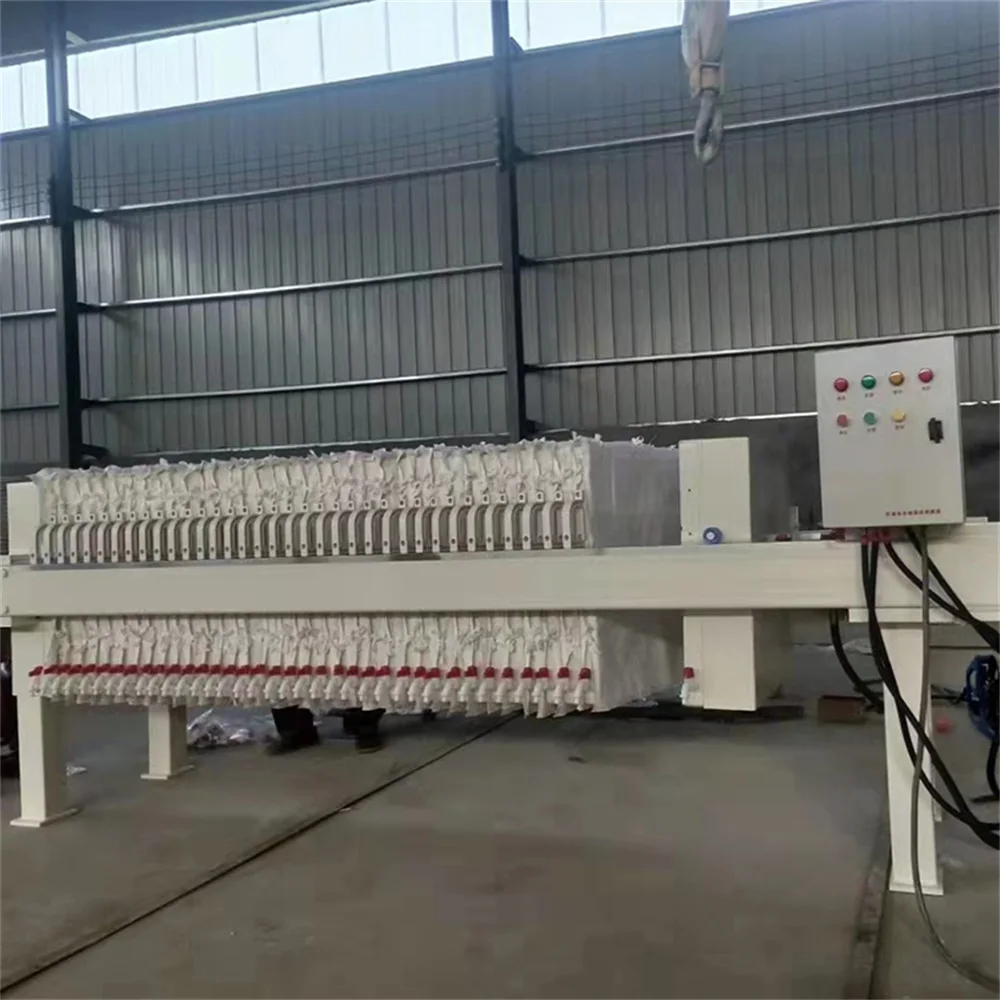

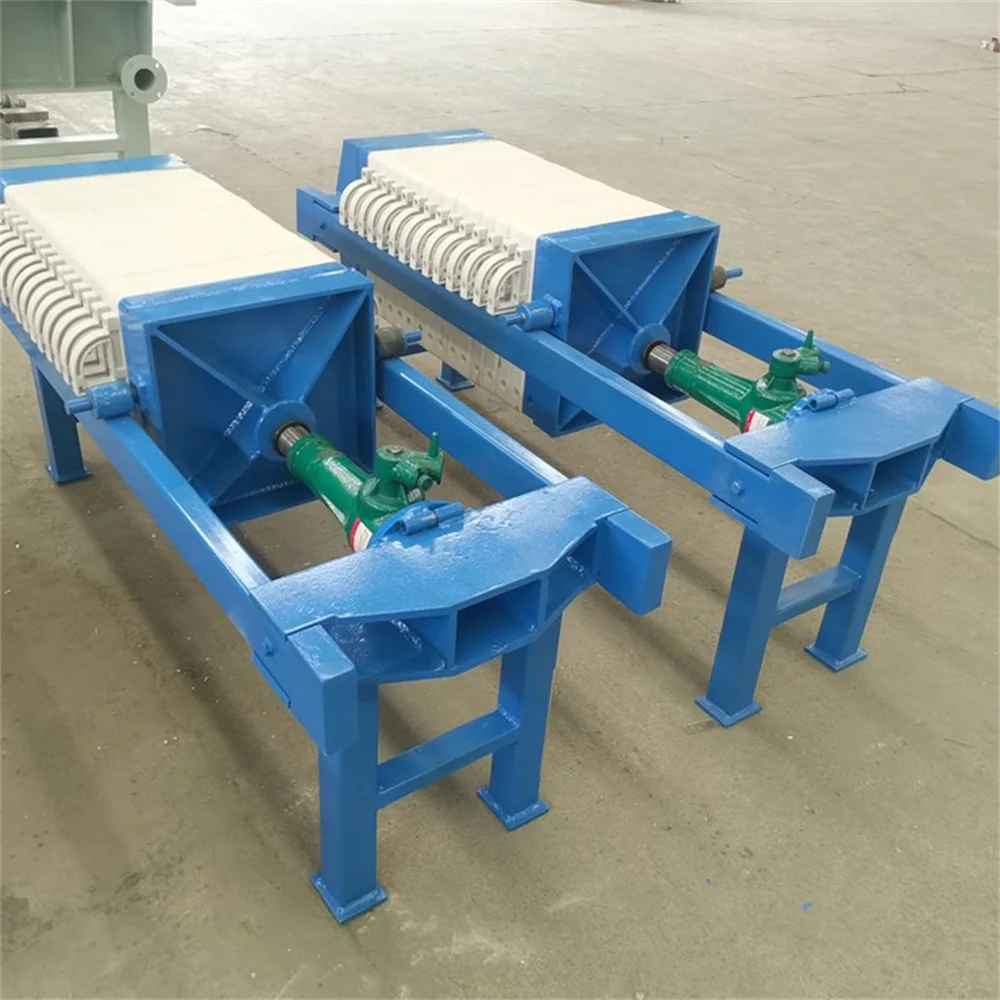

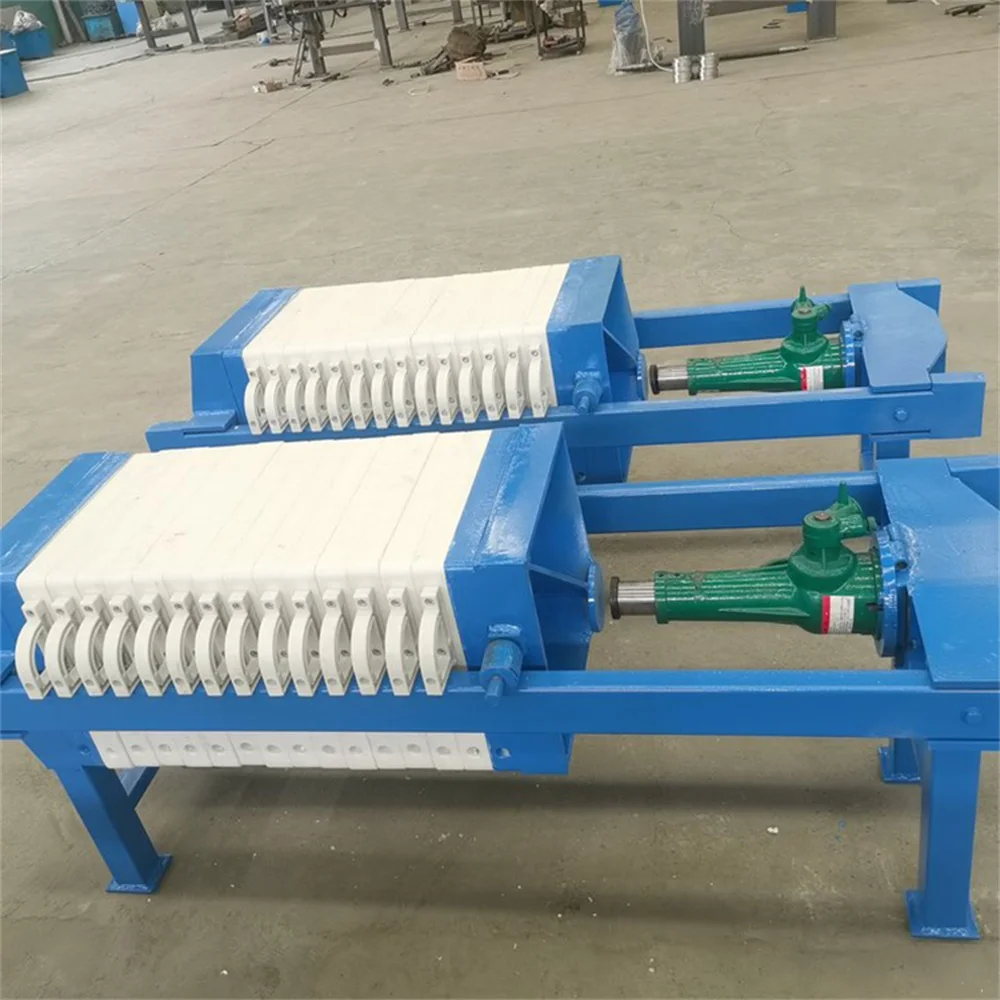

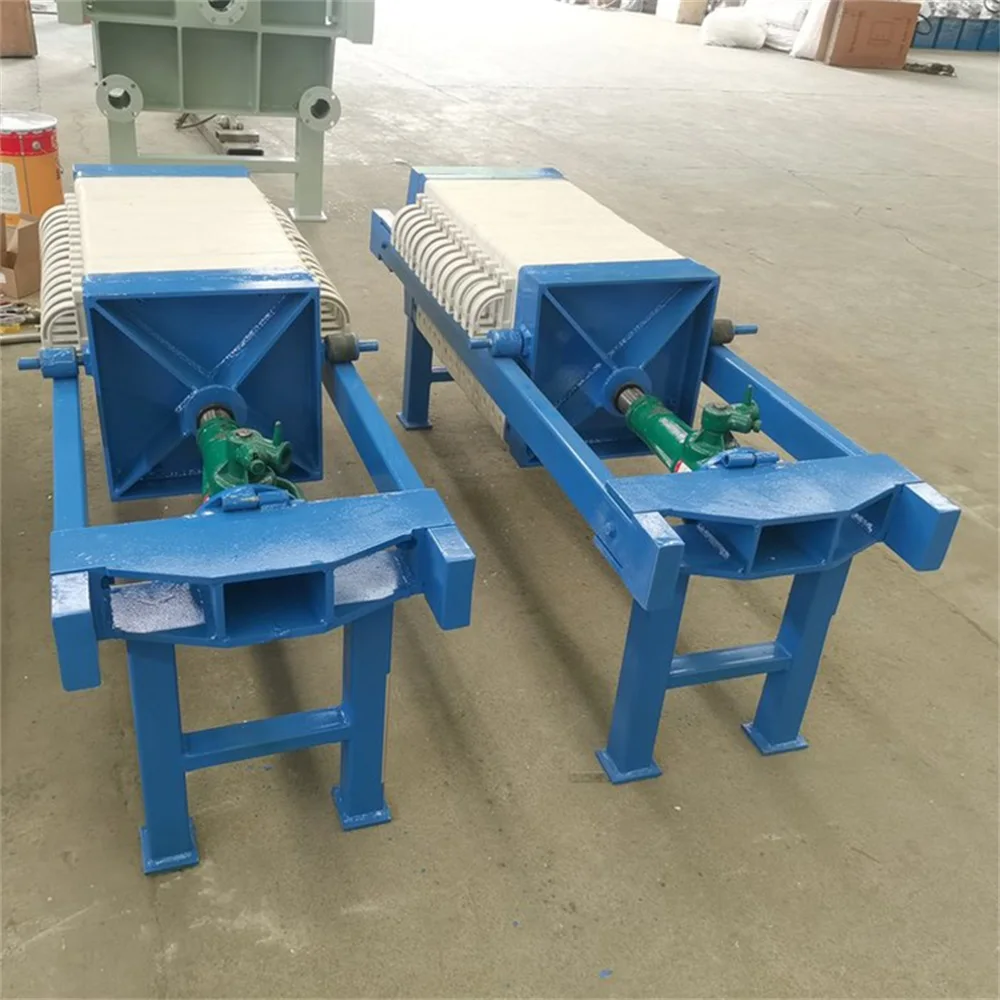

The filter press is a filter chamber composed of a filter frame. Under the action of pressure, the filter media is used to cut the archaic body from the very body. It is made of reinforced polypropylene filter plate, and the filter frame is made of technical wood. It has high strength, light weight, reasonable design, simple structure, reliable performance, convenient use and easy maintenance. It can be applied to chemical, petroleum, metallurgy, food, etc. Industry's solid-liquid separation process. It has various uses and good adaptability.
Products Description
Working principle: The hydraulic pressure mechanism of the filter press is composed of a hydraulic station, a cylinder, a piston, a piston rod, and the structure of the old Lanka hydraulic station, which is like a continuous press with a movable Kish and a pressure system. The structure consists of a motor, an oil pump, and an overflow valve. (Adjust pressure) reversing valve, pressure gauge, oil circuit, oil tank.
Filtration method: the way the filtrate flows out is divided into open flow filtration and undercurrent filtration. Open flow filtration: "A water nozzle is installed on the outlet hole under each filter plate, and the filtrate flows out from the water nozzle intuitively."
Flowing filtration: "Each filter plate is provided with a liquid outlet channel hole, and the liquid outlet holes of several filter plates are connected to form a liquid outlet channel, which is discharged from the pipe connected to the liquid outlet hole under the thrust plate."
Washing method: When the filter cake needs to be washed, there are sometimes one-way washing and two-way washing, undercurrent one-way washing and two-way washing
Product Specification
main feature
1. This machine adopts hydraulic transmission, highly professional integrated valve block, super large flow diameter, so that the system pressure loss is small, and the sealing performance is good.
2. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect. Even if it works under long-term heavy load, the system will not appear to be inadequate.
3. The system is designed with a pre-discharge device, which completely eliminates the hydraulic shock.
4. Advanced fast device to ensure your class output.
5. The electrical part adopts imported SY Sanyi automatic control system, which has strong anti-interference ability and low failure rate.
6. The machine body adopts a horizontal integral steel structure, which has high strength and good stability. It does not need to install foundation screws.
7. The electrical part adopts PC control, which has strong anti-interference, high degree of automation and simple operation.
8. The hydraulic station adopts integral sy Sanyi professional valve block and Datong valve installed to prevent oil leakage, reduce the oil temperature of the system, and improve the stability of the system.
9. The frame part adopts integral steel castings, which improves the reliability, stability and service life of the equipment.
10. The oil cylinder adopts tandem oil cylinder, which improves the movement speed and production efficiency.
11. According to the user's working conditions, it is additionally equipped with a spiral automatic feeder and a chain automatic discharger, which reduces the labor intensity of the workers.
1. This machine adopts hydraulic transmission, highly professional integrated valve block, super large flow diameter, so that the system pressure loss is small, and the sealing performance is good.
2. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect. Even if it works under long-term heavy load, the system will not appear to be inadequate.
3. The system is designed with a pre-discharge device, which completely eliminates the hydraulic shock.
4. Advanced fast device to ensure your class output.
5. The electrical part adopts imported SY Sanyi automatic control system, which has strong anti-interference ability and low failure rate.
6. The machine body adopts a horizontal integral steel structure, which has high strength and good stability. It does not need to install foundation screws.
7. The electrical part adopts PC control, which has strong anti-interference, high degree of automation and simple operation.
8. The hydraulic station adopts integral sy Sanyi professional valve block and Datong valve installed to prevent oil leakage, reduce the oil temperature of the system, and improve the stability of the system.
9. The frame part adopts integral steel castings, which improves the reliability, stability and service life of the equipment.
10. The oil cylinder adopts tandem oil cylinder, which improves the movement speed and production efficiency.
11. According to the user's working conditions, it is additionally equipped with a spiral automatic feeder and a chain automatic discharger, which reduces the labor intensity of the workers.
Our Company
Packaging And Shipping
Our Service
Before sale
1. Quick response
2. Professional technical consulting services
3. Provide a variety of related information about the product
2. Professional technical consulting services
3. Provide a variety of related information about the product
On sale
1. Delivery on schedule
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
After sale
1.24 hours technical support
2. Long warranty
3. Sufficient spare parts guarantee
2. Long warranty
3. Sufficient spare parts guarantee
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
Contact Us
Shandong Aolai Machinery Co., Ltd
Tel/Wechat/Whatsapp:+8613325178055
Linkedin: 13325178055
Facebook: 13325178055
Facebook: 13325178055
Email : al13325178055@hotmail.com
