Фильтр диатомит для виноградного вина и сока мелкая производственная линия машина производства

The diatomite filter machine has been widely used in liquor, wine, low alcohol, rice wine, wine, wine and water treatment industries, filtration clarity of 99.8%, operating properly. The use of diatomaceous earth after filtration of wine and beverages, the same flavor, non-toxic, no suspension, precipitation, high clarity, machine small footprint, lightweight and flexible, easy to move.

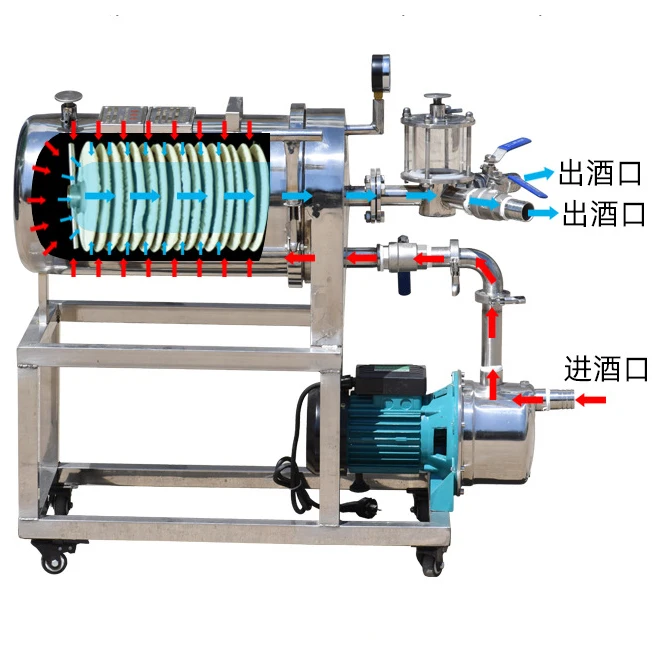

Structure & Working principle

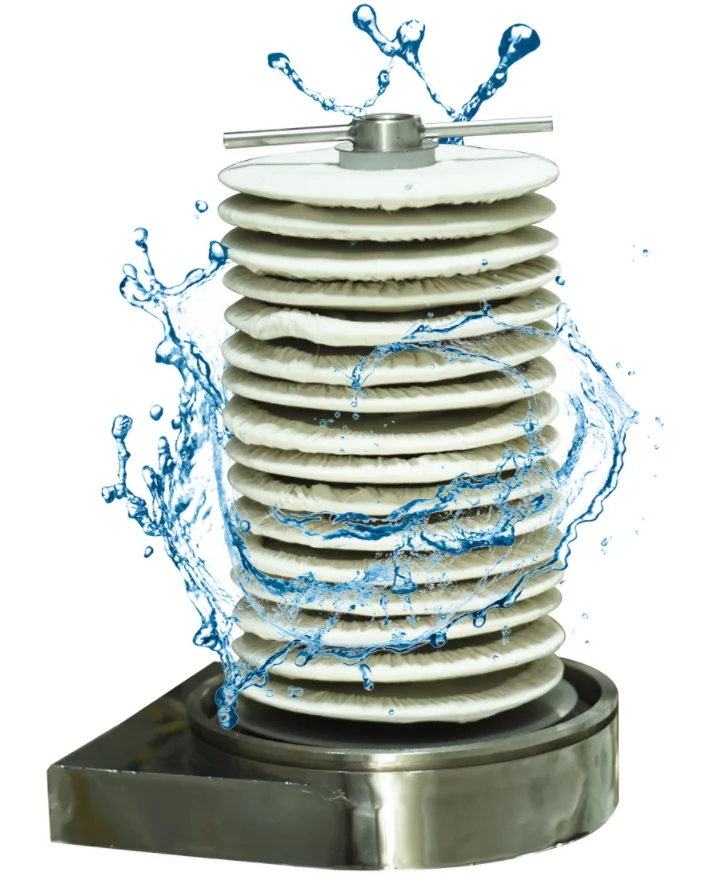

In close stainless steel container, place the stainless steel filter disc from bottom to top in horizontal, the disc of the upper
is a stainless steel filter screen, the lower is the stainless steel support plate, the middle is liquid collection chamber. When
filtration, diatomite precoating first, make the plate form a layer of diatomite coating, under the influence of pump pressure, the filtering liquid is pushed into collection chamber through precoating, particles and polymer by intercepting the precoat, theclarify liquid in the collection chamber is discharged out of container, through the central axis.
