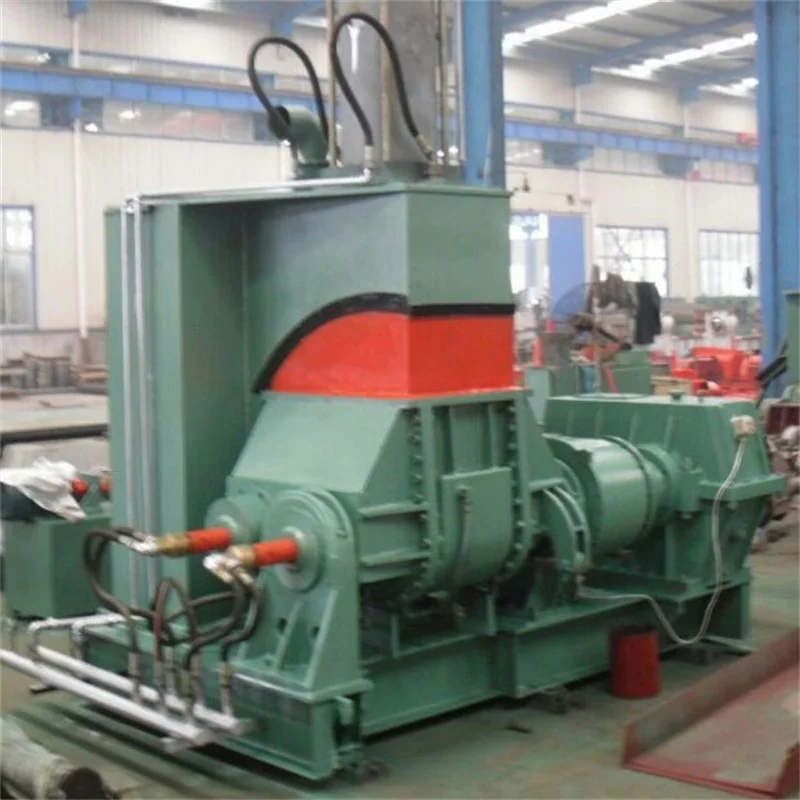

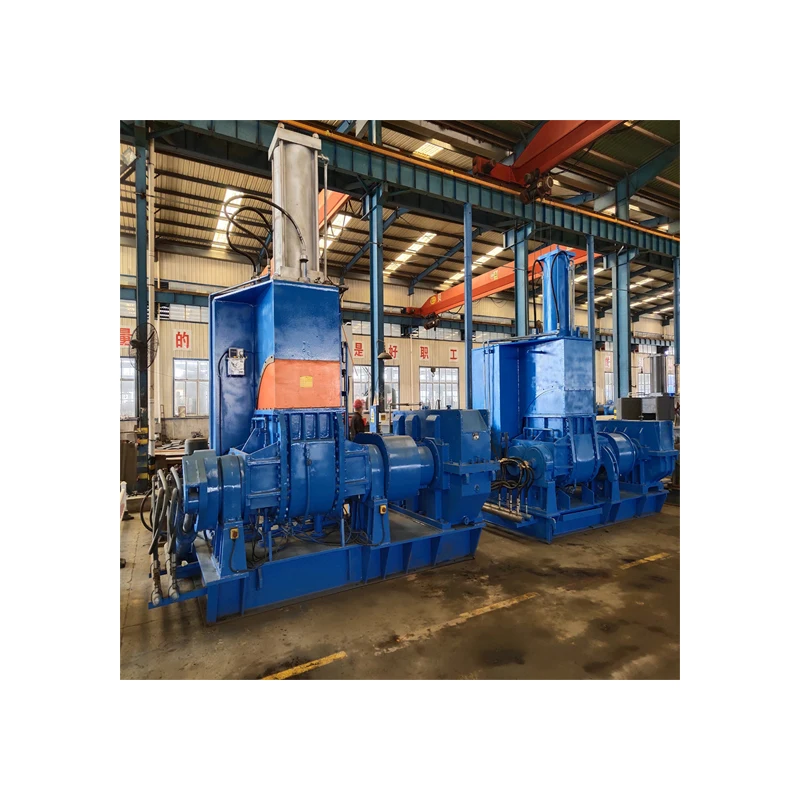

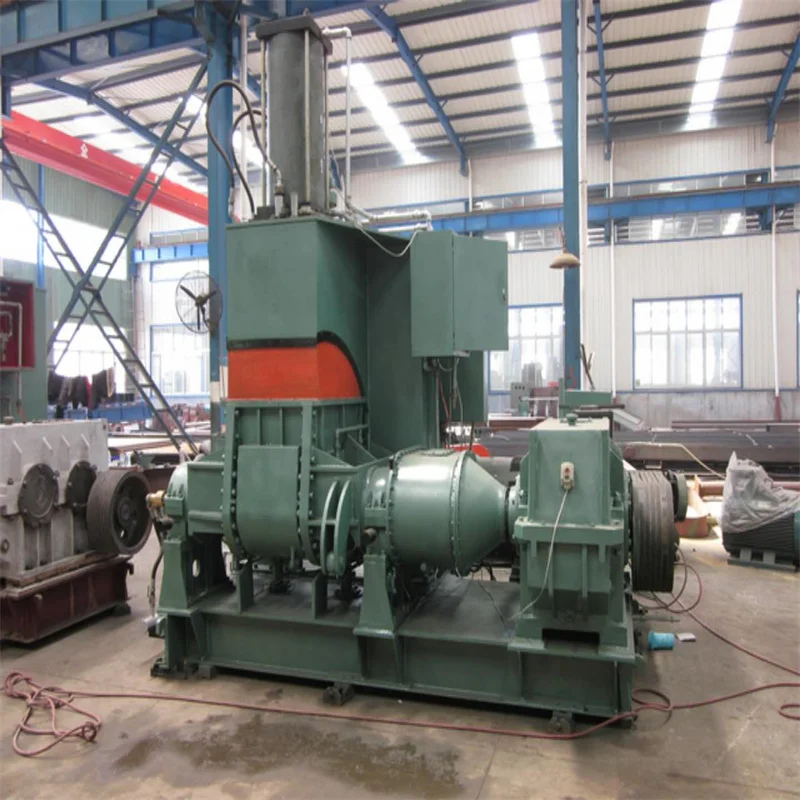

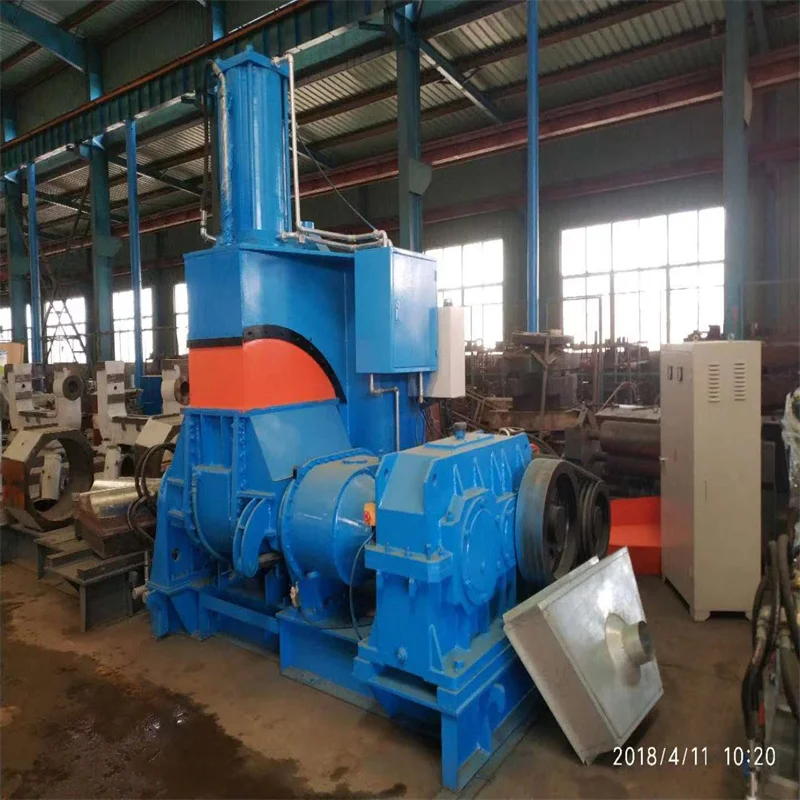

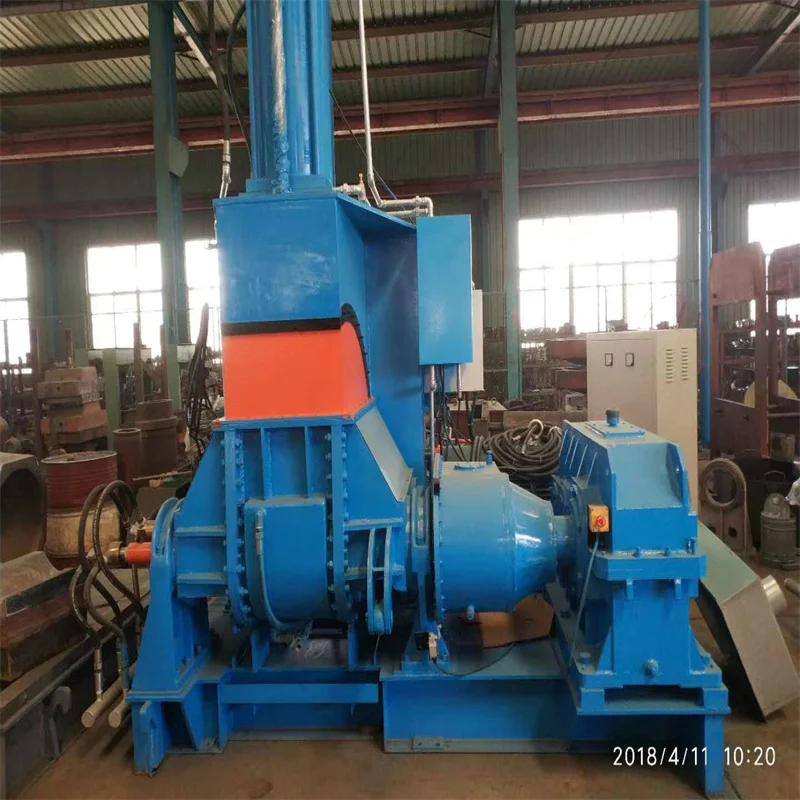

Автоматическая дозирующая система смешивания для линии производства резины Banbury резиновый смеситель дисперсионная
- Категория: >>>
- Поставщик: Qingdao,Hangsen,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.81 $* | 0.53 $* |
| Aug-20-2025 | 0.10 $* | 0.47 $* |
| Jul-20-2025 | 0.78 $* | 0.14 $* |
| Jun-20-2025 | 0.15 $* | 0.70 $* |
| May-20-2025 | 0.64 $* | 0.51 $* |
| Apr-20-2025 | 0.5 $* | 0.37 $* |
| Mar-20-2025 | 0.37 $* | 0.93 $* |
| Feb-20-2025 | 0.13 $* | 0.7 $* |
| Jan-20-2025 | 0.20 $* | 0.4 $* |
Характеристики
Model | X(S)M-80 | X(S)M-110 | X(S)M-160 | X(S)M-250 | X(S)M-270 | X(S)M-420 |
Total volume of mixing chamber (L) | 80 two-wing | 110 two-wing | 147 two-wing | 253 two-wing | 250 four-wing | 425 four-wing |
Working volume of mixing chamber (L) | 60 | 82.5 | 110 | 140 | 188 | 319 |
Speed of rear rotor (r/min) | 40 | 40 | 4-40 | 17.24 | 4-40 (6-60) | 6-60 |
Speed ratio of motors | 1:1.15 | 1:1.15 | 1:1.16 | 1:1.16 | 1:1.17/1:1 | 1:1.15/1:1 |
Pressure of compressed air (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Consumption of compressed air (m³/h) | 35 | 60 | Hydraulic uper ram | 60 | Hydraulic uper ram | Hydraulic uper ram |
Pressure of cooling water (Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Consumption of cooling water (m³/h) | ~25 | ~35 | ~45 | ~23 | ~100 | ~150 |
Main motor power KW | AC220 | AC250(280) | DC500 | AC250 | DC1250(1500) | DC1250*2 |
Size (L*W*H) (mm) | 5800*2560*4200 | 6620*2850*4200 | 8000*3300*5260 | 7100*3905*4953 | 8700*4320*6160 | 10800*4960*7040 |
Approx weight (excluding main motor) (ton) | ~22 | ~26 | ~36 | ~35 | ~50 | ~76 |
1..Four shaft head sealing, using new technology of YG8 cemented carbide Mosaic, not leak powder and glue.
2..The mixing chamber using the 20 # boiler plate which is processing by forging and fire.
3..The two Shaft is to use high-quality steel 42 Cr Mo (Grom) made by forging heat treatment.
4..The rotor shaft spindle seam D632 hard alloy welding electrode welding.
5.Two support the rotor shaft bolt and the mixing chamber after polishing hard chromium plating of 0.15-20m not only corrosion, rust, and hard wear.
6.Two rotor shaft, mixing chamber, top bolt, gearbox casing and so on , polishing after heat treatment furnace, temperature 6-700 degrees, eliminate stress, enhancing the toughness, increased by more than five times of the service life.
2..The mixing chamber using the 20 # boiler plate which is processing by forging and fire.
3..The two Shaft is to use high-quality steel 42 Cr Mo (Grom) made by forging heat treatment.
4..The rotor shaft spindle seam D632 hard alloy welding electrode welding.
5.Two support the rotor shaft bolt and the mixing chamber after polishing hard chromium plating of 0.15-20m not only corrosion, rust, and hard wear.
6.Two rotor shaft, mixing chamber, top bolt, gearbox casing and so on , polishing after heat treatment furnace, temperature 6-700 degrees, eliminate stress, enhancing the toughness, increased by more than five times of the service life.
