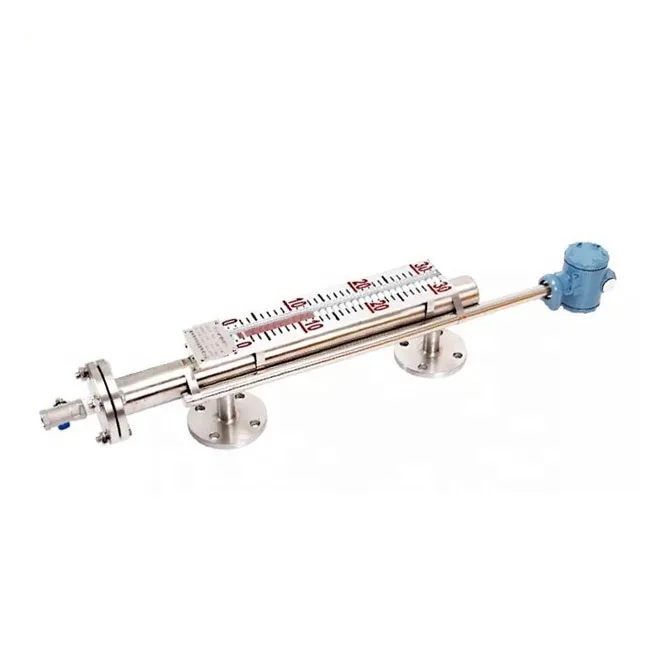

Stainless Steel/PVC/PTFE Level Gauge Magnetic Float Level Gauge With Remote Transmitter

Product Description

Operating principle
The magnetic level gauge, JC-56L,  operates on the principle of a magnetic field connected to the vessel to
provide fluid level information. As the level starts rising or falling the magnetic float travels also with
the liquid. Outside the tube is mounted an aluminum indicator with bi-color (red-white) rollers
causes, each roller can rotate 180°. There is always a communication between the magnetic inside
the float end the rollers, red mean liquid and white mean gas side. For details, pls browse our website: www.bcstgroup.com.



Suitable for various industries including

* Offshore
* (Petro) chemical plants
* Gas installations
* Power plants.
* Water purification plants

Materials

*304 SS.
* 316L (standard)
* 316T
* 316L PTFE gecoat



Techincal Parameter



Product Name	Full Stainless steel Magnetic Level Indicator	Polypropylene (PP) Magnetic Level Indicator
Medium Density	≥0.5kg/L	≥0.4kg/L
Density Difference of Interface Measured	≥0.1kg/L	≥0.1kg/L
Medium Pressure	≤5.0MPa	≤1.0MPa
Medium Viscosity	≤5000mPa.s	≤5000mPa.s
Medium Temperature	Standard:-40 to 120°C	On-site Instruction:-20 to 80°C
	Special:-40 to 350°C	Remote transmission output: -20 to 80°C
Measuring range	200-8000mm	200-8000mm
Measurement Accuracy	±5mm of measured valve	±5mm of measured valve
Indicator type
Measured Tube Material	SUS 304, 316L	PP
Float material	SUS 316	PP
Ventilation sewage form	1/2” plug	1/2” plug
Connection Form	Flange (DIN/ANSI/GB)	Flange (DIN/ANSI/GB)
Optional Installation	Remote transmission transmitter or limit switch
