Оборудование для непрерывного цветного покрытия металлического
- Категория: Metal & Metallurgy Machinery >>>
- Поставщик: Qingzhou,Reachfly,Environment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.7 $* | 0.86 $* |
| Aug-19-2025 | 0.26 $* | 0.64 $* |
| Jul-19-2025 | 0.10 $* | 0.18 $* |
| Jun-19-2025 | 0.34 $* | 0.92 $* |
| May-19-2025 | 0.99 $* | 0.89 $* |
| Apr-19-2025 | 0.62 $* | 0.43 $* |
| Mar-19-2025 | 0.58 $* | 0.70 $* |
| Feb-19-2025 | 0.56 $* | 0.56 $* |
| Jan-19-2025 | 0.96 $* | 0.61 $* |
Характеристики
Product Description
Equipment for continuous color coating line of metal sheet
This production line is used to produce color coating coil, which is mainly based on cold rolled plate, galvanized steel plate and aluminum alloy plate.
This kind of plate has advantages of corrosion resistance and decoration, as well as directly providing raw material for
construction industry, automobile manufacturing, electric and others.
construction industry, automobile manufacturing, electric and others.
It is practical, reliable and mature, client can produce stably and run in the long term, production capacity from 50000 to 200000
tons per year.
tons per year.
Product Specification
Raw Material | Electro-galvanized plate, hot-dip galvanized plate,hot dip Al-Zn plate, cold-rolled steel plate, Aluminum coils etc. |
Thickness | 0.2~2.0mm |
Width | 800~1650mm |
Process Speed | 30~200m/min |
Production Capacity | 30,000~200,000 tons/year |
Coating Thickness | 5-25μm for the single-layer dry film on the front face (regulated as required) 5-15μm for the single-layer dry film on the back face (regulated as required) |
Energy Type | Natural Gas, LPG, Electricity |
Product Grade | Construction plate, decoration plate and household appliance plate. |

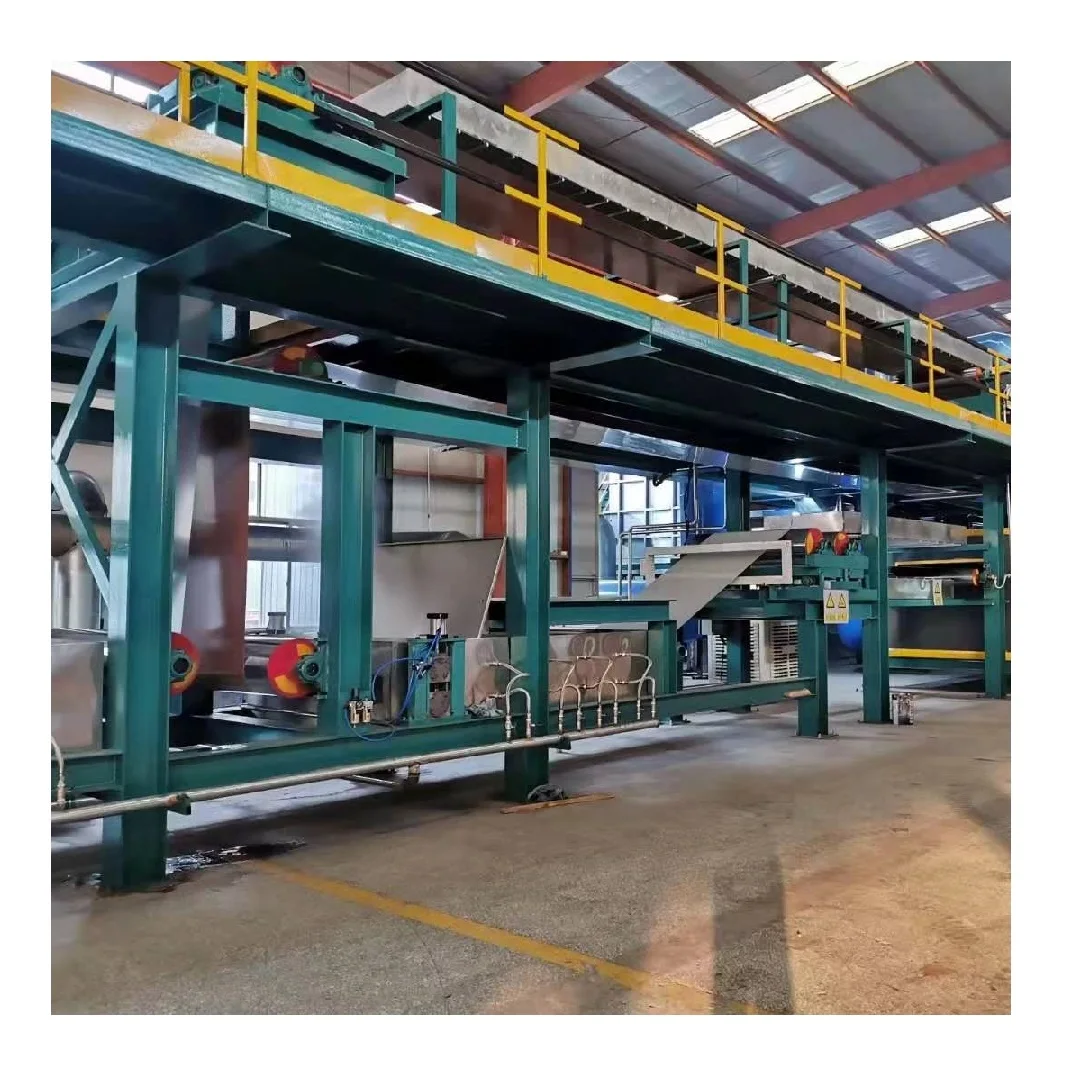

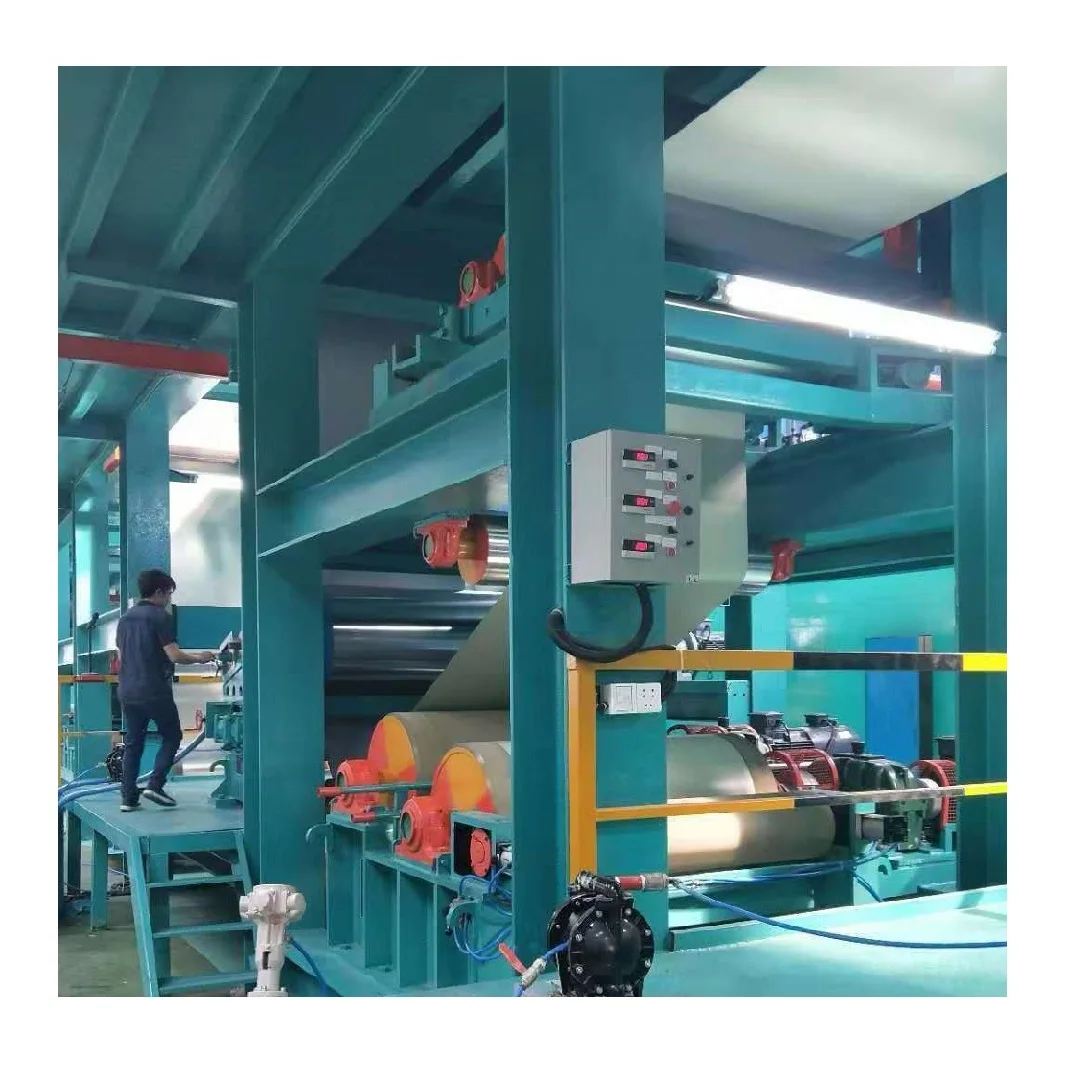

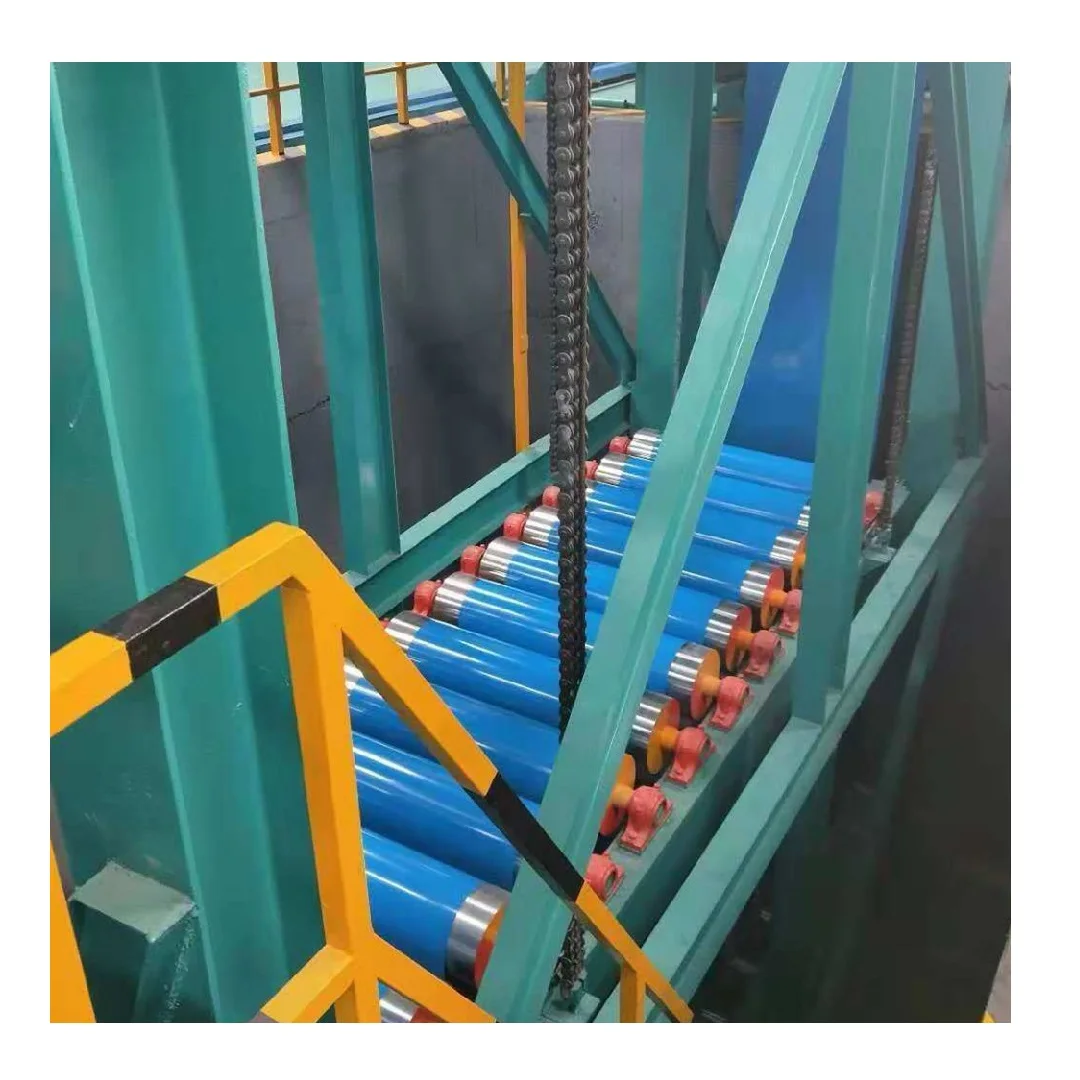

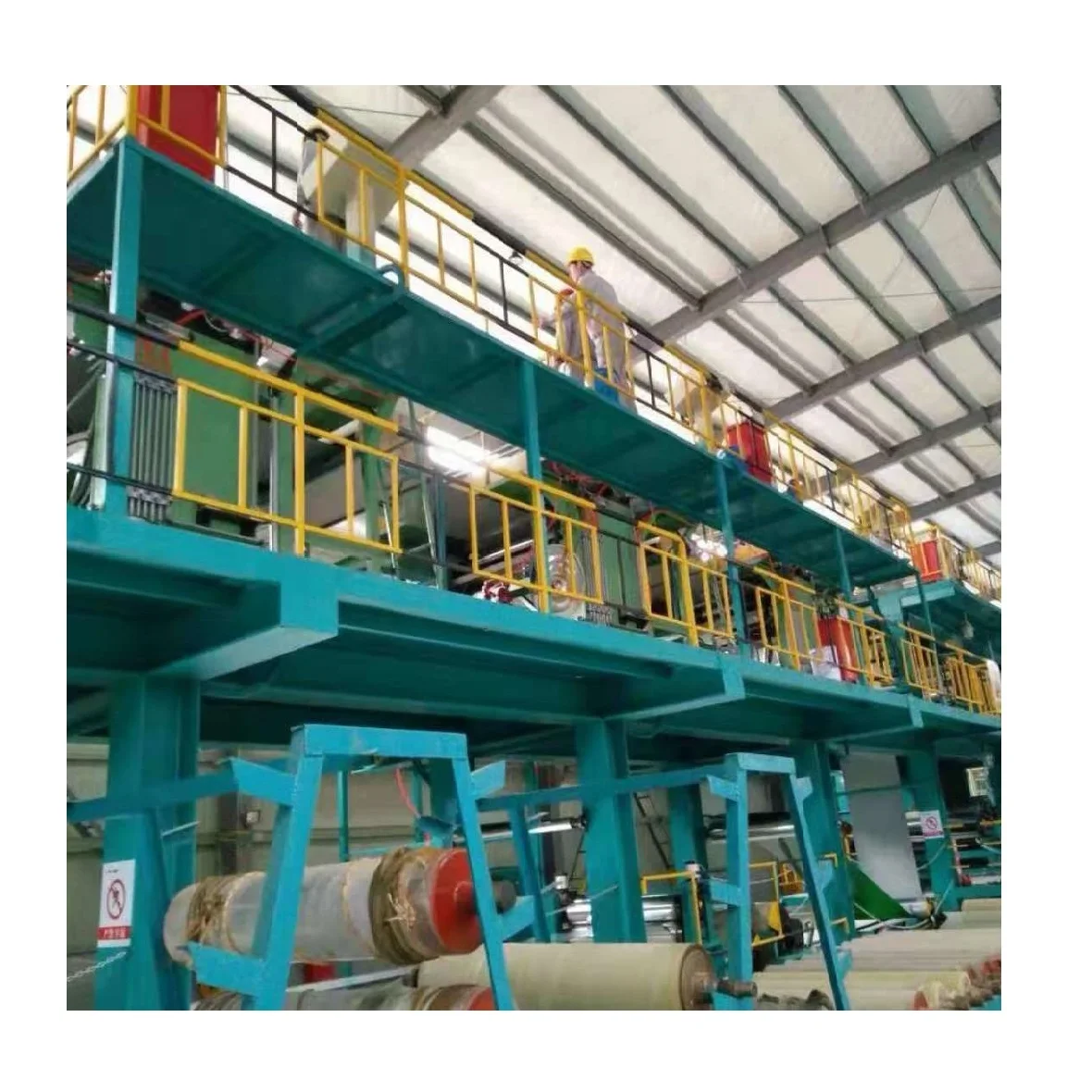

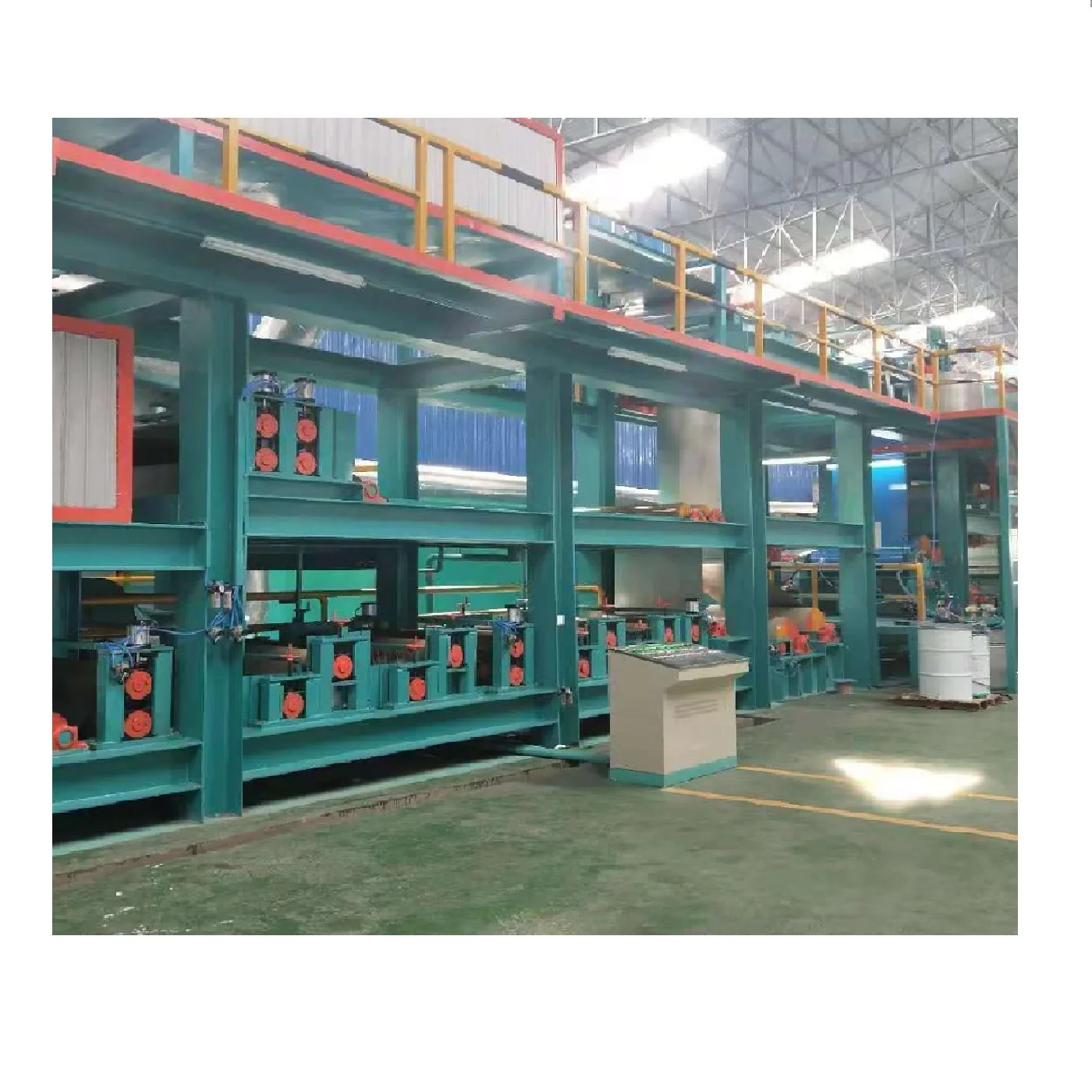

Detail Image
Production Process Flow
Hand-feeding---uncoiler unit---shear---sewing machine---front looper---alkaline washing unit---water washing unit---hot-air blowing device---chemical roller-coating machine---chemical-coating drying furnace---prime-coat roller-coating machine---prime-coat curing furnace---air cooling---water cooling---drying---top-coating roller-coating machine---top-coating curing furnace---air cooling---water cooling---drying---printing machine unit(preserved location)---over-coat roller coating machine---over-coat curing furnace---hot film laminating machine---over coat(laminated film)forced cooling room---drying---cold film laminating machine---rear looper---shear servo coiler unit---hand blanking
Sewing Machine
Plate Shear Machine
Coating Machine
Tensioner
Packing & Delivery
1. Export standard wooden cases packed in suitable container.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.
3. Customized Packing is allowed.
Company Profile
Why Choose Us?
Our Advantage:
1) Standardized workshop of total 360,000 square meters.
2) Professional technical team with more than 10 years experience, We can produce different product with different kinds of requirements and work out reasonable flow chart as per customers' requirements to save space.
3) Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
3) Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
Pre sales service:
1) The Machine Layout will be designed according to your factory conditions.
2) Providing a Sample Project for customer to visit.
3) Machine Manufacturing progress (with some photos).
After sales service:
1) Tracking the running condition of machine.
2) Provide 12 months guarantee as well as full spare parts for free.
3)Life long technical support.
4) Installation and training service (Optional).
FAQ
1. Do you offer custom service?
● Of course, most of our machines are built according to customers specifications, using top brand name components.
2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
● After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● Of course, most of our machines are built according to customers specifications, using top brand name components.
2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
● After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME!
