Products Description
Overview

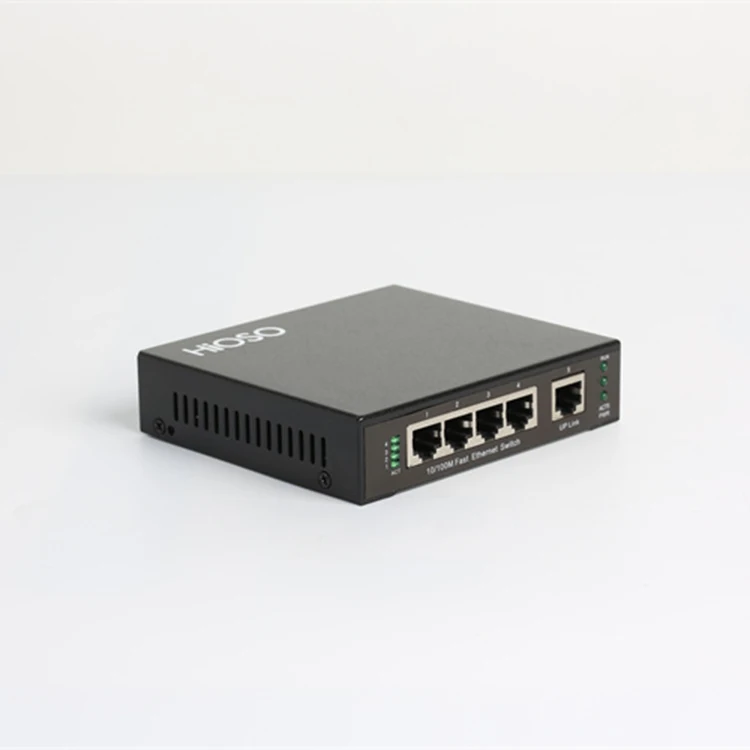

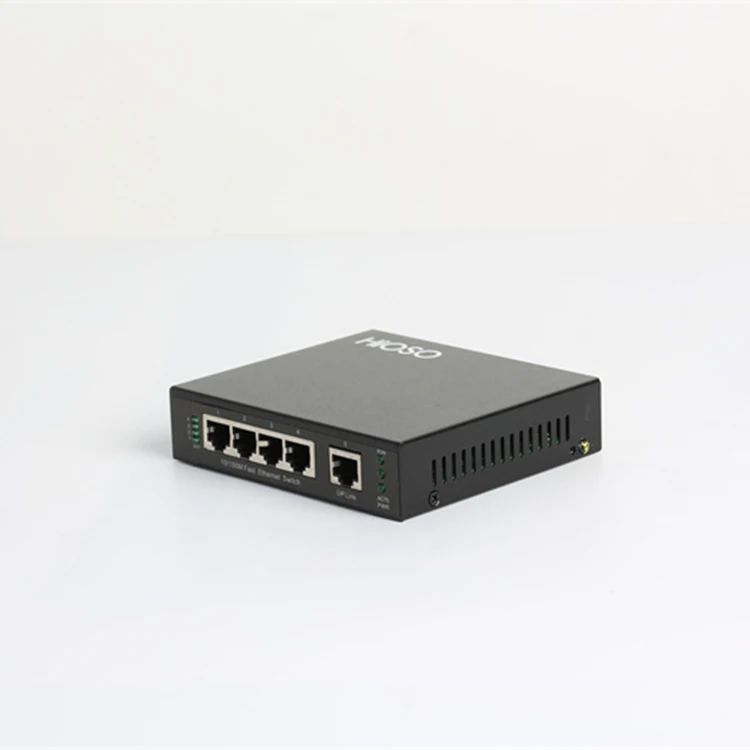

HiOSO FOWAY1205T is our five port Ethernet switch with 4 10/100M RJ45 Ethernet ports and 1 10/100M RJ45 uplink port. It can be either Managed or non managed through web/SNMP (optional). FOWAY1205T is widely used in transmitting HD videos with strict requirements in security, power and traffic system.
Character
4 10/100M RJ45 ports and 1 10/100M RJ45 uplink port
Full 100M rate, full-duplex non-blocking forwarding on every port
2K MAC learning, 1Mbit storage of forward cache space, 2G back plane bandwidth
Optional to Support Web,CLI ,SNMP management
Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.
(Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
(Optional) Wall-mounted hanger, better for installation
Metal casing better for heat dissipating
Optional to choose wide range temperature circuit design
Full 100M rate, full-duplex non-blocking forwarding on every port
2K MAC learning, 1Mbit storage of forward cache space, 2G back plane bandwidth
Optional to Support Web,CLI ,SNMP management
Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.
(Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
(Optional) Wall-mounted hanger, better for installation
Metal casing better for heat dissipating
Optional to choose wide range temperature circuit design
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP, IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS, IEEE802.3ad Trunk,IEEE802.3X Flow Control |
Distance | Cat5:100m |
Port | 4 100M RJ45 ports : 10/100Mbps 1 10/100M RJ45 uplink |
MAC | 2K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | DC12V/1A |
Power consumption | 2.5W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 28mm (H)×120mm(W)×106mm (D) |
Order information
No | Product code | NMS | Ports | Power |
1 | FOWAY1205T | NO | 5 10/100M RJ45 ports | External power DC12V |
2 | FOWAY1205TM | WEB | 5 10/100M RJ45 ports | External power DC12V |
3 | FOWAY1205TM-SI | WEB/SNMP | 5 10/100M RJ45 ports | External power DC12V |
