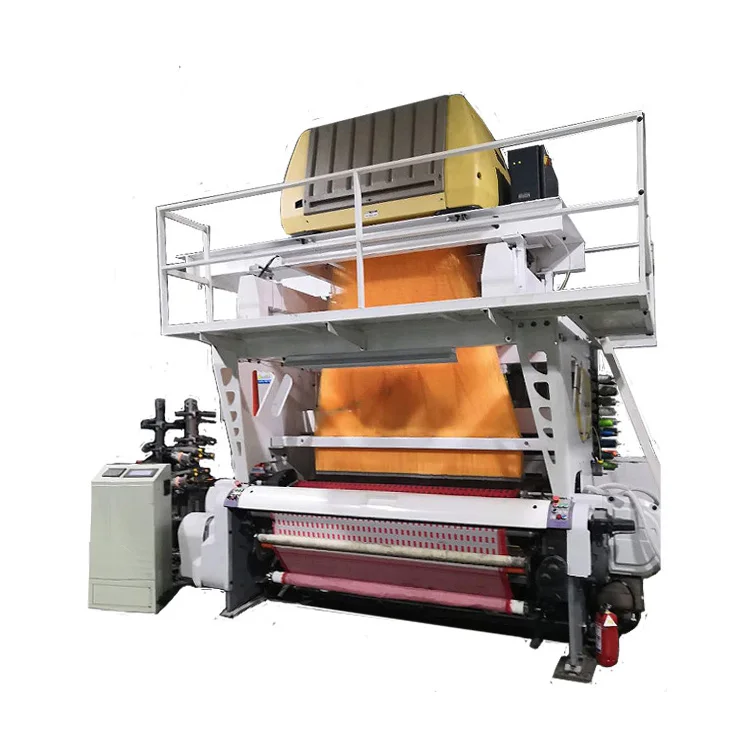

Ткацкий станок для плетения этикеток K88/R880 тканый отремонтированный super
- Категория: Weaving Machines >>>
- Поставщик: Goodfore,Tex,Machinery,Co.,Ltd.,(Wuxi)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 60959.25 $* | 62178.14 $* |
| Jul-18-2025 | 49439.1 $* | 50428.33 $* |
| Jun-18-2025 | 59999.21 $* | 61199.5 $* |
| May-18-2025 | 59519.81 $* | 60709.85 $* |
| Apr-18-2025 | 47519.30 $* | 48469.29 $* |
| Mar-18-2025 | 58559.5 $* | 59730.62 $* |
| Feb-18-2025 | 58079.81 $* | 59241.16 $* |
| Jan-18-2025 | 57599.23 $* | 58751.1 $* |
Характеристики
Products Description
name | Refurbished label loom | ||||||
place of production | made in china | ||||||
warranty | one year | ||||||
quality | high quality | ||||||
model | label loom | ||||||
loom type | K88 label loom | ||||||
loom width | 190cm | ||||||
loom RPM | 400 to 450 | ||||||
1.New harness set

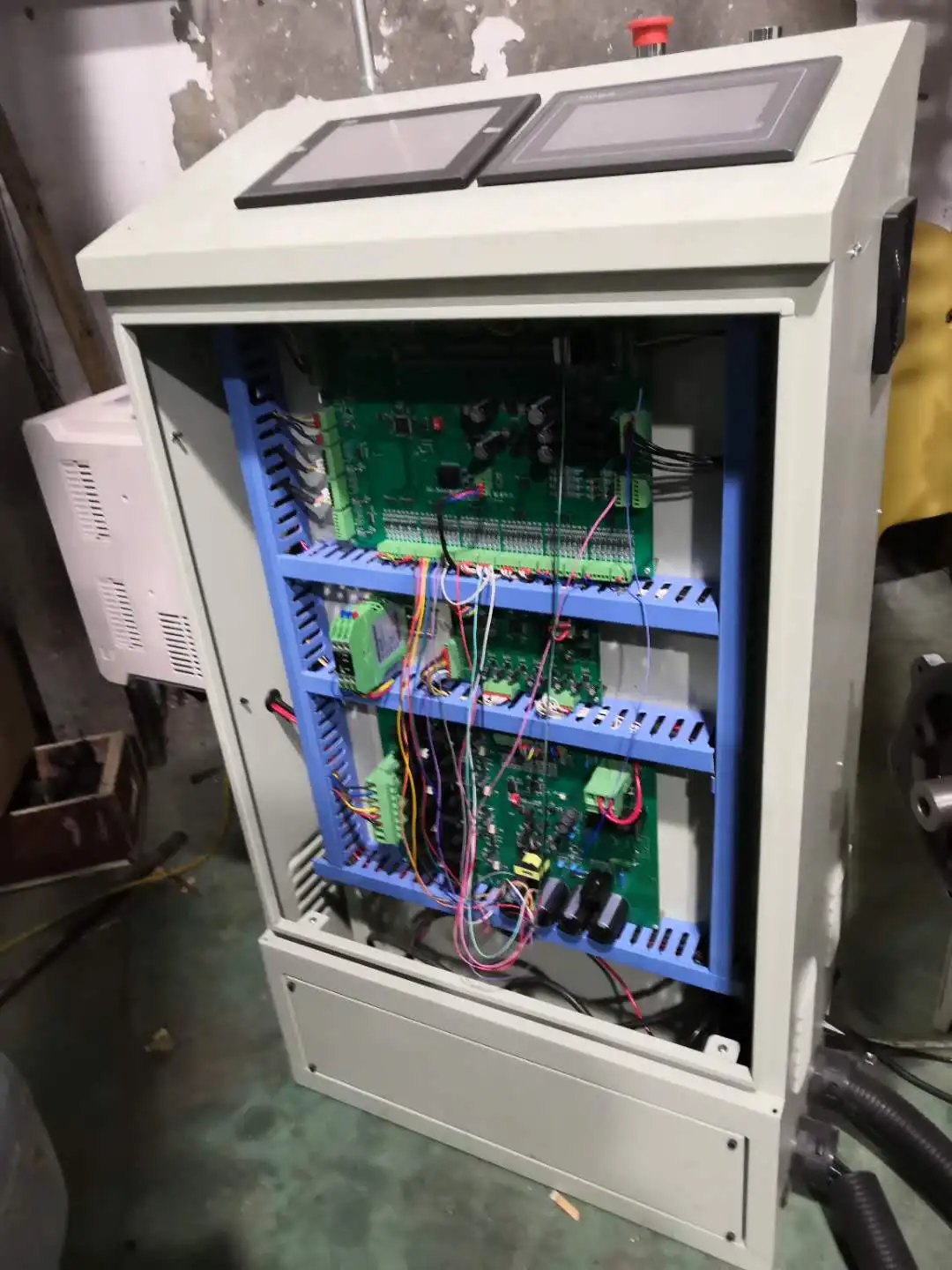

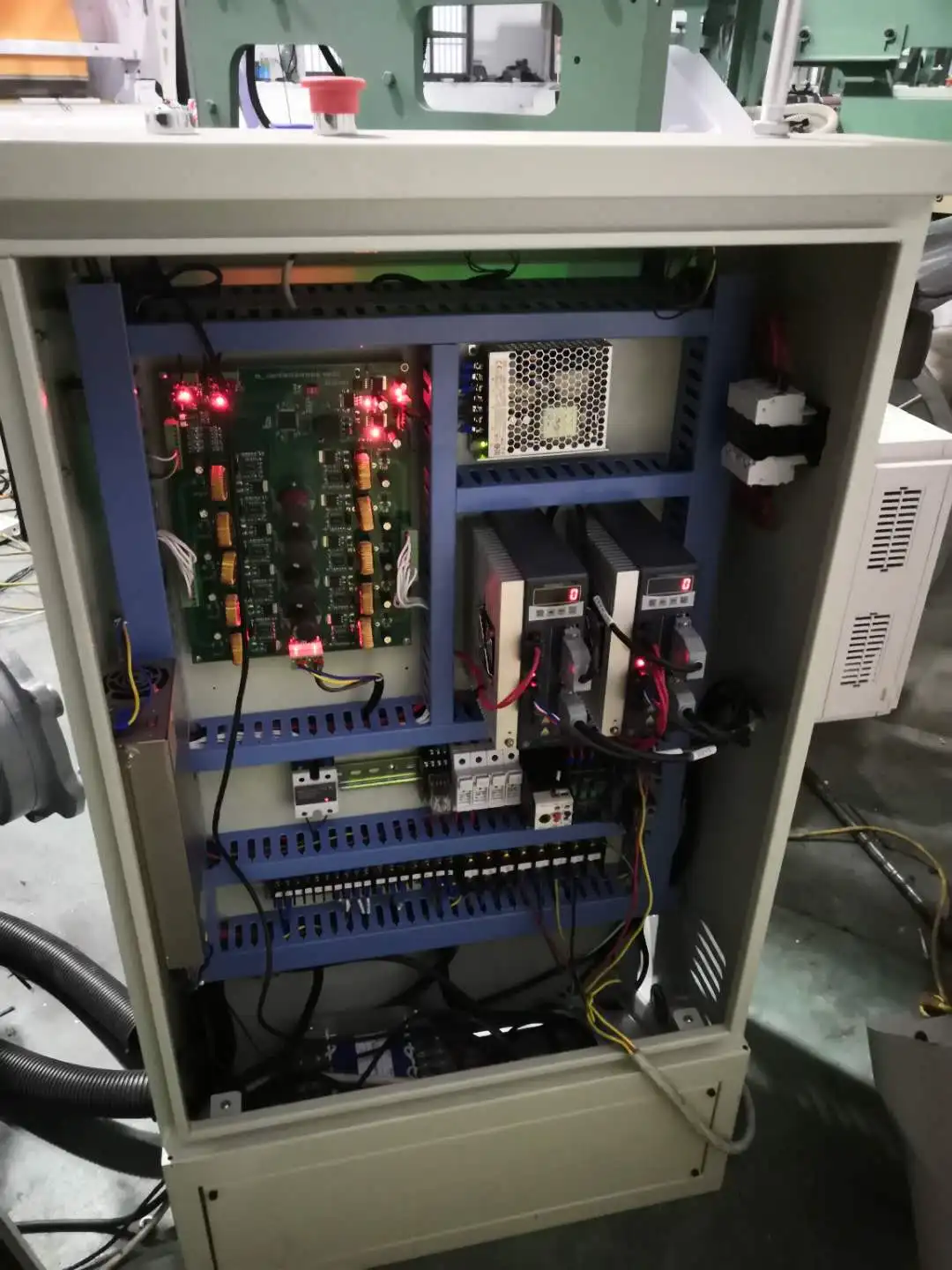

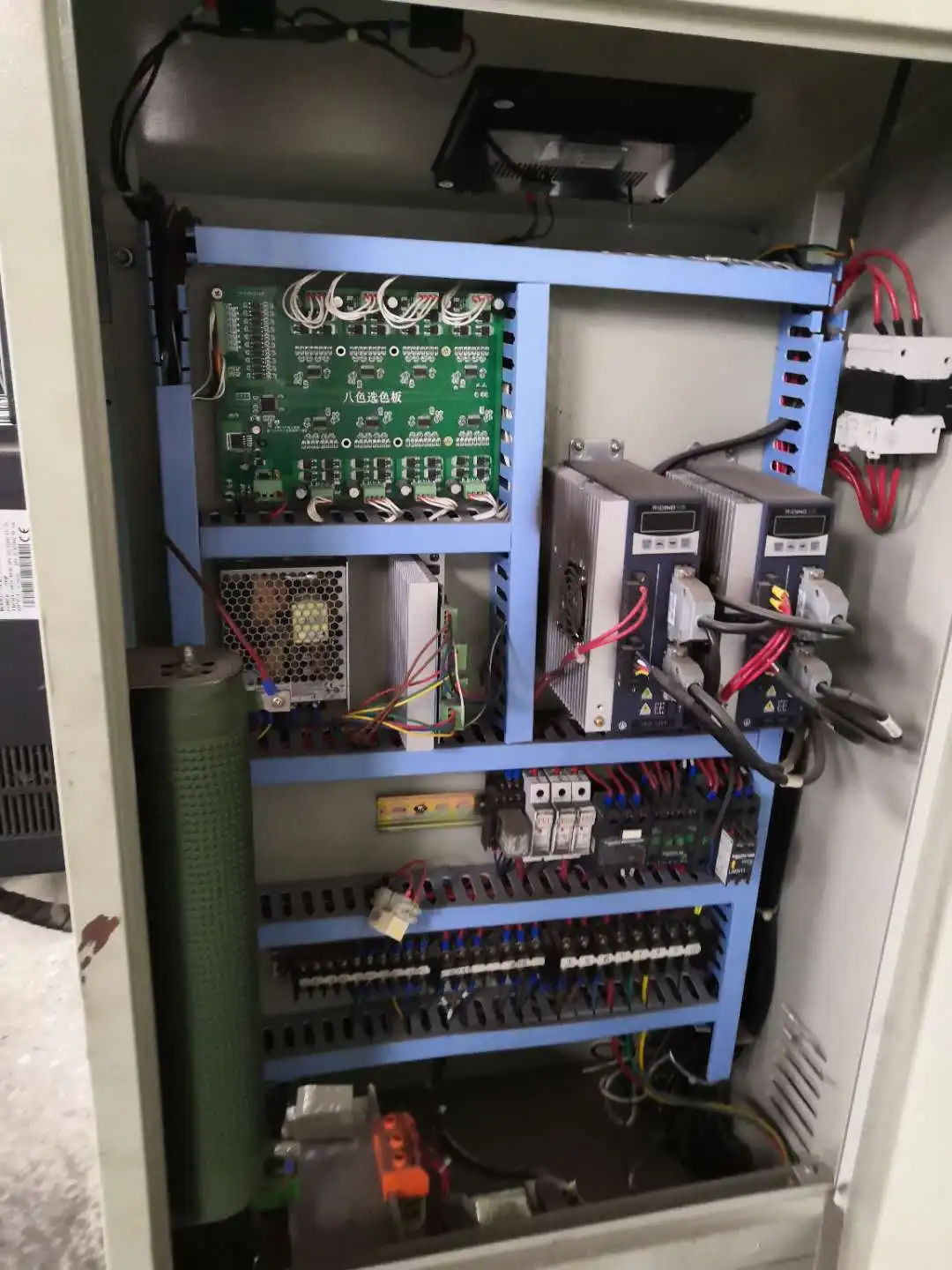

4.New control box (Made in China)
3.New cutting system (Made in China)
More and more label factory boss likes this kind loom as it's capacity highy and price cheaper.
We suggest you to visit our factory to have some knowledge when you come to Canton fair this time.
4.New control box (Made in China)
3.New cutting system (Made in China)
More and more label factory boss likes this kind loom as it's capacity highy and price cheaper.
We suggest you to visit our factory to have some knowledge when you come to Canton fair this time.
Base loom
--Loom : k88 label loom
--Speed: 400rpm~ 450rpm
--Loom Width:1900mm
--Cycel numbers:8 repeats for taffeta (1 repeats=20cm)
--Weft density adjustment:adjust in the range between 5 to 200picks/cm
--Take-up:electronic take-up
--Let-off:Microprocessor control electronic let-off device with tension device
--Drive:Direct drive by one main super motor(Hi drive systerm)
--Weft tension:Double-twist electronic weft storage device adjustment
--Weft searching system:Electronic automatic detecting weft finder
--Weft selector:8 color electronic controlled color selector
--Beam diameter:800 mm
--Cloth roller diameter:600mm (Max)
--Main motor Power: 8kw (approx)
Jacquard
--Model:Chinese jacquard
--Hooks:1408 hooks ,2688hooks，
--Control System:chinese control system
--Power:0.8KW
--Weight:800KG
--Jacquard support frame:Using double high tensile steel plate superstructure design,easy access with jacquard and high stability
with anti-vibration character.
Harness kit
--Harness cord:New made in china
--Harness Board:Ooriginal imported Germany Harness board
--Heald:Italy Imported Heald
Thermal Cutting System
--Contains: cutting support device, tool holder assembly (including cutter)
--Contains: ironing fixture and ironing board, air compressor purchased by customers
Thermoforming/Ironing System
--Upper forming:Tailor-made full-width temple,automatically adjust the temperature
--Lower ironing board:Specialized ironing board with excellent finishing effect,reduce the possibility of fabric over shinning
Technical Specification
--Electricity: 380V three phase
--Dimension: Above 440cm W, 250cm L,390cm H
--Weight:About 4800kg(total)
--Loom : k88 label loom
--Speed: 400rpm~ 450rpm
--Loom Width:1900mm
--Cycel numbers:8 repeats for taffeta (1 repeats=20cm)
--Weft density adjustment:adjust in the range between 5 to 200picks/cm
--Take-up:electronic take-up
--Let-off:Microprocessor control electronic let-off device with tension device
--Drive:Direct drive by one main super motor(Hi drive systerm)
--Weft tension:Double-twist electronic weft storage device adjustment
--Weft searching system:Electronic automatic detecting weft finder
--Weft selector:8 color electronic controlled color selector
--Beam diameter:800 mm
--Cloth roller diameter:600mm (Max)
--Main motor Power: 8kw (approx)
Jacquard
--Model:Chinese jacquard
--Hooks:1408 hooks ,2688hooks，
--Control System:chinese control system
--Power:0.8KW
--Weight:800KG
--Jacquard support frame:Using double high tensile steel plate superstructure design,easy access with jacquard and high stability
with anti-vibration character.
Harness kit
--Harness cord:New made in china
--Harness Board:Ooriginal imported Germany Harness board
--Heald:Italy Imported Heald
Thermal Cutting System
--Contains: cutting support device, tool holder assembly (including cutter)
--Contains: ironing fixture and ironing board, air compressor purchased by customers
Thermoforming/Ironing System
--Upper forming:Tailor-made full-width temple,automatically adjust the temperature
--Lower ironing board:Specialized ironing board with excellent finishing effect,reduce the possibility of fabric over shinning
Technical Specification
--Electricity: 380V three phase
--Dimension: Above 440cm W, 250cm L,390cm H
--Weight:About 4800kg(total)
