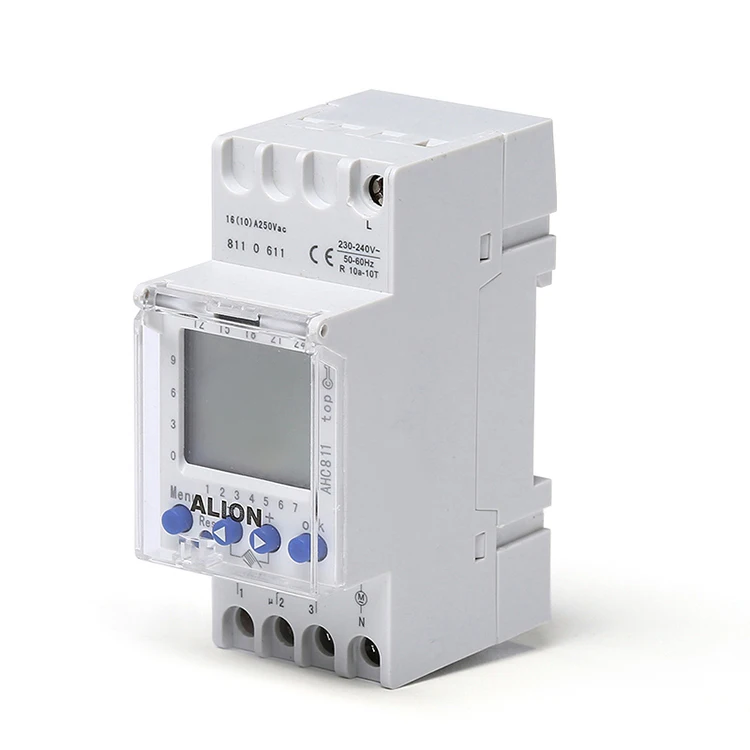

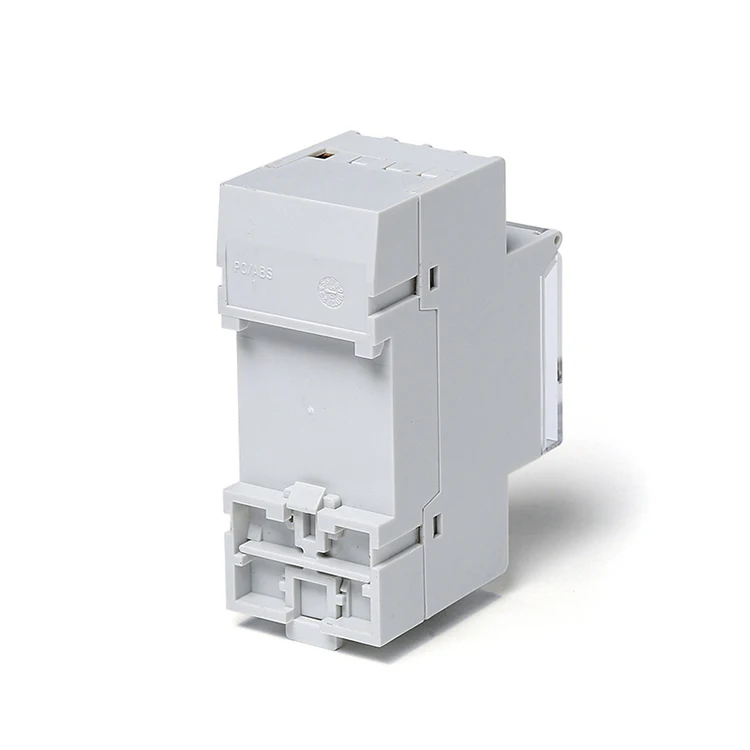

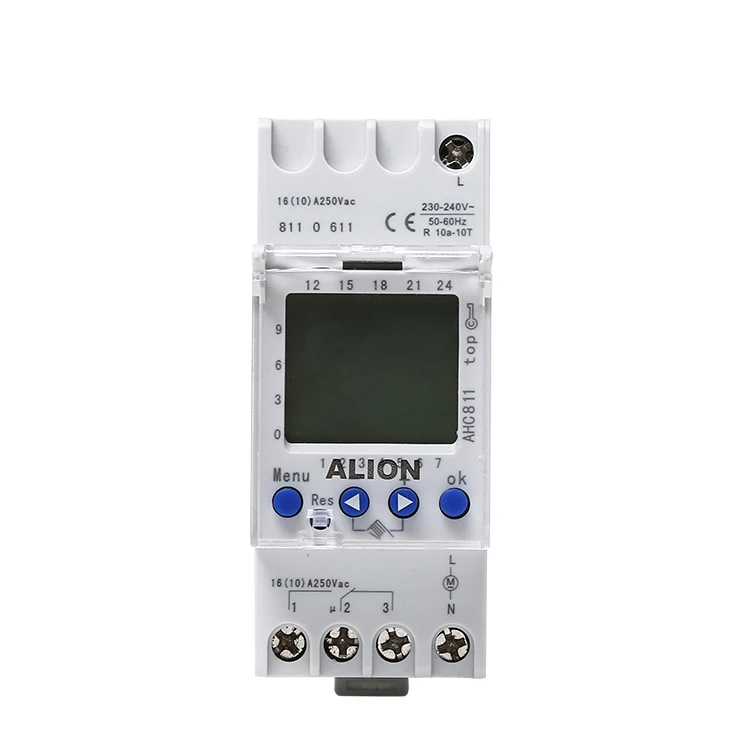

ALION AHC811 220V-240V 16A DIN Rail LCD Digital Timer, Timer Switch Price




Product Description


Focus On Time Control For 24 Years



The AHC811 Din rail weekly program digital time switch have a wide screen, display more information, and unit have more diverse functions such as pulse program, cycle program, holiday program.



Description
- Digital time switch
- 44 memory locations
- 44 Memory pulse program
- 20 pulse programs(1s~59m59s)
- 18 Cycle program
- Random or Holiday program
- Language(English/Spain/France/Portugal/Germany/Italy)
- Automatic summer/winter time
EUROPE
Great Britain
U.S.A/Canada
- PIN Code
Display year/month/day/hour/minute
- Built-in lithium battery,power failure memory
- Fully operable without mains connection
- Preset date and time
- Manual ON/OFF control
- Screw terminals


Applications
- Light of billboard or showcase control
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Pool & Spa
- Ventilation
- Hot Water Pump Circulation
- Lighting Panel Control
- Landscape Lighting
- Bug and Pest Control Systems
- Aerobic Waste Water Systems
- General Electrical Circuits



Product Selection








































































Product Type Voltage Frequency Consumed power Terminal
AHC811-220/50Hz 220V 50Hz 4VA 5
AHC811-220/60Hz 60Hz
AHC811-110/50Hz 110V 50Hz 5VA
AHC811-110/60Hz 60Hz
AHC811-12V 12V AC/DC 50/60Hz for AC 4VA
AHC811-24V 24V AC/DC
AHC822-220/50Hz 220V 50Hz 7.5VA 8
AHC822-220/60Hz 60Hz
AHC822-110/50Hz 110V 50Hz
AHC822-110/60Hz 60Hz
AHC822-12V 12V AC/DC 50/60Hz for AC
AHC822-24V 24V AC/DC


Technical Data













































































































Product Type AHC811/822
Operating voltage 220V AC
Width 2 modules
Installation type Din rail
Type of contact Changeover contact
Switching output Phase-independent
Method of connection terminal Screw terminals
Power reserve 4 years
Switching capacity at
250 V AC, cos φ = 1
16A
Switching capacity at
250 V AC, cos φ = 0,6
10A
Incandescent/halogen lamp load 230V 2600W
Energy saving lamps 170W
LED lamp < 2 W 30W
LED lamp 2–8 W 100W
LED lamp > 8 W 120W
Fluorescent lamp load (electronic ballast) 650W
Fluorescent lamp load (conventional) not corrected 1000VA
Fluorescent lamp load (conventional) series-corrected 1000VA
Fluorescent lamp load (conventional) parallel-corrected 730 VA 80uF
Time accuracy at 25 °C typical ± 2 s/day (quartz)
Test approval CE
Type of protection IP 20
Protection class II according to EN 60 730-1
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Work temperature: -10 ~ +50 °C (non-icing)
Ambient humidity: 35~85%RH



Connection Example
