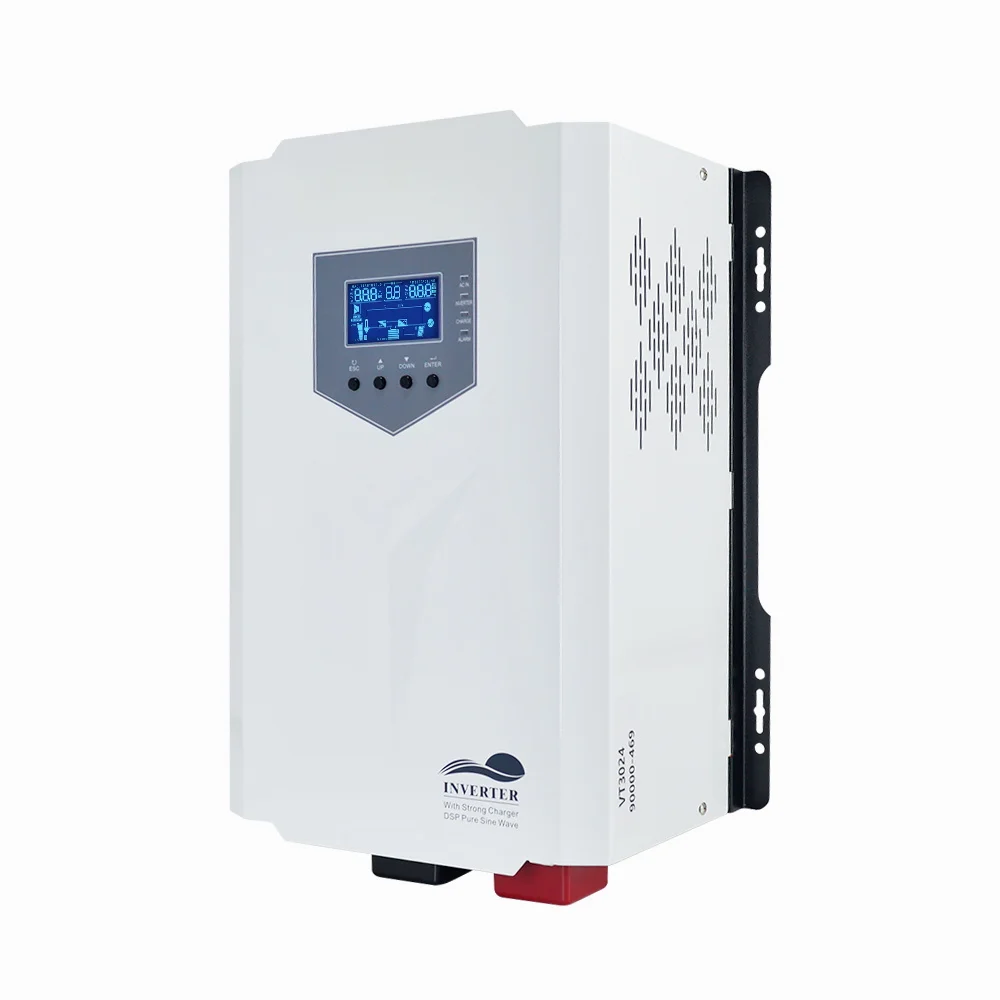

Инвертор Techfine MPPT pv 24 В 3000 Вт 3 кВт кВА гибридный солнечный инвертор с немодулированным синусоидальным
- Категория: >>>
- Поставщик: Guangdong,Techfine,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 214.67 $* | 225.46 $* |
| Aug-19-2025 | 212.34 $* | 223.11 $* |
| Jul-19-2025 | 178.93 $* | 187.38 $* |
| Jun-19-2025 | 209.26 $* | 219.5 $* |
| May-19-2025 | 182.16 $* | 191.11 $* |
| Apr-19-2025 | 205.91 $* | 215.10 $* |
| Mar-19-2025 | 203.57 $* | 213.94 $* |
| Feb-19-2025 | 202.28 $* | 212.13 $* |
| Jan-19-2025 | 200.53 $* | 210.37 $* |
Характеристики

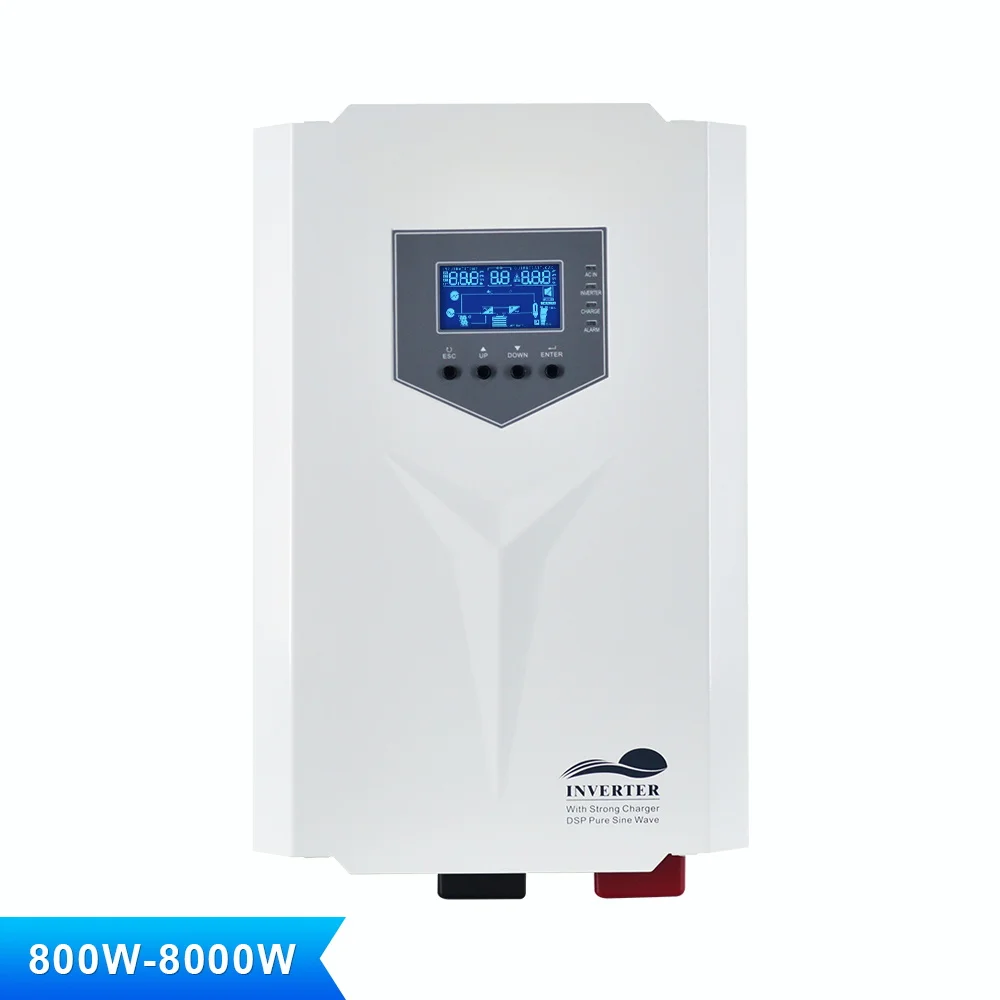

Techfine 800W~8KW solar inverters 1KVA 2KVA 3KVA 5KVA 6KVA 10KVA
★20 YEARS industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line,
★Automatic equipment production: stan dardizied quality、high efficiency production.
★Optional MPPT/PWM solar charge controller 60A, MPPT Efficiency max 98%
★DC Start & Automatic Self-Diagnostic Function.
★ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
★Optional MPPT/PWM solar charge controller 60A, MPPT Efficiency max 98%
★DC Start & Automatic Self-Diagnostic Function.
★ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
Product Details
Product Parameters
Capacity(VA) | 1KVA | 1.5KVA | 2KVA | 3KVA | 4KVA | 5KVA | 6KVA | ||||||
Rated Power | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 4800W | ||||||
Voltage(DC) | 12V | 24V/48V | 48V | ||||||||||
Nominal Voltage | 220VAC | ||||||||||||
Voltage Range | 154-265VAC ;185-264VAC ( selectable) | ||||||||||||
Frequency | 50-60HZ Auto sensing | ||||||||||||
Power Factor | 0.8 | ||||||||||||
Voltage | 220VAC | ||||||||||||
Frequency | 50/60HZ | ||||||||||||
Waveform | Pure Sine Wave | ||||||||||||
Transfer Time (AC to DC) | <8ms | ||||||||||||
Transfer Time (DC to AC) | <8ms | ||||||||||||
Output Voltage Regulation | 土10% | ||||||||||||
Bypass Mode | Yes | ||||||||||||
Saver Mode | Yes | ||||||||||||
Efficiency | >98% | ||||||||||||

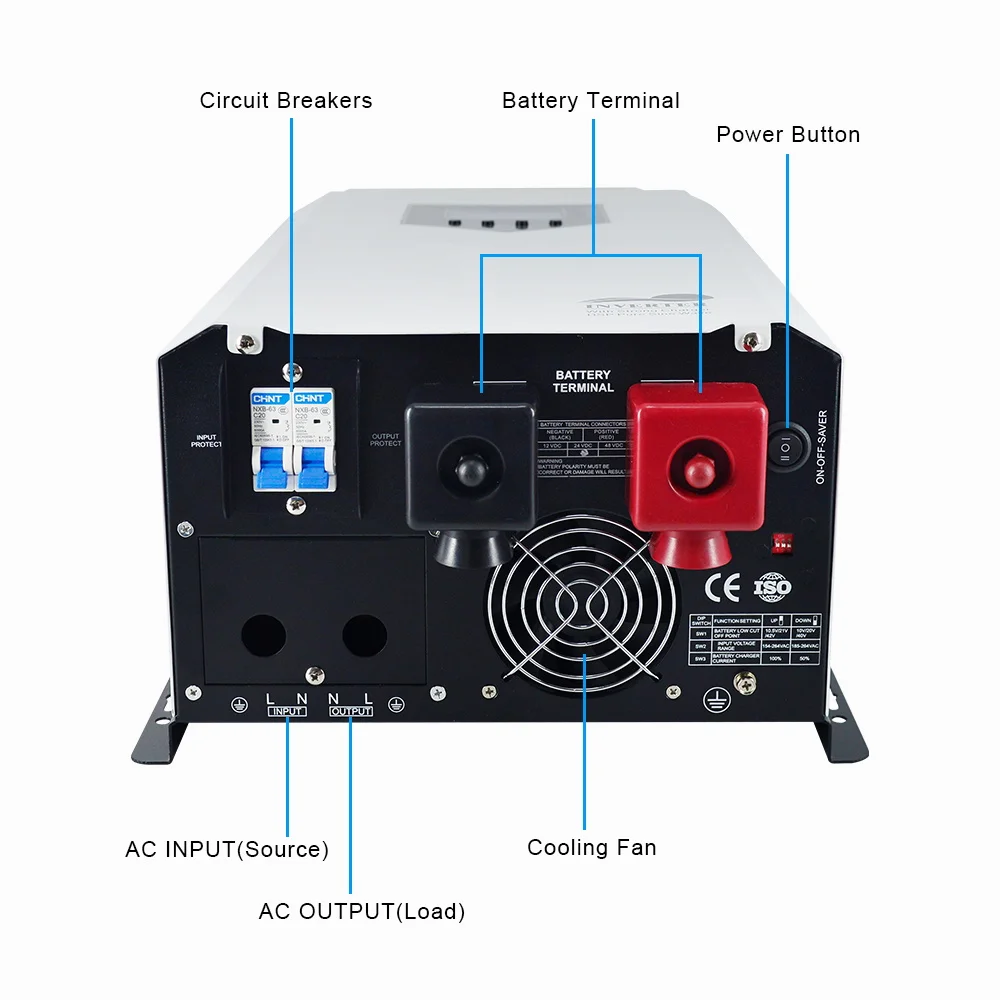

Input Protection | Circuit Breaker | ||||||||||||
Output Protection | Circuit Breaker | ||||||||||||
Battery Type | VRLA / GEL /GEL DEEP CYCLE | ||||||||||||
Charging Current | 20A | 30A | 20A/10A | 30A/15A | 40A/20A | 55A/28A | 30A | ||||||
Low Level disconnect (Selectable) | 10V- 11V | 20V -22V/40V-44V | 40V -42V | ||||||||||
PWM controller Voltage range | 15VDC-33VDC | 30VDC-66VDC | 60VDC-150VDC | ||||||||||
PWM Maximum PV display open circuit voltage | 38V | 75V | 75V | ||||||||||
Maximum PV array power | 720W | 1400W/2800W | 3400W | ||||||||||
MPPT control voltage range | 18V-150V | 34V-150V/68V-150V | 60V-150V | ||||||||||
MPPT Maximum PV display open circuit voltage | 150VDC | ||||||||||||
Maximum solar charge current | 60A | ||||||||||||

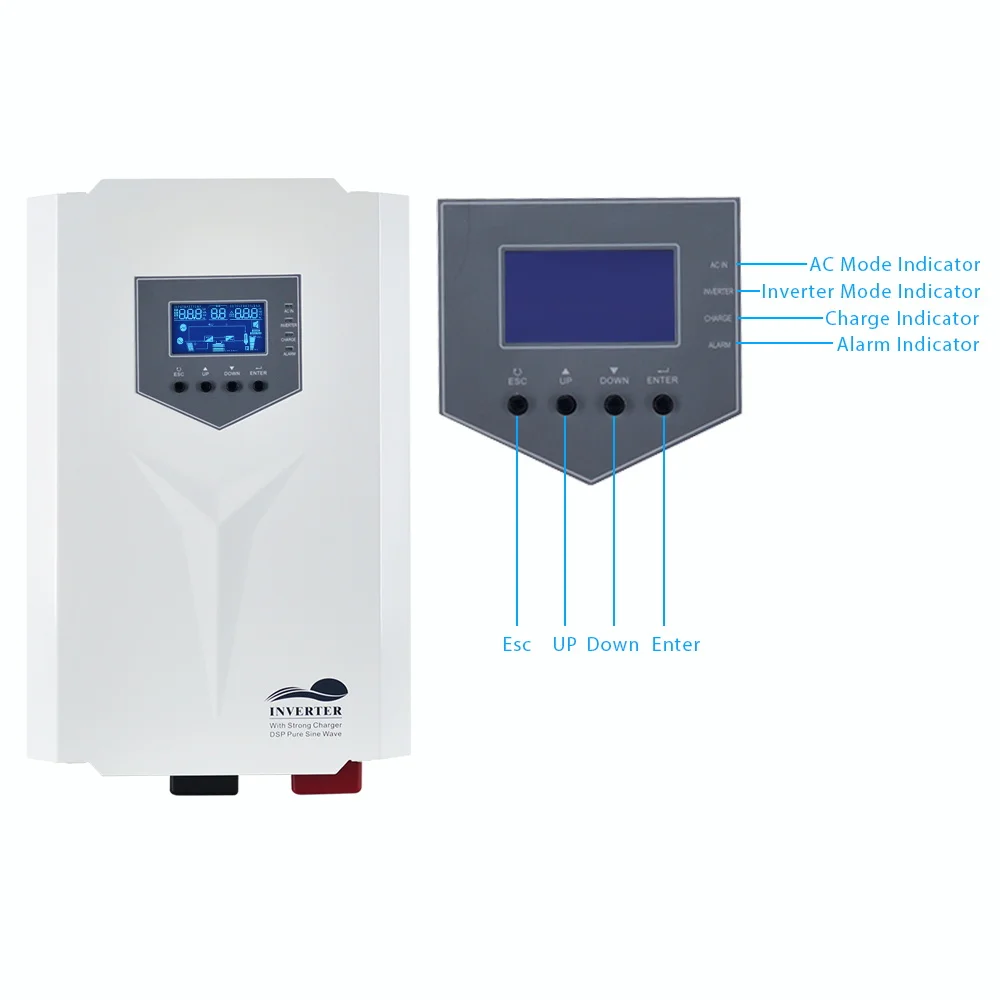

LCD indicator status | AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc. | ||||||||||||
LED indicator status | AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red | ||||||||||||
LOW battery alarm | Audible alarm-5 seconds beeping | ||||||||||||
Overload alarm | Audible alarm- continuous beeping | ||||||||||||
Fault | Audible alarm- continuous beeping | ||||||||||||
Temperature | 0-60℃ | ||||||||||||
Humidity | —10℃~90℃ Non condensing | ||||||||||||
Accoustic Noise(db) | >55dB | ||||||||||||
Company Profile
Guangdong Techfine Electronics Co.,Ltd. , founded in Foshan, China in1994, is a high-tech enterprise group focusing on electrical energy safetyand emergency. Has owns three independent production bases, which arelocated in Malaysia, Shaoguan city and Foshan city in China and covers atotal area of 270,000 square meters.
20+ Years Professional Manufacture Since 1994
30+ Experience Engineers,Large Scale R&D Team
20+ Years Exporting Experience,
technician travel Africa,Middle East,South America and Asia Market
20+ various of certification like CE,IEC,ISO,COC,SONCAP,EMC,LVD,SASO etc.

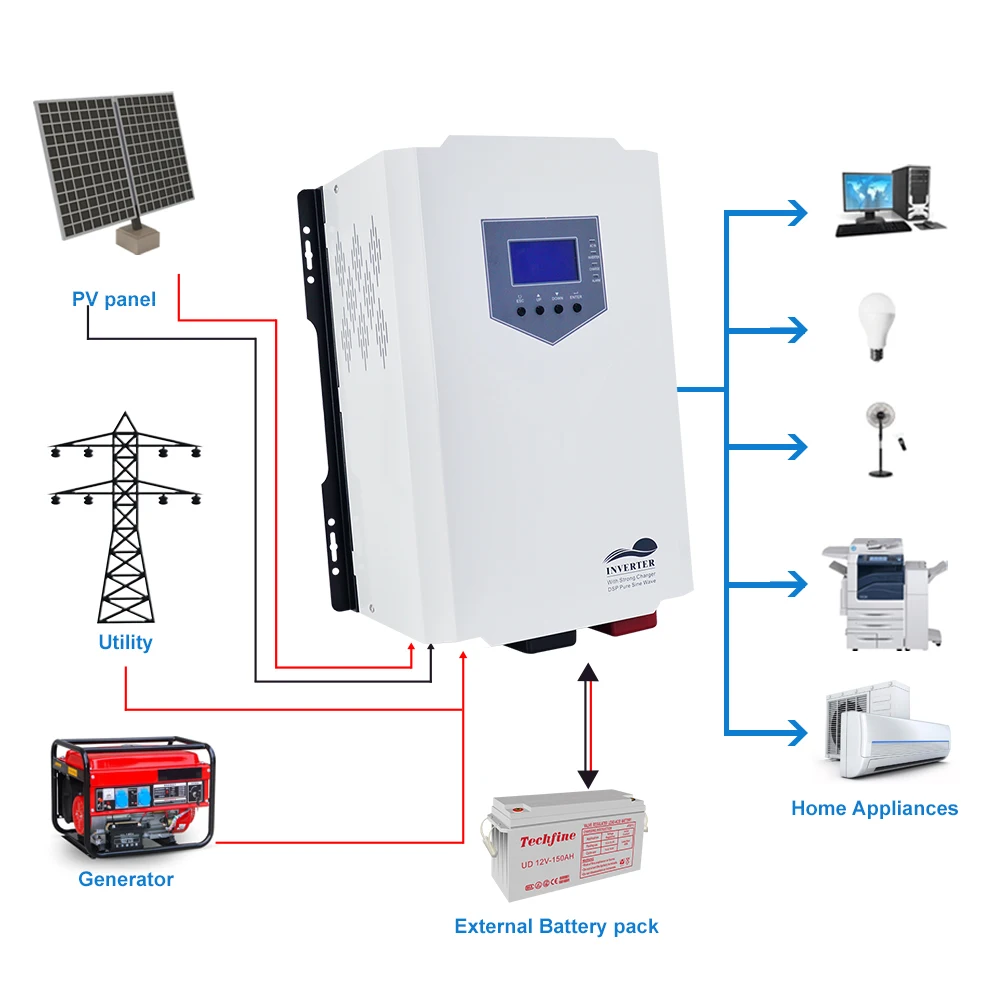

Application
Buyer Reviews
FAQ
Q1: Why you should choose us?
Q2: How is your after-sale service?
Q3: What kind of certification you have?
Q4: Delivery time:
Q6. Do you have any MOQ?
---More than 20 years MPPT factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
-
-
--All series MPPT pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
Q5. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q7. Do you support OEM?
Q7. Do you support OEM?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
