Сделано в Китае сельскохозяйственная техника 4x4 трактор колесо садовый с
- Категория: Tractors >>>
- Поставщик: Shandong,Qufa,Cross-Border,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.87 $* | 0.62 $* |
| Aug-18-2025 | 0.53 $* | 0.5 $* |
| Jul-18-2025 | 0.61 $* | 0.16 $* |
| Jun-18-2025 | 0.3 $* | 0.74 $* |
| May-18-2025 | 0.16 $* | 0.74 $* |
| Apr-18-2025 | 0.96 $* | 0.85 $* |
| Mar-18-2025 | 0.13 $* | 0.89 $* |
| Feb-18-2025 | 0.35 $* | 0.19 $* |
| Jan-18-2025 | 0.26 $* | 0.69 $* |
Характеристики

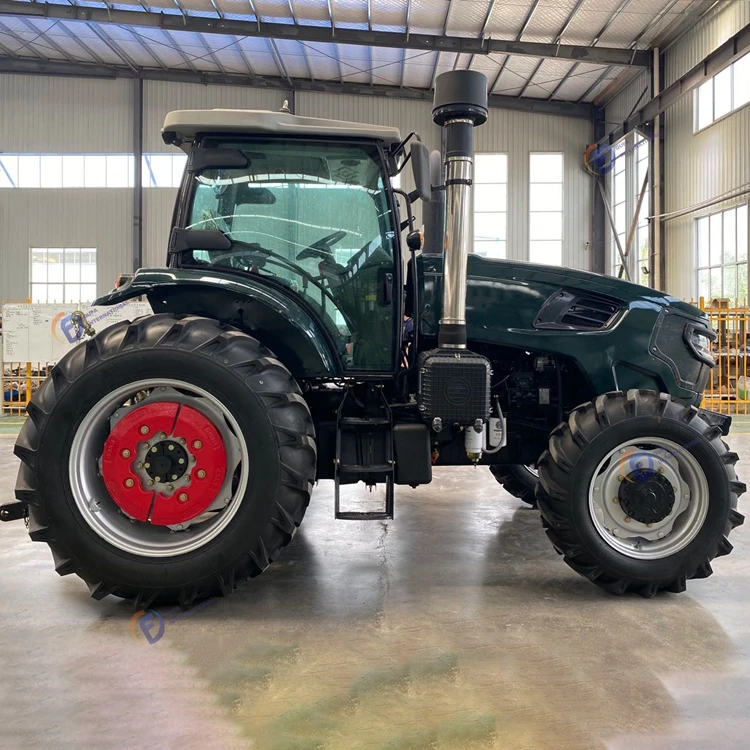

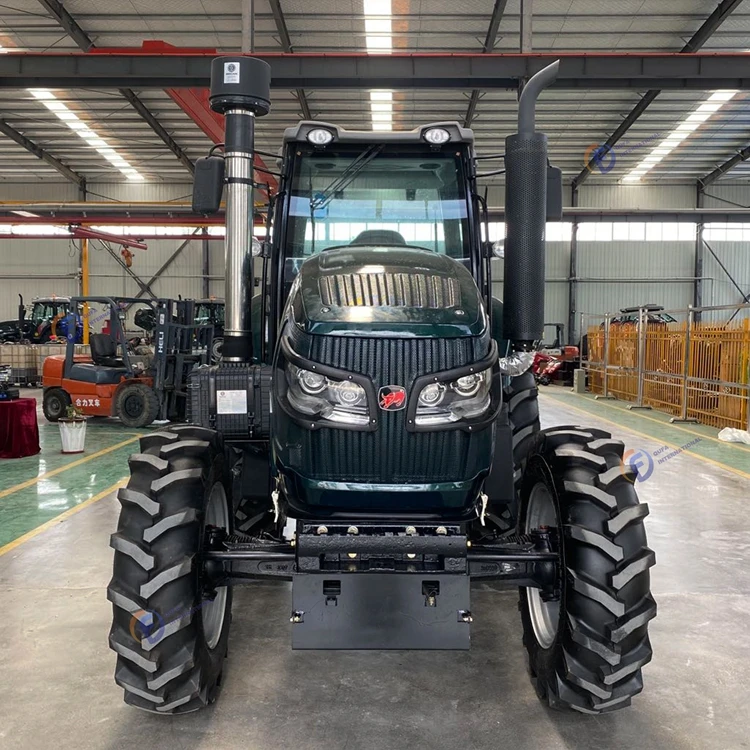

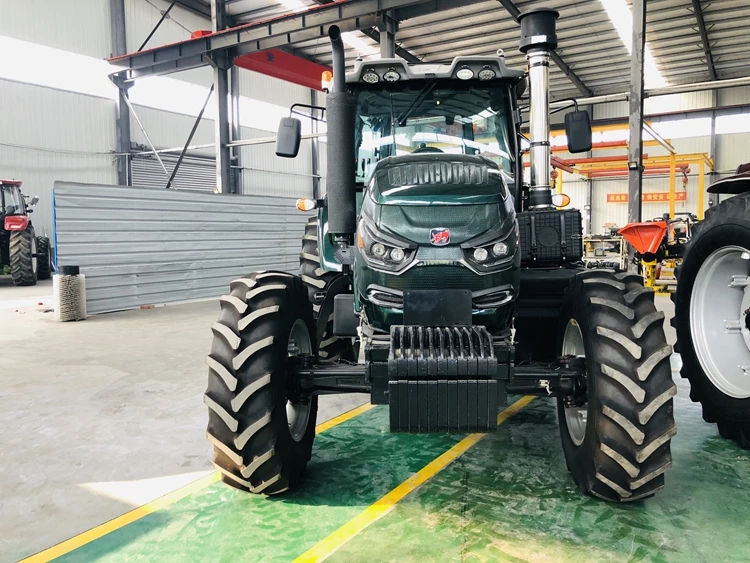

Chinese factory wholesale high quality agriculture machinery garden tractor
BASIC CONFIGURATION | ||||
PARAMETER | ||||
Overall Dimensions (L*W*H) (mm) | 5020*2255*2970 | |||
Wheel Base (mm) | 2688 | |||
Wheel Track | Front Tire (mm) | 1630-1850 adjustable | ||
Rear Tire (mm) | 1630-1850 adjustable | |||
Min. Ground Clearance (mm) | 470 | |||
Chassis Type | TD | |||
Operation Mass (kg) | 5450 | |||
Min. Turning Radius(m) | 3.1 | |||
Max. Steering Angel of Front Axle | 45° | |||
ENGINE | ||||
Brand and Model | Weichai / YTO | |||
Type | Vertical, 4 Stroke, Water Cooled | |||
Engine Power (hp) | 140 | |||
Rated PTO Power (kw) | 102.5 | |||
Displacement(L) | 7.7 | |||
Emission stage (Euro) | III | |||
TRANSMISSION | ||||
Clutch | Double Stage Clutch | |||
Gearbox | 16F+8R or according to you | |||
Steering System | Hydraulic Steering Gear | |||
HYDRAULIC SYSTEM | ||||
Hydraulic Output Flow Rate (L/min.) | 30 | |||
Hydraulic Output Valves | Two Groups/ CBN-F314/ Optional | |||
Lifting Capacity (610mm) | ≧45KN | |||

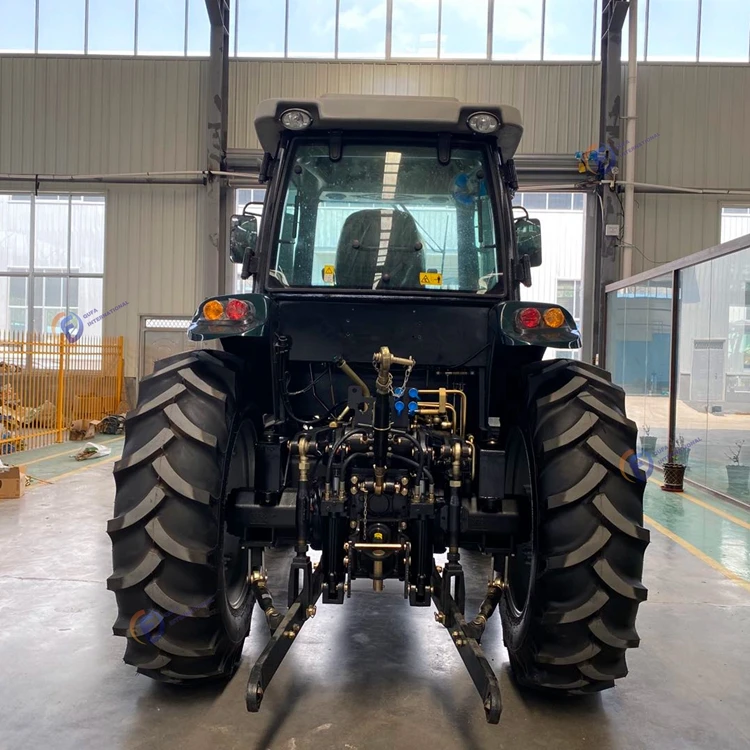

3 Point Linkage | Stage I | |||
PTO speed (540/1000 Upm) | 540/1000,760/850 | |||
TIRES | ||||
Front Tires | 14.9-26 or according to you | |||
Rear Tires | 18.4-38 or according to you | |||
OPTIONAL | Roll bar/ Canopy/ Cabin | |||
Herringbone tires, Paddy tires and Radial tires | ||||
Colors | ||||
Hydraulic Output Valves | ||||
Different kinds of implements | ||||
Q1. What is your terms of Packing?
A: Generally, the finished machine with nude packing, the spare parts with plywood box or iron box
Q2. What is your terms of Payment?
A: We do as International Business Rule, 30% TT deposit, 70% balance before delivery. We'll show you the photos of the products and packages.
Q3. What is your terms of Delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your Delivery time?
A: Generally, It will takes 7 to 10 working days after receiving your deposit. If the quantity is too much ,the longest time around 15 to 30 days .
Q5. What is your Sample policy?
A: We can supply the sample if we have ready parts in stock, but the sample cost and the courier cost should be yours.
Q6. Do you Inspect all your goods before delivery?
A: Yes, we test all machines and all parts before loading. We will provide the support of pictures and videos for your reference.
Q7: How’s the After-sales Services?
1.We are manufacture, we are responsible for the machines we did.
2. We support with complete inspection system and test report before shipment
3. We provide the assemble installation videos and online support.
4. We are online with 24 hours, if you have any problems, pls feel free to contact us at any time, our Equipment technician will solve ASAP.
