Солнечная насосная система/солнечная панель с водяным насосом/солнечный насос
- Категория: Solar Applications >>>
- Поставщик: Luohe,Xingdian,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.21 $* | 0.45 $* |
| Aug-19-2025 | 0.87 $* | 0.20 $* |
| Jul-19-2025 | 0.45 $* | 0.74 $* |
| Jun-19-2025 | 0.35 $* | 0.28 $* |
| May-19-2025 | 0.91 $* | 0.29 $* |
| Apr-19-2025 | 0.86 $* | 0.66 $* |
| Mar-19-2025 | 0.60 $* | 0.73 $* |
| Feb-19-2025 | 0.76 $* | 0.92 $* |
| Jan-19-2025 | 0.29 $* | 0.5 $* |
Характеристики
Product Overview

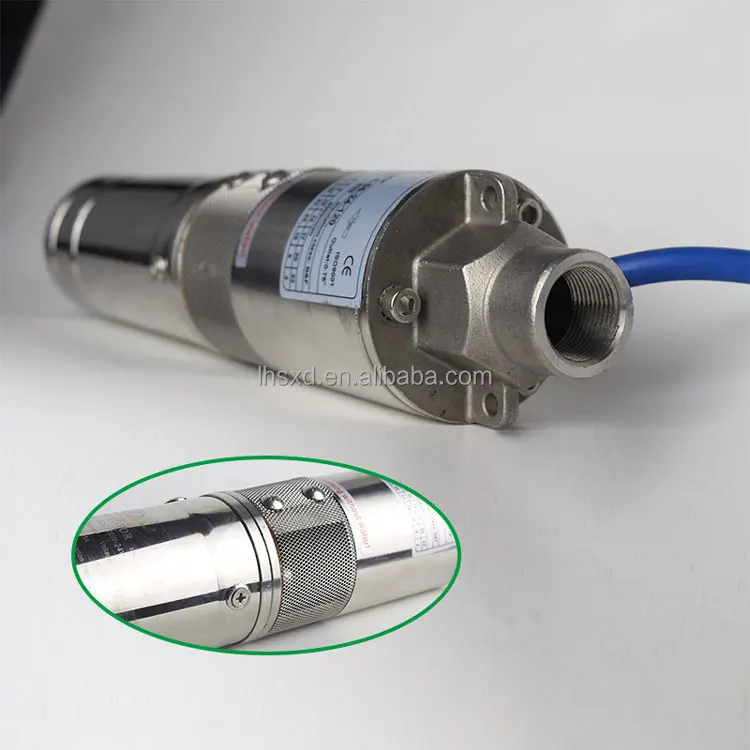

Deep solar water pump
1.Pump have stronger power for deep water by solar. It is environmental protection intelligent. Popular all over the world.
2.The body is covered with stainless case, and its rush pith is made with high-quality wear-resisting alloy and compound stainlesssteel materials, equipped with the special anti-wearing bearing structures of multi-level alloy rub against the wearable rubber.
3.The pump is characterized by small-caliber, high flow, excellent adaptability, sand-proof, high wear-resistance, long life and energy-saving. It is the ideal equipment used in industry, family drinking, agriculture, geology, hydrology and pumping of lowering water engineering.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | Voltage | Power | Max.Flow | Max.Head | Outlet |
XD-200 | 24V | 200W | 3.0m3/h | 225m | 2'' |
XD-300 | 24V | 300W | 3.0m3/h | 35m | 2'' |
XD-400 | 48V | 400W | 3.5m3/h | 47m | 2'' |
XD-600 | 48V | 600W | 3.5m3/h | 80m | 2'' |
XD-750A | 72V | 750W | 3.5m3/h | 80m | 2'' |
XD-750B | 48V | 750W | 3.5m3/h | 95m | 2'' |
XD-750C | 72V | 750W | 3.5m3/h | 95m | 2'' |
XD-1100A | 72V | 1100W | 3.5m3/h | 123m | 2'' |
XD-1100B | 110V | 1100W | 3.8m3/h | 123m | 2'' |
XD-1300 | 110V | 1300W | 3.8m3/h | 155m | 2'' |
XD-1500 | 110V | 1500W | 3.8m3/h | 180m | 2'' |
PRODUCT CONFIGURATION
Water Pump Controller VOC Range
24V controller : 18V-50V
36V controller : 30V-96V
48V controller : 30V-96V
72V controller : 50V-150V
96V controller : 60V-180V
110V controller : 60V-180V
Max input current: 15A
36V controller : 30V-96V
48V controller : 30V-96V
72V controller : 50V-150V
96V controller : 60V-180V
110V controller : 60V-180V
Max input current: 15A
Pump Shaft And Magnetic Steel
The whole of pump shaft is made of 304 S/S with high quality Intelligent water shortage protection: The pump stops working
automatically when there is no water in the well and start working 30 minutes later.
automatically when there is no water in the well and start working 30 minutes later.
NSK Bearing
Japanese NSK bearing's working life is 3-5 times longer than common brand
Brass Outlet/Connector/Oil Cylinder
All series are made of brass or S/S(304)
Durable and high quality material
Durable and high quality material
Permanent Magnet DC Brushless Synchronous Motor
Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved by
15-20%;Save energy and reduce the consumption.
15-20%;Save energy and reduce the consumption.
SALES AND SERVICE NETWORK
Successful Project

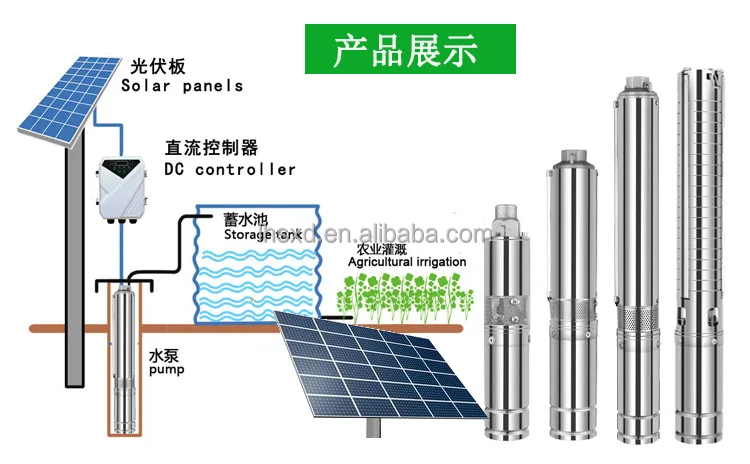

Solar water pump actual example
