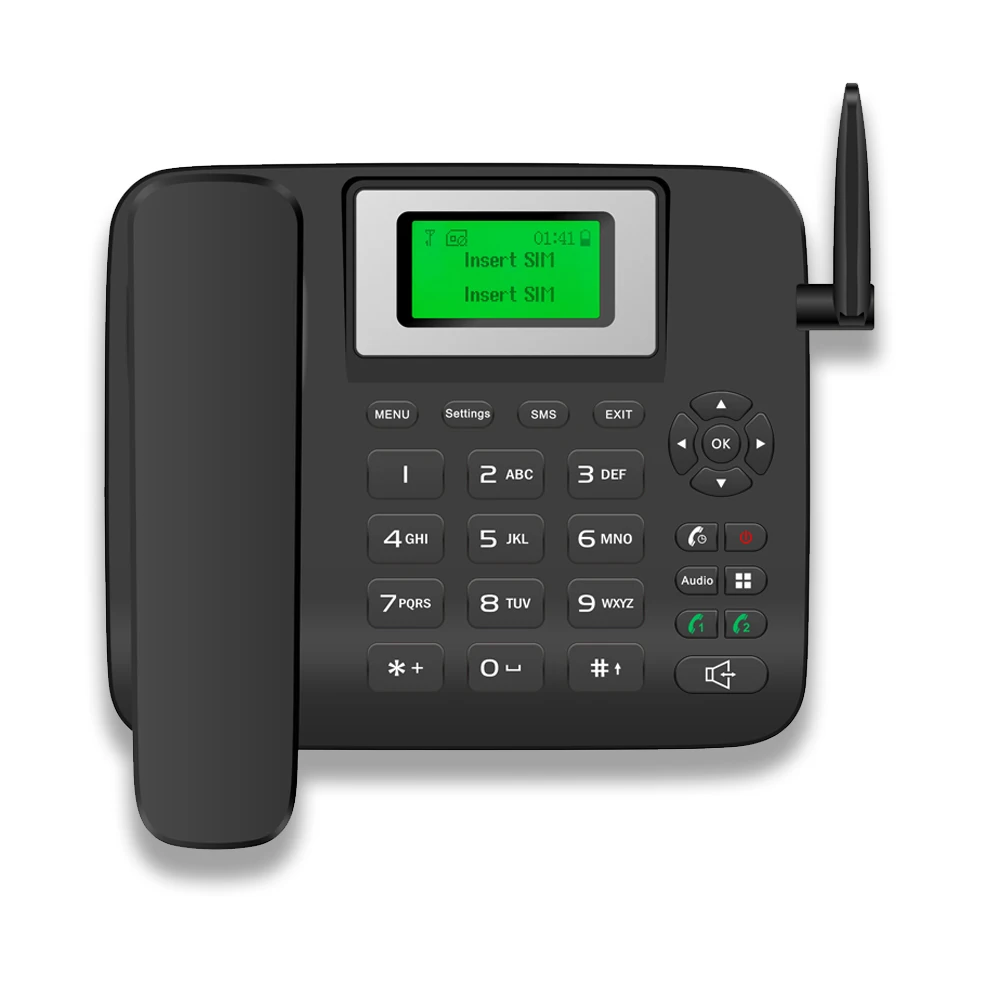

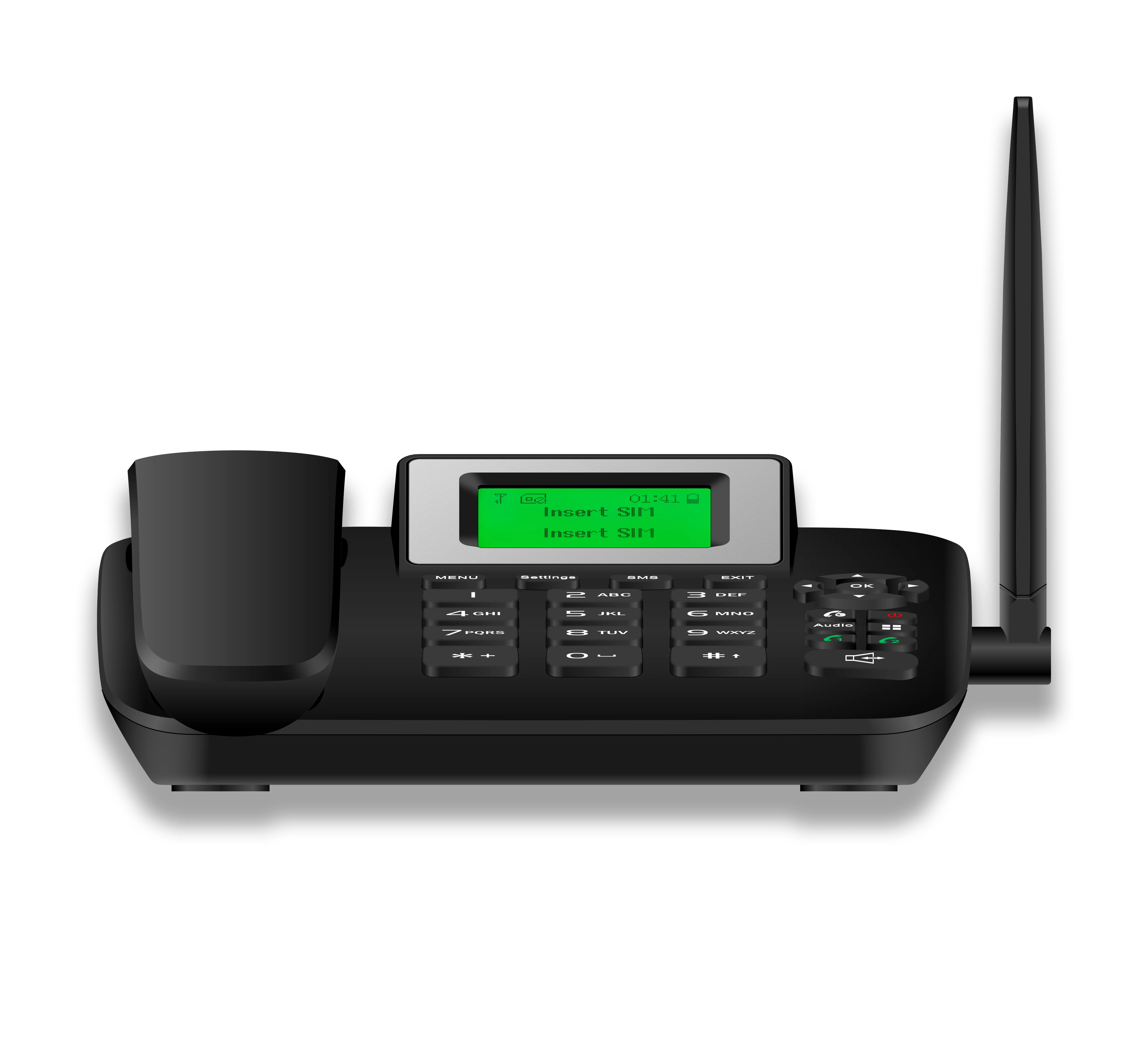

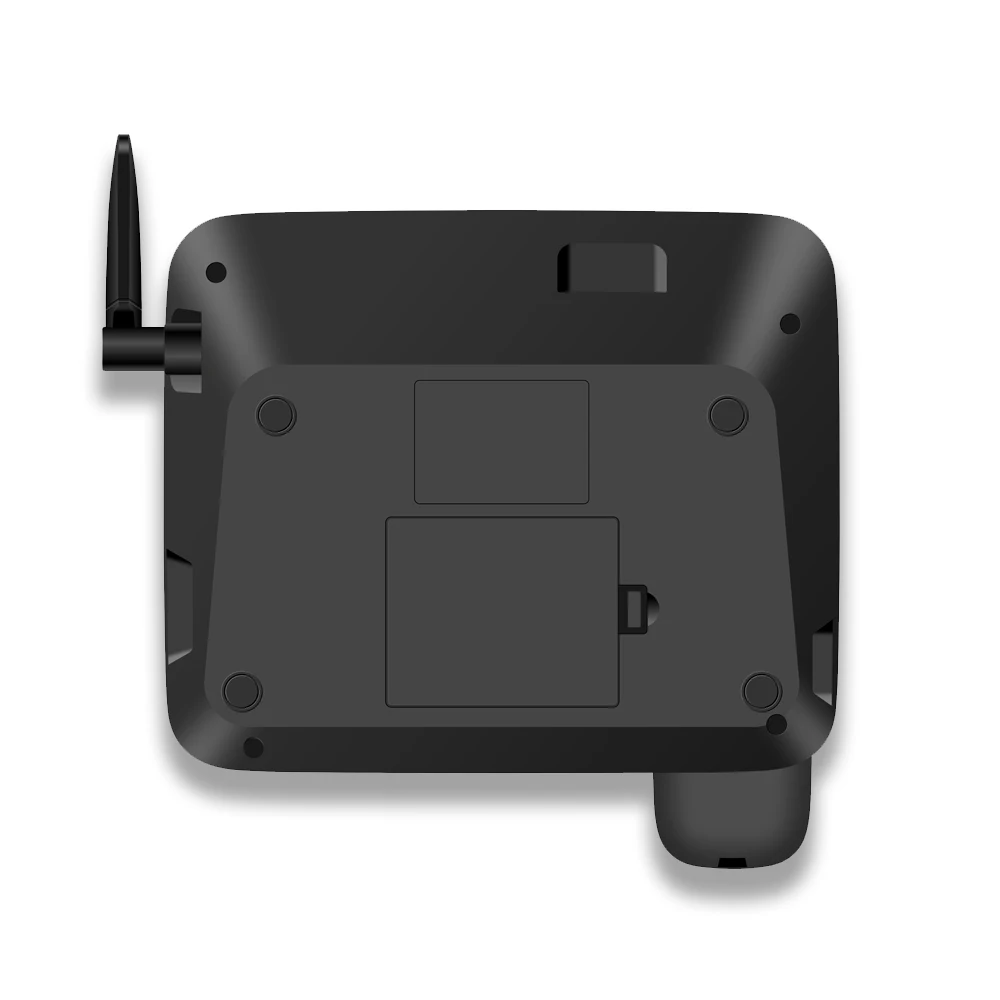

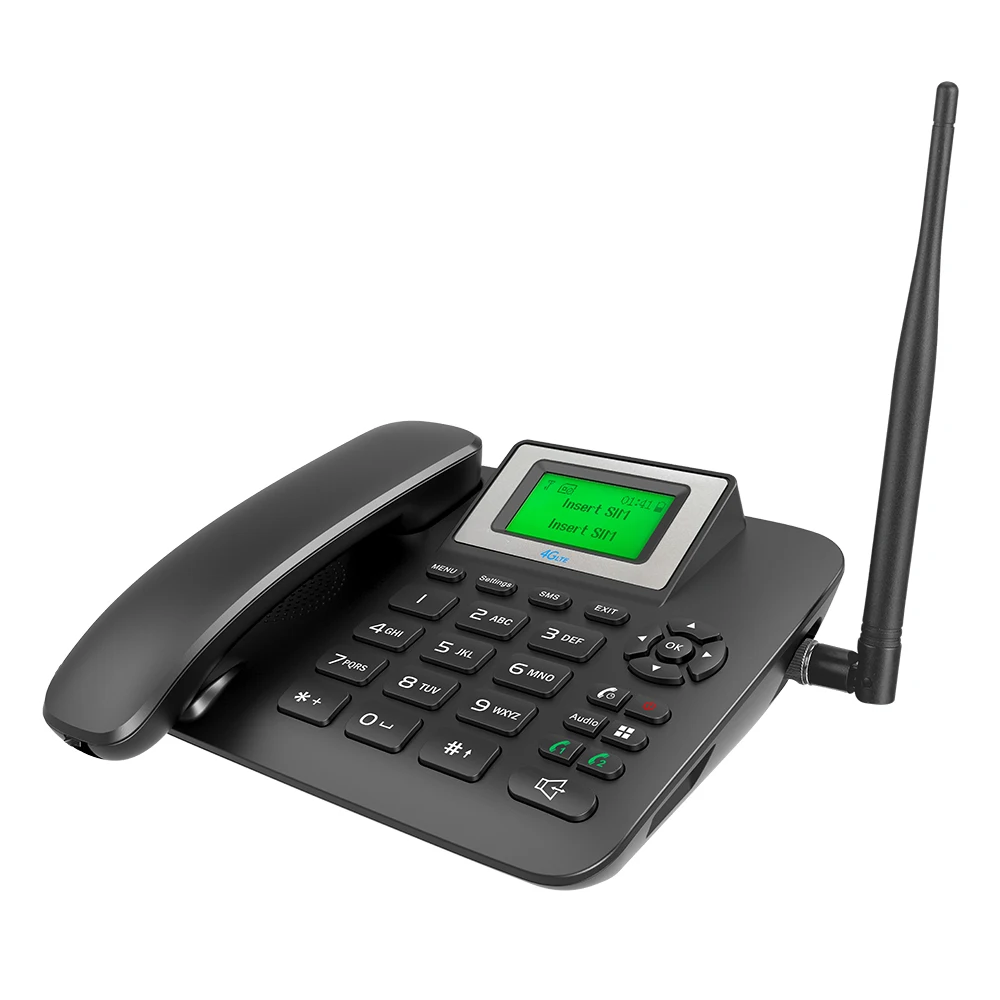

GSM 3g 4g Fixed Wireless Desktop Office Telephone Wifi Hotspot Cordless Phones Terminal Portable Wi-fi

CPU

UMS9117-L

Band/Mode

Network configuration A:
2G：B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 FDD: B2/B4/B5/B28AB

Network configuration B:

2G：B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 FDD: B1/B3/B5 TDD:B40/B41M(38)

Network configuration C:
2G：B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 FDD: B1/B3/B5/B7/B28

Network configuration D:
2G：B2/B3/B5/B8 WCDMA: B1/B8 FDD: B1/B3/B7/B20/B38

Data

LTE:Cat.1(UL 5.2Mbps/DL10.3Mbps)
WCDMA:Cat.14(HSDPA 21MMbps)
Cat.7(HSUPA 5.76Mbps)
GPRS/EDGE class12

Display

STN Black& White
2.2 inches,Resolution 128*64 pixels

SMS

support

phone book

Store 1000

Call Recording

support

MP3

support

Storage card

1 SD card slot, support up to 32G

Headphone jack

3.5mm

USB port

1 USB2.0

SIM card connector

Standard SIM x2, Dual 4G SIM Cards ,Dual VoLTE

Handset port

RJ-9

Voice andset port

Support quad vocoders for AMR-NB, EFR, HR and FR Support AMR-WB/AMR-NB Support Dual VoLTE

Telephony

Contacts

100 contacts,support contacts search, import, export

call logs

100 call logs for received calls,
100 call logs for missed calls,
100 call logs for dialed numbers

Local conference

3 parties audio conference

Telephony features

Call Hold, Call Forward, Call Waiting, Call Reject

Languages

Multi-Languages

Customized applications

SDK/API for custom application development;

Antenna

Integrated antenna or TNC antenna selectable;

Working temperature

-10 degree - +40 degree;

Battery

1000mAh

Power adapter

Input:AC100~220V
Outout:DC5V/1A
