Характеристики
Products Description

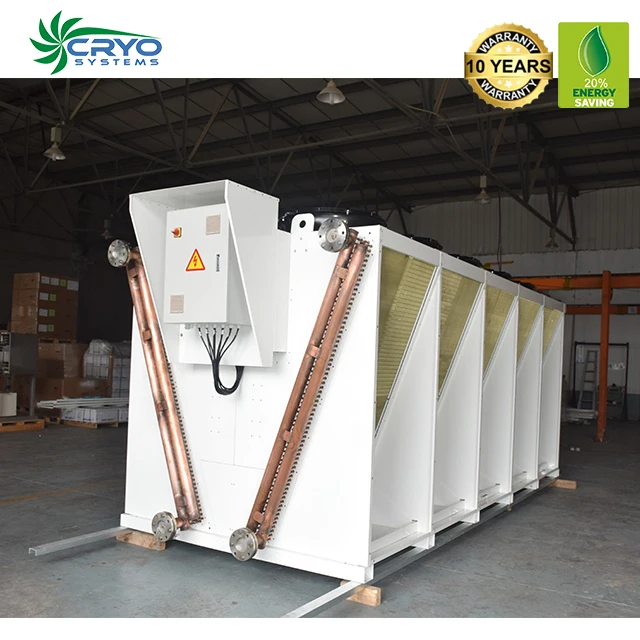

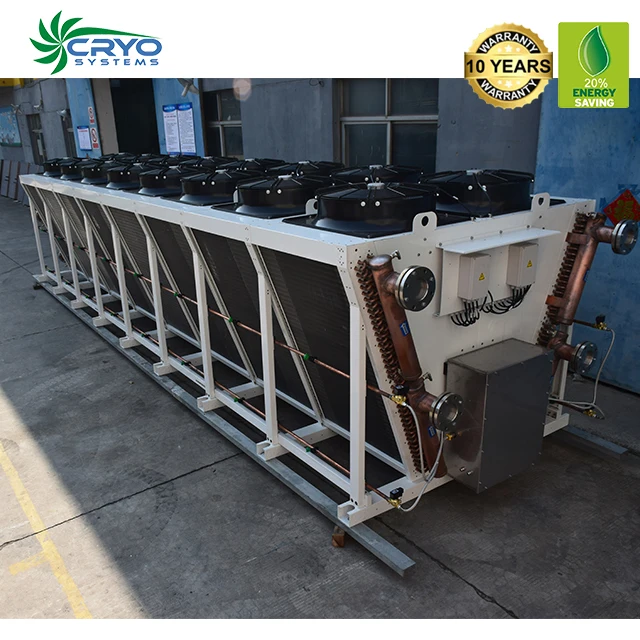

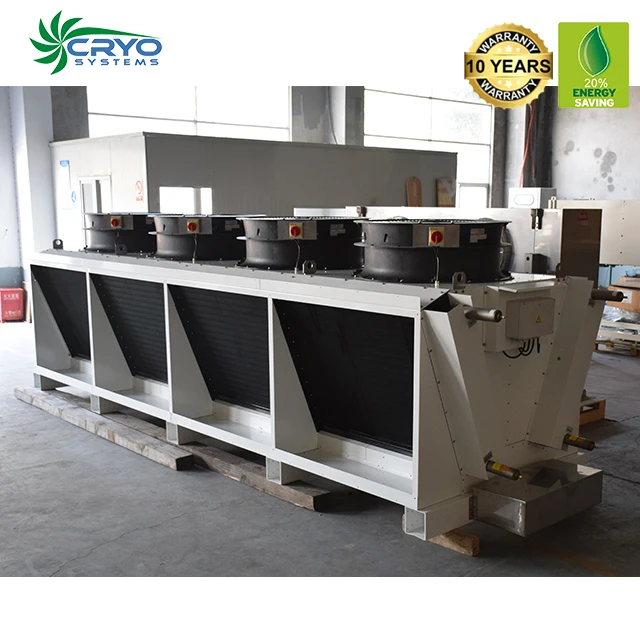

Dry cooler is a heat exchanger with fin tubes, and it can direct cool the medium by air without water.
Flat shape and V shape are the most popular types.
Dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil.
The advantages are low maintenance cost, safe and reliable operation, long service life, and free of scaling.
Flat shape and V shape are the most popular types.
Dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil.
The advantages are low maintenance cost, safe and reliable operation, long service life, and free of scaling.
Structure type | Number of fans (Pcs) | Heat exchange area (m2) |
Flat shape 630 | 1-16 | 74-3380 |
Flat type 800/910 1-12 | 1-12 | 137-3570 |
V shape 630 1-20 | 1-20 | 142-4994 |
V-shaped 800/910 | 4-16 | 565-4796 |
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Fan/ Low noise axial fans
Adopting a high-quality motor, the reasonable gap with the wind vane, guide ring, and hyperbolic designed ducting achieve maximum efficiency of the fan
Copper Pipe
Efficient use of multiple tooth inner thread pipe, Rate of more than 99.9%, increasing of the innertube surface area and improving the efficiency of heat transfer

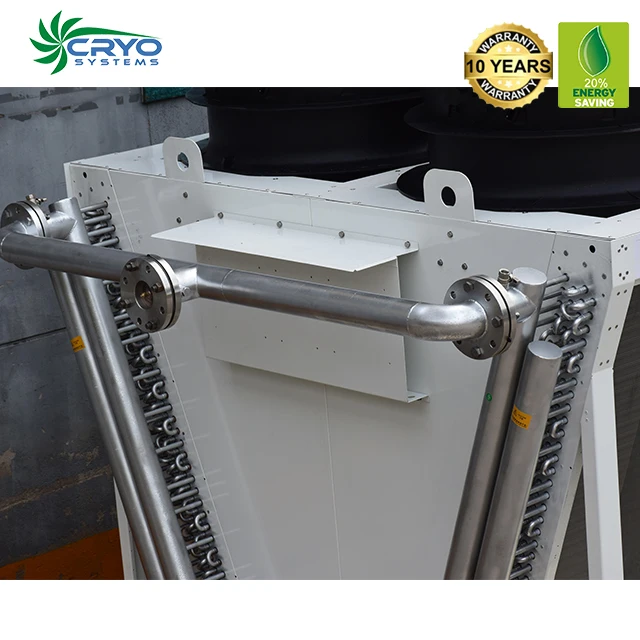

The Pipeline design
The heat exchanger is adopted directly back to the oil and counter exchanger area, improving the heat transfer efficiency and counter-current, to avoid the accumulation of oil and make full use of ensuring the superheat temperature of the heat exchanger.
Casing
Using 3003 aluminum alloy shell or DC51-D+180g, spraying paint. For outdoor, and after high-temperature curing, the material has high strength, and strong corrosion-resistance, standard color is RAL9010.
Adopting a high-quality motor, the reasonable gap with the wind vane, guide ring, and hyperbolic designed ducting achieve maximum efficiency of the fan
Copper Pipe
Efficient use of multiple tooth inner thread pipe, Rate of more than 99.9%, increasing of the innertube surface area and improving the efficiency of heat transfer
The Pipeline design
The heat exchanger is adopted directly back to the oil and counter exchanger area, improving the heat transfer efficiency and counter-current, to avoid the accumulation of oil and make full use of ensuring the superheat temperature of the heat exchanger.
Casing
Using 3003 aluminum alloy shell or DC51-D+180g, spraying paint. For outdoor, and after high-temperature curing, the material has high strength, and strong corrosion-resistance, standard color is RAL9010.
Details
OEM optional：
Frame | Fin | Heat- exchange Tube | head |
galvanized sheet | Aluminum | Copper Tube | Copper Tube |
Aluminum | Hydrophilic Al Fin | Stainless steel304 | Seamless Steel Pipe |
Stainless steel304 | Almg25 | Stainless steel316 | Stainless steel304 |
Stainless steel316 | Copper Fin | B10 | Stainless steel316 |
Pre-coated Epoxy Fin | =B30 | B10 | |
Copper Tinned Fin | Titanium | B30 | |
Heresite/Blygold/Epxoy Coated Fin | Titanium |
Modular structure, use the high quality of zinc magnesium aluminum material (304 or 316 stainless steel for option)
strong corrosion-resistance.
High quality axial fan, Low noise design
Our Advantages
1. Shape with flexible and changeable, drawing blowing. Forward air flow, air flow up, air flow down precision meet the actual needs of different occasions, the cold quantity to the location of the actual needs, improve efficiency.
2. Finned length up to 12m, Finned height up to 2.7m.
3. Built-in ambient temperature and humidity sensors, as well as water temperature and pressure sensors.

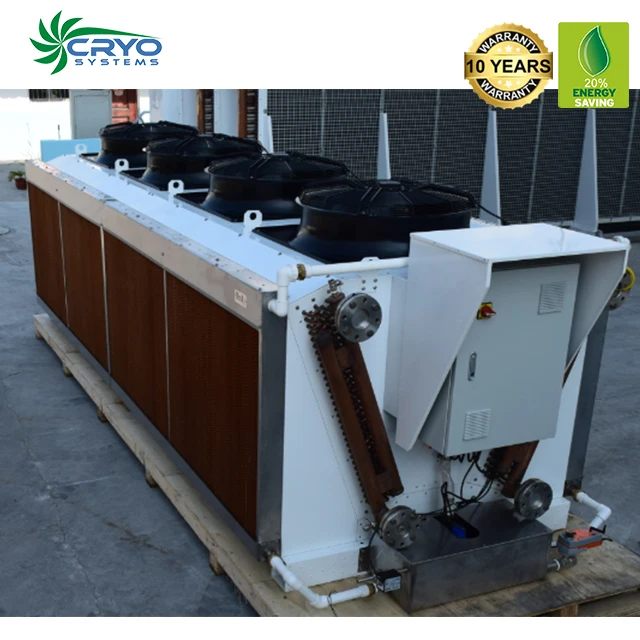

4. Details of the wet curtain, standard configuration of water pump, water inlet valve, automatic drain valve and liquid level
control.
5. Modular assembly design, vertical and horizontal installation on-site adjustment.
6. EC axial fan anti-corrosion application treatment: standard salt spray 720 hours.
2. Finned length up to 12m, Finned height up to 2.7m.
3. Built-in ambient temperature and humidity sensors, as well as water temperature and pressure sensors.
4. Details of the wet curtain, standard configuration of water pump, water inlet valve, automatic drain valve and liquid level
control.
5. Modular assembly design, vertical and horizontal installation on-site adjustment.
6. EC axial fan anti-corrosion application treatment: standard salt spray 720 hours.
Application
Dry coolers are used in multiple buildings types and applications, including the following:
1. Steel Industry
2. Chemical and petrochemical plants
3. Refinery & petrochemicals
4. Power Industry
5. food industries - cooling solution
6. Refrigeration / Air conditioning -- as condenser for air-cooled chillers
7. Data centers
8. Hospitals/medical office buildings
9. Induction cooling
1. Steel Industry
2. Chemical and petrochemical plants
3. Refinery & petrochemicals
4. Power Industry
5. food industries - cooling solution
6. Refrigeration / Air conditioning -- as condenser for air-cooled chillers
7. Data centers
8. Hospitals/medical office buildings
9. Induction cooling
Successful case
