HUSA Высокое качество 16 мм водонепроницаемый такт Тип мгновенный кольцо светодиодной подсветкой короткое тело кнопочный переключатель с черным
- Категория: Push Button Switches >>>
- Поставщик: Yueqing,Husa,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.47 $* | 1.19 $* |
| Jul-18-2025 | 1.97 $* | 1.93 $* |
| Jun-18-2025 | 1.65 $* | 1.67 $* |
| May-18-2025 | 1.24 $* | 1.25 $* |
| Apr-18-2025 | 1.98 $* | 1.10 $* |
| Mar-18-2025 | 1.96 $* | 1.90 $* |
| Feb-18-2025 | 1.99 $* | 1.67 $* |
| Jan-18-2025 | 1.60 $* | 1.71 $* |
Характеристики
HUSA - Product Description
Metal Push Button Switch:
- Great for electron magnetic Starter, relay, Horn Button Switch.
- PC Power Switch or any circuit controls on over 500,000 cycles.
- The LED light can be on all the time or only when switch is on which depends on how you wire it.
- High quality metal materials & waterproof protection IP67/Ik09, the products can be used in wet or dusty environments.
- PC Power Switch or any circuit controls on over 500,000 cycles.
- The LED light can be on all the time or only when switch is on which depends on how you wire it.
- High quality metal materials & waterproof protection IP67/Ik09, the products can be used in wet or dusty environments.
FEATURES:
1. Corrosion resistance, excellent impact resistance and vibration resistance.
2. The upper exposed part of the product has excellent characteristics: waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion.
3. The volume is small and exquisite, the exterior is delicate, economy applicable, cost-effective.
PRODUCT INFO:

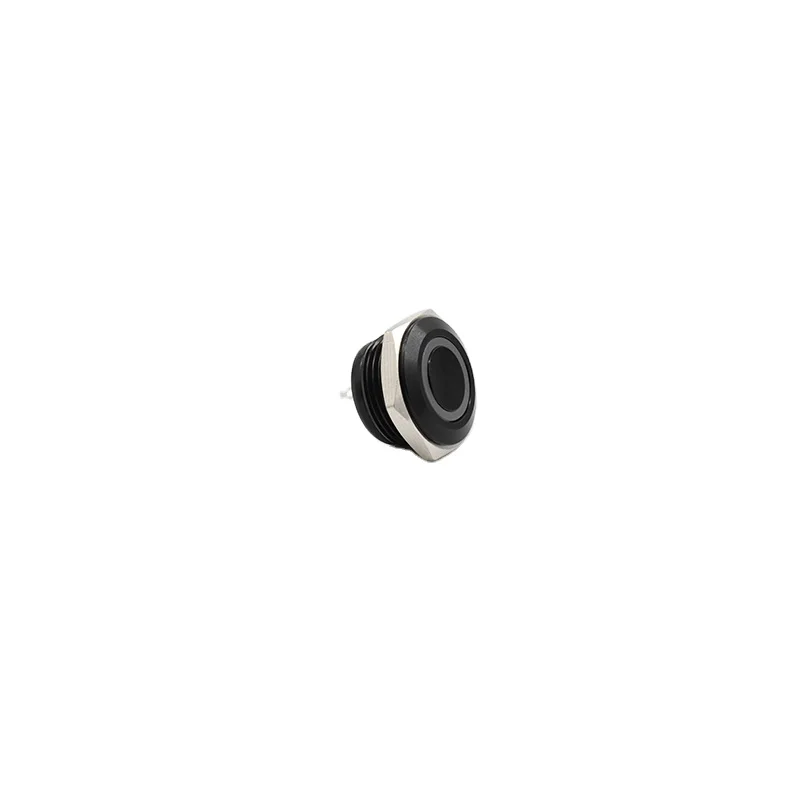

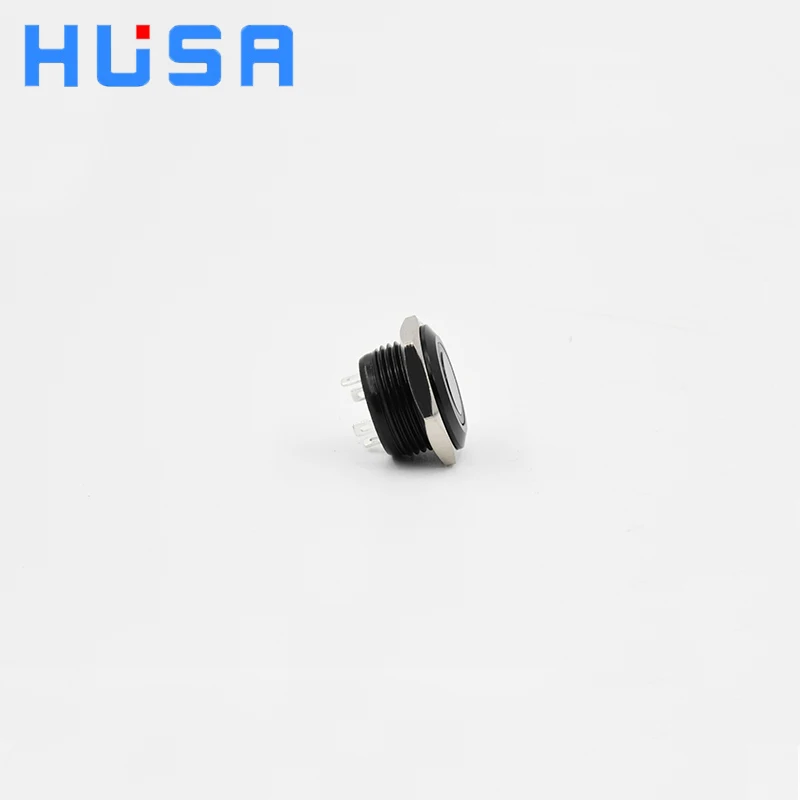

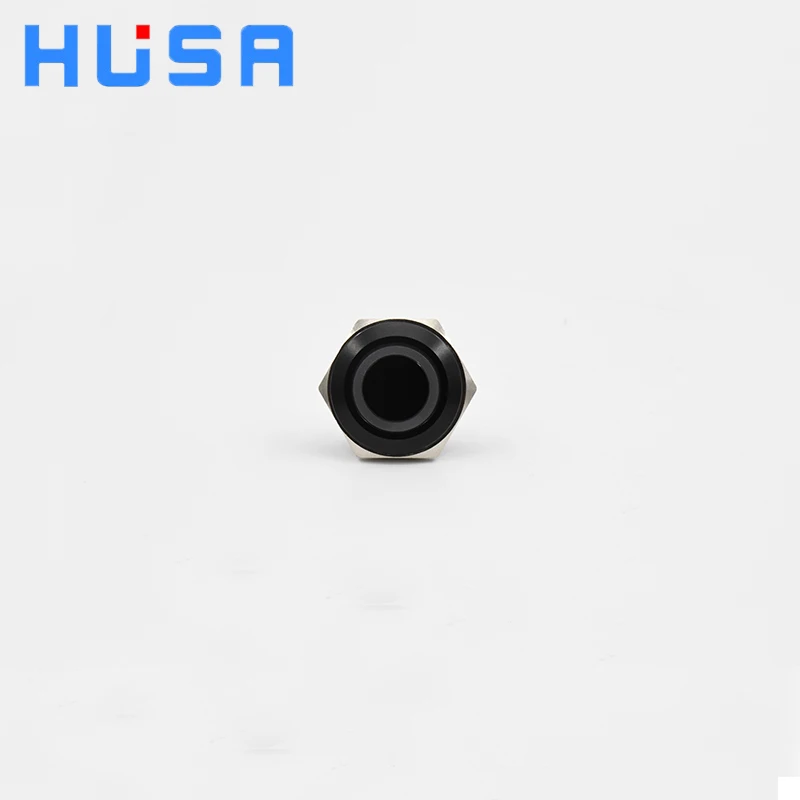

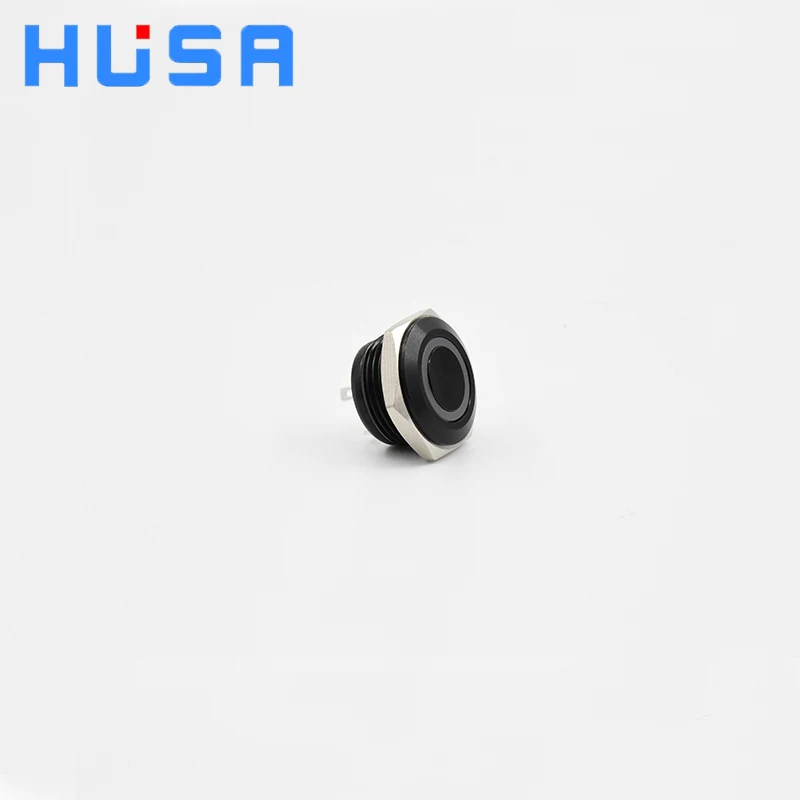

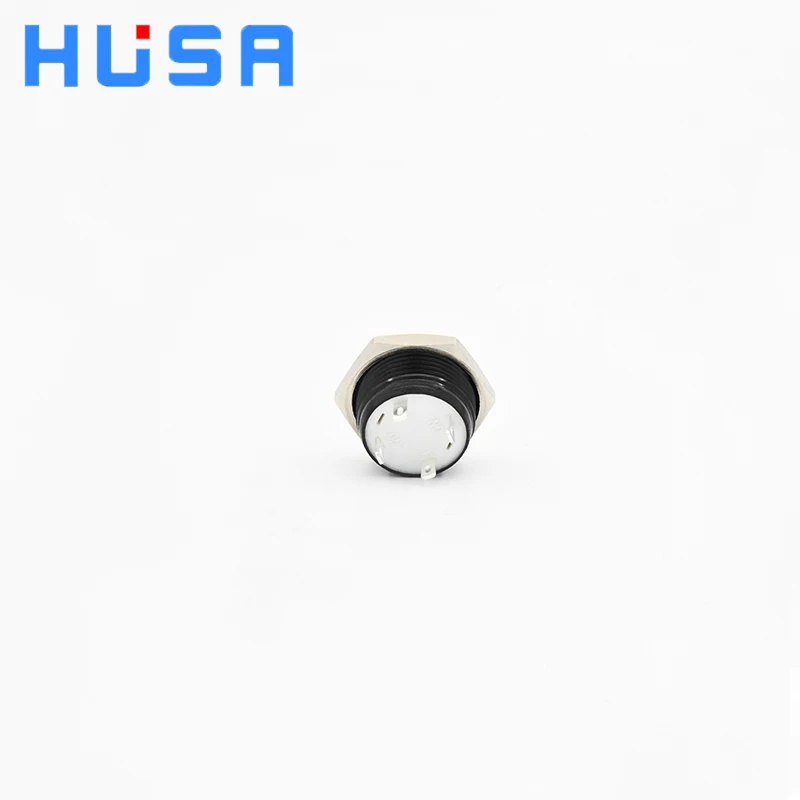

HUSA High Quality 16mm Waterproof Tact Type Momentary Ring LED Illuminated Short Body Push Button Switch With Black Housing
Model No. | HSUS16F-10E/J/ABLACK | |
Mounting Hole | φ 16mm | |
Head Shape | Flat round head | |
Contact Type | 1NO | |
LED Lamp | Ring Symbol LED Light | |
LED Symbol | Ring Symbol LED lamp | |
LED Color | R , G , B , Y , O , W ( or as you like. ) | |
Operation Type | Momentary | |
Terminal Type | Solder Terminal(J Pin Terminal) | |
Enclosure Shell Material | Aluminium oxide (Or Nickel Plated Brass; Stainless steel) | |
*Customization Shell Color: Available *Customization LED Symbol: Available | Available | |
Performance Characteristics | ||||||||
Protect Grade | IP65, IP67, IP68; IK08; | Mechanical Life | More than 1 million time | |||||
Impact Resitance | Bigger than 10g | Vibration Resistance | 50HZ, Amplitude ≈ 1.2mm | |||||
Working Temperature | -25°C ~ +55°C (No freezing; Air circulation) | Working Environment Humidity | 45-85%RH (NO Condensation) | |||||
Contact Material | Silver | Contact Resistance | ≤50mΩ | |||||
Max. Current | ≤1A | Insulation Resistance | ≥1000MΩ | |||||
Max. Voltage | ≤250VAC | Accessories | Nut; Rubber O-ring | |||||
Efficient waterproof
Ensure electrical safety
Extended service life
●Waterproof Silicone sealing ring included in internal
● Attached with Waterproof Rubber O-ring
Innovative Technology Creation
▲ Metal Shell
+Anti-corrosion
+Strong and durable
▲ Optional Shell Material
> Stainless Steel Housing
(Most Welcome)
> Nickel Plated Brass
(Economical and practical)
> Aluminium Oxide
(Shell Color Customizable)
Flame-retardant Base
—High Quality Fire-retardant Material—
More safe & reliable
Two Kinds of Terminals:
◆Solder Terminals
Easy welding & quick installation.
◆Screw Terminals
Simple & Fast to connecting wires
Scope of application:
Industrial control equipment; Automobile and motorcycle modification; Home appliance modification; Power distribution; Telecommunications; Machine tools; Machinery; Electrician...
