$1 доллар США компенсировать разницу
US $2.00
Лидер продаж беспроводной маршрутизатор плата PCBA модуль камеры 4g CPE 4G Wi-Fi
- Категория: Surveillance Products >>>
- Поставщик: Habolink,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 19.20 $* | 19.53 $* |
| Jul-20-2025 | 15.69 $* | 15.33 $* |
| Jun-20-2025 | 19.87 $* | 19.43 $* |
| May-20-2025 | 19.26 $* | 19.36 $* |
| Apr-20-2025 | 15.16 $* | 15.3 $* |
| Mar-20-2025 | 18.53 $* | 18.62 $* |
| Feb-20-2025 | 18.83 $* | 18.81 $* |
| Jan-20-2025 | 18.64 $* | 18.88 $* |
Характеристики
Products Description
External Antenna Hotspot with SIM Card Slot 4G LTE 150Mbps Wifi Router Board
4G Communication Module of AF007AF007 of 4G wireless communication module converts telecommunication wireless network into standard wired port signal connection. The module provides WiFi signal hotspot.
Product Characteristics | Descriptions |
Power Supply Voltage | Wide voltage input，DC[4.7V---18V] |
Power Waste | Normal Operation Power <1.5W; Peak Value: 400mA@12V |
Power Interface Form | 1.25mm spacing socket horizontal 4Pin |
Frequency Band | FDD LTE: B1/B3/B5/ B8 |
TDD LTE: B38/B39/B40/B41 | |
TDSCDMA: B34/B39 | |
WCDMA: B1/B5/B8 | |
Rate | LTE-FDD： Max 150Mbps(DL) Max 50Mbps(UL) |
LTE-TDD： Max 130Mbps(DL) Max 35Mbps(UL) | |
DC-HSPA+：Max 42Mbps(DL) Max 5.76Mbps(UL) | |
UMTS： Max 384Kbps(DL) Max 384Kbps(UL) | |
TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL) | |
CDMA: Max 3.1Mbps(DL) Max 1.8Mbps(UL) | |
WIFI Standard | 802.11b/g/n |
Network Interface | 1-way，10/100M adaptive，auto MDI/MDIX |
Network Interface Form | 1.25mm wafer socket horizontal 4P |
Wireless Network Antenna | DL MIMO supports Rx-diversity |
WIFI Antenna | 2.4G |
Antenna Interface Form | IPEX Generation 1 |
USIM/SIM | NANO card （minimum card） |
Serial Port Mode | RX,TX of TTL standard |
Serial Communication Mode | TCP or UDP client mode |
Maximum Data Of Serial Port | 1024 Byte |
Working Temperature | -20°C－+70°C |
Working Humidity | 10%－95%RH |
Storage Temperature | -40°C－+85°C |

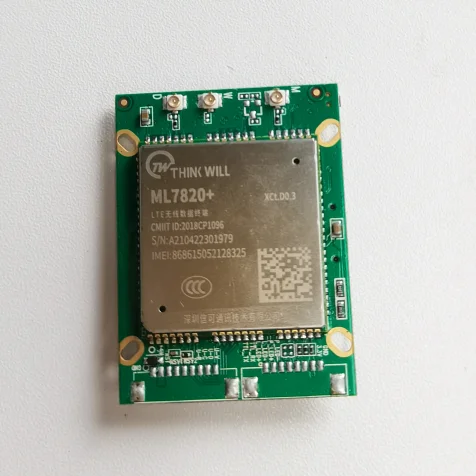

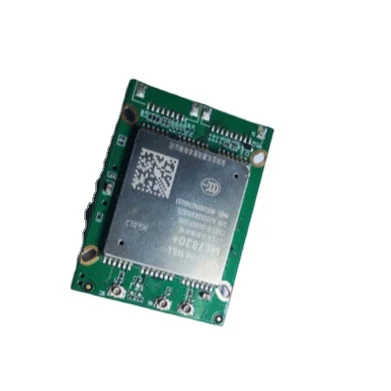

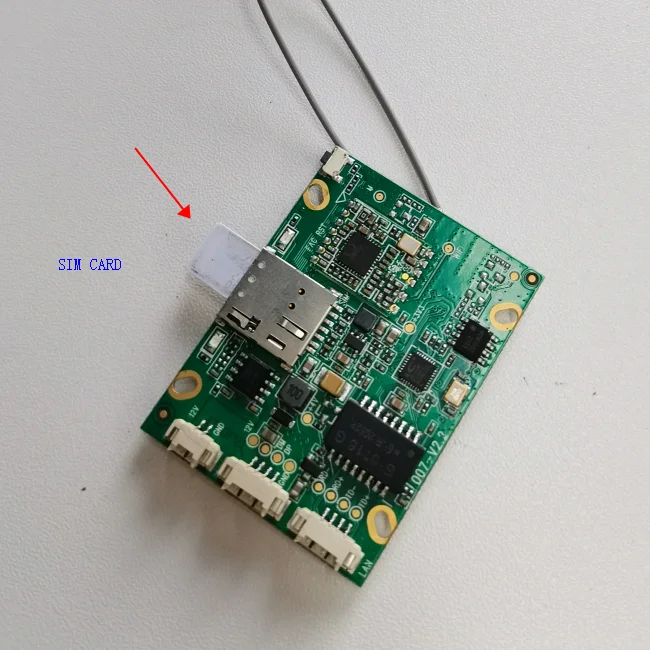

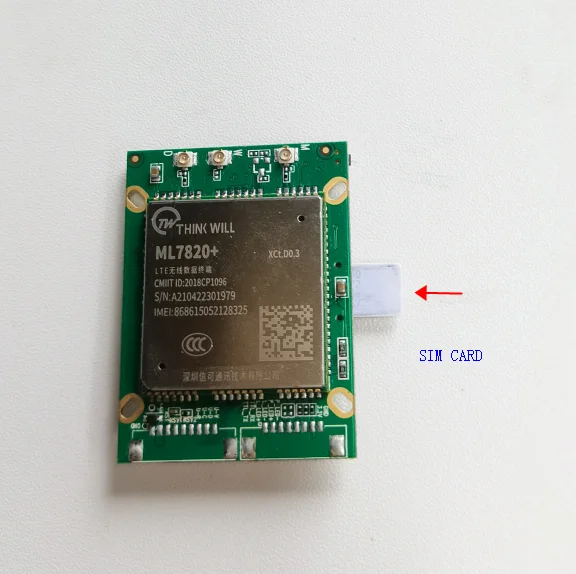

Details Images

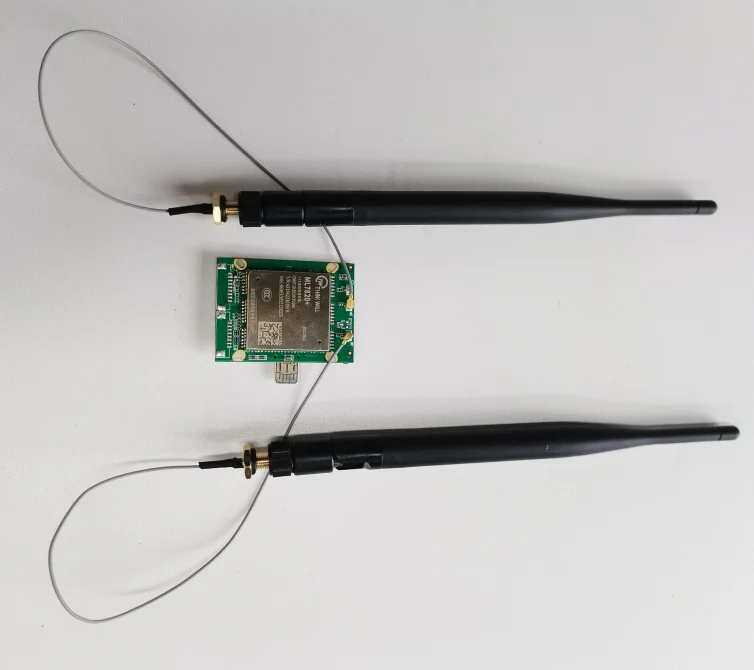

Product application

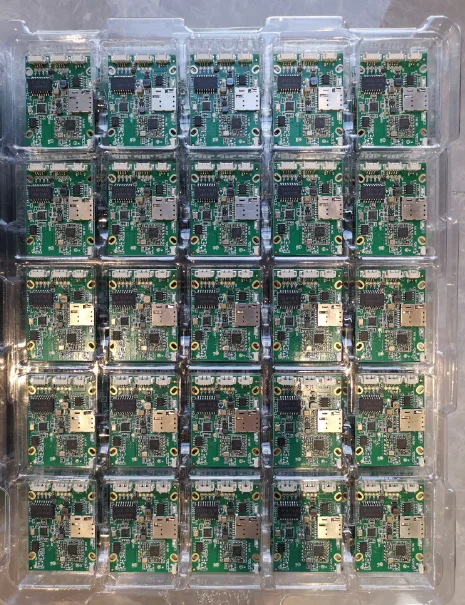

Production Process & Warehouse
Product packaging
1pcs PCBA size | 51*38*9（mm）/ 16g |
1pcs plastic tray size | 315*250*26 mm |
1 small box size | 360*340*52 mm |
1pcs plastic tray | 25pcs PCBA |
1pcs box | 100pcs PCBA （4 plastic tray） |
1carton | 600pcs PCBA （6 box） |
Carton size | 400*380*290mm |
Gross weight | 10.7kg |
Packaging | plastic tray with carton |
Shipping & Loading
Shipping we are so professional
Ocean Sea Shipment: Loading Container for Bulk Cargo.
Air Shipment: Try Order/ Small Order.
Lead Time:
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Trade Term:
EXW SHENZHEN
FCA SHENZHEN /GUANGZHOU
Payment Terms:
30% T/T as deposit should be paid before production ,70% T/T should be paid before delivery after inspection.
Company Profile
Habolink Technology Co.,Ltd. is a wireless communication solution provider, boasting rich experiences in functional wireless IoT modules & solutions, and providing all-around quality assurance in each and every step. Our products have been widely used in IoT/M2M fields including wireless gateways & routers, video surveilance, smart energy, agriculture and environment monitoring etc.
