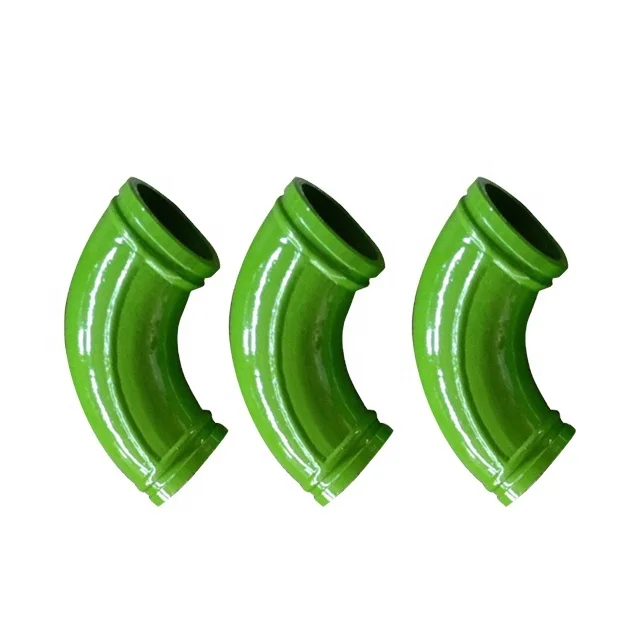

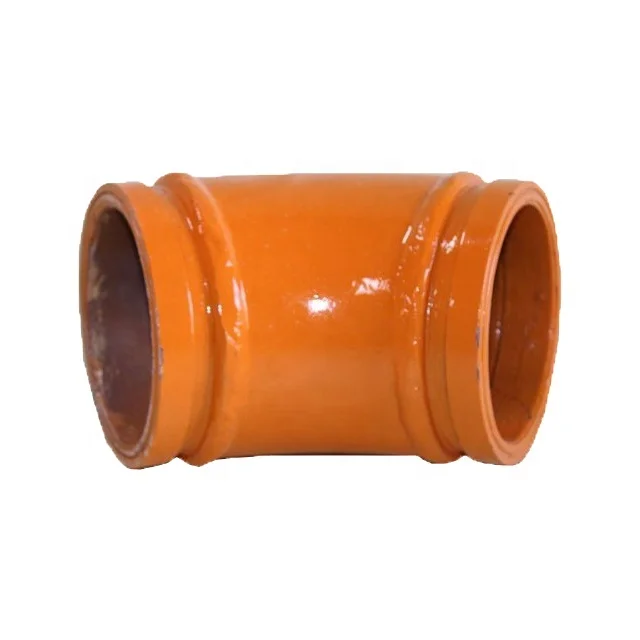

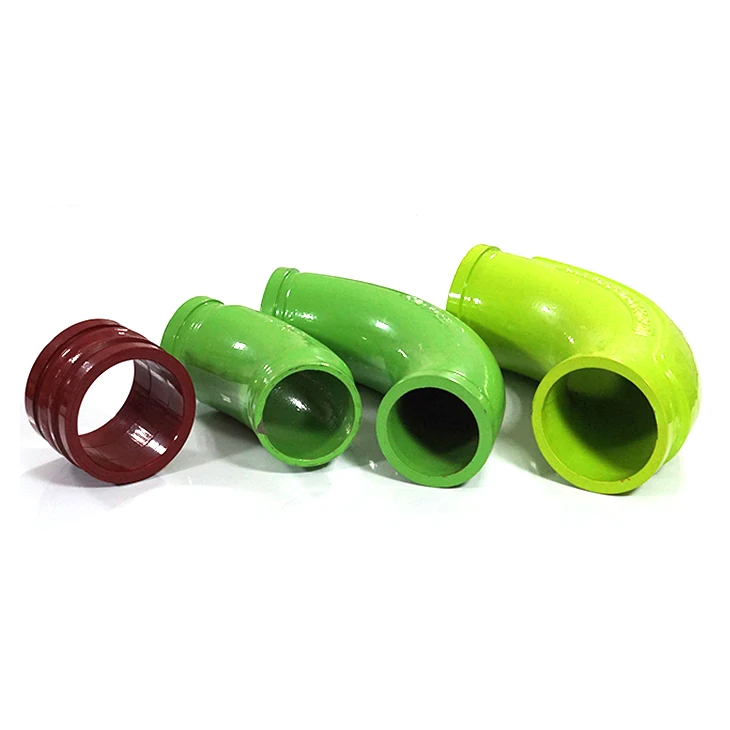

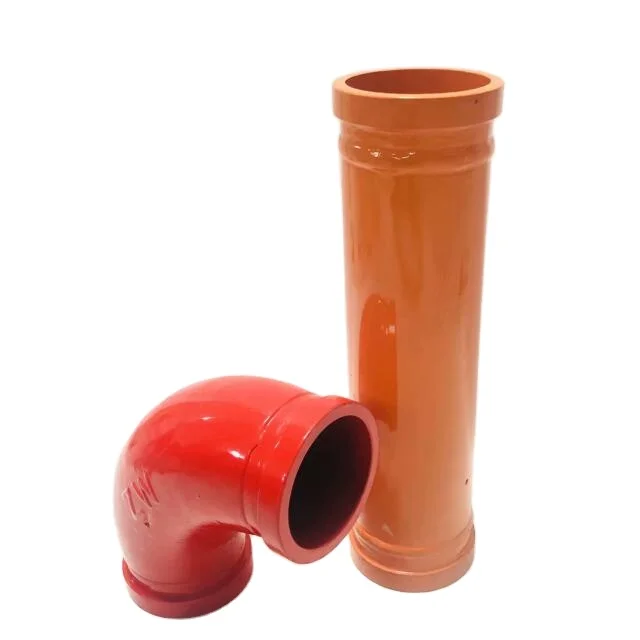

china concrete pump parts elbow pipe factory cifa and

china concrete pump parts elbow pipe factory cifa and

Категория: Used Concrete Mixers >>>
Поставщик: Shandong,Shengbang,Concrete,Pump,Parts,Co.,Ltd.

Цена:26,80 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	31.88 $*	33.96 $*
Aug-16-2025	31.27 $*	33.98 $*
Jul-16-2025	26.76 $*	27.98 $*
Jun-16-2025	30.5 $*	32.72 $*
May-16-2025	26.66 $*	27.31 $*
Apr-16-2025	30.91 $*	32.85 $*
Mar-16-2025	29.67 $*	30.93 $*
Feb-16-2025	29.18 $*	30.75 $*
Jan-16-2025	29.75 $*	30.92 $*

Характеристики

Product Description

Name	Material	Specification	Weight(kgs)	Common life time (m)	Max work pressure(bar)
Normal Bend	ZG40Mn2	DN125R27590	16	6000-8000	126
Wear-resistant bend	Mn13-4	DN125R27590	16.5	20000-25000	132
Twin wall bend	Cr20NiCu1Mo+G20	DN125R27590	15	60000-80000	91
Twin wall bend	GX350+G20	DN125R27590	15	80000-150000	98

Products Description

Casting elbows now mostly adopt negative pressure casting. When modeling, first cover a layer of plastic film on the template, use a vacuum pump to suck the film tightly on the template, then put on the sand box, and then fill the sand box with modeling materials. The plastic film covers the top surface of the sand box, and the vacuum pump is connected to suck out the air between the sand particles to form a negative pressure in the sand mold. At the same time, the vacuum of the template is removed, so that the plastic film is absorbed on the surface of the mold cavity. The sand mold has the effect of the pressure difference. Certain strength and hardness. After removing the mold, closing the box, pouring, solidification and cooling, the negative pressure is removed, and the desired casting can be obtained.
