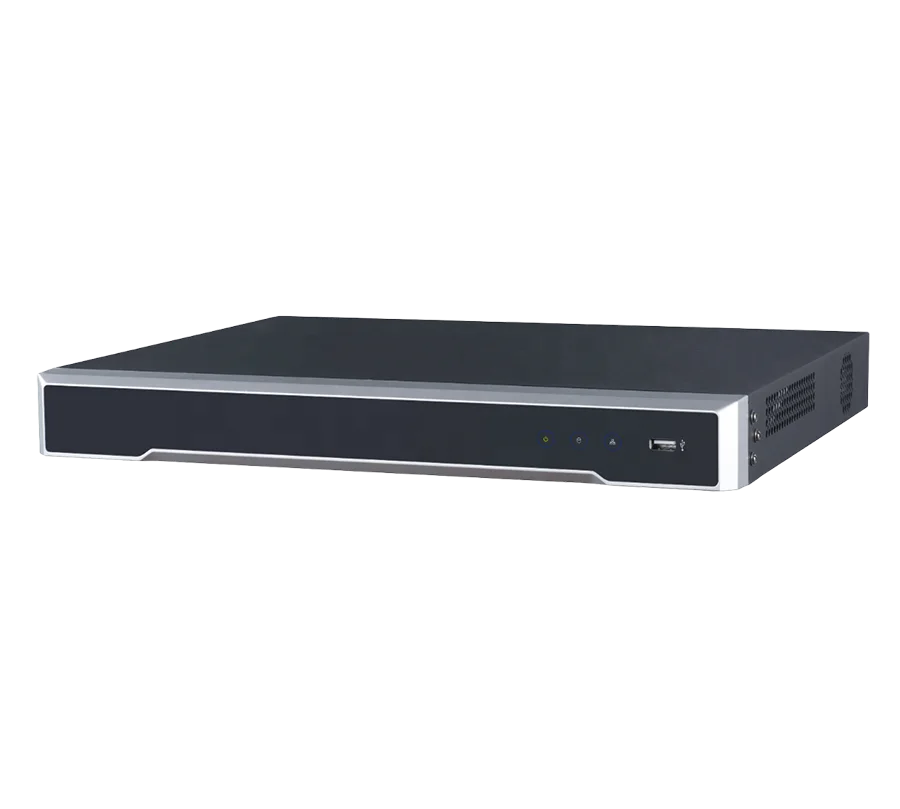

DS-7616NI-I2/16P H.265 сетевой

Категория: Surveillance Systems >>>
Поставщик: Shenzhen,Ewinner,Tech.,Ltd.

Цена:292,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	347.19 $*	364.62 $*
Aug-18-2025	345.19 $*	362.41 $*
Jul-18-2025	289.57 $*	303.32 $*
Jun-18-2025	339.54 $*	356.3 $*
May-18-2025	295.33 $*	310.90 $*
Apr-18-2025	333.39 $*	350.46 $*
Mar-18-2025	330.21 $*	347.26 $*
Feb-18-2025	327.45 $*	343.73 $*
Jan-18-2025	324.96 $*	340.17 $*

Характеристики

Product Description

Specification

Model		DS-7608NI-I2/8P	DS-7616NI-I2/16P	DS-7632NI-I2/16P
Video/Audio input	IP video input	8-ch	16-ch	32-ch
	IP video input			Up to 12 MP resolution
		Two-way audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network	Incoming bandwidth	80 Mbps	160 Mbps	256Mbps
		Outgoing bandwidth	256 Mbps
		Remote connection	32	128
		Recording resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
		CVBS output (Optional)	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
		HDMI output resolution	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
		VGA output resolution	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
		Audio output	1-ch, RCA (Linear, 1 KΩ)
Decoding	Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
		Live view/Playback resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
		Synchronous playback	8-ch	16-ch	16-ch
		Capability	2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Network management	Network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk	SATA	2 SATA interfaces
Hard disk		Capacity	Up to 8TB capacity for each HDD
External interface	Network interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
		USB interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
		Alarm in/out	4/1
POE Interface	Interface	8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces	16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
		Power	≤ 120 W	≤ 200 W
		Supported standard	IEEE 802.3 af/at
General	Power supply	100 to 240 VAC, 50 to 60 Hz
		Power	≤ 180 W	≤ 280 W
		Consumption (without hard disk)	≤15 W (without enabling PoE)
		Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
		Working humidity	10 to 90 %
		Dimensions(W × D × H)	385 × 315× 52 mm (15.2" × 12.4" × 2.0")
		Weight (without hard disk)	≤ 3 kg (6.6 lb)

Features and Functions

Professional and Reliable
* New logical and visualized GUI design

* Dual-OS design to ensure high reliability of system running
* ANR technology to enhance the storage reliability when the network is disconnected
Video Input and Transmission
* Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which
provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)
* Up to 32-ch cameras can be connected (up to 12 MP)
* Connectable to the third-party network cameras
Compression and Recording
* H.265+ compression effectively reduces the storage space and costs by up to 75%
* Full channel recording at up to 12MP resolution
HD Video Output
* HDMI and VGA independent outputs provided
* HDMI Video output at up to 4K (3840 × 2160) resolution
Storage and Playback

* Up to 2 SATA interfaces for HDD connection
* 8/16-ch synchronous playback at up to 1080p resolution
* Important files management
* HDD health monitoring
Smart &POS Function
* Supports multiple VCA (Video Content Analytics) events
* Smart search for the selected area in the video; and smart playback to improve the playback efficiency
* Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
* POS information overlay on live view and playback
* POS triggered recording and alarm
Network & Ethernet Access
* Hik-Connect for easy network management
* Gigabit Ethernet network interface
* 8/16 independent PoE network interfaces are provided
* Long distance (100-300 m) network transmission via PoE
