Tokheim Fuel Dispenser Pumps with Aluminum Nozzle Booter for Gas
- Категория: Other Service Equipment >>>
- Поставщик: Zhejiang,Genuine,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.17 $* | 0.57 $* |
| Aug-16-2025 | 0.44 $* | 0.95 $* |
| Jul-16-2025 | 0.18 $* | 0.97 $* |
| Jun-16-2025 | 0.50 $* | 0.60 $* |
| May-16-2025 | 0.61 $* | 0.22 $* |
| Apr-16-2025 | 0.66 $* | 0.57 $* |
| Mar-16-2025 | 0.58 $* | 0.56 $* |
| Feb-16-2025 | 0.12 $* | 0.68 $* |
| Jan-16-2025 | 0.57 $* | 0.57 $* |
Характеристики
Products Description
♦ Model of ZCHENG Fuel Dispenser
| model | product | motor | pump | flow meter | nozzle | remark |
| ZC-11111 | 1 | 1 | 1 | 1 | 1 | |
| ZC-11112 | 1 | 1 | 1 | 1 | 2 | alternative |
| ZC-11122 | 1 | 1 | 1 | 2 | 2 | |
| ZC-22222 | 2 | 2 | 2 | 2 | 2 | |
| ZC-22224 | 2 | 2 | 2 | 2 | 4 | alternative |
| ZC-22244 | 2 | 2 | 2 | 4 | 4 | |
| ZC-33336 | 3 | 3 | 3 | 3 | 6 | alternative |
| ZC-33366 | 3 | 3 | 3 | 6 | 6 | |
| ZC-44448 | 4 | 4 | 4 | 4 | 8 | alternative |
| ZC-44488 | 4 | 4 | 4 | 8 | 8 |
Product means different fuel such as petrol, diesel and kerosene.
Alternative means nozzles of same product can't work at the same time.
Technical parameter | |
Ambient temperature | -25°C~ +55°C |
Humidity | ≤90% |
Flow rate | 5~60L/min or 5~90L/min |
nozzle | Auto shut-off |
Suction distance | 6m(Vertical), 50m(horizontal) |
Accuracy | ±0.30% |
Repeating tolerance | ≤0.15% |
Hose | 3m(low hang), 4.5m(high hang) |
Inlet pressure | ≥54kPa |
Outlet pressure | ≤0.3MPa |
Voltage | 110V/220V/380V (50/60Hz) |
Power | 1HP(0.75kw) |
Noise | ≤80dB(A class) |
Unit price range | 0.01~999.99 |
single volume range | 0.01~999999.99 |
accumulative volume range | 0.01~9999999999.99 |
Explosion-proof signal | ExdmbIIAT3 |

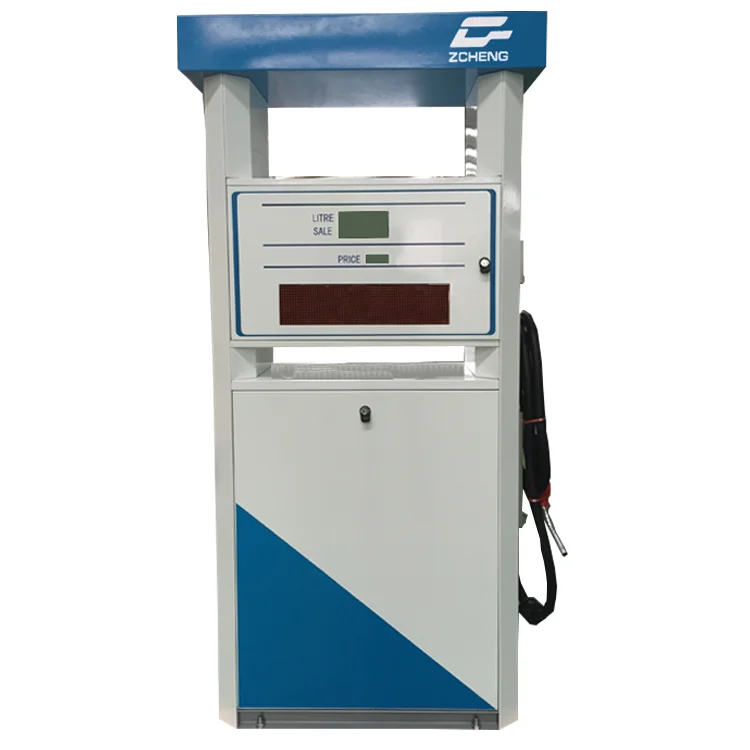

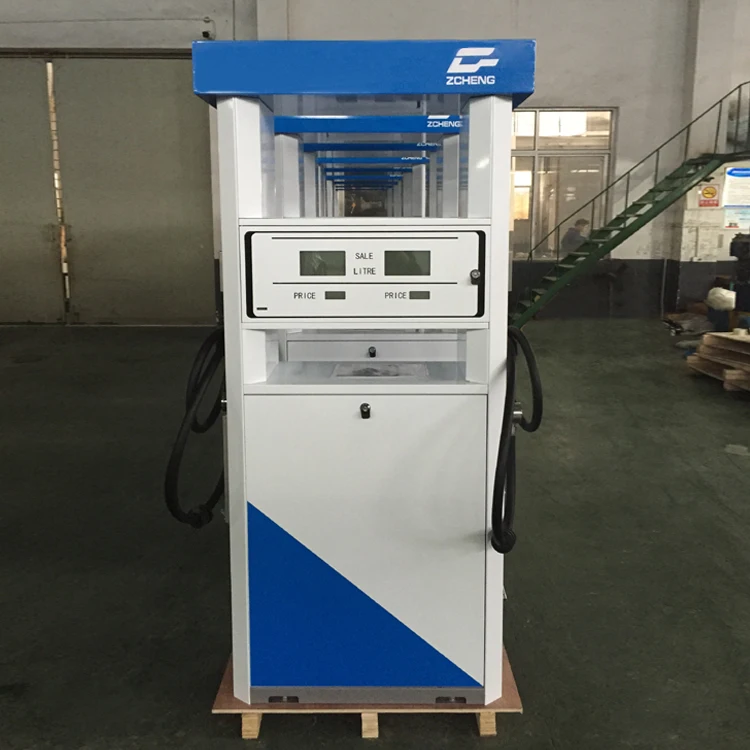

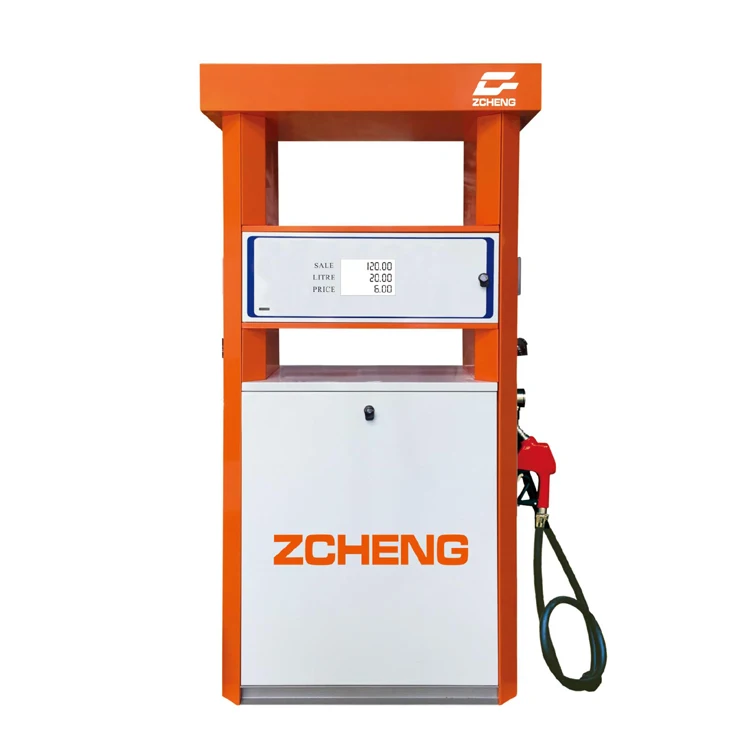

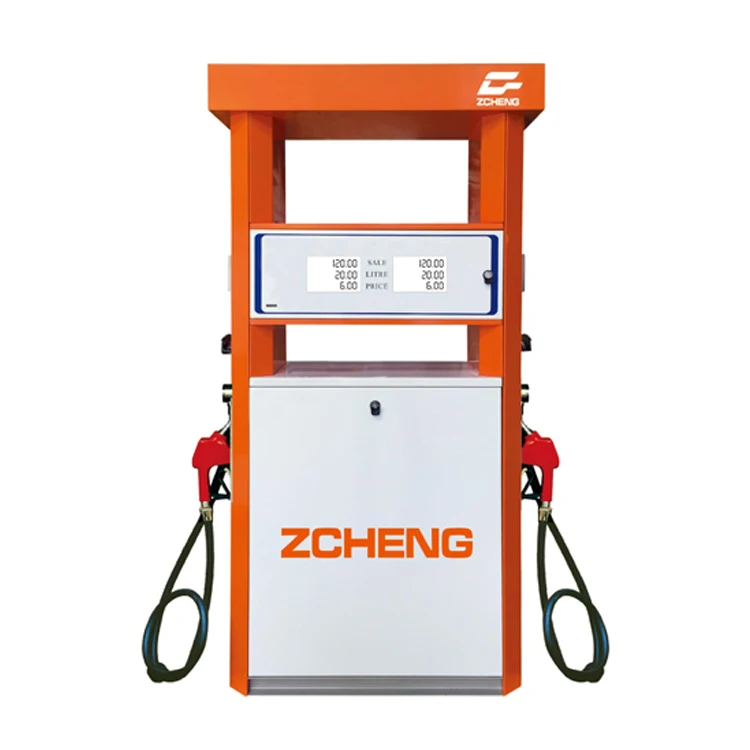

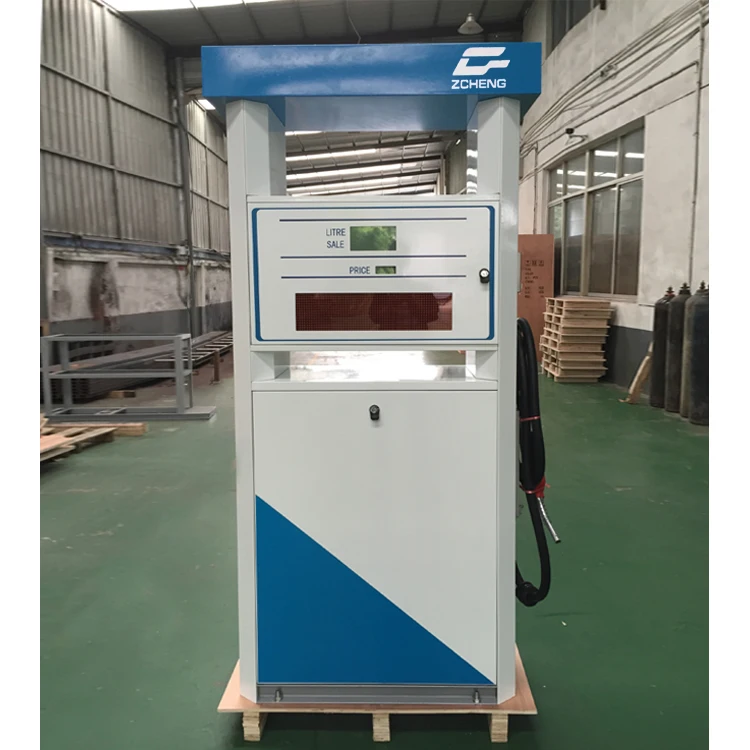

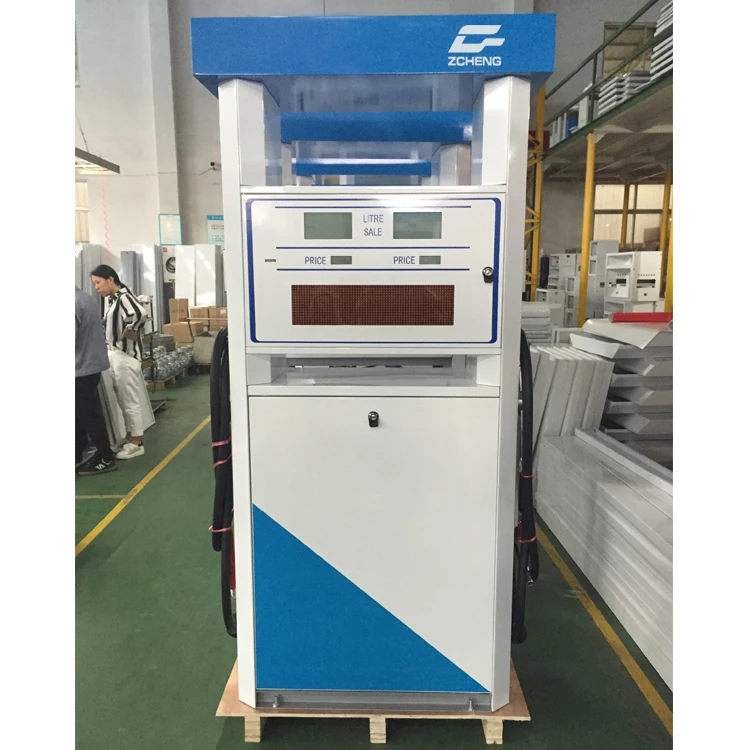

Detailed Images
