Gold Mining Classifier Ore Spiral Screw Machine/Submerged Classifier/ High Weir
- Категория: Sand Washer >>>
- Поставщик: Shanghai,Yingyong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2356.58 $* | 2474.44 $* |
| Aug-19-2025 | 2336.51 $* | 2453.6 $* |
| Jul-19-2025 | 1960.20 $* | 2058.24 $* |
| Jun-19-2025 | 2297.75 $* | 2412.31 $* |
| May-19-2025 | 2000.4 $* | 2100.7 $* |
| Apr-19-2025 | 2257.23 $* | 2370.91 $* |
| Mar-19-2025 | 2237.15 $* | 2349.23 $* |
| Feb-19-2025 | 2218.81 $* | 2329.61 $* |
| Jan-19-2025 | 2198.25 $* | 2308.60 $* |
Характеристики
Product Description
Product Application

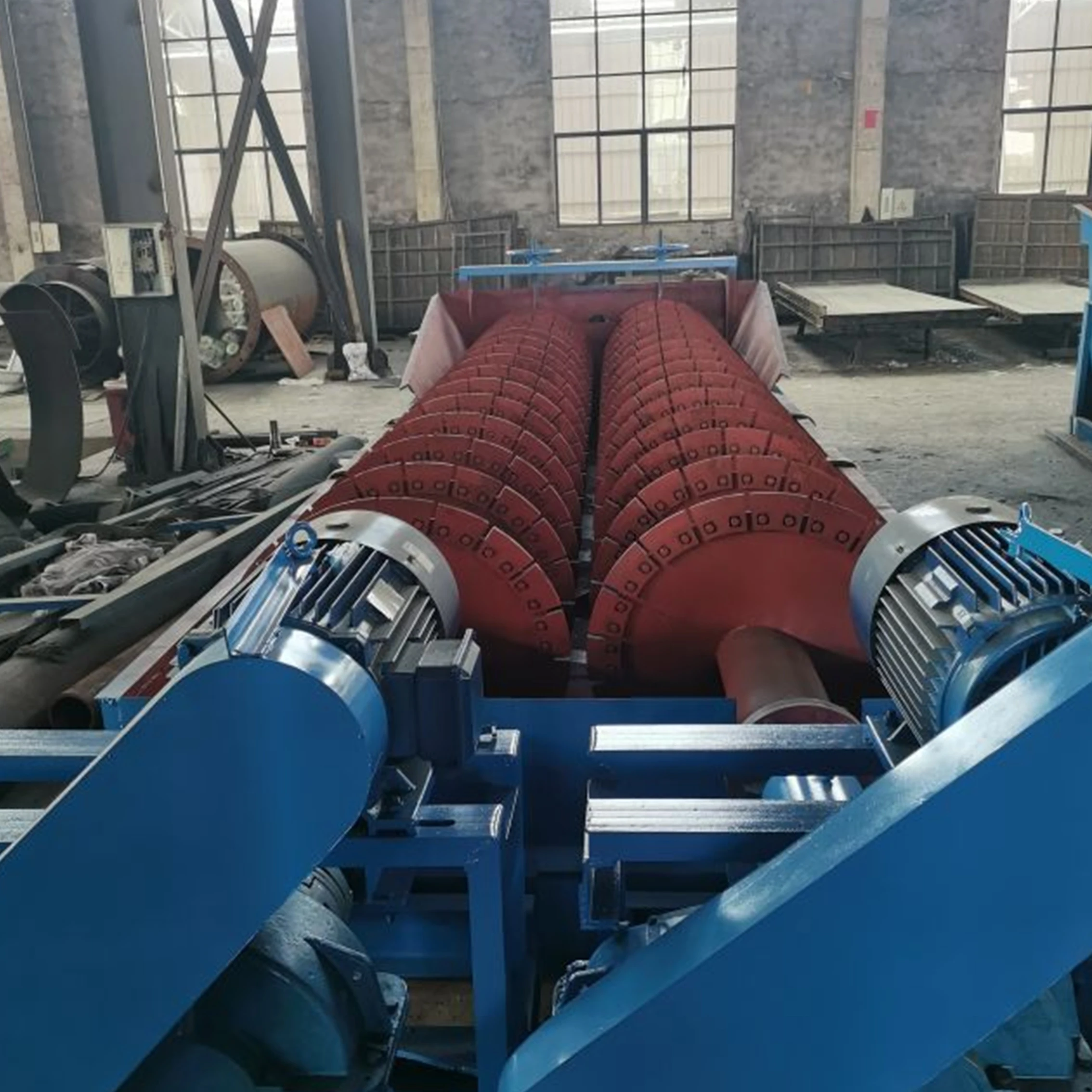

Double spiral sand washing machine:
sand washing screw machine structure:
It consists of a trough body, a reducer, a motor, a central shaft, a spiral blade and a bracket. The bracket is welded on the central shaft, and the spiral blade is secured and then pressed with bolts to deform the blade without the lower body.
It consists of a trough body, a reducer, a motor, a central shaft, a spiral blade and a bracket. The bracket is welded on the central shaft, and the spiral blade is secured and then pressed with bolts to deform the blade without the lower body.
Model | XS1500 | XS2000 | XS2400 | XS3000 |
Spiral diameter (mm) | 750x2 | 1000x2 | 1200x2 | 1500x2 |
length (mm) | 7500 | 7500 | 7500 | 7500 |
Spiral speed (r/min) | 18 | 18 | 18 | 18 |
Output(t/h) | 60-80 | 80-150 | 150-220 | 180-280 |
Motor power (kw) | 7.5x2 | 11x2 | 15x2 | 22x2 |
Length(m) | 9.6 | 9.6 | 10.3 | 10.5 |
width (m) | 1.75 | 2.25 | 2.65 | 3.35 |
height (m) | 1.5 | 2.2 | 2.4 | 2.8 |
Double spiral sand washing machine working principle.
The rotor adopts a central structure, the spiral blades are mounted on the central shaft, and a reducer is connected to the
central shaft for work. A device for mechanical extension by virtue of the fact that the specific gravity of the solid particles
is different and thus the rate of sedimentation in the liquid is different. It is a sand and gravel cleaning equipment for construction, roads, high-speed rail, bridges, pipelines, pre-slate and other mixing stations. Since the launch of the equipment, it has been well received by users. Double spiral sand washing machine technical parameters.
The rotor adopts a central structure, the spiral blades are mounted on the central shaft, and a reducer is connected to the
central shaft for work. A device for mechanical extension by virtue of the fact that the specific gravity of the solid particles
is different and thus the rate of sedimentation in the liquid is different. It is a sand and gravel cleaning equipment for construction, roads, high-speed rail, bridges, pipelines, pre-slate and other mixing stations. Since the launch of the equipment, it has been well received by users. Double spiral sand washing machine technical parameters.

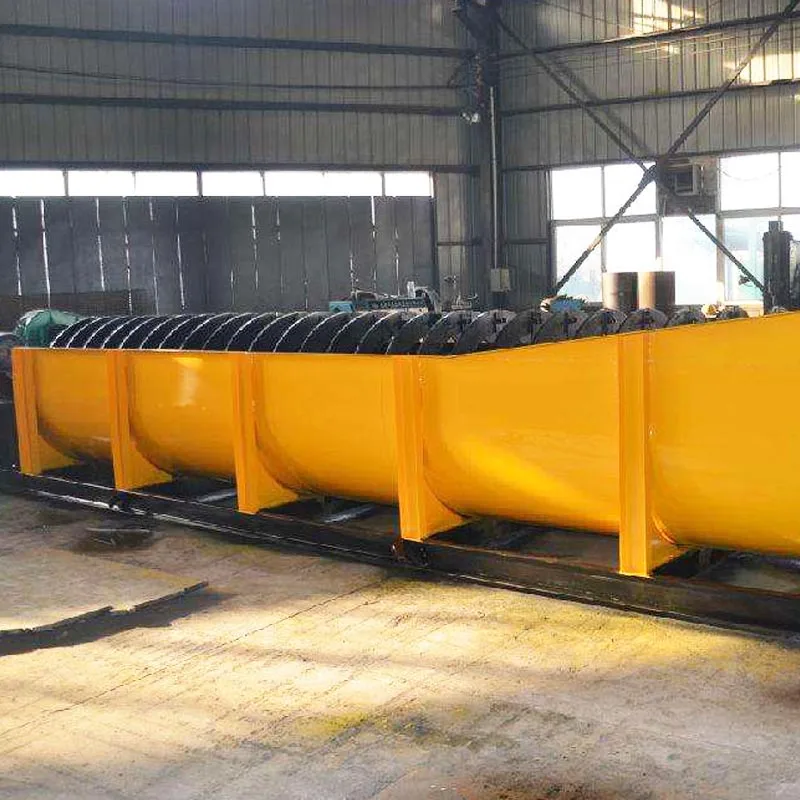

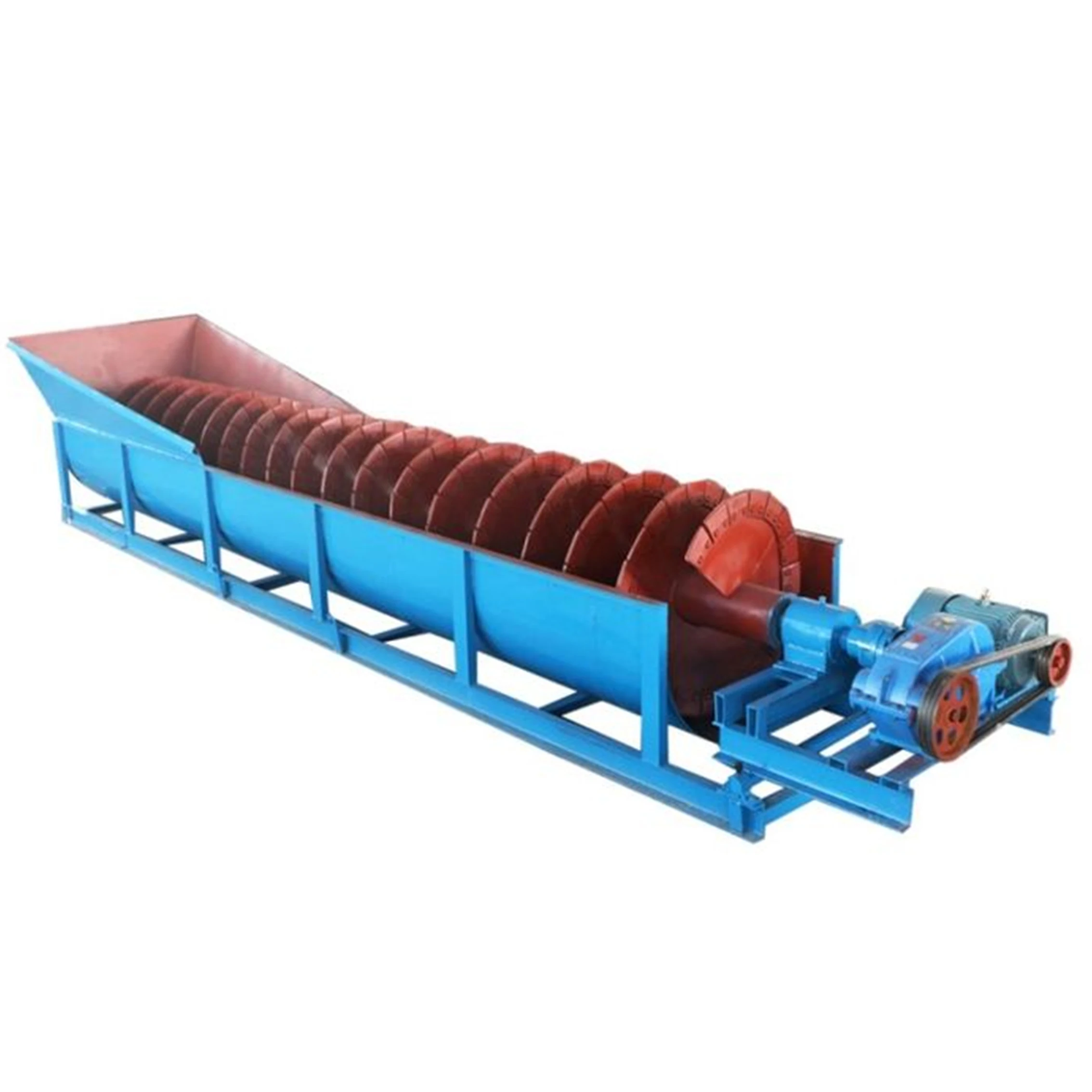

Product Display

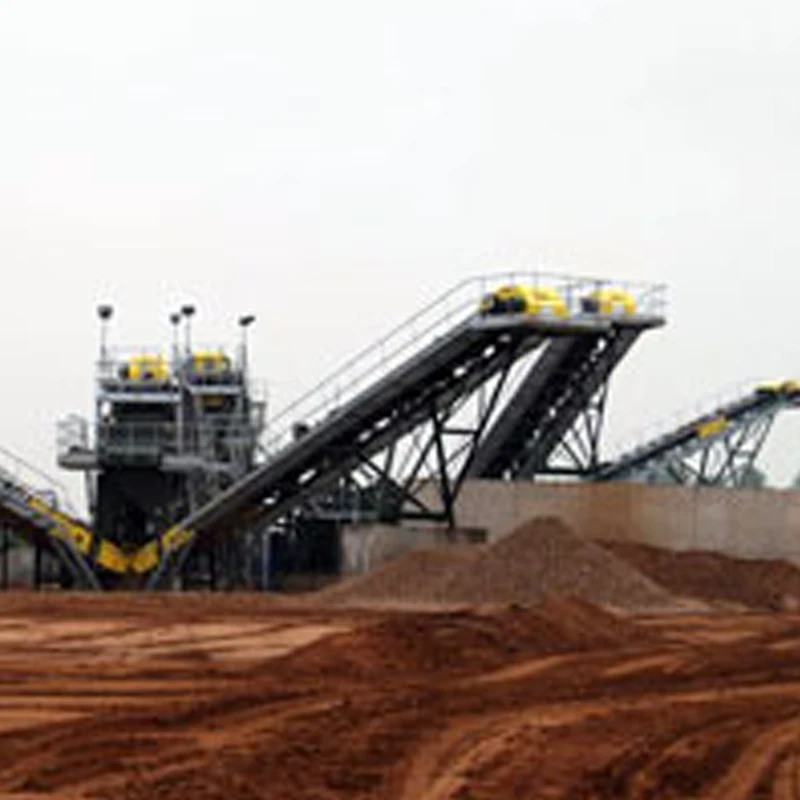

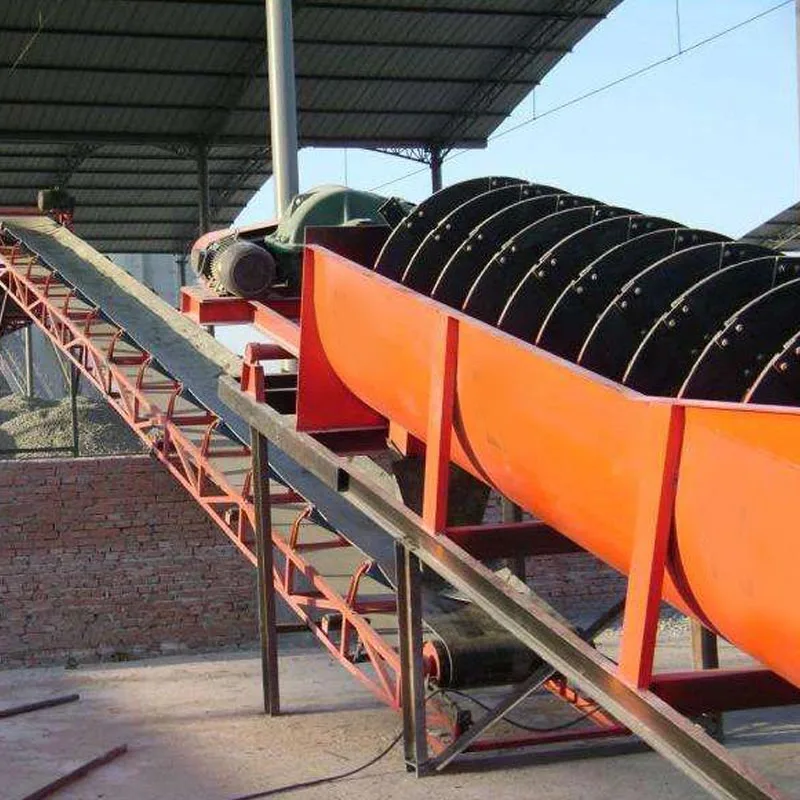

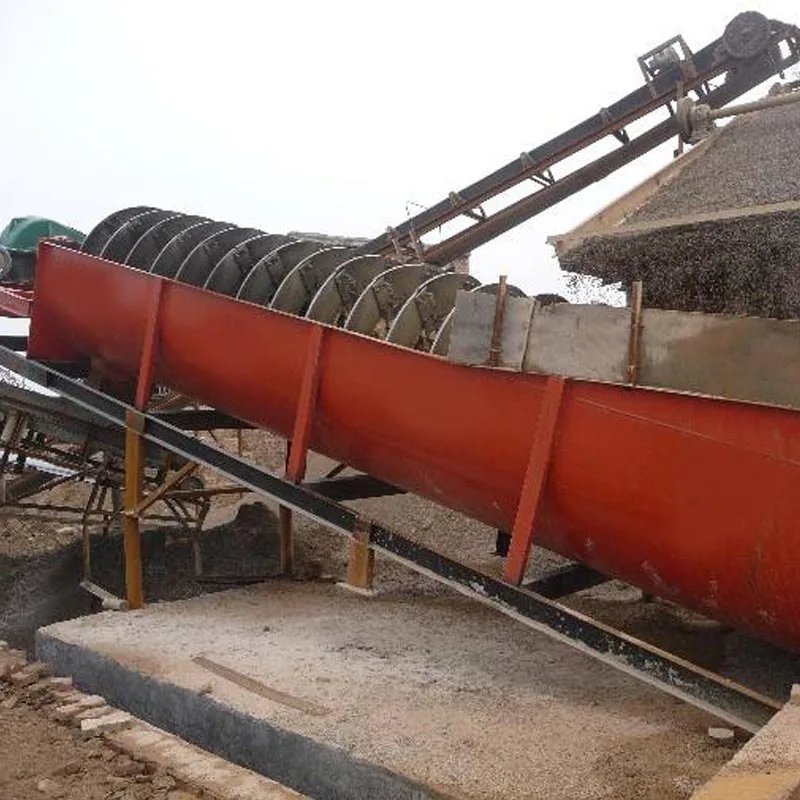

Pictures of Working Sites:
product case 1:
Company Introduction
Our Business
Customer Visiting
After-sales service
Delivery provides a full set of test reports, material certificates, certifications, etc., and provides technical guidance installation services.
FAQ
