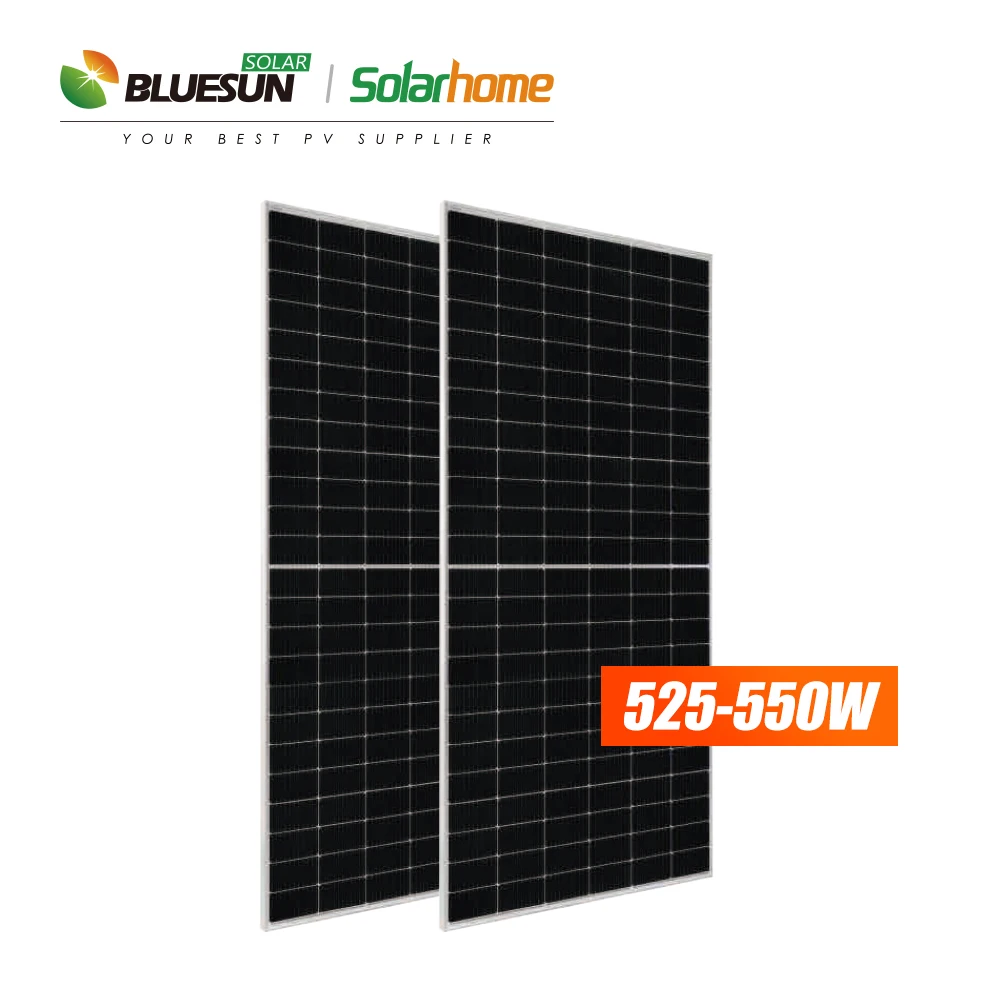

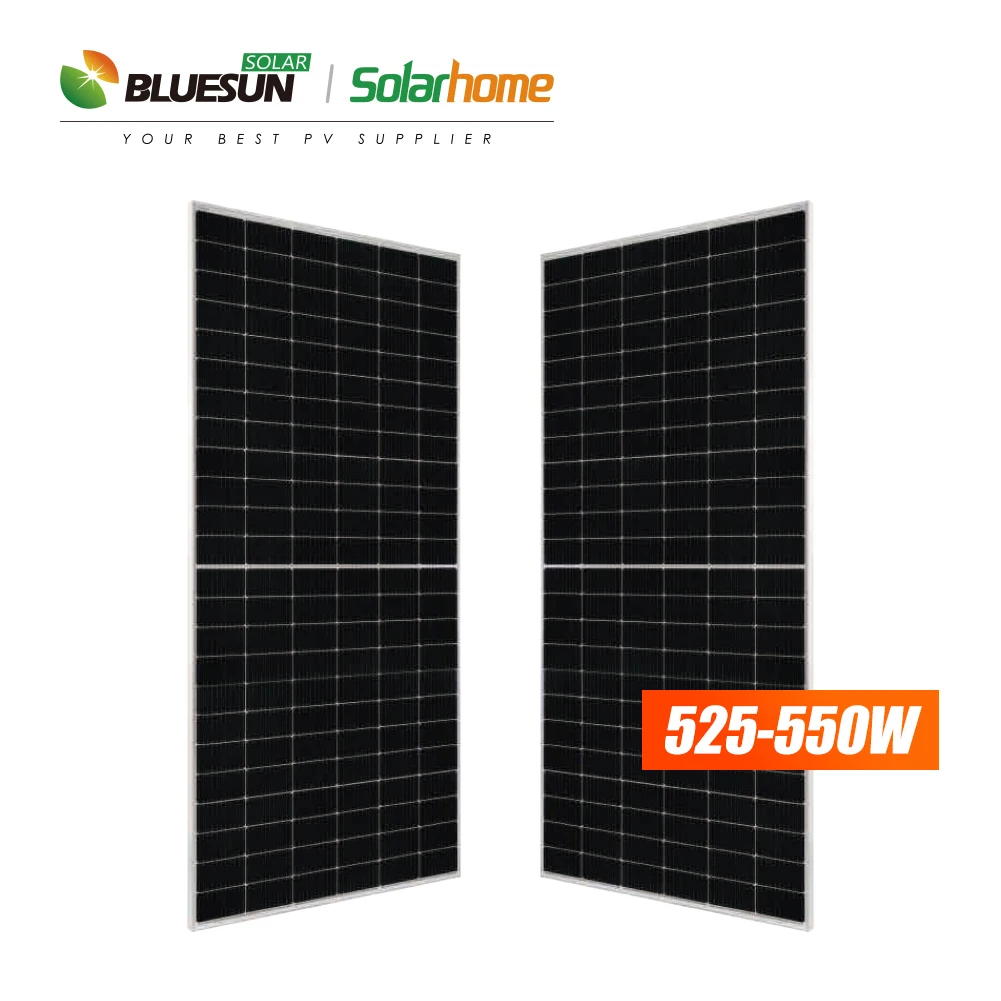

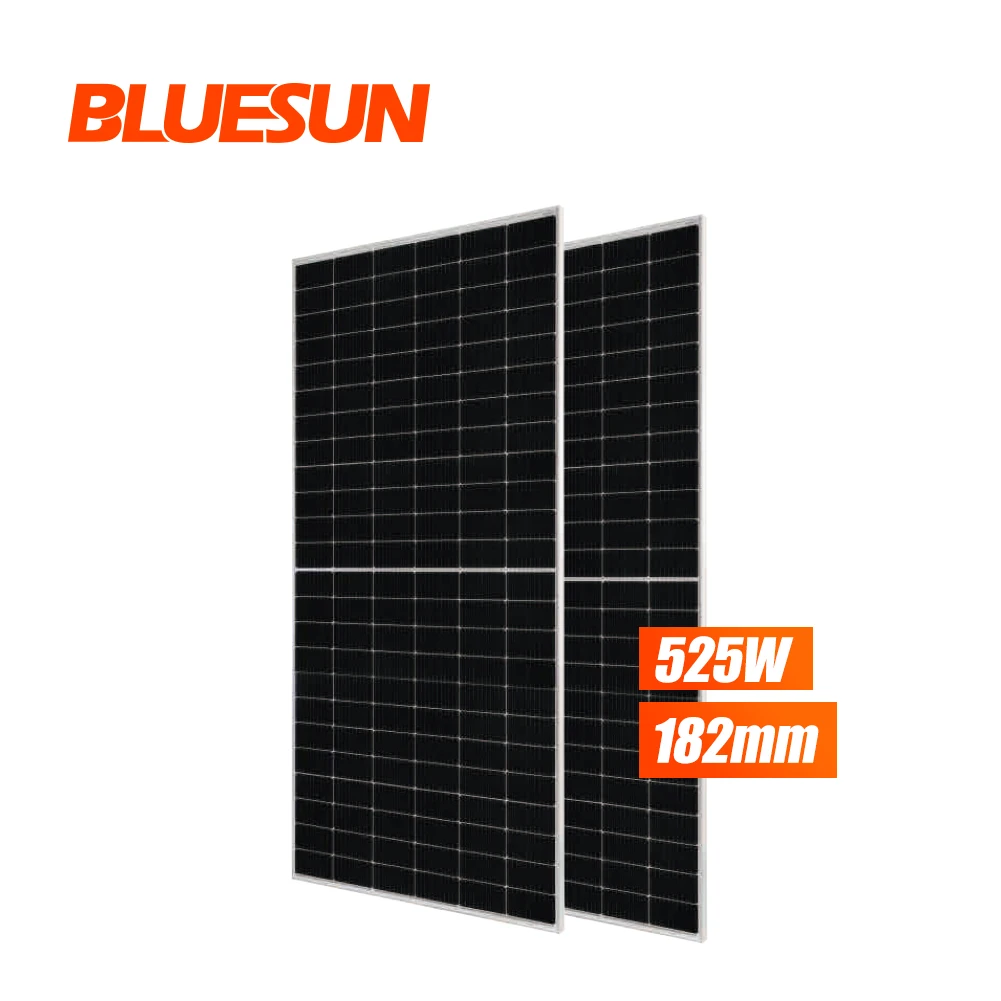

High Efficiency Paneles solares TUV 550W Photovoltaic Module PERC Solar Cell
- Категория: Solar Panels >>>
- Поставщик: Bluesun,Solar,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.88 $* | 0.25 $* |
| Aug-16-2025 | 0.49 $* | 0.80 $* |
| Jul-16-2025 | 0.24 $* | 0.8 $* |
| Jun-16-2025 | 0.91 $* | 0.25 $* |
| May-16-2025 | 0.65 $* | 0.9 $* |
| Apr-16-2025 | 0.79 $* | 0.12 $* |
| Mar-16-2025 | 0.41 $* | 0.30 $* |
| Feb-16-2025 | 0.9 $* | 0.97 $* |
| Jan-16-2025 | 0.5 $* | 0.83 $* |
Характеристики
Product Description
PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
ELECTRICAL PARAMETERS AT STC | ||||||||||||
TYPE | BSM525M-72HPH | BSM530M-72HPH | BSM535M-72HPH | BSM540M-72HPH | BSM545M-72HPH | BSM550M-72HPH | ||||||
Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 | ||||||
Open Circuit Voltage(Voc) [V] | 49.15 | 49.3 | 49.45 | 49.6 | 49.75 | 49.9 | ||||||
Maximum Power Voltage(Vmp) [V] | 41.15 | 41.31 | 41.47 | 41.64 | 41.8 | 41.96 | ||||||
Short Circuit Current(lsc) (A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14 | ||||||
Maximum Power Current(lmp) [A] | 12.76 | 12.83 | 12.9 | 12.97 | 13.04 | 13.11 | ||||||
Module Efficiency [%] | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | ||||||
Power Tolerance | 0~+5W | |||||||||||
STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||||||||
Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer. | |||||||||||
They only serve for comparison among different module types. | ||||||||||||
Certification

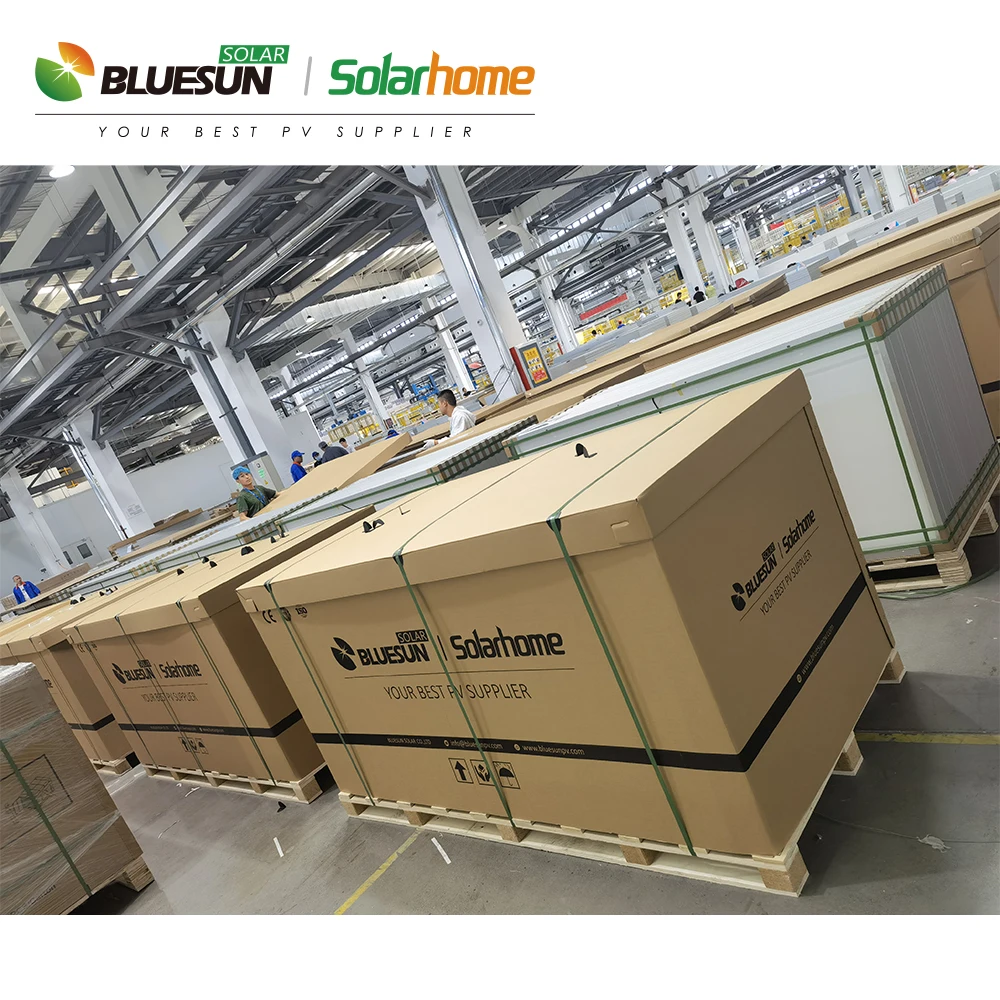

Packing & delivery
Model | BSM-60HPH | BSM-72HPH | BSM-72HBD |
Pcs/Pallet | 30 | 31 | 31 |
Pcs/40'HQ | 720 | 620 | 620 |
