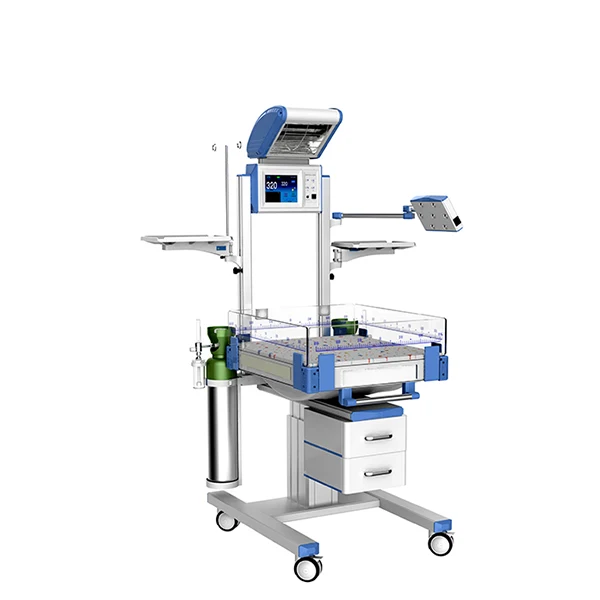

YSBN-200S  radiant warmer infant care movable baby healthcare infant radiant warmer price

Brief introduction:

1. Three modes of control: manual, skin temperature and mattress temperature

2. Alloyed bracket, fastness

3. Microprocessor based servo controlled temperature system

4. Control panel displayed by VFD

5. Digital skin temperature sensor, the data is exact and stabilizability

6. High sensitivity and untouched detector to inspect mattress temperature

7. Alarm functions for safety include

       Power failure , temperature deviation

       Temperature probe failure,  over temperature

8. APGAR timer to record therapy time

9. Observe light angle can be adjusted + 90º, and the brightness adjusted

10. Heater head can be adjusted + 90º horizontally

11. Electric infant bed tilt angle is + 10º, transparent protector folded

12. Convenient X-ray cassette under infant bed

13. Electric height adjusted suit for operation

14. Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source, the heating is quick and life-span is long

15. Alarms are audible and visual

16. A second thermal cut-out function for more safety

17. Skin temperature sensor failure protect function avoid over temperature

Standard configuration

1. Main body (including the radiant source, control system, infant bed, electric lift stand), I.V.pole, skin sensor, mattress, one drawer, transparent protector, castors

2. Optional parts: low pressure aspirator; oxygen supply system, LED phototherapy unit.



Technical data:

1. Power supply: 110/220V 60/50Hz

2. Power input: ≤1000VA

3. Operating condition

    An ambient Temperature: 18°C-30°C

    An ambient Relative Humidity: 30%--75%RH

    Atmospheric Pressure: 700~1060 hPa

    An ambient Air Velocity <0.3m/s

4.Range of Skin Temperature control: 32°C~38°C

5. Temperature control accuracy: ≤0.5°C

6. Alarms functions:

    a. Over temperature :> 39°C

    b. A second thermal cut- out: 40°C

    c. Sensor alarm: skin temperature sensor failure

        Mattress temperature sensor failure

        Room temperature sensor failure

    d. Power failure

7.Mattress temperature uniformity : <2°C

8. Skin temperature sensor accuracy: ≤0.3°C

9. Mattress temperature sensor accuracy: ≤0.4°C

10. Room temperature sensor accuracy: ≤0.3°C

11. Warm-up time: ≤30min

12. Height adjustable range: 0-20CM

13. Bed tilt angle: + 10°

14. APGAR timer range: ≤24h

15. Heater head horizontal: ±90°

16. Mattress size: 76CM X 65CM

17. Distance from heater to mattress: 90CM

18. Whole unit size: 70CMX 110CMX 180CM (180-200CM)

19. Castor load: 1pc≤200kg 4pcs≤800kg



Transport and storage

1. Environment Temperature:-40°C~ +55°C

2. Environment Relative Humidity: ≤95%

3. Atmospheric Pressure: 500~1060hPa



Package:

Each unit is packed one case

Size: 114CMX 94CM X 104CM

Gross weight: ≤190KG
