5-1000MHz Outdoor 1/2/4/8 WAY CATV TAP with 8 - 31dB

Цена:*

Количество:

5-1000MHz Outdoor 1/2/4/8 WAY CATV TAP with 8 - 31dB Value

Summary:

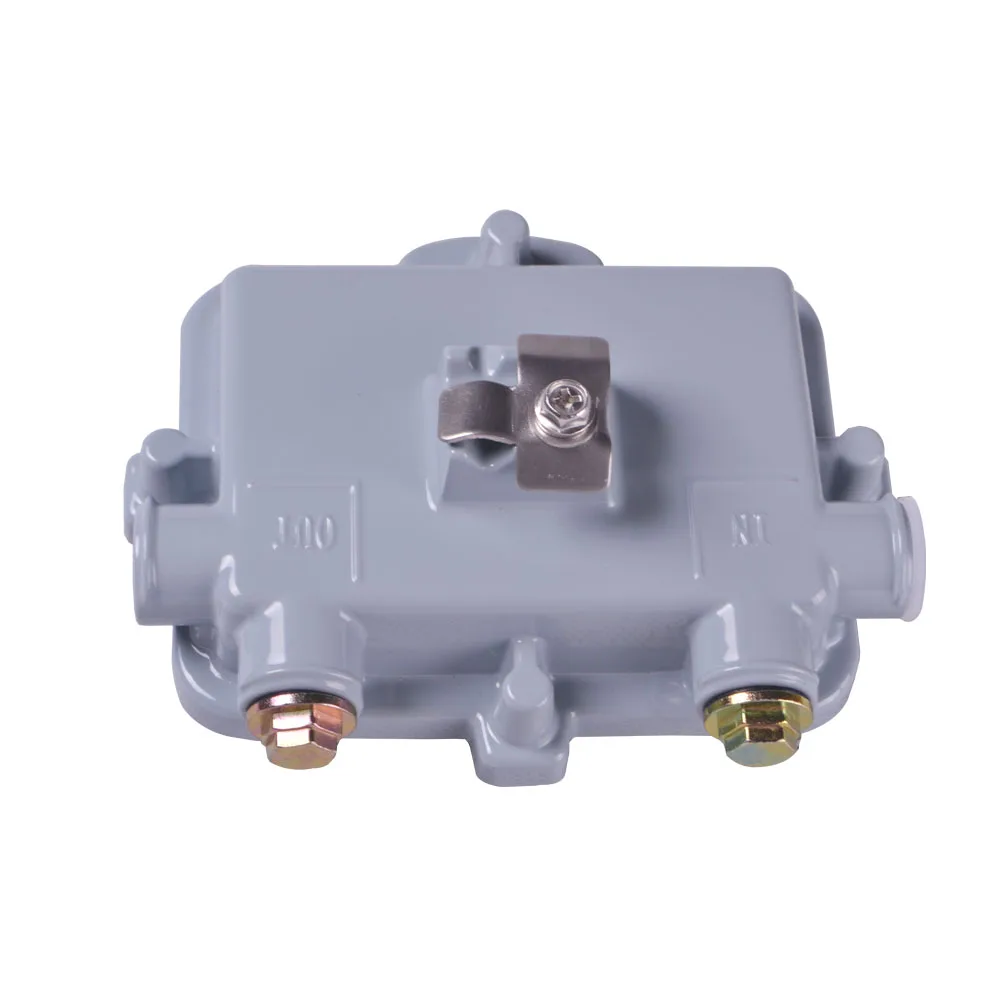

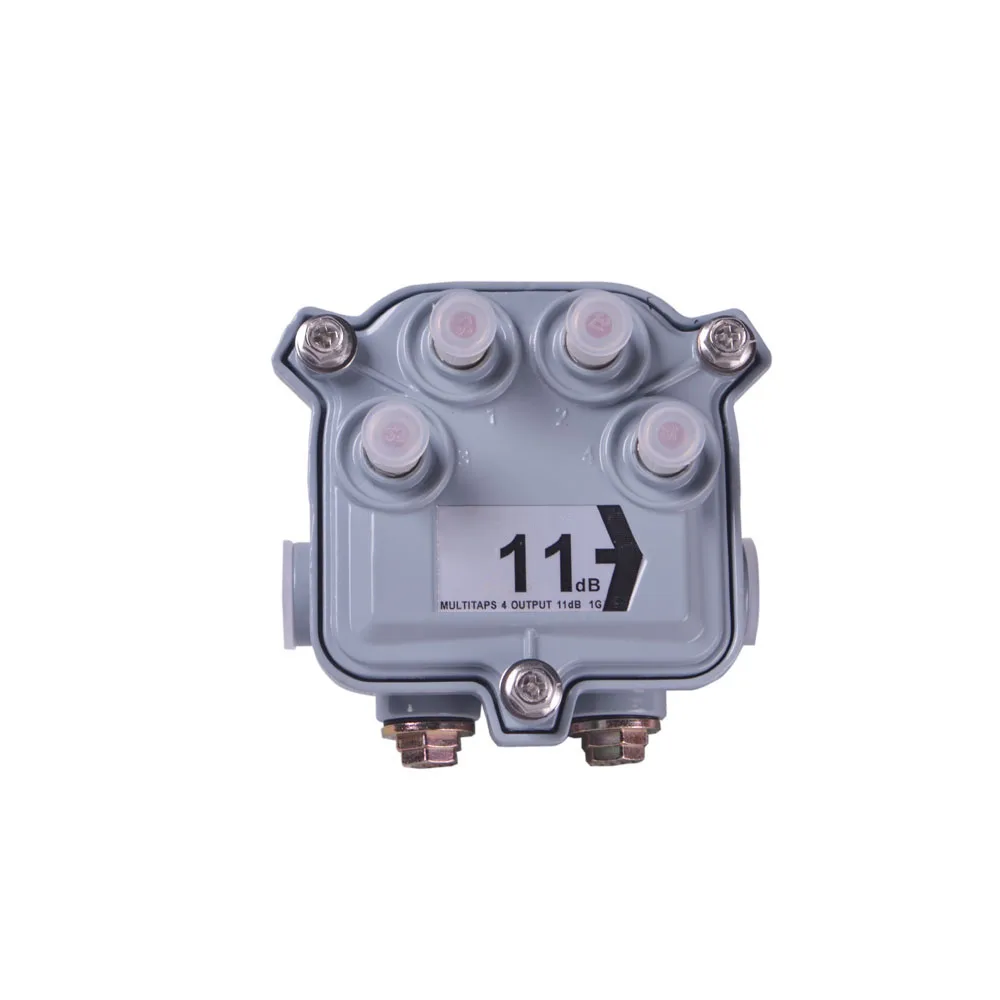

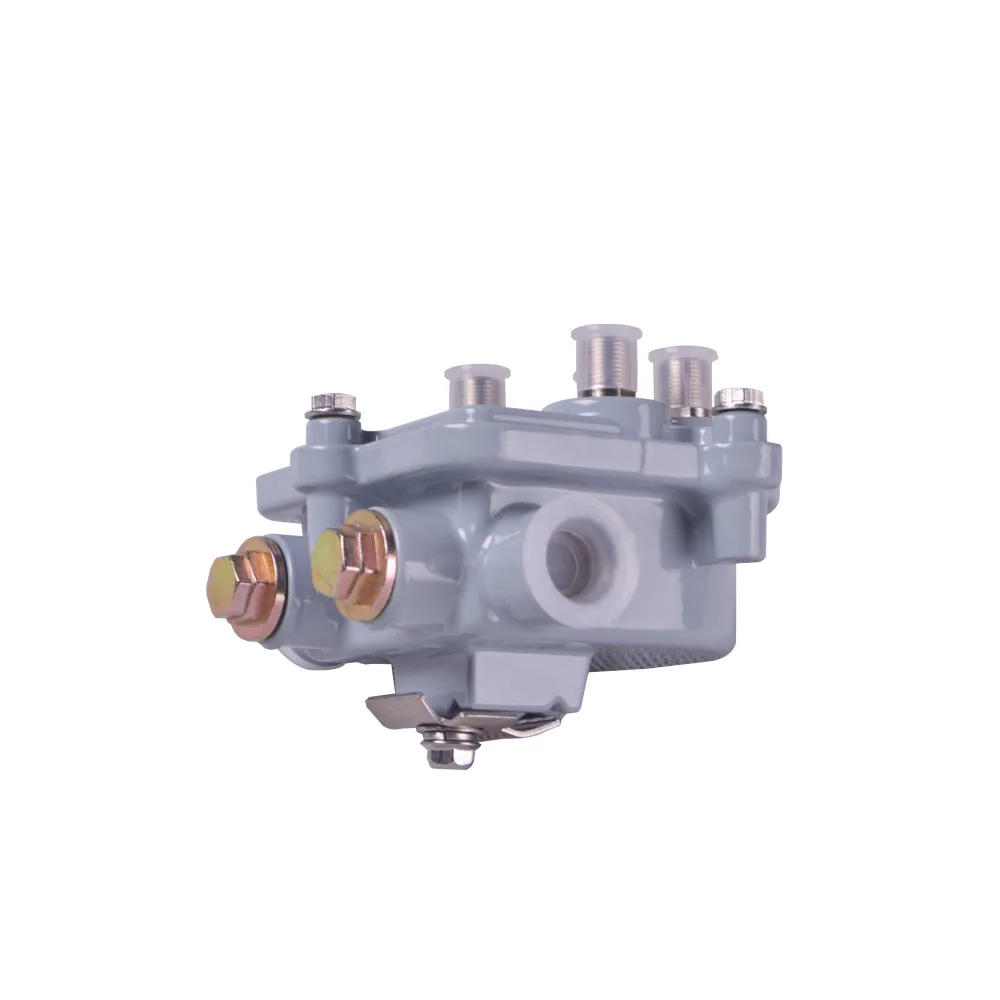

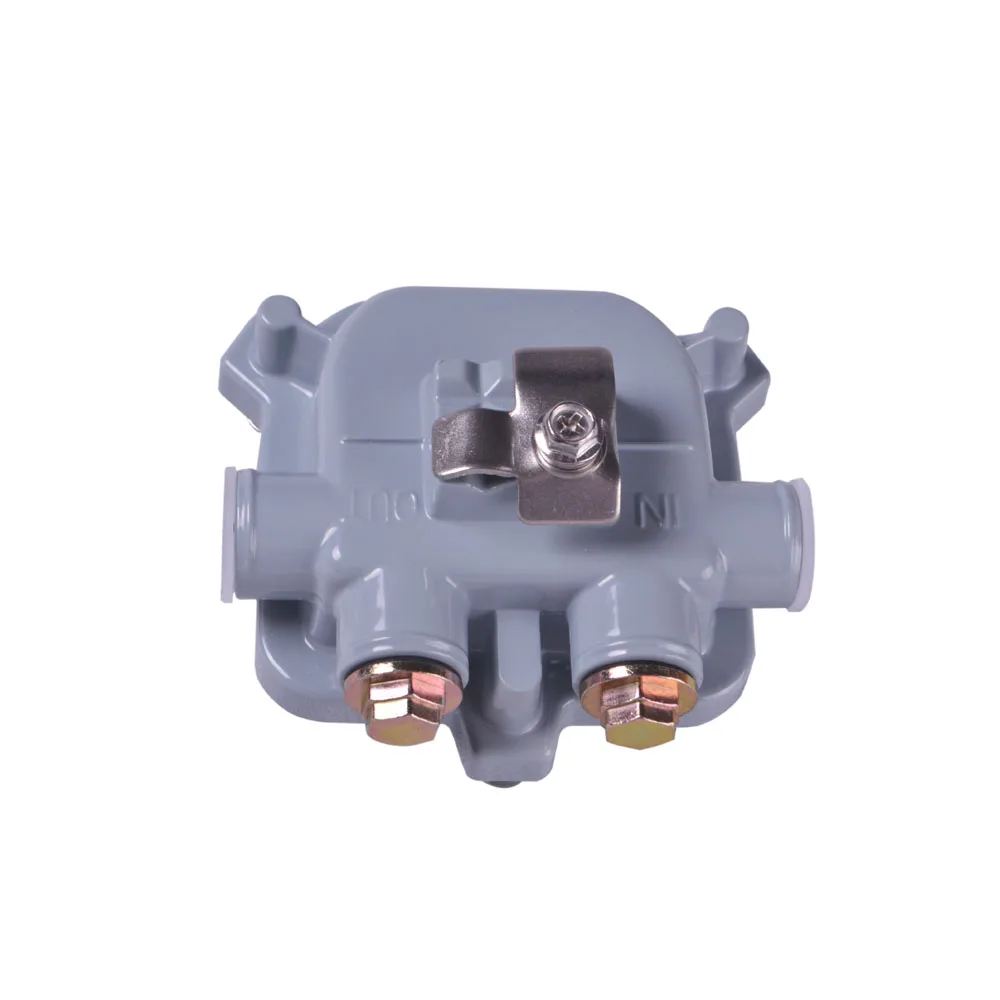

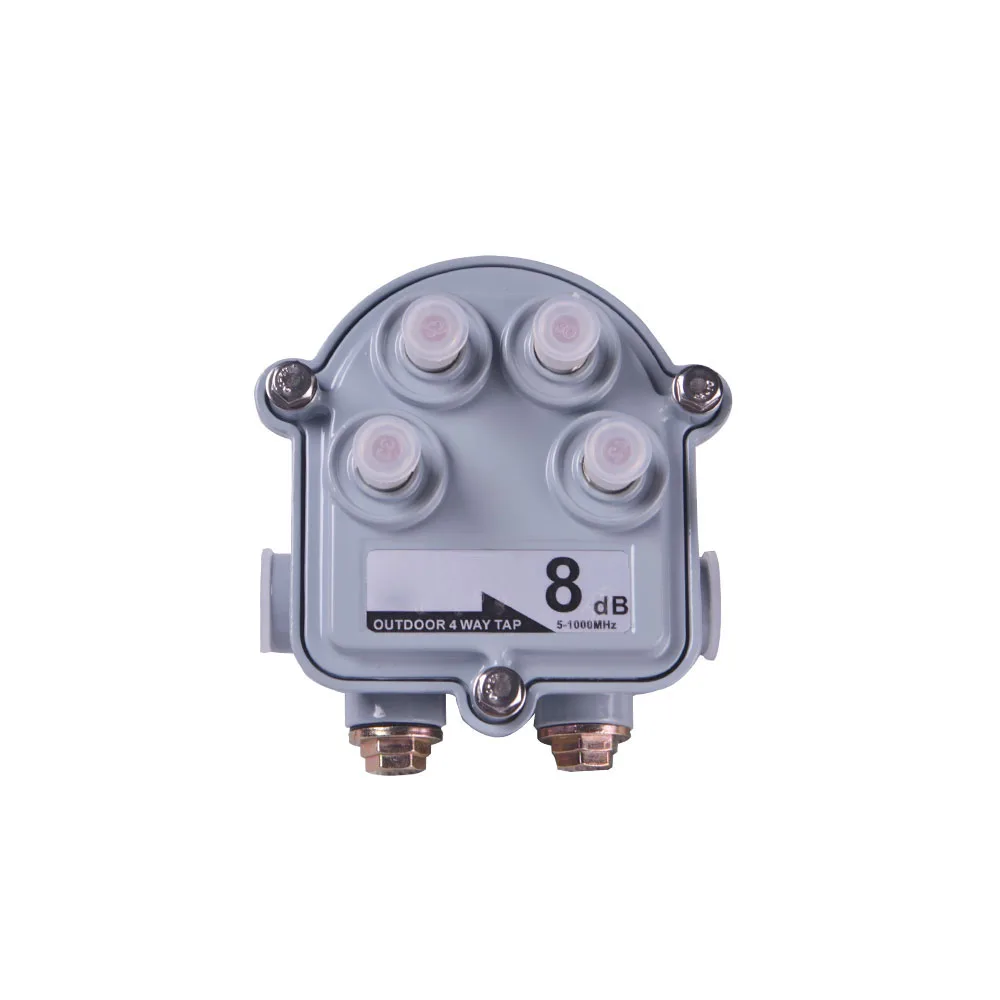

4-way outdoor tap with 8,11,14, 17, 20dB. Input is power passing up to 10 amperes. Waterproof house and flexible port design ensure high reliability.

Feature:

Low insertion loss.

High return loss and isolation .

All tap port has blocking capacitor.

Parameters:

Item	Frequency Range	Specification (dB)
		TP-208	TP-211	TP-214	TP-220
Tap Loss	5-65MHz	8±1.5	11±1.5	14±1.5	20±1.5
	65-550MHz	8±1.5	11±1.5	14±1.5	20±1.5
	550-750MHz	8±1.7	11±1.7	14±1.7	20±1.5
	750-1000MHz	8±2.0	11±2.0	14±2.0	20±2.0
Insertion Loss	5-65MHz	≤4.5	≤4.0	≤3.0	≤2.5
	65-550MHz	≤4.8	≤4.5	≤3.5	≤2.5
	550-750MHz	≤5.0	≤4.8	≤3.8	≤2.8
	750-1000MHz	≤5.8	≤5.5	≤4.5	≤3.5
Isolation (O-T)	5-65MHz	≥18	≥18	≥18	≥18
	65-550MHz	≥22	≥22	≥22	≥22
	550-750MHz	≥21	≥21	≥21	≥21
	750-1000MHz	≥20	≥20	≥20	≥20
Isolation (T-T)	5-65MHz	≥18	≥18	≥18	≥18
	65-550MHz	≥23	≥23	≥23	≥23
	550-750MHz	≥21	≥21	≥21	≥21
	750-1000MHz	≥20	≥20	≥20	≥20
Return Loss	5-65MHz	≥13	≥13	≥13	≥13
	65-550MHz	≥14	≥14	≥14	≥14
	550-750MHz	≥14	≥14	≥14	≥14
2	750-1000MHz	≥14	≥14	≥14	≥14
Impedance	5-1000MHz	75 ohm
Shield Decay	5-1000MHz	≥100dB
Connector	IN & OUT 5/8-24 UNEF female connector, TAP F type female
Power Passing	IN - OUTPUT must pass 10 amperes current
