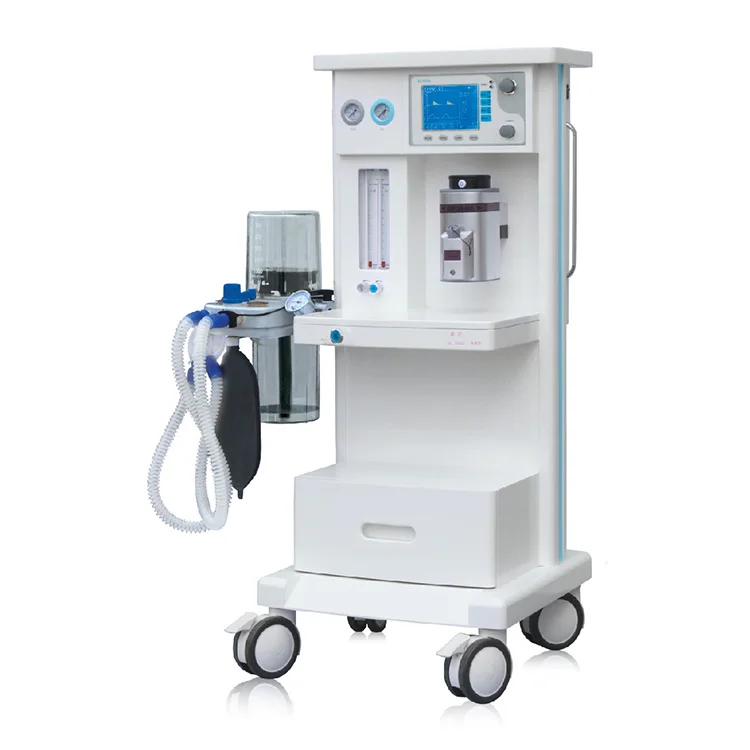

Best Price High Utility Anesthesia Machine Ysenmed YSAV602 for Hospital



YSAV602 Anesthesia Machine, designed with state-of-the-art technologies, is one of high utility with excellent performance and complete functions. Both outstanding and inexpensive, it has the best cost performance that can satisfy any customer.
The Ventilator adopts microcomputer control with high-definition 5.7” LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.
The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.
Reliable pneumatic transmission system.
Economic and proper configuration of technologies, optional as required by the Customer.
Modularized design and upgrading. Upgrading is available as required by the Customer.



Specifications

Part of Anesthesia
Main body	High-strength engineering plastic rack, light, beautiful and corrosion resistant
Scope of application	adult, child
Gas source	O2, N2O: 0.27~0.55MPa
Flow meter	O2, N2O : 0.1~1.0L/min
O2, N2O linkage and N2O Stopper	When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off
Flow rate of rapid oxygen supply	25~75L/min
Low oxygen pressure alarm	There will be sound alarm when the oxygen pressure < 0.2MPa
Vaporizer	it has the function of automatic compensation based on pressure,temperature,and flow rate. The regulation range of evaporator concentration is 0~5 vol%.  Among Halothane,Enflurane,Isoflurane and Sevoflurane,one can be chosen for application as required by the customer.
Respiratory circuit	working mode: all-close, semi-close, semi-open releasing pressure: 0.5~7kPa
Respiratory bellows	bellows for adults, bellows for children tidal volume range:0~1500 ml
Part of Ventilator
Display mode	High-definition 5.7” LCD screen display
Ventilation mode	IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parameters	Tidal volume 50~1500ml; Rate 2~99 bpm; I:E 2:1~1:8; Pressure range 1.0~6.0 kPa; Inspiratory trigger pressure -1.0~2.0 kPa; PEEP 0~2.0 kPa; SIGH 1.5 times the inspiratory time
Parameters for ventilation monitoring	tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure
Security Alarm System
Oxygen Concentration alarm	upper limit setting range (50%~100%) low limit setting range (15%~50%)
Airway pressure alarm	upper limit setting range 1.0~6.0 kPa low limit setting range 0.4~2.0 kPa
Per-minute ventilation volume alarm	upper limit setting range 3.0~30L low limit setting range 1.0~10L
Sustained high-pressure alarm	it will give alarm when stress have consistently been higher than 2.5 kPa
Suffocation alarm	it will give sound and light alarm if there is no tidal volume input in 15s
Power alarm
Power	AC 220V±10%     50Hz±1Hz
