Liugong Best Price 60ton 10 Wheels 460Hp Mining Dump Truck

Liugong Best Price 60ton 10 Wheels 460Hp Mining Dump Truck

Категория: Other Mining Machines >>>
Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.57 $*	0.45 $*
Aug-17-2025	0.98 $*	0.86 $*
Jul-17-2025	0.26 $*	0.84 $*
Jun-17-2025	0.93 $*	0.11 $*
May-17-2025	0.27 $*	0.84 $*
Apr-17-2025	0.58 $*	0.87 $*
Mar-17-2025	0.78 $*	0.24 $*
Feb-17-2025	0.31 $*	0.45 $*
Jan-17-2025	0.36 $*	0.75 $*

Характеристики

Contact

Clover Xin
Phone Number:+86-17861627416
EMAIL:clover@maxizm.com
WhatsApp/Wechat:+86-17861627416
Official Website:www.maxizm.com
MAXIZM Construction Machinery Co.,Ltd

Products Description

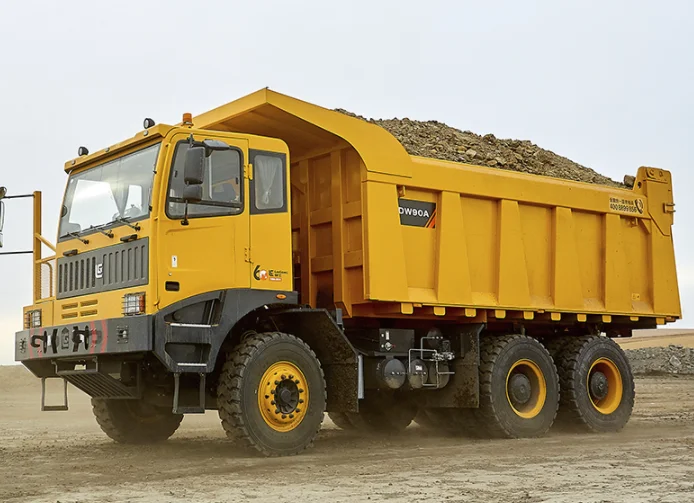

Liugong Mining Truck DW90A

* Efforts less full hydraulic steering system
* Lifting system save time and increase production
* The center of gravity act on point which provide more stable operation on jobsite.
* The cab is spacious and less noise with a wider vision
* Strong power train, world-class components suppliers
* Brake system and alarm system, safe and reliable
* Leaf spring suspension system with excellent shock absorption

Product Paramenters

Item	DW90A
Operating weight	31000 kg	31000 kg
Rated load	59000 kg	55000 kg
Gross Machine Weight	90000 kg	86000 kg
Struck Capacity	30 m³	30 m³
Heaped capacity (SAE 2:1)	36 m³	36 m³
Engine Model	QSM11	WP12G460
Emission regulation	Tier 3 / Stage III	Tier 3 / Stage III
Rated power	306 kW (416hp) / 1900 rpm	338 kW (460hp) / 2100 rpm
Transmission Model	Fast 10JSD220	Fa*st FC6A210
Type	Manual	Automatic
Maximum travel speed	40 km/h	45 km/h
Dimension	9070x3450x4370 mm	9070x3450x4370 mm
Tire	14.00R25	14.00R25
Clutch	Single dry frictional disc, Hydraulic boosting
Brake	Service brake: Brake can be adjusted automatically, double circulation air brake system
		Parking brake: Potential springs pressing on middle and rear wheels
		Engine brake: Engine exhaust brake(EVB)
Steering	TAS85, the driver sits at the left-hand side
Electric Equipment	Operating voltage:	24V negative grounded
		Starter:	24V,5.4KW
		Alternator	28V,758W
		Battery voltage	12V/135Ah, cigar lighter
