Керамические подшипники с автоматическим сменным шпинделем 9 кВт cnc atc Шпиндельный
- Категория: Machine Tools Accessories >>>
- Поставщик: Suzhou,Penny,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1761.31 $* | 1849.94 $* |
| Aug-19-2025 | 1746.53 $* | 1833.97 $* |
| Jul-19-2025 | 1465.63 $* | 1538.86 $* |
| Jun-19-2025 | 1717.88 $* | 1803.80 $* |
| May-19-2025 | 1495.4 $* | 1570.88 $* |
| Apr-19-2025 | 1687.95 $* | 1771.62 $* |
| Mar-19-2025 | 1672.18 $* | 1756.61 $* |
| Feb-19-2025 | 1658.41 $* | 1741.36 $* |
| Jan-19-2025 | 1643.19 $* | 1725.13 $* |
Характеристики

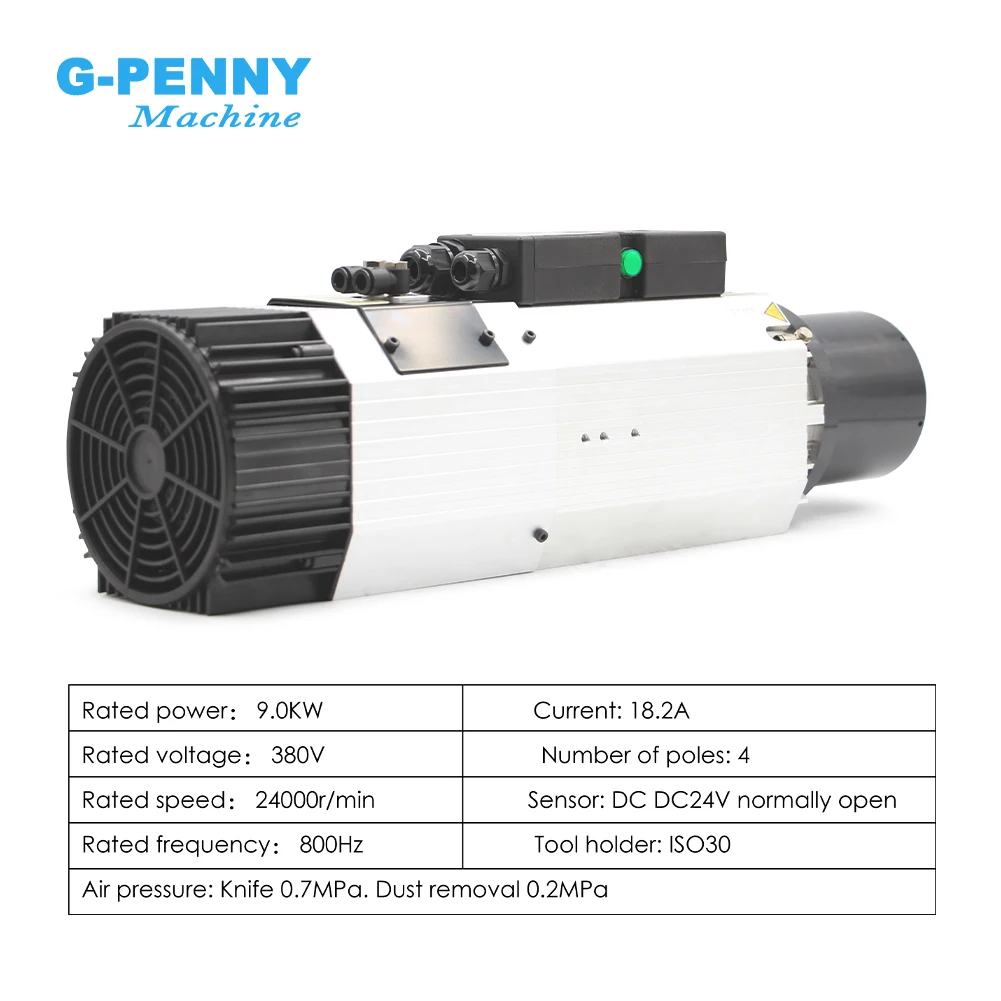

1 & 220v/380v 9.0kw Long axis air cooled spindle motor ceramic ball bearings

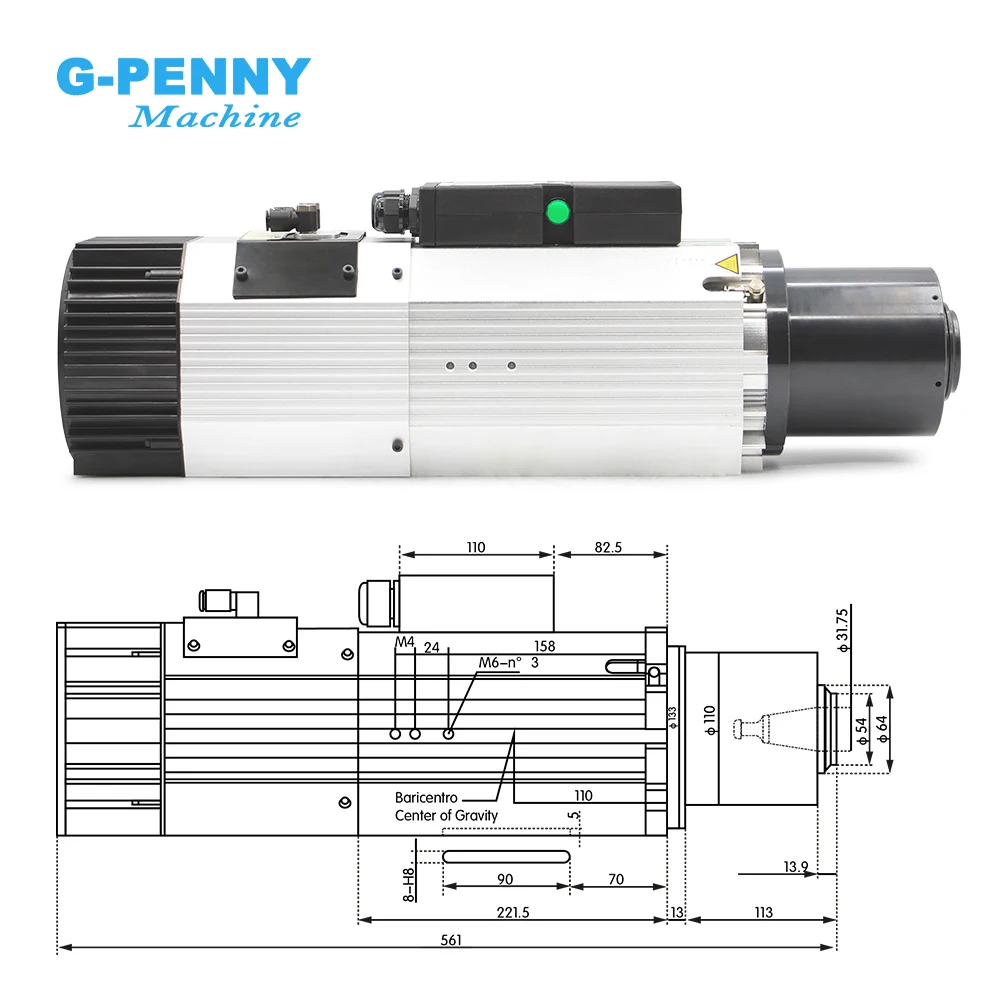

Size: 561x141x182.5mm
Power: 9.0kw
Voltage: 220v/380v
Speed: 12000-24000rpm
Frequency: 800Hz
Current: 30A/20A
Pole: 4
Bearings Type: 2x7008C DB & 2x7006C DB (4pcs ceramic ball bearings)
Cooling Way: 230vAC cooling fan
Chunk: ISO30
Power: 9.0kw
Voltage: 220v/380v
Speed: 12000-24000rpm
Frequency: 800Hz
Current: 30A/20A
Pole: 4
Bearings Type: 2x7008C DB & 2x7006C DB (4pcs ceramic ball bearings)
Cooling Way: 230vAC cooling fan
Chunk: ISO30

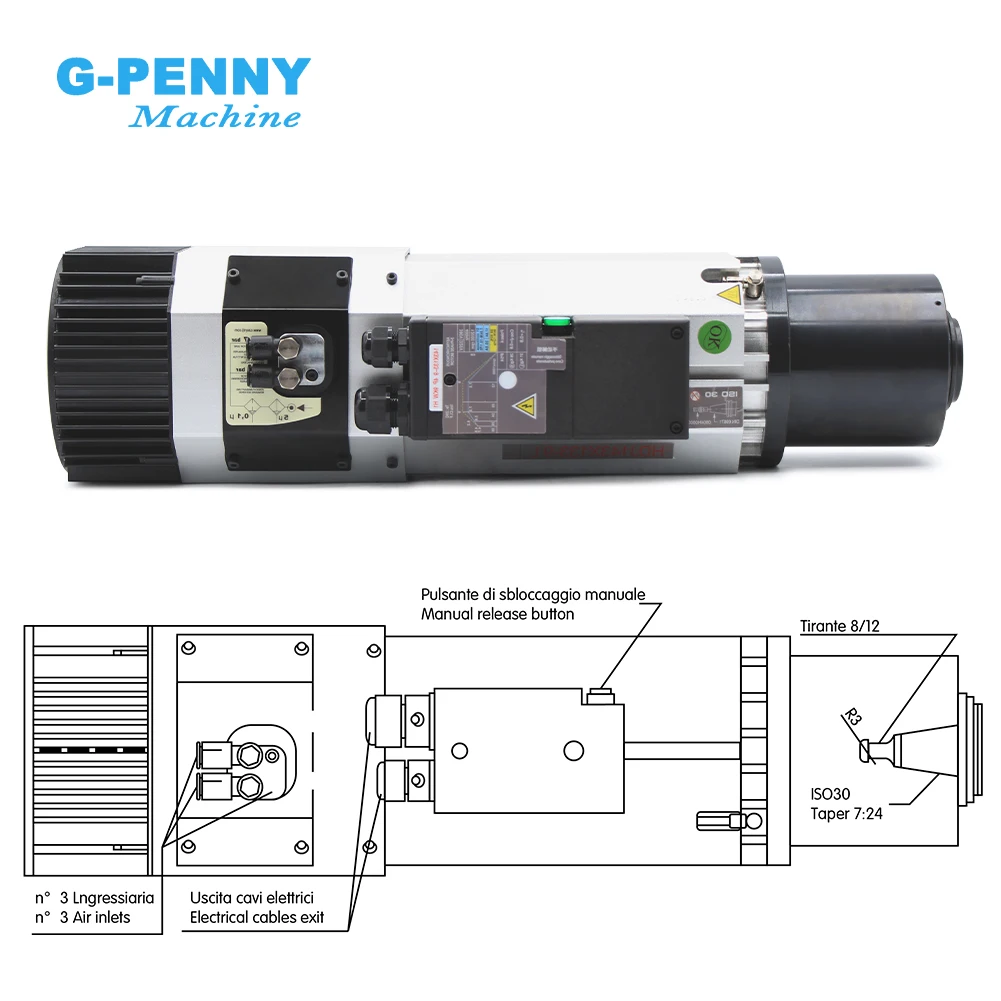

Shaft end connection | ISO30 Holder |
Material | jacket stainless steel copper coil |
Weight: | 31kg |
* 1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
* 2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .
* 3. Ceramic ball bearings have low friction, low noise and long service life.

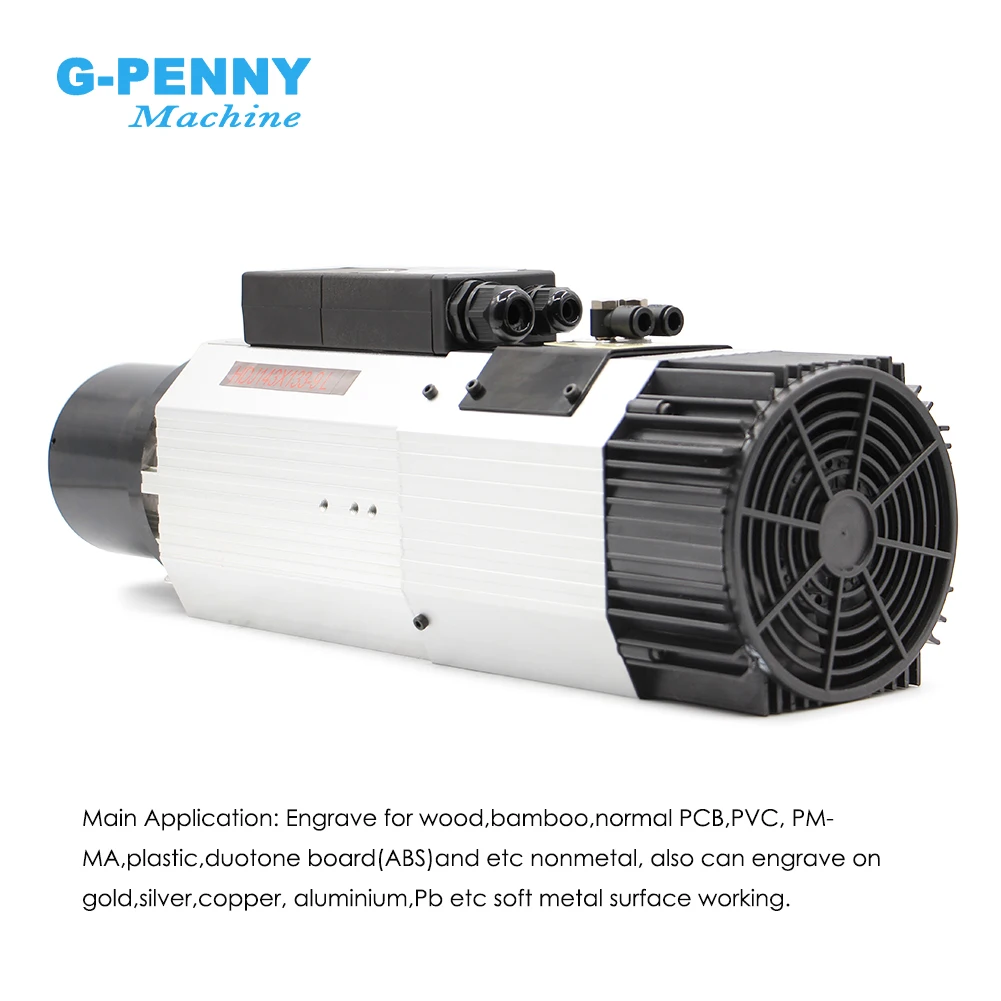

* 4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
* 2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .
* 3. Ceramic ball bearings have low friction, low noise and long service life.
* 4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
* Spindle working environment temperature is usually -10 ~ 40 .
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)

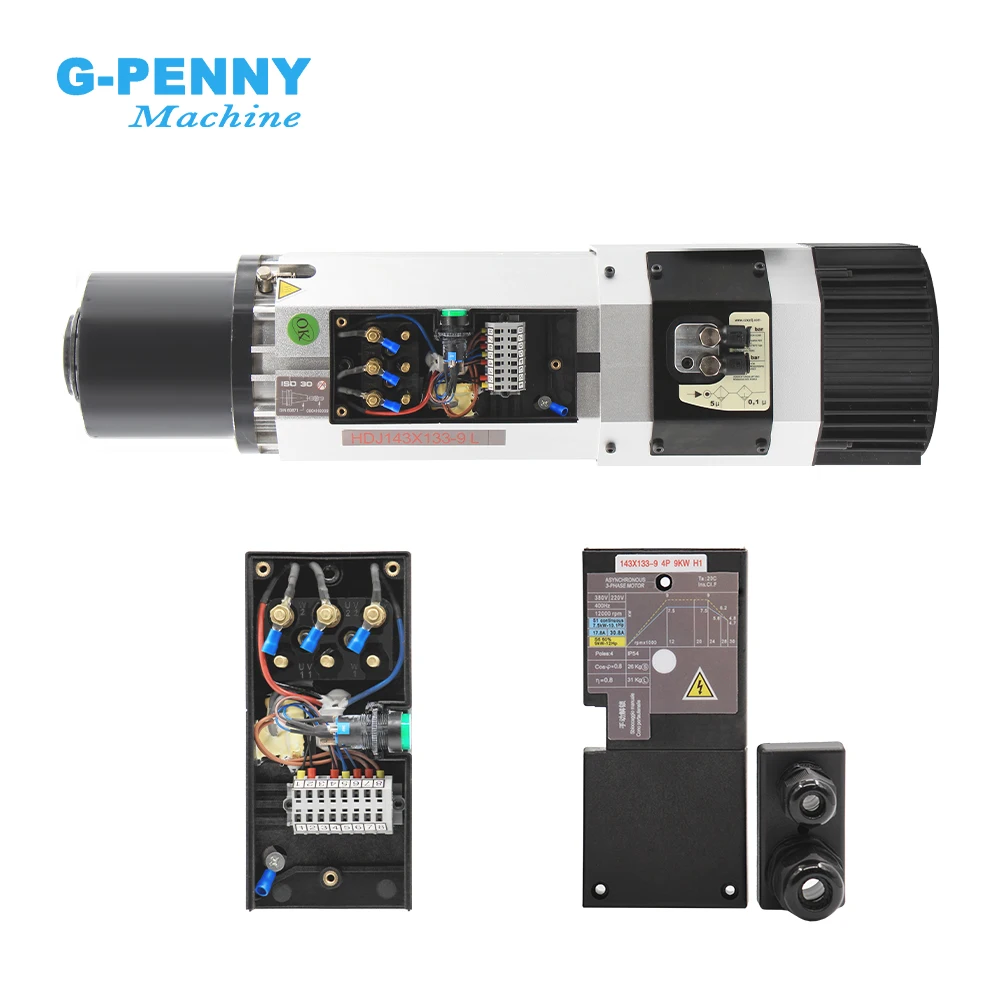

* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Spindle from the production - assembly - test, and finally the perfect packaging .
* We will 100% guarantee security to the hands of the guests.
* We will 100% guarantee security to the hands of the guests.
