Индивидуальная сборка термостата для размораживания холодильника и детали термоплавкого
- Категория: >>>
- Поставщик: Weihai,Sunfull,Hanbecthistem,Intelligent,Thermo,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.58 $* | 0.77 $* |
| Aug-16-2025 | 0.39 $* | 0.50 $* |
| Jul-16-2025 | 0.86 $* | 0.33 $* |
| Jun-16-2025 | 0.5 $* | 0.62 $* |
| May-16-2025 | 0.9 $* | 0.69 $* |
| Apr-16-2025 | 0.36 $* | 0.33 $* |
| Mar-16-2025 | 0.80 $* | 0.43 $* |
| Feb-16-2025 | 0.2 $* | 0.92 $* |
| Jan-16-2025 | 0.89 $* | 0.54 $* |
Характеристики
Product Description
Specification
item | value |
After-sales Service Provided | Return and Replacement |
Warranty | 1 Year |
Type | Freezer Parts |
Application | Household |
Power Source | Electric |
Place of Origin | China |
Shandong |
Product Paramenters

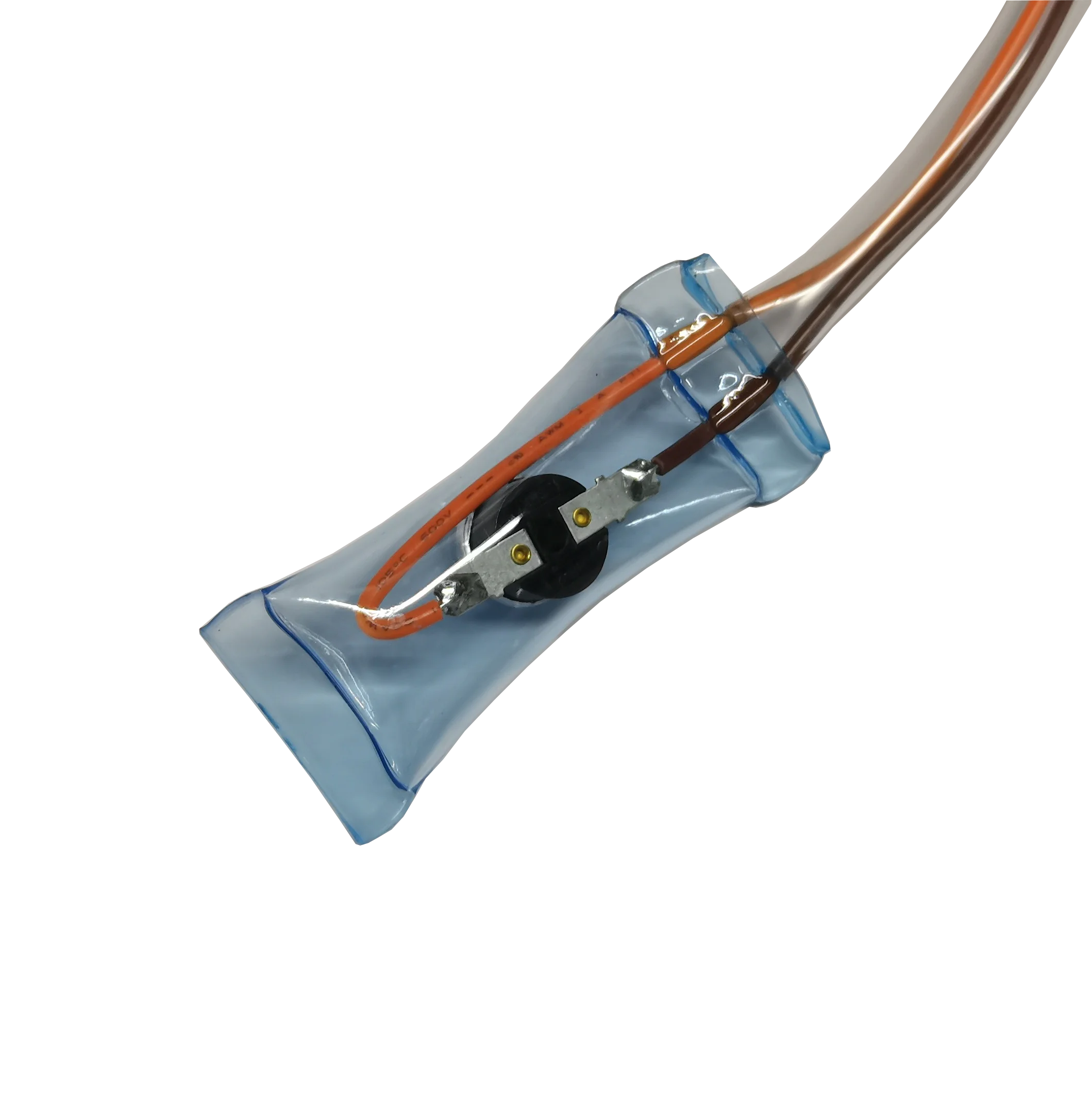

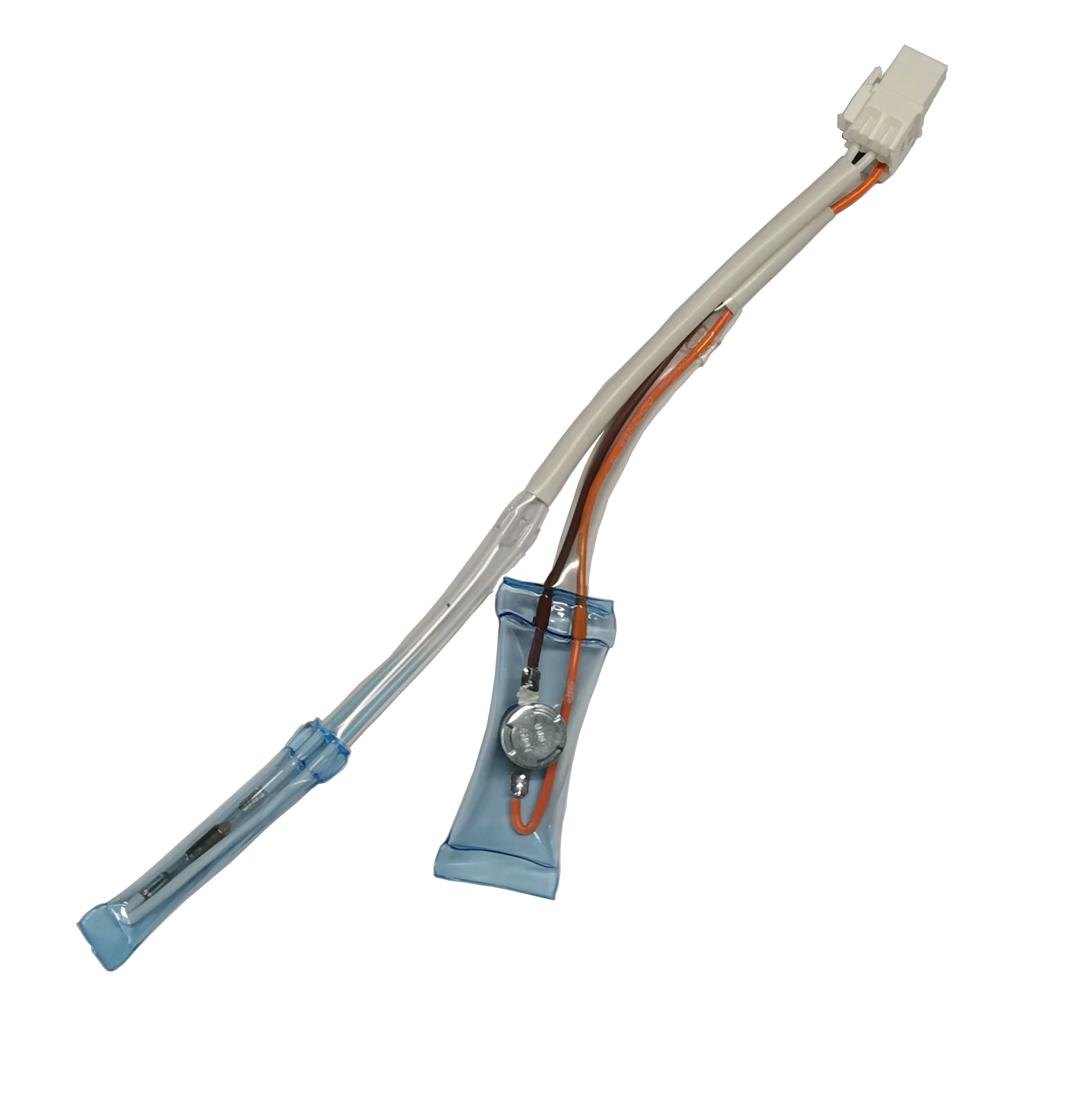

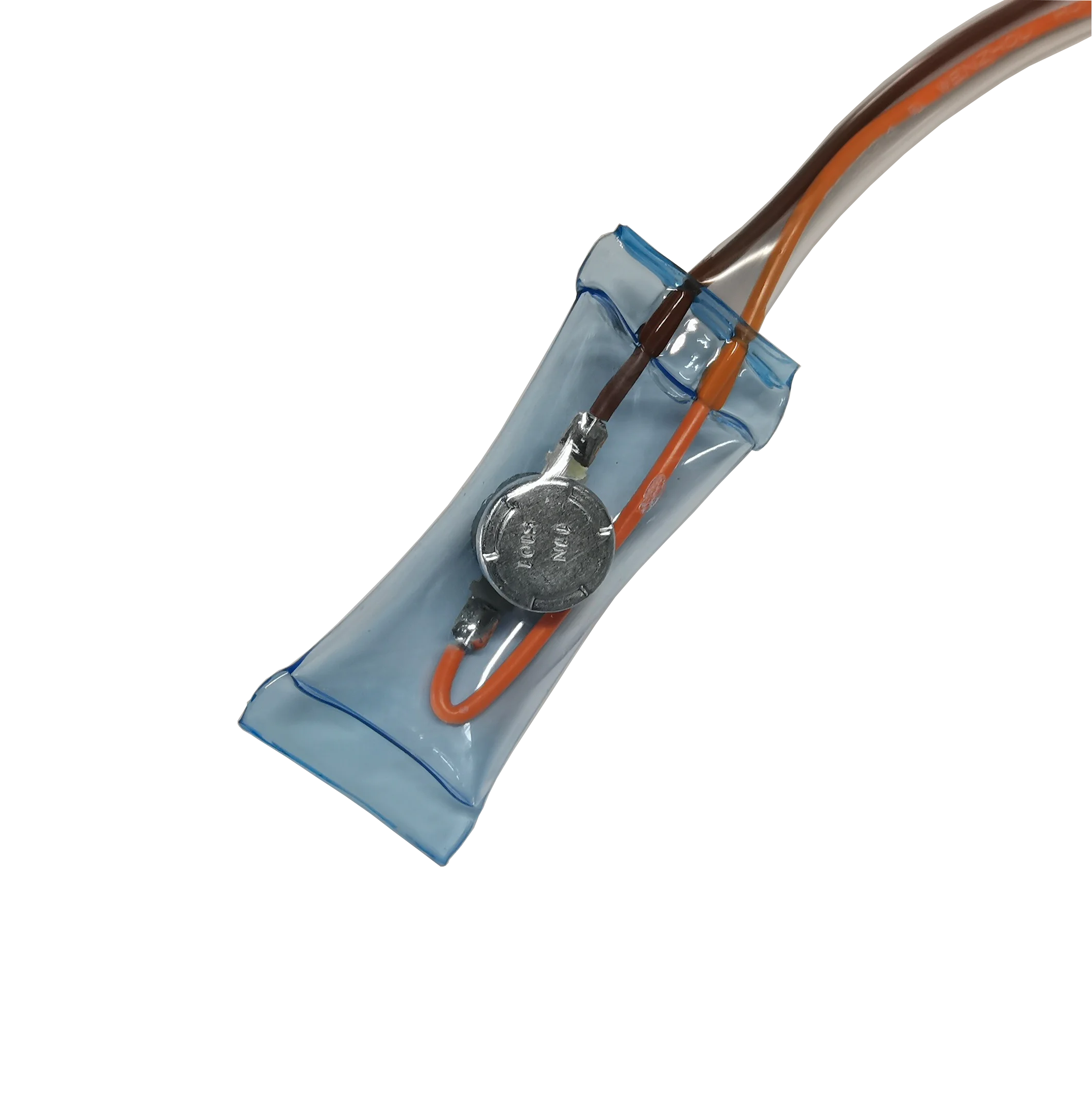

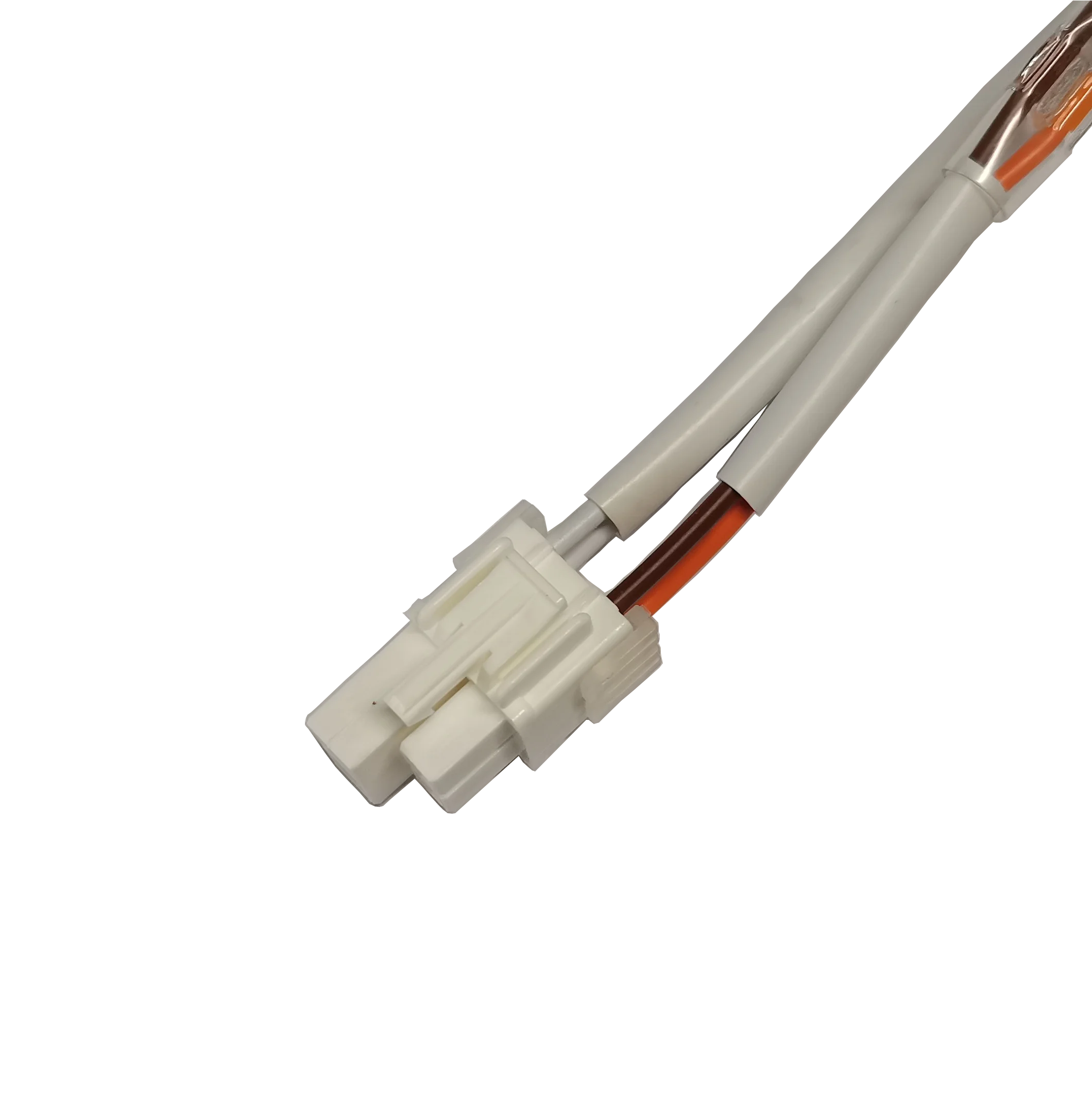

Porduct Name | Customized Assembly for Refrigerator Defrost Thermostat & Thermal Fuse Parts |
Use | Temperature control/Overheat protection |
Reset type | Automatic |
Base material | Resist heat resin base |
Electrical Rating | 15A / 125VAC, 10A / 240VAC, 7.5A / 250VAC |
Max. Operating Temperature | 150°C |
Min. Operating Temperature | -20°C |
Tolerance | +/-5°C for open action(Optional +/-3 C or less) |
Protection class | IP00 |
Contact material | Double Solid Silver |
Dielectric Strength | AC 1500V for 1 minute or AC 1800V for 1 second |
Insulation Resistance | More than 100MΩ at DC 500V by Mega Ohm tester |
Resistance Between Terminals | Less than 50MΩ |
Diameter of bimetal disc | Φ12.8mm(1/2″) |
Approvals | UL/ TUV/ VDE/ CQC |
Terminal type | Customized |
Cover/Bracket | Customized |
Features
- Ultra slim type
- Ideal for where space is premium
- Plastic seal available for hermetic protection
- Leadwire and terminal can be attached upon order
- Double contacts for extra reliability
- UL, VDE and TUV certificated
- Environmental friendly towards RoHS, REACH
Applications
- Refrigerator
- Electrical Blanket
- Showcase
- Ice Machine
- Electrical Stove
- Ultra slim type
- Ideal for where space is premium
- Plastic seal available for hermetic protection
- Leadwire and terminal can be attached upon order
- Double contacts for extra reliability
- UL, VDE and TUV certificated
- Environmental friendly towards RoHS, REACH
Applications
- Refrigerator
- Electrical Blanket
- Showcase
- Ice Machine
- Electrical Stove
Packing & Delivery
Packaging Details Standard Export Packing
Port Qingdao, Shanghai
Lead Time 20-30Days
Company Profile
Weihai Sunfull Hanbecthistem Intelligent Thermo Control Co., Ltd. is a joint venture company established by Hanbecthistem Co., Ltd., which is the leading company in temperature controller field from Korea and Weihai Sunfull Electronics Group Co., Ltd. We are specialized in development, design and manufacture of thermostats and electronic sensors which are applied to cars, refrigerators, air-conditioners, washing machines, micro-wave ovens, electric cookers, coffee makers and other consumer appliances or HVAC appliances. Current annual manufacturing capacity is over 20,000,000pcs. We carry out the strict quality management system, and win the global customers' satisfaction by the stable quality and reliable performance products at the most competitive price. Our products are exported to Europe, America, Australia and Korea etc. We have built long-term cooperation with Electrolux, LG, Samsung, etc.
With sincere services, we are expecting to link your hands to create a better tomorrow.
With sincere services, we are expecting to link your hands to create a better tomorrow.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(50.00%),South Asia(12.00%),Southeast Asia(9.00%),Western Europe(9.00%),North America(9.00%),Oceania(9.00%),Eastern Asia(2.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Defrost Thermostat,Bimetal Thermostat,Thermal Protector,Wire harness,NTC Temperature Sensor.
We are based in Shandong, China, start from 2003,sell to Domestic Market(50.00%),South Asia(12.00%),Southeast Asia(9.00%),Western Europe(9.00%),North America(9.00%),Oceania(9.00%),Eastern Asia(2.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Defrost Thermostat,Bimetal Thermostat,Thermal Protector,Wire harness,NTC Temperature Sensor.
And we can also provide customize service according to your demand.
4. why should you buy from us not from other suppliers?
We are a joint venture company from Korea and China, Thermostats and Electronic Sensors are our main products. With the stable quality and reliable performance, our products won the global customers' satisfaction, such as Electrolux, LG, Samsung, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
4. why should you buy from us not from other suppliers?
We are a joint venture company from Korea and China, Thermostats and Electronic Sensors are our main products. With the stable quality and reliable performance, our products won the global customers' satisfaction, such as Electrolux, LG, Samsung, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
