Vacuum Glass Lifting Equipment Vacuum Glass Lifter For Window Glass




Products Description

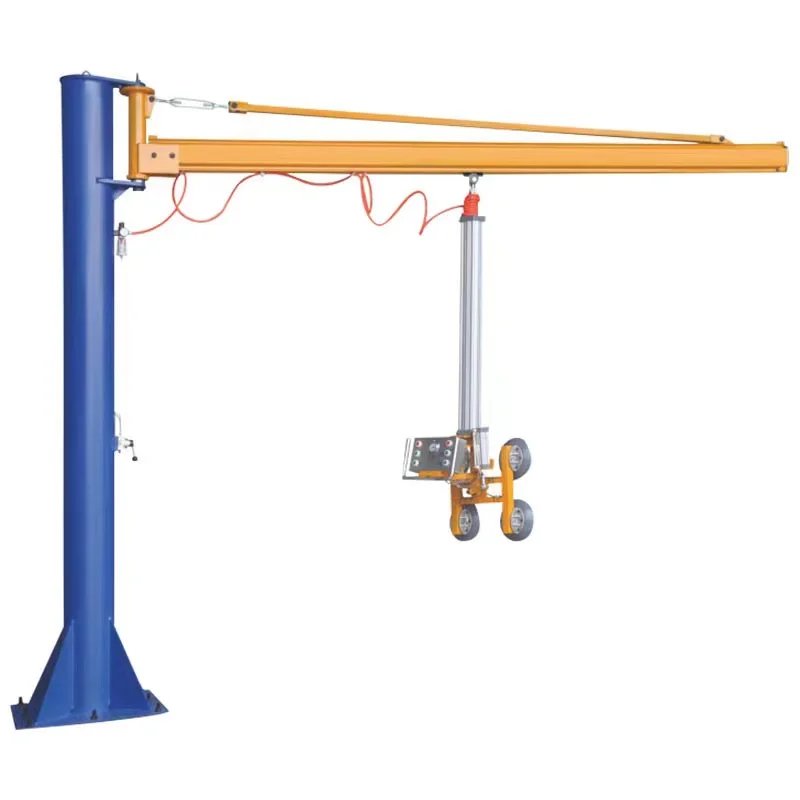

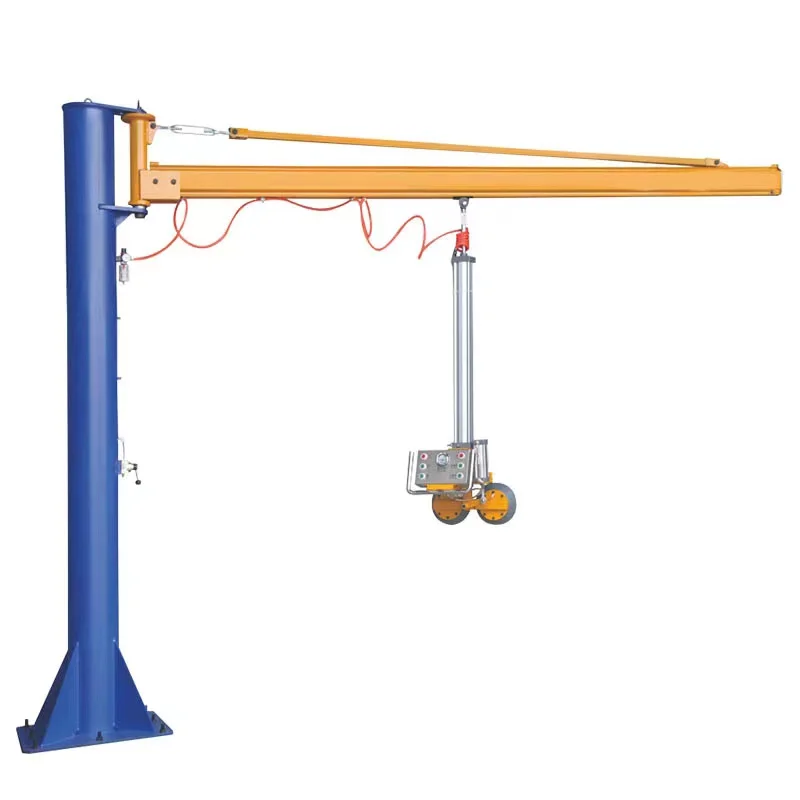

The glass lifter is used for handling and transferring various kinds of sheets, and widely used in glass deep processing industry.The lifter is composed of cantilever and handling arm, both part could be customized.




Product Parameters




Parameters
Model
CAPL-200
CAPL-300
CAPL-500
Rated load
200kg
300kg
500kg
Sucker diameter
250mm
250mm
250mm
Sucker qty
2
4
6
Sucker qty
0°-90°
0°-90°
0°-90°
Horizontal rotation
90°
90°
90°
Weight
50kg
100kg
150kg
Air pressure
>0.5bar
>0.5bar
>0.5bar
Note: customized load capacity available


Product detail




1、High-quality pneumatic components
2、Button operation, simple operation
3、Three cylinders respectively control the flip rotation and lifting, the lifting height can be customized, and the flip rotation can be omitted.


4、250mm diameter silicone suction cup
5、The suction cup can be used alone, and the center distance of the suction cup can be customized.
6、Columns can also be customized.


Product features




1, portable design and easy operation;
2, pneumatic driving and continuous working for 20 min without air;
3, glass sucker customized;
4, imported pneumatic spare parts;
5, air pressure testing and alarm once air cut off;

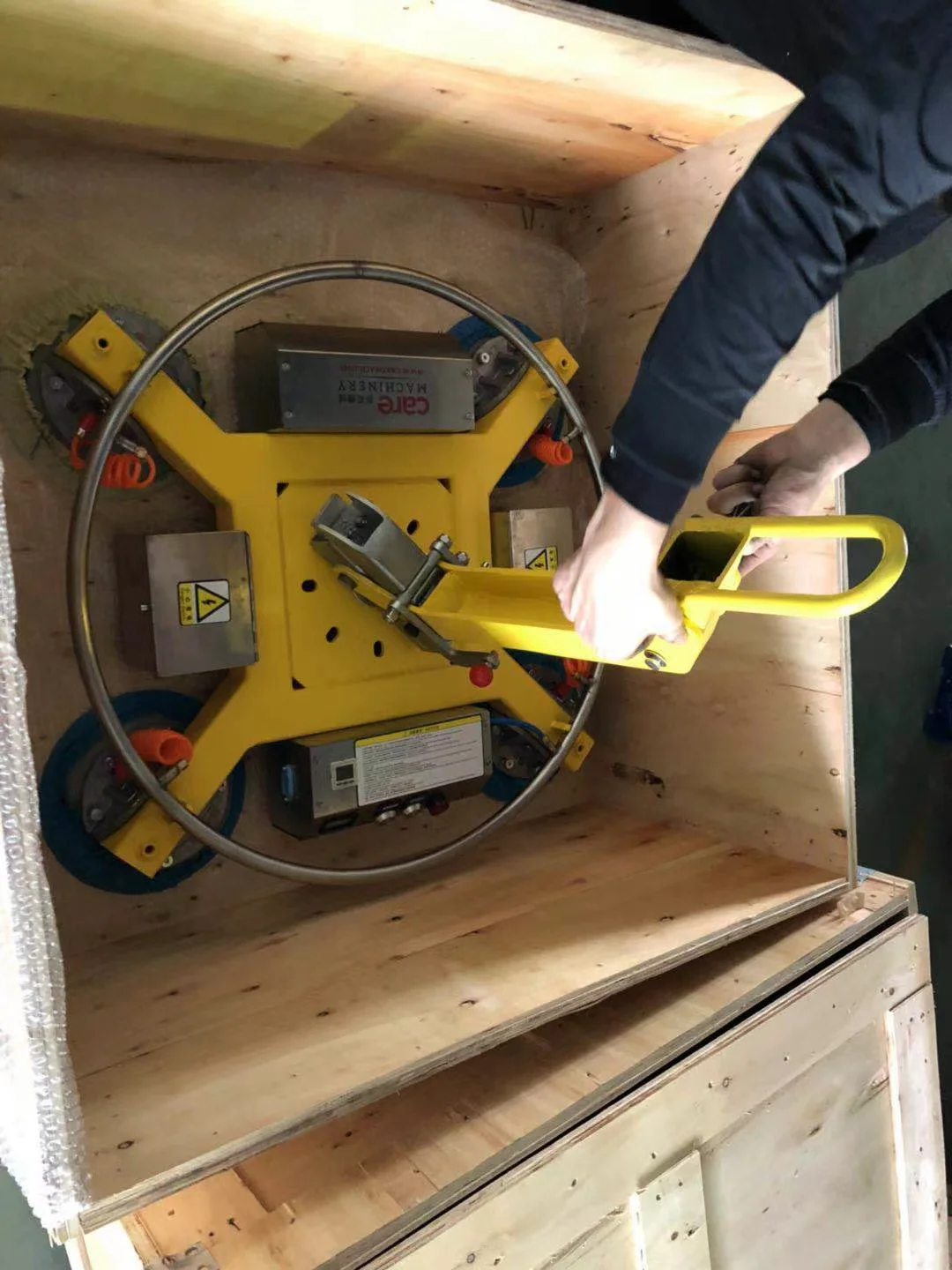

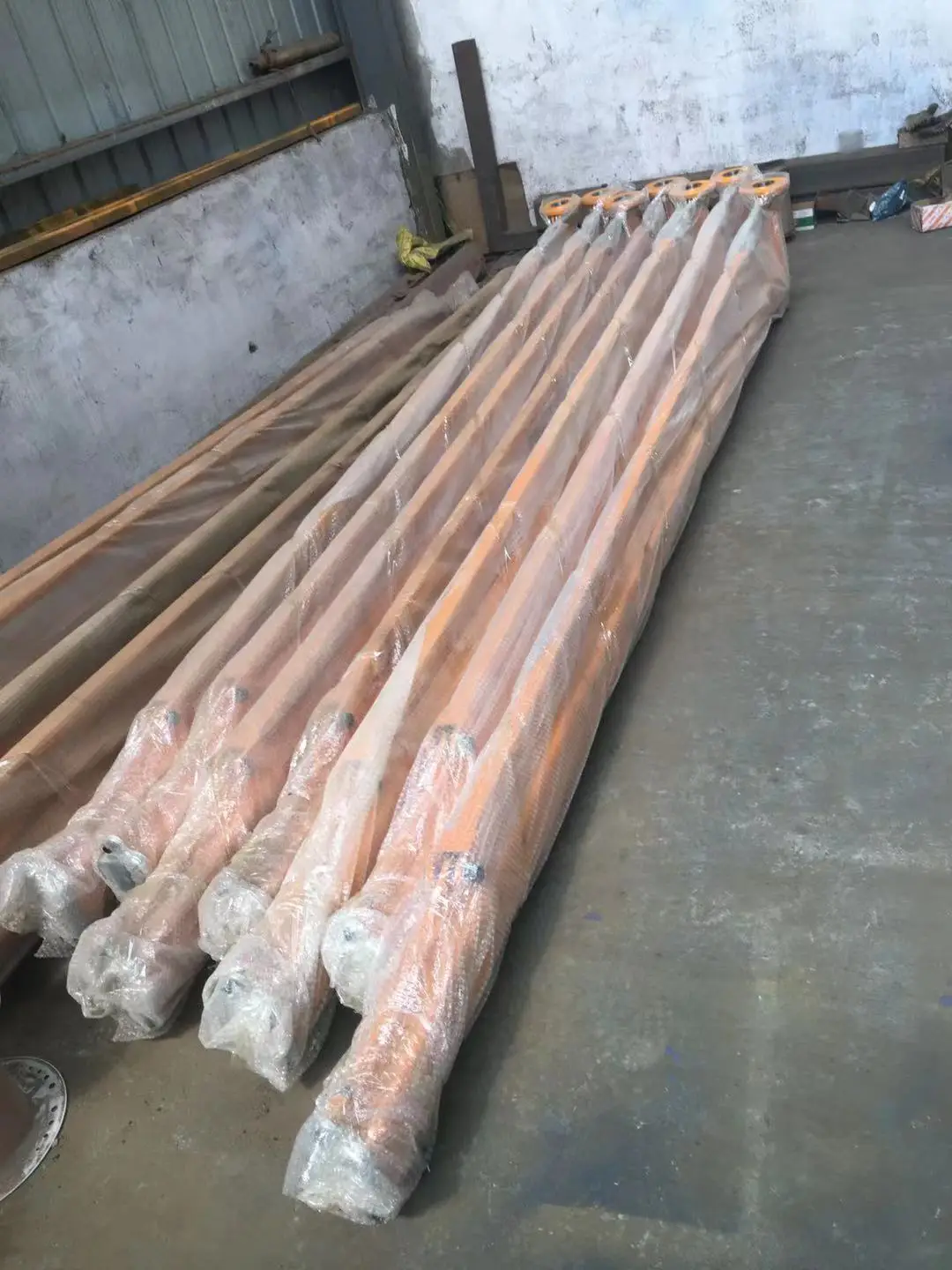

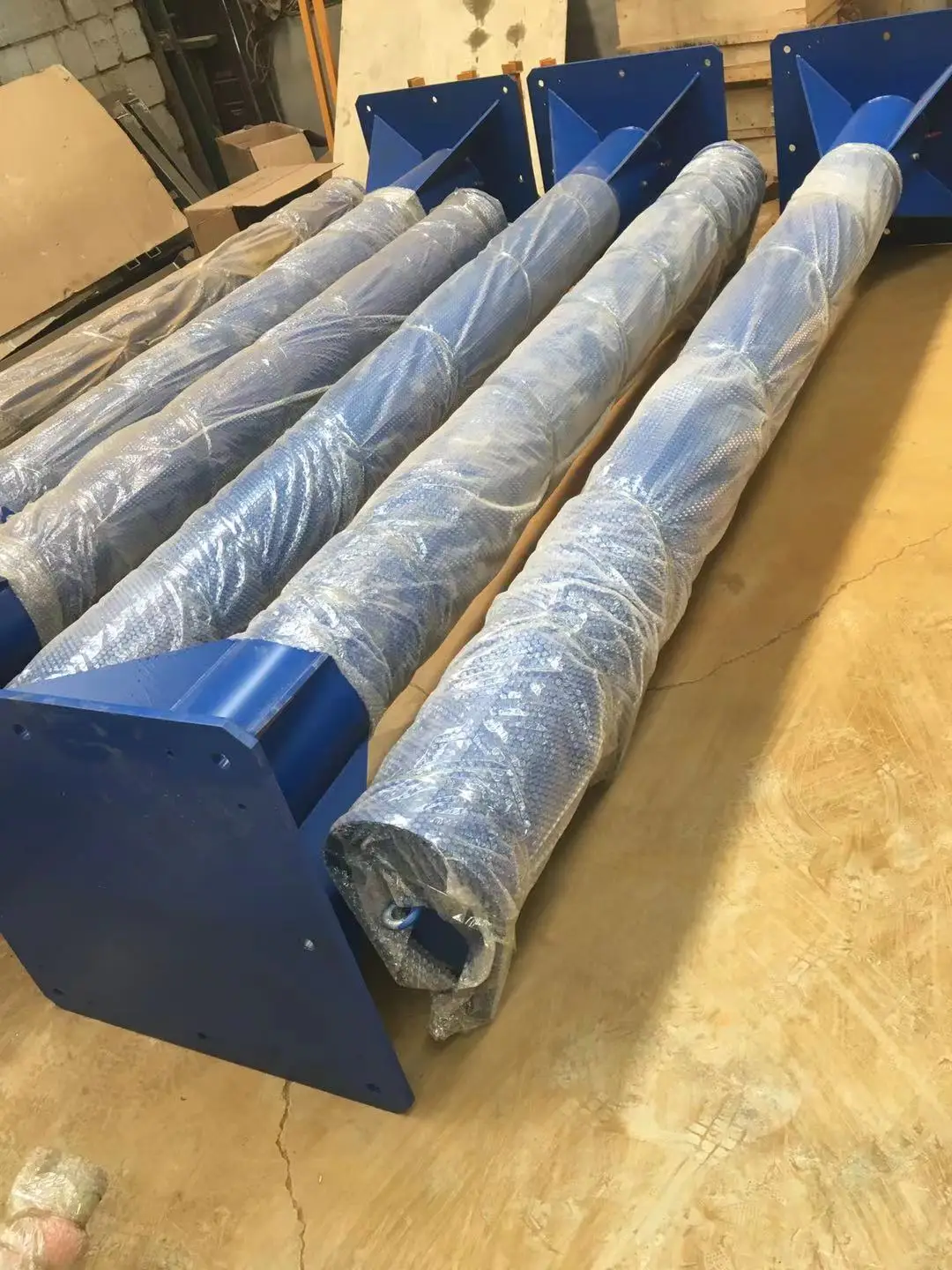

Product packaging
