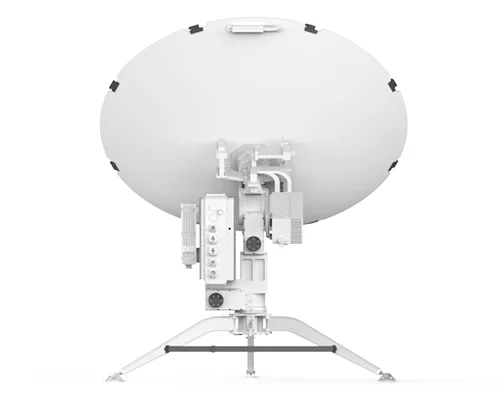

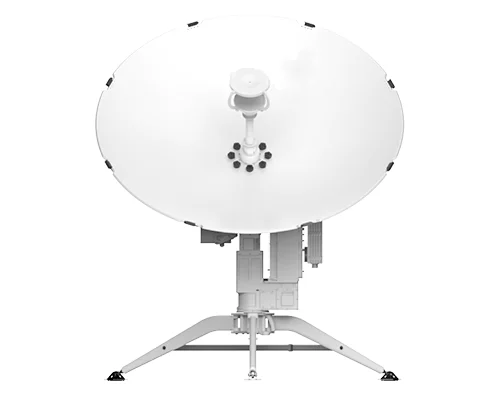

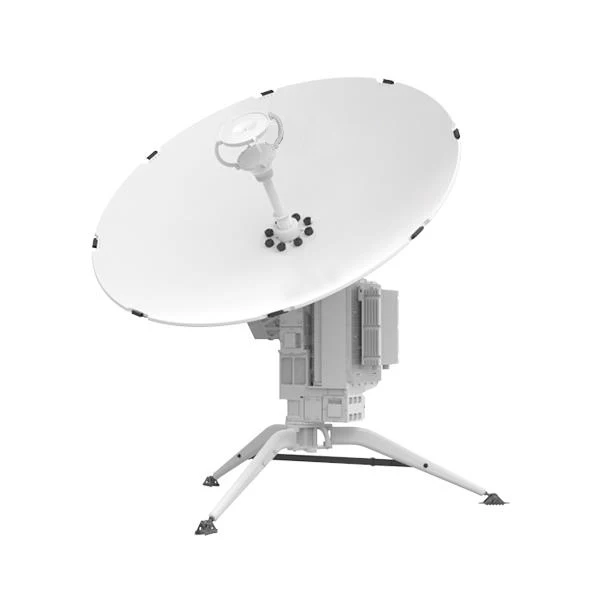

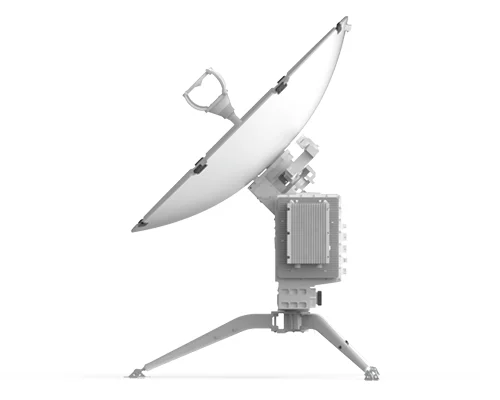

Высокое качество 0 9 м Авто Развернуть Flyaway антенна ku-диапазон двойной

Высокое качество 0 9 м Авто Развернуть Flyaway антенна ku-диапазон двойной

Категория: Communication Antenna >>>
Поставщик: Chengdu,Sanlianweixun,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.22 $*	0.73 $*
Aug-15-2025	0.4 $*	0.48 $*
Jul-15-2025	0.70 $*	0.0 $*
Jun-15-2025	0.68 $*	0.47 $*
May-15-2025	0.65 $*	0.83 $*
Apr-15-2025	0.10 $*	0.31 $*
Mar-15-2025	0.45 $*	0.82 $*
Feb-15-2025	0.83 $*	0.53 $*
Jan-15-2025	0.70 $*	0.91 $*

Характеристики

Products Description

A.Carbon fiber reflector with light weight, high strength and accuracy and R.M.S<0.3mm.
B.Support manual, manual and one button auto deploy acquisition satellite.
C.Easy acquisition without training and tools, satellite lock in 4 minutes.
D.Support C, X, Ku and Ka band.

System composition
Gregory dual offset antenna (with carbon fiber reflector),ku band corrugated horn, OMT and filter, AZ, EL, POL motor,Beacon
receiver, angle sensor .GPS.DVB. WiFi module. ATPC control board.
System feature
A.Carbon fiber reflector with light weight, high strength and accuracy and R.M.S<0.3mm.
B.Support manual, manual and one button auto deploy acquisition satellite.
C.Easy acquisition without training and tools, satellite lock in 4 minutes.
D.Support C, X, Ku and Ka band.
E.Support DVB-S1, DVB-S2, beacon and modem in satellite locking.

Type			FA900P-A1
Reflector aperture			0.9m
Tx frequency			13.75～14.50 GHz	7.25～7.75 GHz
Rx frequency			10.95～12.75 GHz	7.9～8.4 GHz
Tx gain			38.6+20lg(f/14.125) dBi	34.5+20lg(f/7.5) dBi
Rx gain			37.6+20lg(f/11.85) dBi	35.5+20lg(f/8.2) dBi
Polarization feature			Linear	Circular
Feed interface			WR75	WR112
Reflector type			Daual reflector, ring focus
Backpack			Size：650550350mm weight: 23Kg(without BUC)
				Size：650550350mm weight: 17Kg
Slewing area	Azimuth	± 180°
		Elevation	10°~90°
		Polarization	± 95°
Rotate speed	Azimuth	0.01° /S ～3° /S
		Elevation	0.01° /S ～3° /S
		Pol	1° /S

Main product category

Company Profile

Certifications

Product packaging

FAQ

Q1. Who are we?

Chengdu Shiningmw Technology Co., Ltd. is a high-tech enterprise specializing in R&D, production and sales of microwave passive components.

Q2.What products does the company develop and produce?

At present, the microwave passive components and components developed and produced by the company can be roughly divided into filters, diplexers, multiplexers; power divider; Rotating joint; directional couplers; Orthomode transducer; coaxial waveguide converters; waveguide/coaxial rotary joints; Moment/circular waveguide load; waveguide transitions, waveguide connectors; Phase Shifter/Circular polarizer/ Linear polarizer; circular polarization networks; "Satcom on the move" products

Q3.Can the company customize products?

According to the special requirements of users, our company can professionally design high-power passive components that are small in size, light in weight, excellent in performance, compact and stable in structure, suitable for high-altitude aircraft.

Q4. What is your MOQ (minimum order quantity) ?

We have no limit for MOQ.

Q5. What about delivery time?

Production finished within 1-30 days after receiving the deposit.

Q6. What about terms of payment?

Payment terms: T/T, west Union PayPal and L/C etc.

Q7.How you will send the products to us?

We will send the products to you by DHL, FEDEX, UPS, EMS, AIR etc.
