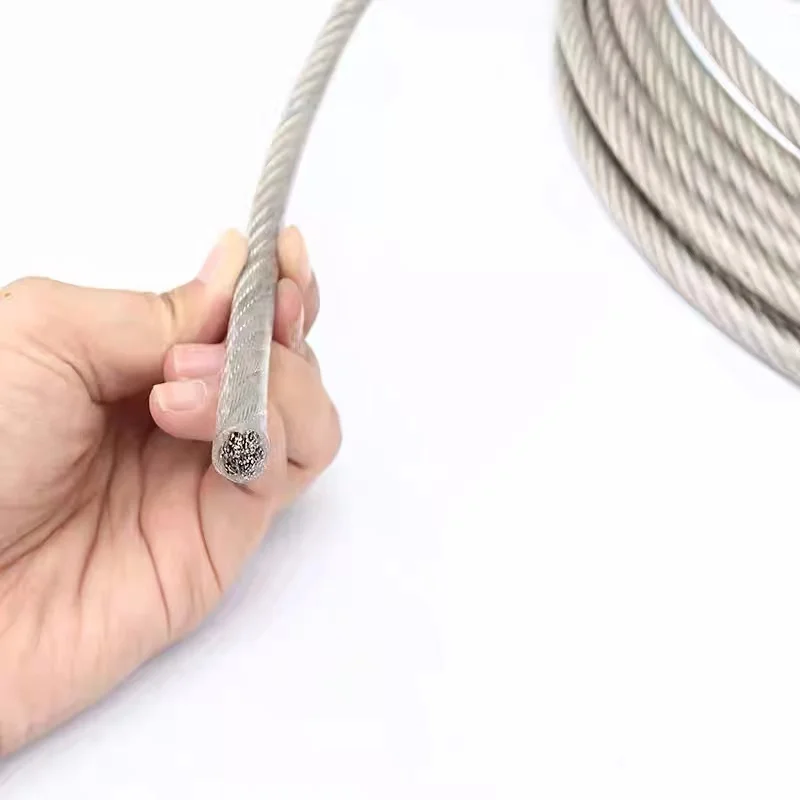

Проволочный Трос DIN3060 SUS316 из нержавеющей стали с прозрачным ПВХ нейлоновым покрытием 6x19 мм
- Категория: Stainless Steel Wire >>>
- Поставщик: Taizhou,Qiangda,Stainless,Steel,Wire,Rope,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.53 $* | 0.60 $* |
| Aug-19-2025 | 0.21 $* | 0.54 $* |
| Jul-19-2025 | 0.20 $* | 0.13 $* |
| Jun-19-2025 | 0.15 $* | 0.4 $* |
| May-19-2025 | 0.73 $* | 0.94 $* |
| Apr-19-2025 | 0.61 $* | 0.35 $* |
| Mar-19-2025 | 0.90 $* | 0.3 $* |
| Feb-19-2025 | 0.39 $* | 0.25 $* |
| Jan-19-2025 | 0.33 $* | 0.7 $* |
Характеристики
Steel Wire Rope Property Sheet:
Product Name | Stainless Steel Wire Rope | Grade | SS304、SS316、SS316L | ||
Diameter Range | 0.8-25mm | Specifications | 1x7、7x7、1x19、7x19 | ||
Surface | Galvanizing, cleaning and polishing | Customized | Support customization | ||
Applications | It is widely used in high-speed rail connecting line, guardrail curtain wall, fishing, automobile brake line, clothes hanger and other fields. | ||||
Specification For Stainless Steel Wire Ropes | ||||||||||
CONTURCTION COMPACTED STRAND 1x7 | ||||||||||
Product Code | Diameter (mm) | Min.Breaking Load (kn) | Weight Kg/100m | |||||||
1570/mm² | 1770/mm² | 1960/mm² | ||||||||
SS01(1x7) | 1.00 | 0.860 | 0.973 | 1.080 | 0.50 | |||||
SS12(1x7) | 1.20 | 1.240 | 1.401 | 1.550 | 0.72 | |||||
SS15(1x7) | 1.50 | 1.940 | 2.190 | 2.420 | 1.13 | |||||
SS18(1x7) | 1.80 | 2.800 | 3.150 | 3.490 | 1.62 | |||||
SS20(1x7) | 2.00 | 3.450 | 3.890 | 4.310 | 2.00 | |||||
SS22(1x7) | 2.20 | 4.180 | 4.710 | - | 2.42 | |||||
SS25(1x7) | 2.50 | 5.390 | 6.080 | - | 3.13 | |||||
SS30(1x7) | 3.00 | 7.770 | 8.750 | - | 4.50 | |||||
SS40(1x7) | 4.00 | 13.800 | - | - | 8.34 | |||||
SS50(1x7) | 5.00 | 21.600 | - | - | 13.10 | |||||
SS60(1x7) | 6.00 | 31.100 | - | - | 18.90 | |||||
CONTURCTION COMPACTED STRAND 1x19 | ||||||||||
Product Code | Diameter (mm) | Min.Breaking Load (kn) | Weight Kg/100m | |||||||
1570/mm² | 1770/mm² | 1960/mm² | ||||||||
SS01(1x19) | 1.00 | 0.820 | 0.930 | 1.030 | 0.50 | |||||
SS15(1x19) | 1.50 | 1.850 | 2.090 | 2.320 | 1.13 | |||||
SS20(1x19) | 2.00 | 3.300 | 3.720 | 4.120 | 2.00 | |||||
SS25(1x19) | 2.50 | 5.150 | 5.810 | - | 3.13 | |||||
SS30(1x19) | 3.00 | 7.420 | 8.360 | - | 4.50 | |||||
SS40(1x19) | 4.00 | 13.190 | - | - | 8.00 | |||||
SS50(1x19) | 5.00 | 20.610 | - | - | 12.50 | |||||
SS60(1x19) | 6.00 | 29.700 | - | - | 18.00 | |||||
SS80(1x19) | 8.00 | 52.800 | - | - | 32.00 | |||||
SS100(1x19) | 10.00 | 82.400 | - | - | 50.00 | |||||
SS120(1x19) | 12.00 | 118.700 | - | - | 72.00 | |||||
SS160(1x19) | 16.00 | 211.000 | - | - | 128.00 | |||||
SS200(1x19) | 20.00 | 330.000 | - | - | 200.00 | |||||
CONTURCTION COMPACTED STRAND 7x7 | ||||||||||
Product Code | Diameter (mm) | Min.Breaking Load (kn) | Weight Kg/100m | |||||||
1570/mm² | 1770/mm² | 1960/mm² | ||||||||
SS01(7x7) | 1.00 | 0.520 | 0.590 | 0.650 | 0.36 | |||||
SS15(7x7) | 1.50 | 1.170 | 1.330 | 1.460 | 0.81 | |||||
SS20(7x7) | 2.00 | 2.080 | 2.350 | 2.600 | 1.44 | |||||
SS25(7x7) | 2.50 | 3.260 | 3.670 | 4.070 | 2.25 | |||||
SS30(7x7) | 3.00 | 4.690 | 5.290 | 5.860 | 3.24 | |||||
SS40(7x7) | 4.00 | 8.340 | 9.400 | 10.400 | 5.76 | |||||
SS50(7x7) | 5.00 | 13.030 | 14.700 | 16.300 | 9.00 | |||||
SS60(7x7) | 6.00 | 18.800 | 21.200 | - | 12.96 | |||||
SS80(7x7) | 8.00 | 33.400 | 37.600 | - | 23.04 | |||||
SS100(7x7) | 10.00 | 52.100 | 58.800 | - | 36.00 | |||||
SS120(7x7) | 12.00 | 75.100 | 84.600 | - | 51.84 | |||||
SS160(7x7) | 16.00 | 133.400 | - | - | 92.16 | |||||
SS200(7x7) | 20.00 | 210.000 | - | - | 144.00 | |||||
CONTURCTION COMPACTED STRAND 7x19 | ||||||||||
Product Code | Diameter (mm) | Min.Breaking Load (kn) | Weight Kg/100m | |||||||
1570/mm² | 1770/mm² | 1960/mm² | ||||||||
SS15(7x19) | 1.50 | 1.090 | 1.220 | 1.350 | 0.81 | |||||
SS20(7x19) | 2.00 | 1.920 | 2.170 | 2.400 | 1.44 | |||||
SS25(7x19) | 2.50 | 3.010 | 3.390 | 3.750 | 2.25 | |||||
SS30(7x19) | 3.00 | 4.340 | 4.890 | 5.420 | 3.24 | |||||
SS40(7x19) | 4.00 | 7.710 | 8.690 | 9.630 | 5.76 | |||||
SS50(7x19) | 5.00 | 12.050 | 13.580 | 15.040 | 9.00 | |||||
SS60(7x19) | 6.00 | 17.400 | 19.600 | 21.700 | 12.96 | |||||
SS80(7x19) | 8.00 | 30.800 | 34.800 | 38.500 | 23.04 | |||||
SS100(7x19) | 10.00 | 48.200 | 54.300 | 60.200 | 36.00 | |||||
SS120(7x19) | 12.00 | 69.400 | 78.200 | - | 51.84 | |||||
SS160(7x19) | 16.00 | 123.400 | 139.100 | - | 92.16 | |||||
SS200(7x19) | 20.00 | 193.000 | - | - | 144.00 | |||||
SS220(7x19) | 22.00 | 232.800 | - | - | 174.24 | |||||
SS240(7x19) | 24.00 | 277.000 | - | - | 207.36 | |||||
More specifications available：
Why Choose Us:

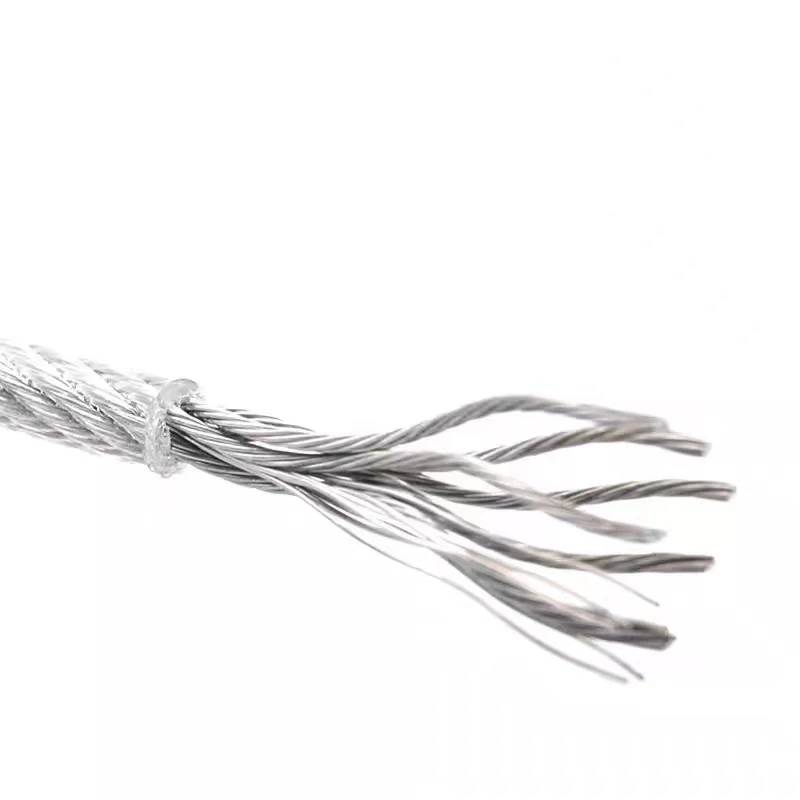

When the steel wire rope is cut off, each strand and each steel wire will not be scattered, and its own position and twist distance will still be maintained
Scientific and technological achievements, professional production lines and complete equipment ensure the smooth production process
Use professional testing equipment to strictly test the tensile force of products to ensure that products meet customer requirements
MORE PRODUCTS
COMPANY PROFILE
The company is a professional manufacturer of stainless steel wire rope, plastic coated wire rope, invisible anti-theft net wire rope, railway wire rope, galvanized wire rope, stainless steel bright wire, hydrogen retreating wire, rigging and other products.
With strong production technology and complete testing equipment, it has an annual production capacity of 6000 tons of stainless steel wire rope, 1000 tons of galvanized steel wire rope and 2000 tons of stainless steel wire. Its products are exported to dozens of countries and regions overseas. The factory takes the quality policy of "scientific management, brand creation, development through innovation and service for customers" as its purpose, pays close attention to the market demand, develops
continuously, and introduces many varieties and specifications of stainless steel wire rope and steel wire to the market. The diameter of stainless steel wire rope products is 0.5-46mm, and its strength and toughness meet the German standard, American standard and national standard, and win the wide trust of new and old customers.
continuously, and introduces many varieties and specifications of stainless steel wire rope and steel wire to the market. The diameter of stainless steel wire rope products is 0.5-46mm, and its strength and toughness meet the German standard, American standard and national standard, and win the wide trust of new and old customers.
CERTIFICATE
With ISO9002 as the standard, the company has established a quality system and operated effectively. Stainless steel wire rope products are widely used in operation, railway, bridge, construction, decoration, high lift tower crane, crane, conveyor belt, aviation and other important places. Enterprises with its quality products, to the international market.
Packing & Delivery
Exhibition
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship
forwarder, we can help you.
forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we
will offer you a reasonable price and make samples for you ASAP.
will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will
arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ？
arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ？
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to
get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
