ITeaQ Power новый дизайн модульный ибп мощностью 20 кВА 40 60 80 100 120 для сети и
- Категория: >>>
- Поставщик: Shenzhen,Iteaq,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1189699.85 $* | 1213493.22 $* |
| Jul-16-2025 | 964874.8 $* | 984171.9 $* |
| Jun-16-2025 | 1170964.89 $* | 1194383.29 $* |
| May-16-2025 | 1161596.14 $* | 1184828.7 $* |
| Apr-16-2025 | 927403.77 $* | 945951.63 $* |
| Mar-16-2025 | 1142861.21 $* | 1165718.61 $* |
| Feb-16-2025 | 1133493.96 $* | 1156163.96 $* |
| Jan-16-2025 | 1124125.50 $* | 1146608.63 $* |
Характеристики
iTeaQ Power New design Frame Mounted UPS Power 20kVA 40kVA 60kVA 80kVA 100KVA 120KVA for Network cabinet computer room IDC room

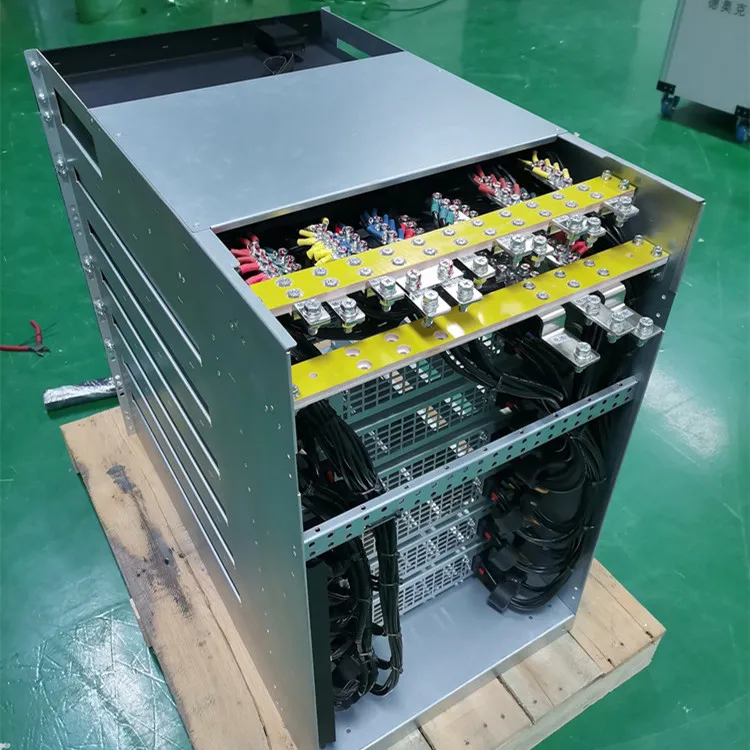

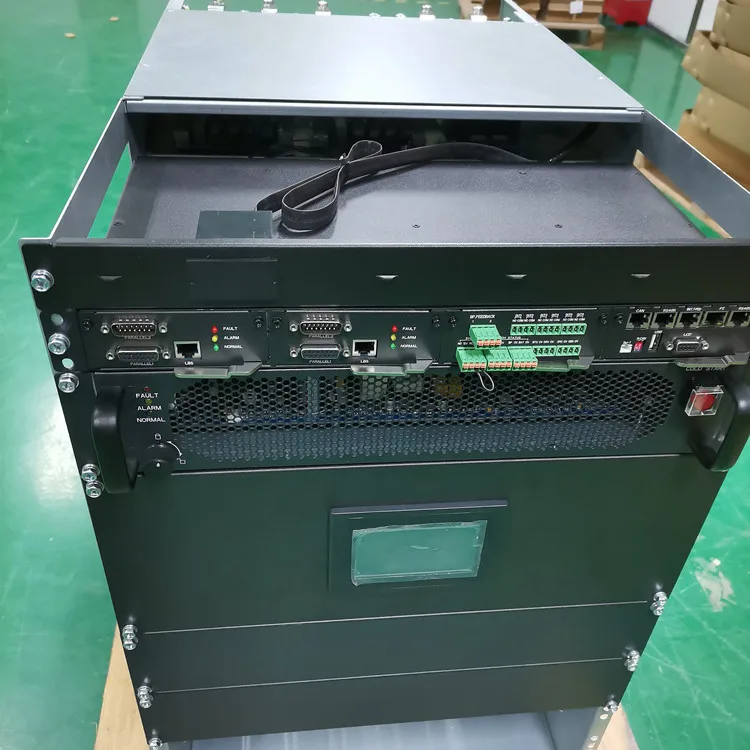

Frame Mounted UPS

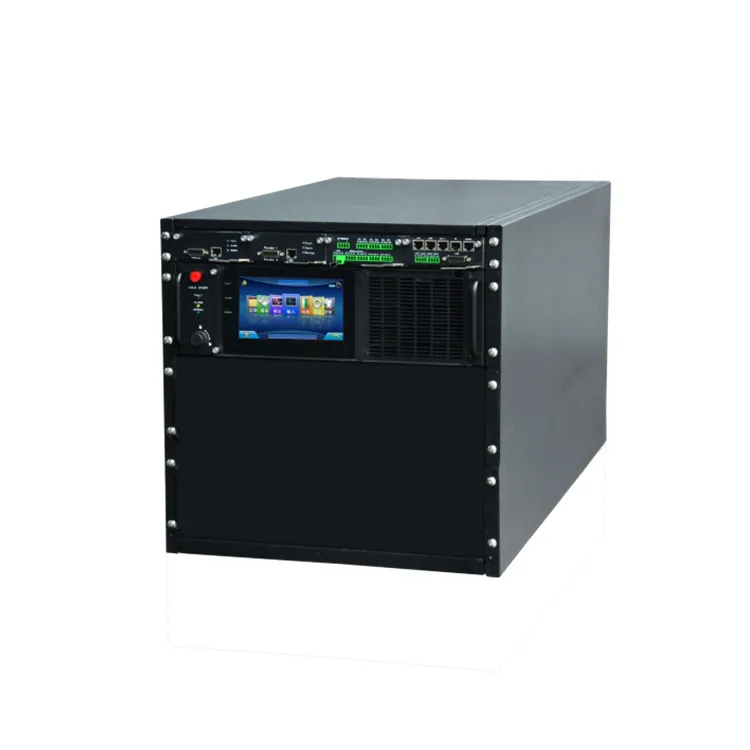

FM33 20-180kVA Frame Mounted UPS
Introduction:
FM33 20-180kVA uses frame design, suitable for standard 19 inches network cabinet. It adopts online double conversion technology, which can completely eliminate all kinds of grid problems and provide customers with stable and pure sinusoidal power supply protection.
Scenarios:
Standard 19 inches network cabinet of computer room, IDC room, integrated comprehensive cabinet, etc.
Features:
1.Frame mounted design
2.Wide input voltage range
3.Online double conversion and three level technology
4.DSP digital control technology
5.Output power factor 0.9
6.N+X redundancy
7.Communications: RS485/Relay card/USB/SNMP option
8.The number of battery cells is 30-50 adjustable
Benefits:
1.Wide input voltage range adapt to harsh power grid
2.DSP technology greatly improve the system reliability
3.4.3-inch color touch screen, graphic display, easy to operate
4.Intelligent battery management extend battery life
| Model | FM33060 | FM33120 | FM33180 | ||
| Capacity | Frame | 20~60kVA | 20~120kVA | 20~180kVA | |
| Module | 20kVA/25kVA/30kVA | ||||
| Max. Module Number | 2 | 4 | 6 | ||
| Input | Phase | 3 Phase 4 Wires and Ground | |||
| Rated Voltage | 380/400/415Vac | ||||
| Voltage Range | 138~485Vac | ||||
| Frequency Range | 40Hz-70Hz | ||||
| Power Factor | ≥0.99 | ||||
| Current THDi | ≤3%(100% linear load) | ||||
| Bypass Voltage Range | Max.voltage: 220V:+25 %( optional +10%, +15%, +20%); 230V:+20 %( optional +10%, +15%); 240V:+15 %( optional +10%);Min. voltage: -45% (optional -20%,-30%) | ||||
| Frequency protection range: ±10% | |||||
| Generator access | Yes | ||||
| Output | Phase | 3 Phase 4 Wires and Ground | |||
| Rated Voltage | 380/400/415Vac | ||||
| Power Factor | 0.9 or 1 | ||||
| Voltage Regulation | ±1% | ||||
| Frequency | Utility Mode | ±1%,±2%,±4%,±5%,±10% of the rated frequency(optional) | |||
| Battery Mode | (50/60±0.1%)Hz | ||||
| Crest Factor | 3:1 | ||||
| THD | ≤2% with linear load, ≤5% with non linear load | ||||
| Efficiency | 96% | ||||
| Overload | ≤ 110%: to bypass after 60 min, ≤ 125%: to bypass after 10 min, ≤ 150%: to bypass after 1 min | ||||
| Battery | Voltage | ±180V/192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc(30/32/34/36/38/40/42/44/46/48/50pcs optional) | |||
| Charging Current | UPS Cabinet | 20A Max. | 40A Max. | 60A Max. | |
| UPS Module | 10A Max. | ||||
| Transfer Time | Utility to Battery : 0ms; Utility to bypass: 0ms | ||||
| Protection | Alarm | overload, utility abnormal, UPS fault, battery low, etc | |||
| Protection | short circuit, overload, over temperature, battery low, fan fault alarm | ||||
| Communication Interface | RS232, RS485, Intelligent slot x 2, Dry Contact,SNMP | ||||
| Environment | Operating Temperature | 0℃~40℃ | |||
| Storage Temperature | -25℃~55℃ | ||||
| Humidity | 0~95% non condensing | ||||
| Altitude | < 1500m | ||||
| Other | Unit Dimensions(D*W*H) | Frame | 780x485x487 | 780x485x663 | 810x485x755 |
| Module | 620x440x86mm | ||||
| Weight (Kg) | Frame | 45 | 60 | 80 | |
| Module | 20.8/21/21 | ||||
| Standards | EN62040-1, EN62040-2 | ||||
Pictures
Hot Selling Products
Click the picture to get the related link
Company Information
Company
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
iTeaQ Power office , Exhibition,and UPS producing workshop showing:

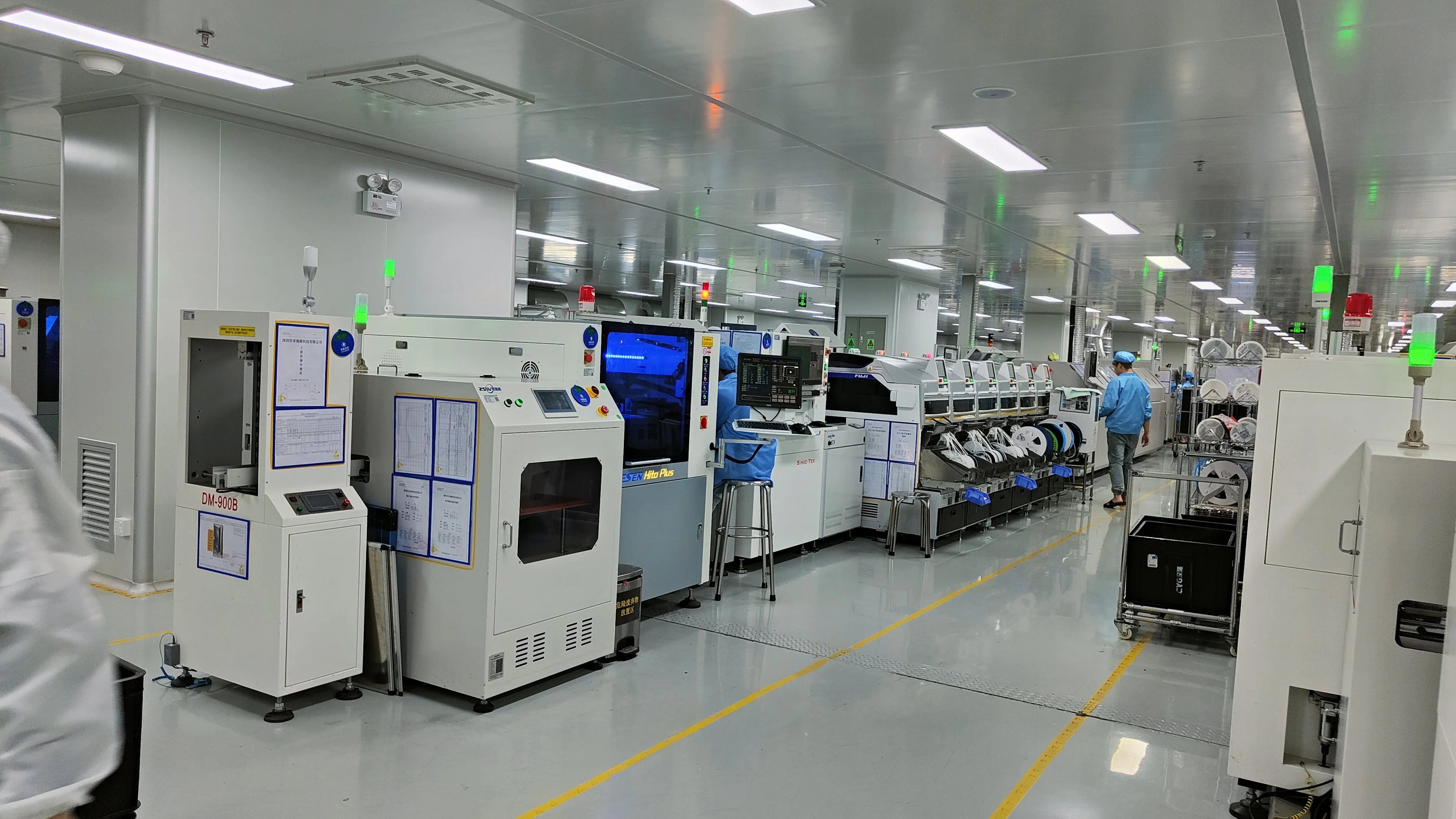

iTeaQ Power PCBA producing
with the most advanced technology and management

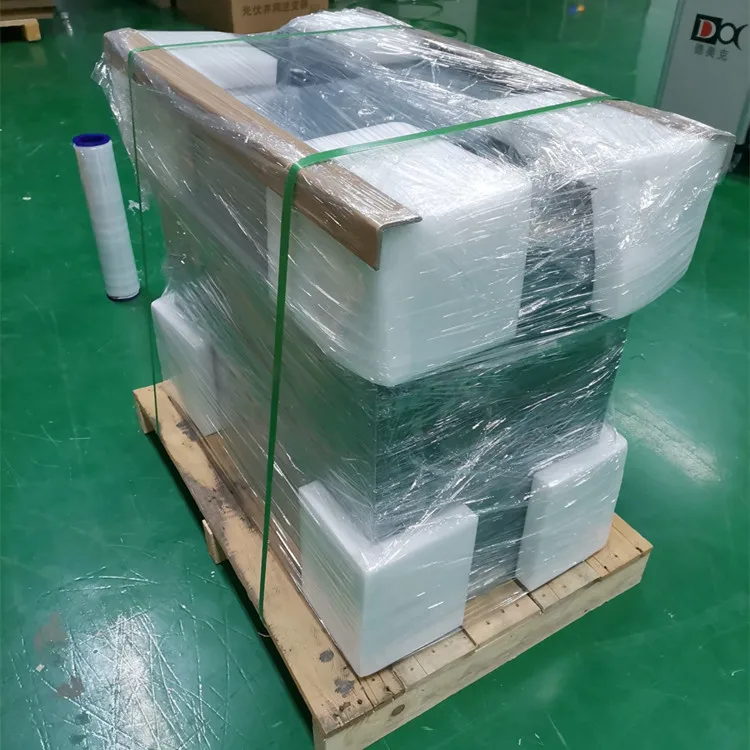

Packaging & Shipping
*UPS on Pallet with standard export carton
*According to the size and weight , we suggest deliver the UPS by sea
*To protect the Module and cabinet during delivery, we will pack the Modules seperately
Why Choose us
1. Professional R&D center: Employed designers with at least more than 10 years working experience in UPS power. Our products always keep the same pace with the markets. OEM and ODM are warmly welcomed.
2. High quality: Using high quality material and establishing a strict quality control system, such as we use branded breaker, assigning specific persons in charge of each part of production,from raw material purchase to assembly.
3. Original factory , you can get the best price and service
4. Fast dispatch: Can deliver the goods within 1 month.
5. Small Moq: 1pcs is acceptable
