Изолирующее стекло алюминиевый гибочный станок распорный для

Изолирующее стекло алюминиевый гибочный станок распорный для

Категория: Glass Processing Machinery >>>
Поставщик: Jinan,Ever,View,Machinery,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.1 $*	0.60 $*
Aug-18-2025	0.97 $*	0.77 $*
Jul-18-2025	0.4 $*	0.53 $*
Jun-18-2025	0.92 $*	0.96 $*
May-18-2025	0.31 $*	0.39 $*
Apr-18-2025	0.56 $*	0.22 $*
Mar-18-2025	0.32 $*	0.46 $*
Feb-18-2025	0.87 $*	0.96 $*
Jan-18-2025	0.63 $*	0.79 $*

Характеристики

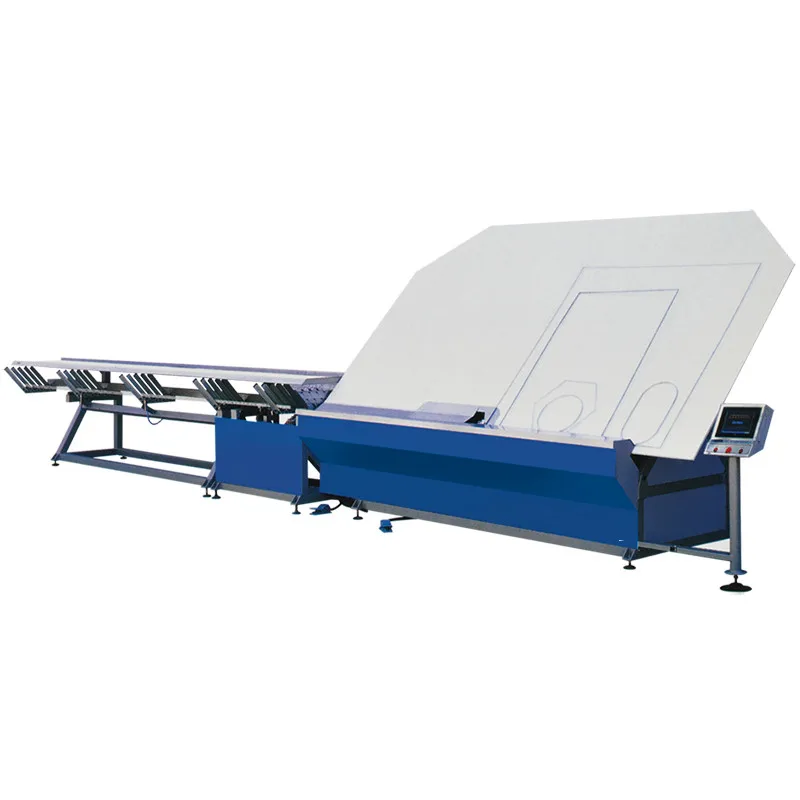

Aluminum Spacer Bending Machine for Double Glazing Making Machine

Product Parameters

Power supply				380V 50Hz 3P (or customized)
Total power			3.5 kw
Working parameters	Aluminum spacer width		5.5-26.5mm
		Feeding speed		120 m/min
		Air pressure		0.4-0.6 MPa
		Max processing size		2000x2000 mm
Dimension	L×W×H (mm)		10500×2100×2200

Product detail

01.

Automatic continuous access to aluminum strip, automatic joint recognition, in order to prevent waste material.

02.

Automatic feeding, automatic continuous access, automatic cutting, automatic aluminum spacer bar corner.

03.

Advanced auto dispensing butyl system, optional from 6-18 mm.

04.

The machine can make many shapes, like quadrilateral and circular, trapezoidal, arched, polygonal.

05.

World famous brands of key components, ensure stable operation and long service life.

Product features

1. PLC controlling system, touching screen operation;
2.CNC servo motor feeding and bending;
3. World famous brands of key components, ensure stable operation and long service life;
4. Automatic adjustment of processing speed according to aluminum spacer size;
5. Workable for square, retangle and avrious abnormal shaped;

Product flow
