Новое поступление 2021 Двухдиапазонные порты GPON ONU ONT HS8546V5 4GE AC Wi-Fi 2 4 ГГц 5 аналог
- Категория: Telecommunications >>>
- Поставщик: Guangzhou,Queenton,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.71 $* | 0.16 $* |
| Aug-17-2025 | 0.30 $* | 0.4 $* |
| Jul-17-2025 | 0.7 $* | 0.57 $* |
| Jun-17-2025 | 0.8 $* | 0.80 $* |
| May-17-2025 | 0.68 $* | 0.2 $* |
| Apr-17-2025 | 0.27 $* | 0.58 $* |
| Mar-17-2025 | 0.21 $* | 0.27 $* |
| Feb-17-2025 | 0.27 $* | 0.57 $* |
| Jan-17-2025 | 0.28 $* | 0.47 $* |
Характеристики
2021 NEW ARRIVAL GPON ONU ONT HS8546V5 4GE ports dual band AC WIFI 2.4G 5G same as EG8145V5
Solution
Product Description
Product introduce:
The HS8546V5 optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The HS8546V5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, The HS8546V5 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
The HS8546V5 Provide English firmware and EU, US, UK, AU Power adapter for your choice.
Product Parameter:
Dimensions(W x D x H) | 156 mm x 125 mm x 30 mm |

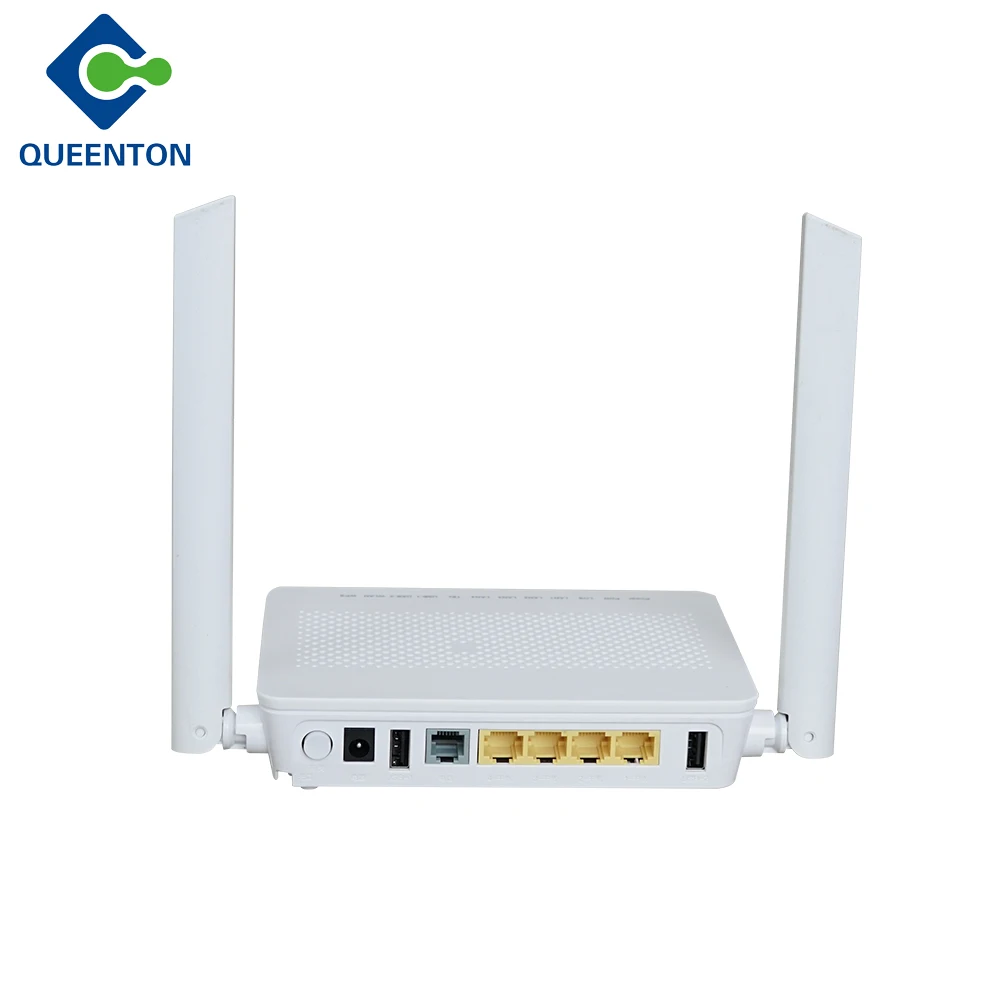

Port | 1POTS+3GE+1GE+1USB+Wi-Fi 2dbi / 5dbi |
Average power consumption | 8 W |
Operating environment Temperature | 0℃~+40℃ |
Humidity | 5%–95%, non-condensing |
Power supply;Adapter input | 100–240 V AC, 50–60Hz |
Adapter output | 11–14 V DC, 1 A |
Weight | About 500g (including the power adapter) |
Product Highlights:
1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dial up emulation initiated by the NMS.
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.
5. Green energy-saving: 25% power consumption is saved with highly integrated system on chip set (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.
Product Function
Key Feature | |
Maintenance features
| *Local management using Web and remote management using TR069 and OMCI |
*Optical power monitoring | |
*802.1ag Ethernet OAM | |
*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation | |
Green energy-saving features
| *Dynamic power consumption adjustment |
*With a backup battery, the guaranteed services can be selected flexibly | |
GPON features
| *Class B+ optical module |
*Security authentication mode: SN, | |
password or SN+password | |
*Upstream/downstream FEC | |
Routing features
| *NAT function |
*Internet, IPTV and VoIP services are automatically bound to ONT ports | |
*Virtual server, port trigger, DMZ,and DDNS | |
Reliability features
| *Dual systems for software protection |
*Type B protection and rogue ONT detection | |
*Lithium battery backup and backup battery monitoring | |
Voice features
| *SIP and H.248 protocols |
*Media stream and signaling stream separation | |
Multicast features | *IGMP V2&V3 snooping/IGMP proxy |
Wi-Fi features | *802.11b/g/n, certified by the Wi-Fi Alliance |
Why Choose Us
Contact Victor
Company Information
Packaging & Shipping
FAQ
| Q1:What is your main products? |
A:Our company,Queenton supply ONUs,OLTs,Business Board,and fiber optic accessories,like fast connectors,adapters,splitters,drop cable,patch cord... |
Q2. What is your payment terms? |
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance. |
| Q3. Can we get free samples? |
A:Sorry,it is not available for initial order. |
Q4What is your terms of trade? |
A: We offer EXW,FOB,CIF and CNF or as your request. |
| Q5:How long is the warranty? |
A:ONUs and OLTs have 1 year warranty. |
Q6. How about your delivery time? |
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster. |
| Q7. Do you test all your goods before delivery? |
A:Yes, we have professional engineer to test all devices before shipping. |
Q8: How do you make our business long-term and good relationship? |
A: 1. We keep good quality and steady price to ensure our customers benefit ; |
